| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD1IVN27A-QXTVS DIODE 27VWM 45VC SOD323 |
3,000 | 0.48 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | Automotive, CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD5V0F2UTRTVS DIODE 5VWM TO236AB |
9,092 | 0.48 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | 5V | - | - | - | - | No | General Purpose | - | - | Surface Mount |
|
|
PESD3V3X2UTRTVS DIODE 3.3VWM TO236AB |
5,795 | 0.48 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | 3.3V | - | - | - | - | No | General Purpose | - | - | Surface Mount |
|
PESD1NFC-L315TVS DIODE |
50,000 | 0.09 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PESD2IVN48T-QRTVS DIODE 48VWM 67VC TO236AB |
3,000 | 0.10 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 48V (Max) | 56V | 67V (Typ) | 3.5A (8/20µs) | - | No | Automotive | 7.1pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD2CANFD24V-QCZTVS DIODE 24VWM 42VC DFN1412D-3 |
42,562 | 0.50 |
RFQ |
Datasheet |
3-XDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 24V (Max) | 25.5V | 42V | 2.6A (8/20µs) | - | No | Automotive, CAN | 5.2pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
PTVS58VS1UR,115TVS DIODE 58VWM 93.6VC SOD123W |
221,114 | 0.41 |
RFQ |
Datasheet |
SOD-123W | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | Automotive | - | -55°C ~ 150°C (TA) | Surface Mount |
|
PESD4USB5B-TBRXTVS DIODE 5VWM DFN2510A-10 |
10,000 | 0.47 |
RFQ |
Datasheet |
10-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 5V (Max) | - | - | 7A (8/20µs) | - | - | HDMI, USB | - | - | Surface Mount |
|
|
PESD4USB3B-TBRXTVS DIODE 3.3VWM DFN2510A-10 |
9,950 | 0.47 |
RFQ |
Datasheet |
10-XFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 3.3V (Max) | - | - | 7A (8/20µs) | - | No | HDMI, USB | - | - | Surface Mount |
|
PESD5V0F5UV115TVS DIODE |
112,752 | 0.14 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PESD5V0S2BT,215TVS DIODE 5VWM 14VC TO236AB |
43,673 | 0.49 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|

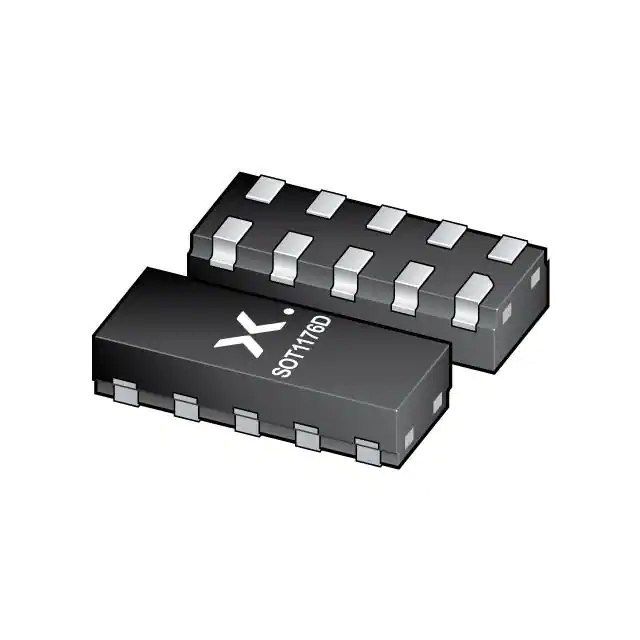

PESD4USB3B-TBSXTVS DIODE 3.3VWM 5.5VC 10DFN |
15,985 | 0.42 |
RFQ |
Datasheet |
10-WFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 4 | - | 3.3V (Max) | 6V | 5.5V (Typ) | 7A (8/20µs) | - | No | Automotive, HDMI, USB | 0.24pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
|
PESD4USB5B-TBSXTVS DIODE 5VWM 5.5VC DFN2510D-10 |
4,282 | 0.42 |
RFQ |
Datasheet |
10-WFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 4 | - | 5V (Max) | 6V | 5.5V (Typ) | 7A (8/20µs) | - | No | Automotive, HDMI, USB | 0.24pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
|
PESD2ETH1GXT-QRTVS DIODE 24VWM TO236AB |
28,300 | 0.53 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 24V (Max) | - | - | 2.3A (8/20µs) | - | No | General Purpose | 7.7pF @ 1MHz | 150°C (TJ) | Surface Mount |
|

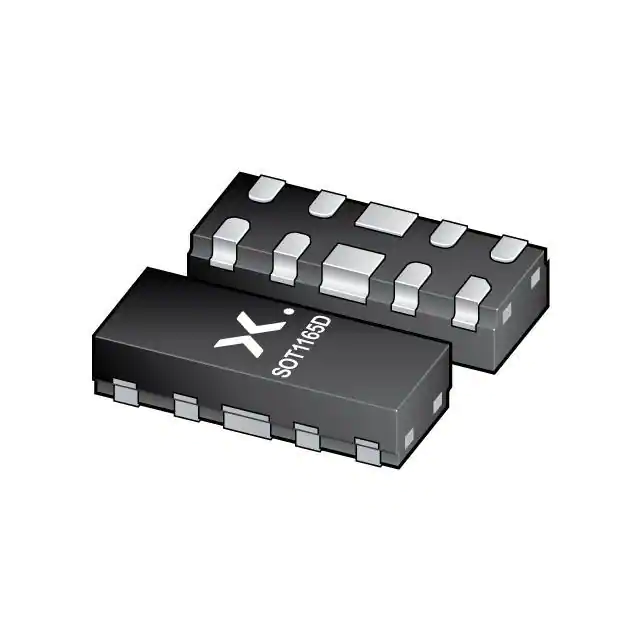

PESD4USB3B-TTSXTVS DIODE 3.3VWM 5.5VC 10DFN |
15,940 | 0.44 |
RFQ |
Datasheet |
10-WFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 4 | - | 3.3V (Max) | 6V | 5.5V (Typ) | 7A (8/20µs) | - | No | Automotive, HDMI, USB | 0.24pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
|
PESD4USB5B-TTSXTVS DIODE 5VWM 5.5VC DFN2510D-10 |
11,175 | 0.44 |
RFQ |
Datasheet |
10-WFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 4 | - | 5V (Max) | 6V | 5.5V (Typ) | 7A (8/20µs) | - | No | Automotive, HDMI, USB | 0.24pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
|
PESD4USB5U-TTSXTVS DIODE 5VWM 3.5VC DFN2510D-10 |
5,257 | 0.55 |
RFQ |
Datasheet |
10-WFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 4 | - | 5V (Max) | 6V | 3.5V (Typ) | 7A (8/20µs) | - | No | Automotive, HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount, Wettable Flank |
|
PRTR5V0U2X,215TVS DIODE 5.5VWM SOT143B |
35,521 | 0.53 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | General Purpose | 1pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
PESD4V0C1BSFYLTVS DIODE |
9,000 | 0.06 |
RFQ |
- | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PESD12VL1BSLAZTVS DIODE 12VWM 19VC DFN1006-2 |
9,777 | 0.22 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 1 | - | 12V (Max) | 13V | 19V | 7.3A (8/20µs) | - | No | General Purpose | 7.7pF @ 1MHz | 125°C (TJ) | Surface Mount |
