| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
SZ1SMB43AT3GTVS DIODE 43VWM 69.4VC SMB |
8,675 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 8.6A | 600W | No | Automotive | 400pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
TPSMB24CATVS DIODE 20.5VWM 33.2VC DO214AA |
5,925 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TPSMB | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 18.4A | 600W | No | Automotive | - | -65°C ~ 175°C (TJ) | Surface Mount |
|
|
TPSMB56CATVS DIODE 47.8VWM 77VC DO214AA |
5,897 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TPSMB | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 7.9A | 600W | No | Automotive | - | -65°C ~ 175°C (TJ) | Surface Mount |
|
|
TPSMB18A-VRTVS DIODE 18VWM 29.2VC DO214 TR |
4,932 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TPSMB-VR | Active | Zener | 1 | - | 18V | 20V | 29.2V | 20.6A | 600W | No | Automotive | - | -65°C ~ 175°C (TJ) | Surface Mount |
|
|
TPSMB24CA-VRTVS DIODE 24VWM 38.9VC DO214AA |
5,855 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TPSMB-VR | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.5A | 600W | No | Automotive | - | -65°C ~ 175°C (TJ) | Surface Mount |
|
|
TPSMB30A-VRTVS DIODE 30VWM 48.4VC DO214 TR |
3,330 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TPSMB-VR | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | Automotive | - | -65°C ~ 175°C (TJ) | Surface Mount |
|
SZP6SMB27AT3GTVS DIODE 23.1VWM 37.5VC SMB |
3,876 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 16A | 600W | No | Automotive | 700pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
SZ1SMB58AT3GTVS DIODE 58VWM 93.6VC SMB |
2,500 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.4A | 600W | No | Automotive | 310pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
SZP6SMB13AT3GTVS DIODE 11.1VWM 18.2VC SMB |
3,829 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 33A | 600W | No | Automotive | 1335pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
SZP6SMB16AT3GTVS DIODE 13.6VWM 22.5VC SMB |
2,492 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 13.6V | 15.2V | 22.5V | 27A | 600W | No | Automotive | 1110pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
SZP6SMB22AT3GTVS DIODE 18.8VWM 30.6VC SMB |
3,382 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 20A | 600W | No | Automotive | 835pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
SZP6SMB62AT3GTVS DIODE 53VWM 85VC SMB |
3,405 | 0.53 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.1A | 600W | No | Automotive | 335pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
SESD0201X1UN0020-090TVS DIODE 7VWM 9.2V 0201/DFN0603 |
123,021 | 0.63 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SESD, SPA® | Active | Zener | 1 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | Automotive, HDMI | 0.2pF @ 3GHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SZ1SMA22AT3GTVS DIODE 22VWM 35.5VC SMA |
8,233 | 0.60 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SZ1SMA | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 11.3A | 400W | No | Automotive | 540pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
SP4022-01FTG-CTVS DIODE 12VWM 35VC SOD323 |
22,974 | 0.57 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SP4022, SPA® | Active | Steering (Rail to Rail) | - | 1 | 12V (Max) | 13.3V | 35V | 15A (8/20µs) | 500W | No | Automotive | 1.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|

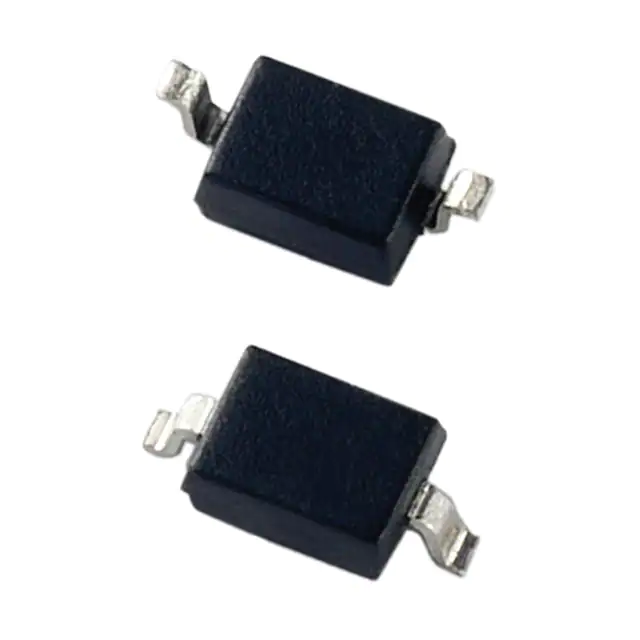

SP4023-01FTG-CTVS DIODE 15VWM 40VC SOD323 |
6,124 | 0.57 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SP4023, SPA® | Active | Steering (Rail to Rail) | 1 | - | 15V (Max) | 16V | 40V | 12A (8/20µs) | 450W | No | Automotive | 1.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
AQ12-02HTGTVS DIODE 12VWM 22.5VC SOT23-3 |
12,006 | 0.58 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, AQ, SPA® | Active | Zener | 2 | - | 12V (Max) | 13.3V | 22.5V | 20A (8/20µs) | 500W | No | Automotive, CAN | 110pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Surface Mount |
|
|
SM05-02HTGTVS DIODE 5VWM 13VC SOT23-3 |
12,362 | 0.58 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SM, SPA® | Active | Zener | 2 | - | 5V (Max) | - | 13V | 10A (8/20µs) | 400W | No | Automotive | 400pF @ 1MHz | -40°C ~ 150°C | Surface Mount |
|
|
SM15-02HTGTVS DIODE 15VWM 30VC SOT23-3 |
8,824 | 0.58 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SM, SPA® | Active | Zener | 2 | - | 15V (Max) | - | 30V | 10A (8/20µs) | 400W | No | Automotive | 100pF @ 1MHz | -40°C ~ 150°C | Surface Mount |
|
|
AQ05-02HTGTVS DIODE 5VWM 13VC SOT23-3 |
8,770 | 0.58 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, AQ, SPA® | Active | Zener | 2 | - | 5V (Max) | 6V | 13V | 33A (8/20µs) | 500W | No | Automotive, CAN | 290pF @ 1MHz | -40°C ~ 150°C (TA) | Surface Mount |
