Wireless Charging Coils(263)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature
WTM-12R5K-A6 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	3,825	14.20	RFQ	Datasheet	Box	WCC	Active	Transmitter	3 Coil, 1 Layer	11.5µH, 12.5µH	±10%	65mOhm Max	-	7A	10A	-	-20°C ~ 85°C
IWTX50R0CZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	764	2.79	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	120 @ 100kHz	5A	-	-	-40°C ~ 85°C
760308105214 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,731	8.02	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-
760308103109 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,681	14.83	RFQ		Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	10.2µH	±10%	50mOhm	130 @ 125kHz	9A	18A	11MHz	-20°C ~ 105°C
760308104120 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,840	30.78	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	3 Coil, 1 Layer	6.9µH, 6.4µH, 6.9µH	±10%	45mOhm	100 @ 125kHz	9A	12A	15MHz	-20°C ~ 105°C
AWCCA-47R38H08-C01-B RX 1 COIL 1 LAYER 11.5UH Abracon LLC	2,692	6.55	RFQ	Datasheet	Box	AWCCA	Active	Receiver	1 Coil, 1 Layer	11.5µH	±5%	160mOhm	34 @ 100kHz	-	-	-	-25°C ~ 85°C
1461791011 RX 2 COIL 1 LAYER 9.9UH Molex	2,680	8.52	RFQ	Datasheet	Bulk	NuCurrent, PowerLife, 146179	Obsolete	Receiver	2 Coil, 1 Layer	9.9µH	±2%	390mOhm	23 @ 200kHz	-	-	-	-
AWCCA-50N50H50-C02-B RX TX 1 COIL 1 LAYER 6.3UH 10.6A Abracon LLC	3,941	9.54	RFQ	Datasheet	Box	AWCCA-50N50	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	75 @ 100kHz	10.6A	40A	5.7MHz	-25°C ~ 85°C
AWCCA-50N50H50-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon LLC	2,164	10.11	RFQ	Datasheet	Box	AWCCA-50N50	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	163 @ 100kHz	5.7A	30A	2.8MHz	-25°C ~ 85°C
RWC5353EJ240-500 TX 1 COIL 2 LAYER 24UH 5.5A Laird-Signal Integrity Products	3,764	10.15	RFQ	Datasheet	Box	RWC	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	75mOhm Max	90 @ 100kHz	5.5A	10A	-	-40°C ~ 125°C
1461794011 RX TX 2 COIL 1 LAYER 9.6UH 5.6UH Molex	3,317	10.46	RFQ	Datasheet	Tray	NuCurrent, PowerLife, 146179	Active	Receiver, Transmitter	2 Coil, 1 Layer	9.6µH, 5.6µH	±2%	550mOhm, 38mOhm	18 @ 200kHz, 160 @ 200kHz	-	-	-	-
1461798021 RX 1 COIL 1 LAYER 4UH Molex	3,761	10.50	RFQ	Datasheet	Bulk	NuCurrent, PowerLife, 146179	Obsolete	Receiver	1 Coil, 1 Layer	4µH	±2%	235mOhm	115 @ 6.78MHz	-	-	-	-

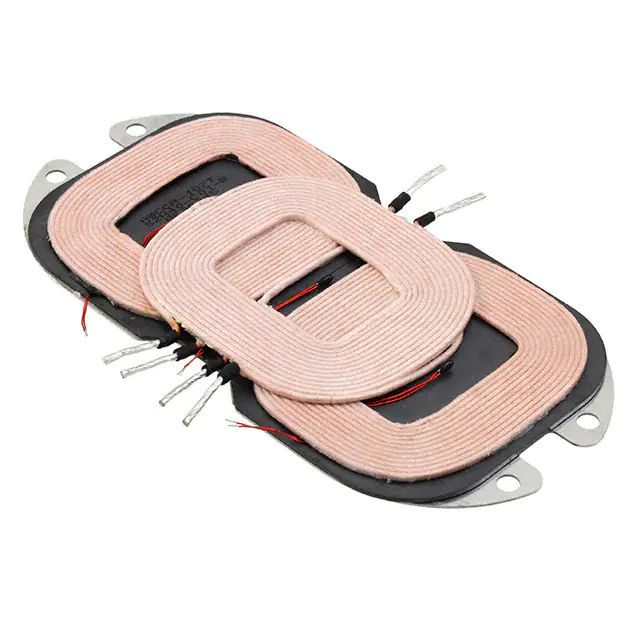

AWCCA-107T52H40-C01-B TX 3 COIL 1 LAYER 11.5UH 12UH Abracon LLC	3,087	10.68	RFQ	Datasheet	Box	AWCCA-107T52	Active	Transmitter	3 Coil, 1 Layer	11.5µH, 12µH	±10%	56mOhm	80 @ 100kHz	7.5A	18A	7MHz	-25°C ~ 85°C
WT-505060-20K2-A10-G TX 1 COIL 2 LYR 24UH TDK Corporation	3,851	13.26	RFQ	Datasheet	Tray	WT	Last Time Buy	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	80 @ 100kHz	-	-	-	-30°C ~ 70°C
SWC10056AA120-500 TRANSMITTER 3 COIL 1 LAYER Laird-Signal Integrity Products	3,347	15.01	RFQ	Datasheet	Box	SWC	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	65mOhm Max	90 @ 100kHz	-	-	-	-40°C ~ 125°C
WT525225-12F2-MA2-G TX 1 COIL, 1 LYR 10.5UH TDK Corporation	776	9.41	RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 1 Layer	10.5µH	-	60mOhm	-	-	-	-	-
760308101104 TX 1 COIL 2 LAYER 6.3UH 2.5A Würth Elektronik	2,417	13.13	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	6.8µH	±10%	125mOhm Max	42 @ 125kHz	2.5A	6A	20MHz	-20°C ~ 105°C
760308100110 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	996	13.60	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	70mOhm	180 @ 125kHz	6A	10A	5MHz	-20°C ~ 105°C
WR301025-19M8-G RX 1 COIL 2 LYR 12.8UH TDK Corporation	3,281	2.59	RFQ		Tray	WR	Active	Receiver	1 Coil, 2 Layer	12.8µH	-	1.27Ohm Max	-	-	-	-	-
WR202010-18M8-SM RX 1 COIL 2 LYR 10.68UH TDK Corporation	3,153	4.09	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 2 Layer	10.68µH	±5%	350mOhm	-	-	-	-	-
