Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210213103E3CAP ALUM 10000UF 20% 250V SCREW |
3,970 | 102.74 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 250 V | 17mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.3 A @ 100 Hz | - | 12 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210245472E3CAP ALUM 4700UF 20% 350V SCREW |
2,264 | 102.74 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 4700 µF | ±20% | 350 V | 34mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | - | 25 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210253103E3CAP ALUM 10000UF 20% 250V SCREW |
3,408 | 102.74 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 250 V | 17mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.3 A @ 100 Hz | - | 12 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210285472E3CAP ALUM 4700UF 20% 350V SCREW |
2,247 | 102.74 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 4700 µF | ±20% | 350 V | 34mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | - | 25 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
MAL210417222E3CAP ALUM 2200UF 20% 450V SCREW |
3,010 | 102.74 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 2200 µF | ±20% | 450 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.7 A @ 100 Hz | - | 31 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210427222E3CAP ALUM 2200UF 20% 450V SCREW |
2,311 | 102.74 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 2200 µF | ±20% | 450 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 31 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210457222E3CAP ALUM 2200UF 20% 450V SCREW |
2,525 | 102.74 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 2200 µF | ±20% | 450 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.7 A @ 100 Hz | - | 31 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.398 (111.70mm) | - | Chassis Mount |
|
|
MAL210467222E3CAP ALUM 2200UF 20% 450V SCREW |
3,693 | 102.74 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 2200 µF | ±20% | 450 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 31 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
B43584A4608M000CAP ALUM 6000UF 20% 350V SCREW |
2,888 | 129.99 |
RFQ |
Datasheet |
Bulk | B43584 | Not For New Designs | 6000 µF | ±20% | 350 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 32 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.638 (143.20mm) | - | Chassis, Stud Mount |
|
|
ERHB631LGC272MED0UCAP ALUM 2700UF 20% 630V SCREW |
3,360 | 103.05 |
RFQ |
Datasheet |
Bulk | RHB | Active | 2700 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 120 Hz | 12.74 A @ 3 kHz | - | 1.240 (31.50mm) | 3.000 Dia (76.20mm) | 5.276 (134.00mm) | - | Chassis Mount |
|
|
LNU2W822MSEHBBCAP ALUM 8200UF 20% 450V SCREW |
2,136 | 130.21 |
RFQ |
Datasheet |
Bulk | LNU | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.7 A @ 120 Hz | 35.98 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
LNU2W822MSEHBNCAP ALUM 8200UF 20% 450V SCREW |
2,600 | 130.21 |
RFQ |
Datasheet |
Bulk | LNU | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.7 A @ 120 Hz | 35.98 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
LNU2W822MTEHCAP ALUM 8200UF 20% 450V SCREW |
2,592 | 130.21 |
RFQ |
Datasheet |
Bulk | LNU | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.7 A @ 120 Hz | 35.98 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
E37L401CPN123MFF5UCAP ALUM 12000UF 20% 400V SCREW |
3,161 | 103.10 |
RFQ |
Bulk | U37L | Active | 12000 µF | ±20% | 400 V | 9mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29 A @ 120 Hz | 40.89 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 6.142 (156.00mm) | - | Chassis Mount | |
|

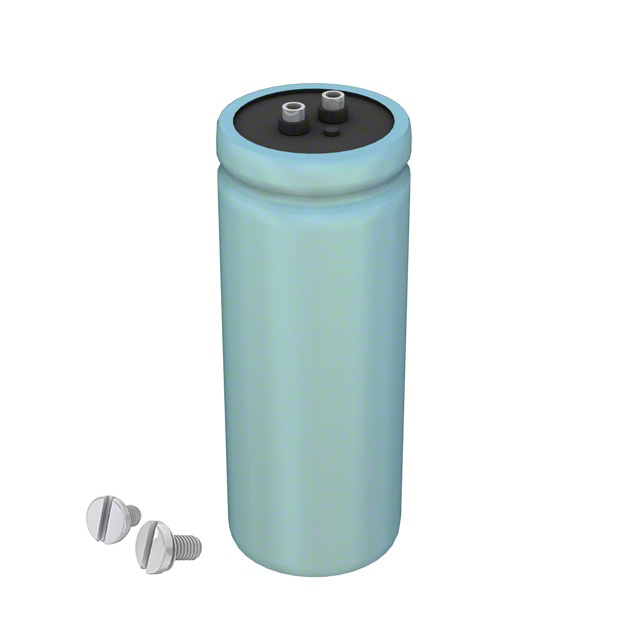

CGH152T500V5CCAP ALUM 1500UF 500V SCREW |
2,029 | 130.28 |
RFQ |
Datasheet |
Bulk | CGH | Active | 1500 µF | -10%, +50% | 500 V | 168mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | - | - | - | 2.000 Dia (50.80mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
ALS71A363QT250CAP ALUM 36000UF 20% 250V SCREW |
2,663 | 130.35 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 36000 µF | ±20% | 250 V | 11mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.3 A @ 100 Hz | 37.9 A @ 10 kHz | 10 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|
|
B43763C9478M008CAP ALUM 4700UF 20% 400V SCREW |
3,225 | 103.25 |
RFQ |
Bulk | B43763 | Active | 4700 µF | ±20% | 400 V | 20mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.5 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 3.858 (98.00mm) | - | Chassis Mount | |
|
MAL250034472E3CAP ALUM 4700UF 20% 420V SCREW |
2,139 | 103.31 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 4700 µF | ±20% | 420 V | 25mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 120 Hz | - | 19 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.791 (121.70mm) | - | Chassis Mount |
|
|
MAL250074472E3CAP ALUM 4700UF 20% 420V SCREW |
3,020 | 103.31 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 4700 µF | ±20% | 420 V | 25mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 120 Hz | - | 19 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.791 (121.70mm) | - | Chassis Mount |
|
|
ERHB5H1LGC392MFA5UCAP ALUM 3900UF 20% 575V SCREW |
2,682 | 103.32 |
RFQ |
Datasheet |
Bulk | RHB | Active | 3900 µF | ±20% | 575 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 120 Hz | 12.74 A @ 3 kHz | - | 1.240 (31.50mm) | 3.504 Dia (89.00mm) | 4.291 (109.00mm) | - | Chassis Mount |
