Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E37X451CPN562MFB7UCAP ALUM 5600UF 20% 450V SCREW |
2,351 | 103.33 |
RFQ |
Bulk | U37X | Active | 5600 µF | ±20% | 450 V | 20mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 17.3 A @ 120 Hz | 24.393 A @ 10 kHz | - | 1.250 (31.75mm) | 3.504 Dia (89.00mm) | 4.646 (118.00mm) | - | Chassis Mount | |
|
|
550C312T400CF2BCAP ALUM 3100UF 400V SCREW |
3,709 | 130.43 |
RFQ |
Datasheet |
Bulk | 550C | Active | 3100 µF | -10%, +50% | 400 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
|
E36D421CSS143MEM9UCAP ALUM 14000UF 20% 420V SCREW |
3,493 | 103.42 |
RFQ |
Bulk | U36D | Active | 14000 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount | |
|
MLP173M010EK0ACAP ALUM 17000UF 20% 10V FLATPCK |
2,338 | 103.45 |
RFQ |
Datasheet |
Bulk | MLP | Active | 17000 µF | ±20% | 10 V | 77mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 4.5 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLP962M020EK0ACAP ALUM 9600UF 20% 20V FLATPACK |
3,212 | 103.45 |
RFQ |
Datasheet |
Bulk | MLP | Active | 9600 µF | ±20% | 20 V | 84mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.4 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLP222M063EK1ACAP ALUM 2200UF 20% 63V FLATPACK |
3,046 | 103.45 |
RFQ |
Datasheet |
Bulk | MLP | Active | 2200 µF | ±20% | 63 V | 101mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.2 A @ 20 kHz | - | 1.000 (25.40mm) | 1.500 L x 1.750 W (38.10mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
E36D501CSN103MFM9UCAP ALUM 10000UF 20% 500V SCREW |
3,591 | 103.50 |
RFQ |
Bulk | U36D | Active | 10000 µF | ±20% | 500 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.500 Dia (88.90mm) | 8.625 (219.08mm) | - | Chassis Mount | |
|
|
36DY154F040DF2ACAP ALUM 150000UF 40V SCREW |
2,820 | 103.51 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 150000 µF | -10%, +50% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
|
36DX763F040DF2ACAP ALUM 76000UF 40V SCREW |
3,325 | 103.54 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 76000 µF | -10%, +50% | 40 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
|
36DY823F050DC2ACAP ALUM 82000UF 50V SCREW |
2,167 | 103.54 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 82000 µF | -10%, +50% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
CGS222T450V5LCAP ALUM 2200UF 450V SCREW |
2,858 | 130.91 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2200 µF | -10%, +50% | 450 V | 51mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.9 A @ 120 Hz | 10.35 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
CGS333U100X8LCAP ALUM 33000UF 100V SCREW |
3,792 | 130.94 |
RFQ |
Datasheet |
Bulk | CGS | Active | 33000 µF | -10%, +75% | 100 V | 9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 120 Hz | 32.5 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|

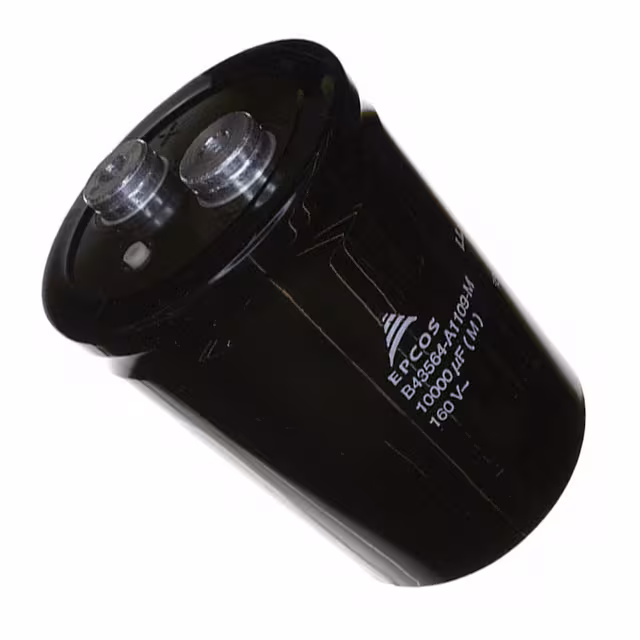

B43564A1109M000CAP ALUM 10000UF 20% 160V SCREW |
2,383 | 130.94 |
RFQ |
Datasheet |
Bulk | B43564 | Not For New Designs | 10000 µF | ±20% | 160 V | - | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | 26 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.232 (107.50mm) | - | Chassis Mount |
|
|
36DY472F250CD2ACAP ALUM 4700UF 250V SCREW |
2,542 | 103.61 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 4700 µF | -10%, +50% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126 (28.60mm) | 2.579 Dia (65.50mm) | 4.752 (120.70mm) | - | Chassis Mount |
|
|
E37X501CPN472MFB7UCAP ALUM 4700UF 20% 500V SCREW |
3,560 | 103.62 |
RFQ |
Bulk | U37X | Active | 4700 µF | ±20% | 500 V | 25mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 15.5 A @ 120 Hz | 21.855 A @ 10 kHz | - | 1.250 (31.75mm) | 3.504 Dia (89.00mm) | 4.646 (118.00mm) | - | Chassis Mount | |
|
|
E37L421CPN123MEM9UCAP ALUM 12000UF 20% 420V SCREW |
2,174 | 103.75 |
RFQ |
Bulk | U37L | Active | 12000 µF | ±20% | 420 V | 9mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.3 A @ 120 Hz | 32.853 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 8.661 (220.00mm) | - | Chassis Mount | |
|
MAL210616104E3CAP ALUM 100000UF 25V SCREW |
2,188 | 103.77 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 100000 µF | -10%, +30% | 25 V | 9mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.437 (112.70mm) | - | Chassis Mount |
|
|
MAL210656104E3CAP ALUM 100000UF 25V SCREW |
2,419 | 103.77 |
RFQ |
Datasheet |
Bulk | 106 PED-ST | Active | 100000 µF | -10%, +30% | 25 V | 9mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 100 Hz | - | 8 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 4.437 (112.70mm) | - | Chassis Mount |
|
|
DCMX622T350DE2BCAP ALUM 6200UF 350V SCREW |
3,529 | 131.32 |
RFQ |
Datasheet |
Bulk | DCMX | Active | 6200 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.187 (131.75mm) | - | Chassis Mount |
|
CGS134U050W5LCAP ALUM 130000UF 50V SCREW |
2,391 | 131.33 |
RFQ |
Datasheet |
Bulk | CGS | Active | 130000 µF | -10%, +75% | 50 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.8 A @ 120 Hz | 33.54 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 5.625 (142.88mm) | - | Chassis Mount |
