Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNU2W123MSEJBBCAP ALUM 12000UF 20% 450V SCREW |
3,461 | 176.59 |
RFQ |
Datasheet |
Bulk | LNU | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.9 A @ 120 Hz | 41.86 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
LNU2W123MSEJBNCAP ALUM 12000UF 20% 450V SCREW |
2,319 | 176.59 |
RFQ |
Datasheet |
Bulk | LNU | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.9 A @ 120 Hz | 41.86 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
LNU2W123MTEJCAP ALUM 12000UF 20% 450V SCREW |
3,213 | 176.59 |
RFQ |
Datasheet |
Bulk | LNU | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.9 A @ 120 Hz | 41.86 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.795 (198.00mm) | - | Chassis Mount |
|
|
B43712B9109M000CAP ALUM 10000UF 20% 400V SCREW |
3,106 | 135.14 |
RFQ |
Bulk | B43712 | Active | 10000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.3 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 5.728 (145.50mm) | - | Chassis Mount | |
|
|
36DX363G100DJ2ACAP ALUM 36000UF 100V SCREW |
3,891 | 135.15 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 36000 µF | -10%, +75% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
LNK2H562MSEHCAP ALUM 5600UF 20% 500V SCREW |
2,135 | 135.20 |
RFQ |
Datasheet |
Bulk | LNK | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19 A @ 120 Hz | 26.6 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 7.480 (190.00mm) | - | Chassis Mount |
|
|
B43725A5688M000CAP ALUM 6800UF 20% 450V SCREW |
3,005 | 135.23 |
RFQ |
Bulk | B43725 | Active | 6800 µF | ±20% | 450 V | 14mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 A @ 100 Hz | - | 22 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.681 (169.70mm) | - | Chassis Mount | |
|
|
E37F451CPN153MFM9UCAP ALUM 15000UF 20% 450V SCREW |
2,619 | 135.26 |
RFQ |
Bulk | U37F | Active | 15000 µF | ±20% | 450 V | 6mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38.6 A @ 120 Hz | 54.426 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 8.661 (220.00mm) | - | Chassis Mount | |
|
CGS105U6R3X5LCAP ALUM 1F 6.3V SCREW |
2,080 | 177.21 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1 F | -10%, +75% | 6.3 V | 5mOhm @ 120Hz | - | -40°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 120 Hz | 31.85 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
LNK2H822MSEJBBCAP ALUM 8200UF 20% 500V SCREW |
2,543 | 177.54 |
RFQ |
Datasheet |
Bulk | LNK | Active | 8200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 120 Hz | 34.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNK2H822MSEJBNCAP ALUM 8200UF 20% 500V SCREW |
2,474 | 177.54 |
RFQ |
Datasheet |
Bulk | LNK | Active | 8200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 120 Hz | 34.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.598 (193.00mm) | - | Chassis Mount |
|
|
LNT1C155MSEBCAP ALUM 1.5F 20% 16V SCREW |
2,742 | 177.68 |
RFQ |
Datasheet |
Bulk | LNT | Active | 1.5 F | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28.8 A @ 120 Hz | 43.2 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
|
LNT1C155MSENCAP ALUM 1.5F 20% 16V SCREW |
2,287 | 177.68 |
RFQ |
Datasheet |
Bulk | LNT | Active | 1.5 F | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28.8 A @ 120 Hz | 43.2 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|

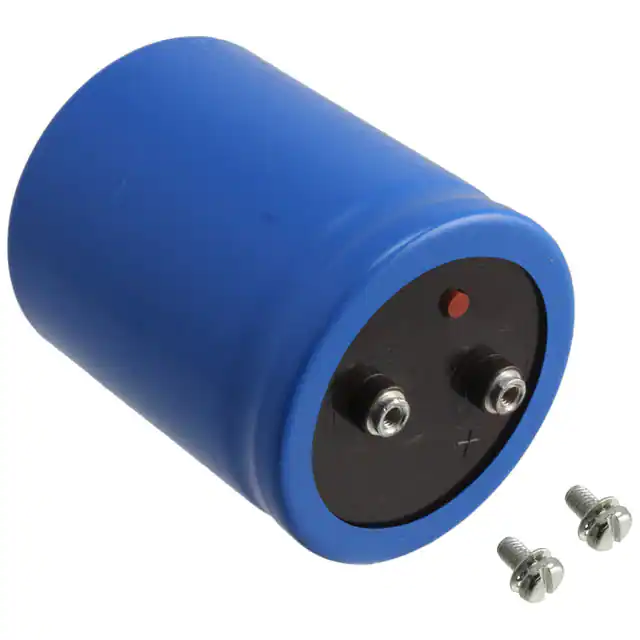

HES312G350X3LCAP ALUM 3100UF 350V SCREW |
3,208 | 177.81 |
RFQ |
Datasheet |
Bulk | HES | Active | 3100 µF | 0%, +50% | 350 V | 40mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.6 A @ 120 Hz | 10.578 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
LNR2E473MSENCAP ALUM 47000UF 20% 250V SCREW |
3,179 | 178.01 |
RFQ |
Datasheet |
Bulk | LNR | Active | 47000 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.2 A @ 120 Hz | 25.44 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
CGS212T500W5CCAP ALUM 2100UF 500V SCREW |
2,272 | 178.13 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2100 µF | -10%, +50% | 500 V | 49mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.2 A @ 120 Hz | 12.3 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
CGS234U040X5CCAP ALUM 230000UF 40V SCREW |
3,823 | 178.19 |
RFQ |
Datasheet |
Bulk | CGS | Active | 230000 µF | -10%, +75% | 40 V | 4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.5 A @ 120 Hz | 38.35 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
MAL250176103E3CAP ALUM 10000UF 20% 400V SCREW |
2,297 | 135.73 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 10000 µF | ±20% | 400 V | 20mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 100 Hz | 35.7 A @ 10 kHz | 16 mOhms | 1.252 (31.80mm) | 3.520 Dia (89.40mm) | 5.949 (151.10mm) | - | Chassis Mount |
|
CGH522T350W5LCAP ALUM 5200UF 350V SCREW |
2,019 | 178.26 |
RFQ |
Datasheet |
Bulk | CGH | Active | 5200 µF | -10%, +50% | 350 V | 31.1mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.3 A @ 120 Hz | 12.669 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
ERHB5H1LGC562MFE5UCAP ALUM 5600UF 20% 575V SCREW |
3,202 | 136.07 |
RFQ |
Datasheet |
Bulk | RHB | Active | 5600 µF | ±20% | 575 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.7 A @ 120 Hz | 17.78 A @ 3 kHz | - | 1.240 (31.50mm) | 3.504 Dia (89.00mm) | 5.866 (149.00mm) | - | Chassis Mount |
