Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLSG193M010JH0CCAP ALUM 19000UF 20% 10V FLATPCK |
2,322 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 19000 µF | ±20% | 10 V | 53mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 12.6 A @ 120 Hz | 12.9 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG932M020JH0CCAP ALUM 9300UF 20% 20V FLATPACK |
2,731 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 9300 µF | ±20% | 20 V | 54mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG672M030JH0CCAP ALUM 6700UF 20% 30V FLATPACK |
2,689 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 6700 µF | ±20% | 30 V | 55mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG462M040JH0CCAP ALUM 4600UF 20% 40V FLATPACK |
3,254 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 4600 µF | ±20% | 40 V | 56mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG342M050JH0CCAP ALUM 3400UF 20% 50V FLATPACK |
2,203 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 3400 µF | ±20% | 50 V | 56mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 12.3 A @ 120 Hz | 12.6 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG212M060JH0CCAP ALUM 2100UF 20% 60V FLATPACK |
3,254 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 2100 µF | ±20% | 60 V | 57mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 12.1 A @ 120 Hz | 12.4 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG152M075JH0CCAP ALUM 1500UF 20% 75V FLATPACK |
3,658 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 1500 µF | ±20% | 75 V | 148mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 6.2 A @ 120 Hz | 6.5 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG801M100JH0CCAP ALUM 800UF 20% 100V FLATPACK |
2,529 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 800 µF | ±20% | 100 V | 484mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG401M150JH0CCAP ALUM 400UF 20% 150V FLATPACK |
3,671 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 400 µF | ±20% | 150 V | 484mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG381M200JH0CCAP ALUM 380UF 20% 200V FLATPACK |
2,770 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 380 µF | ±20% | 200 V | 634mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG301M250JH0CCAP ALUM 300UF 20% 250V FLATPACK |
2,835 | 186.68 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 300 µF | ±20% | 250 V | 605mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.2 A @ 20 kHz | - | 0.500 (12.70mm) | 2.500 L x 1.000 W (63.50mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|

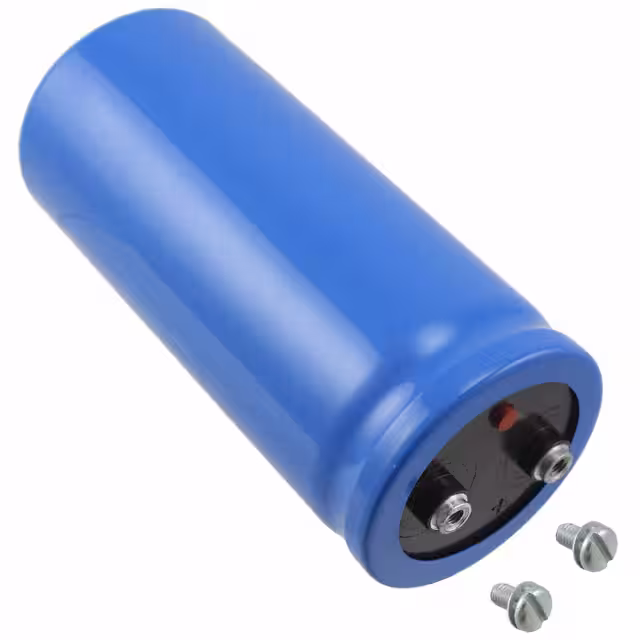

550C342T400CF2BCAP ALUM 3400UF 400V SCREW |
2,952 | 151.08 |
RFQ |
Datasheet |
Bulk,Bulk | 550C | Active | 3400 µF | -10%, +50% | 400 V | 28.9mOhm | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 26.54 A @ 10 kHz | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
MAL210433103E3CAP ALUM 10000UF 20% 250V SCREW |
3,866 | 140.78 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 250 V | 14mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.2 A @ 100 Hz | - | 9 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210473103E3CAP ALUM 10000UF 20% 250V SCREW |
2,826 | 140.78 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 10000 µF | ±20% | 250 V | 14mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.2 A @ 100 Hz | - | 9 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
CGS984U7R5X5LCAP ALUM 980000UF 7.5V SCREW |
2,530 | 187.26 |
RFQ |
Datasheet |
Bulk | CGS | Active | 980000 µF | -10%, +75% | 7.5 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.4 A @ 120 Hz | 31.72 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
36DX222F450DF2ACAP ALUM 2200UF 450V SCREW |
2,175 | 140.95 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 2200 µF | -10%, +50% | 450 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
B43713A5478M000CAP ALUM 4700UF 20% 450V SCREW |
3,283 | 141.16 |
RFQ |
Datasheet |
Bulk | B43713 | Active | 4700 µF | ±20% | 450 V | 26mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.2 A @ 100 Hz | - | 40 mOhms | 1.248 (31.70mm) | 3.027 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
400LSG10000MEFC90X191CAP ALUM 10000UF 20% 400V SCREW |
3,889 | 187.93 |
RFQ |
Datasheet |
Bulk | LSG | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 30.94 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 7.638 (194.00mm) | - | Chassis Mount |
|
|
CGS192T500X3LCAP ALUM 1900UF 500V SCREW |
3,597 | 188.22 |
RFQ |
Datasheet |
Bulk | CGS | Active | 1900 µF | -10%, +50% | 500 V | 57mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.5 A @ 120 Hz | 11.25 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
B43733A4109M000CAP ALUM 10000UF 20% 350V SCREW |
2,320 | 141.48 |
RFQ |
Datasheet |
Bulk | B43733 | Active | 10000 µF | ±20% | 350 V | 13mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.681 (169.70mm) | - | Chassis Mount |
