Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLSG632M040EA0ACAP ALUM 6300UF 20% 40V FLATPACK |
3,117 | 214.59 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 6300 µF | ±20% | 40 V | 62mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12.9 A @ 120 Hz | 15 A @ 20 kHz | - | 1.000 (25.40mm) | 2.000 L x 1.750 W (50.80mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLSG212M060EA0ACAP ALUM 2100UF 20% 60V FLATPACK |
2,548 | 214.59 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 2100 µF | ±20% | 60 V | 72mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11.9 A @ 120 Hz | 14.1 A @ 20 kHz | - | 1.000 (25.40mm) | 2.000 L x 1.750 W (50.80mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
MLSG771M100EA0CCAP ALUM 770UF 20% 100V FLATPACK |
3,390 | 214.59 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 770 µF | ±20% | 100 V | 238mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.6 A @ 120 Hz | 7.8 A @ 20 kHz | - | 1.000 (25.40mm) | 2.000 L x 1.750 W (50.80mm x 44.45mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG541M150EA1ACAP ALUM 540UF 20% 150V FLATPACK |
3,306 | 214.59 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 540 µF | ±20% | 150 V | 261mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 7.8 A @ 20 kHz | - | 1.000 (25.40mm) | 2.000 L x 1.750 W (50.80mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLSG401M200EA0ACAP ALUM 400UF 20% 200V FLATPACK |
2,359 | 214.59 |
RFQ |
Datasheet |
Bulk | MLSG Flatpack | Active | 400 µF | ±20% | 200 V | 285mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6 A @ 120 Hz | 7.7 A @ 20 kHz | - | 1.000 (25.40mm) | 2.000 L x 1.750 W (50.80mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
36DX394G010DJ2ACAP ALUM 390000UF 10V SCREW |
3,877 | 157.52 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 390000 µF | -10%, +75% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
|
36DY124F075DJ2ACAP ALUM 120000UF 75V SCREW |
2,307 | 157.52 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 120000 µF | -10%, +50% | 75 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.5 A @ 120 Hz | 47.725 A @ 1 kHz | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
|
E37X501CPN103MFM9UCAP ALUM 10000UF 20% 500V SCREW |
3,906 | 157.65 |
RFQ |
Bulk | U37X | Active | 10000 µF | ±20% | 500 V | 12mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 28.5 A @ 120 Hz | 40.185 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 8.661 (220.00mm) | - | Chassis Mount | |
|

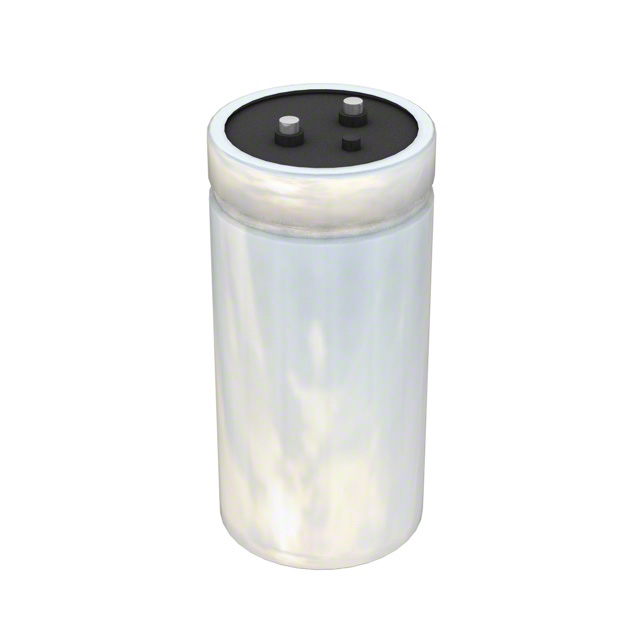

HES242G450W5CCAP ALUM 2400UF 450V SCREW |
2,610 | 215.18 |
RFQ |
Datasheet |
Bulk | HES | Active | 2400 µF | 0%, +50% | 450 V | 38mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9 A @ 120 Hz | 11.07 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
LNT2G153MSEKBNCAP ALUM 15000UF 20% 400V SCREW |
3,329 | 215.89 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 44.5 A @ 120 Hz | 62.3 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|
CGS194U050X5LCAP ALUM 190000UF 50V SCREW |
2,818 | 216.53 |
RFQ |
Datasheet |
Bulk | CGS | Active | 190000 µF | -10%, +75% | 50 V | 4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31 A @ 120 Hz | 40.3 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
LNT2W153MSEJBBCAP ALUM 15000UF 20% 450V SCREW |
2,101 | 216.58 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 45.6 A @ 120 Hz | 63.84 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
|
LNT2W153MSEJBNCAP ALUM 15000UF 20% 450V SCREW |
2,052 | 216.58 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 45.6 A @ 120 Hz | 63.84 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
MAL250117103E3CAP ALUM 10000UF 20% 450V SCREW |
3,957 | 158.65 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 10000 µF | ±20% | 450 V | 19mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.3 A @ 100 Hz | 34.95 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount |
|
|
MAL250157103E3CAP ALUM 10000UF 20% 450V SCREW |
3,630 | 158.65 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 10000 µF | ±20% | 450 V | 19mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.3 A @ 100 Hz | 34.95 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount |
|
|
B43725A5568M003CAP ALUM 5600UF 20% 450V SCREW |
2,278 | 159.19 |
RFQ |
Datasheet |
Bulk | B43725 | Active | 5600 µF | ±20% | 450 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.9 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
36DY332F450DD2DCAP ALUM 3300UF 450V SCREW |
2,498 | 159.26 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 3300 µF | -10%, +50% | 450 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 120 Hz | 13.26 A @ 1 kHz | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 4.752 (120.70mm) | - | Chassis Mount |
|
|
E37X421CPN153MFM9UCAP ALUM 15000UF 20% 420V SCREW |
3,659 | 159.40 |
RFQ |
Bulk | U37X | Active | 15000 µF | ±20% | 420 V | 8mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 34 A @ 120 Hz | 47.94 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 8.661 (220.00mm) | - | Chassis Mount | |
|
|
CGS454U025X5LCAP ALUM 450000UF 25V SCREW |
2,801 | 218.32 |
RFQ |
Datasheet |
Bulk | CGS | Active | 450000 µF | -10%, +75% | 25 V | 3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.3 A @ 120 Hz | 44.59 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
450LSU10000M90X161CAP ALUM 10000UF 20% 450V SCREW |
3,028 | 159.50 |
RFQ |
Datasheet |
Bulk | LSU | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 6.457 (164.00mm) | - | Chassis Mount |
