Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36DY272F450CF2BCAP ALUM 2700UF 450V SCREW |
2,737 | 159.66 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 2700 µF | -10%, +50% | 450 V | 42mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.78 A @ 120 Hz | 11.41 A @ 1 kHz | - | 1.126 (28.60mm) | 2.579 Dia (65.50mm) | 5.752 (146.10mm) | - | Chassis Mount |
|
MAL250039562E3CAP ALUM 5600UF 20% 500V SCREW |
2,602 | 159.71 |
RFQ |
Box | 500 PGP-ST | Active | 5600 µF | ±20% | 500 V | 40mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 20.85 A @ 10 kHz | 36 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.780 (146.80mm) | - | Chassis Mount | |
|
|
MAL250079562E3CAP ALUM 5600UF 20% 500V SCREW |
2,799 | 159.71 |
RFQ |
Box | 500 PGP-ST | Active | 5600 µF | ±20% | 500 V | 40mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 20.85 A @ 10 kHz | 36 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.780 (146.80mm) | - | Chassis Mount | |
|
CGS362T450W5LCAP ALUM 3600UF 450V SCREW |
2,188 | 218.87 |
RFQ |
Datasheet |
Bulk | CGS | Active | 3600 µF | -10%, +50% | 450 V | 35mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.7 A @ 120 Hz | 14.55 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
450LSG6800M77X191CAP ALUM 6800UF 20% 450V SCREW |
2,544 | 159.86 |
RFQ |
Datasheet |
Bulk | LSG | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 14.9 A @ 120 Hz | 20.86 A @ 10 kHz | - | 1.236 (31.40mm) | 3.031 Dia (77.00mm) | 7.638 (194.00mm) | - | Chassis Mount |
|
|
LNU2W153MSEJBBCAP ALUM 15000UF 20% 450V SCREW |
2,155 | 219.28 |
RFQ |
Datasheet |
Bulk | LNU | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34.5 A @ 120 Hz | 48.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
|
LNU2W153MSEJBNCAP ALUM 15000UF 20% 450V SCREW |
3,144 | 219.28 |
RFQ |
Datasheet |
Bulk | LNU | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34.5 A @ 120 Hz | 48.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
|
LNU2W153MTEJCAP ALUM 15000UF 20% 450V SCREW |
3,252 | 219.28 |
RFQ |
Datasheet |
Bulk | LNU | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34.5 A @ 120 Hz | 48.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
|
450LSU10000M90X221CAP ALUM 10000UF 20% 450V SCREW |
2,832 | 159.95 |
RFQ |
Datasheet |
Bulk | LSU | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.9 A @ 120 Hz | 36.27 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 8.819 (224.00mm) | - | Chassis Mount |
|

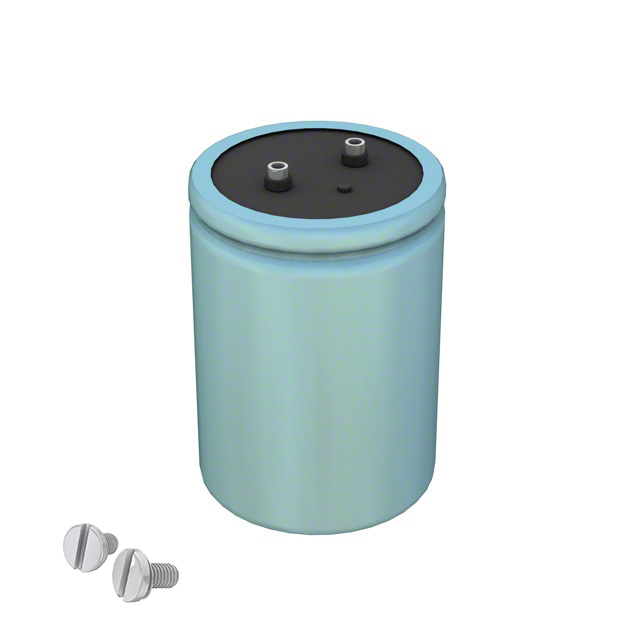

CGH272T500X4CCAP ALUM 2700UF 500V SCREW |
2,401 | 219.56 |
RFQ |
Datasheet |
Bulk | CGH | Active | 2700 µF | -10%, +50% | 500 V | 103mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | - | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
MAL250119682E3CAP ALUM 6800UF 20% 500V SCREW |
3,512 | 160.07 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 6800 µF | ±20% | 500 V | 36mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.6 A @ 100 Hz | 29.4 A @ 10 kHz | 29 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount |
|
|
MAL250159682E3CAP ALUM 6800UF 20% 500V SCREW |
2,356 | 160.07 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 6800 µF | ±20% | 500 V | 36mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.6 A @ 100 Hz | 29.4 A @ 10 kHz | 29 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount |
|
|
B43743A9828M007CAP ALUM 8200UF 20% 400V SCREW |
3,243 | 160.10 |
RFQ |
Bulk | B43743 | Active | 8200 µF | ±20% | 400 V | 11mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.4 A @ 100 Hz | - | 18 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount | |
|
|
LNR1J474MSENCAP ALUM 470000UF 20% 63V SCREW |
3,148 | 219.83 |
RFQ |
Datasheet |
Bulk | LNR | Active | 470000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.6 A @ 120 Hz | 38.64 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
MAL210116474E3CAP ALUM 470000UF 20% 25V SCREW |
2,012 | 160.20 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 470000 µF | ±20% | 25 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.9 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
MAL210156474E3CAP ALUM 470000UF 20% 25V SCREW |
2,616 | 160.20 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 470000 µF | ±20% | 25 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 29.9 A @ 100 Hz | - | 5 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 8.886 (225.70mm) | - | Chassis Mount |
|
|
36DY223F150DJ2ACAP ALUM 22000UF 150V SCREW |
3,042 | 160.41 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 22000 µF | -10%, +50% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
|
MAL250176123E3CAP ALUM 12000UF 20% 400V SCREW |
3,363 | 160.45 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 12000 µF | ±20% | 400 V | 17mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | 37.5 A @ 10 kHz | 15 mOhms | 1.252 (31.80mm) | 3.520 Dia (89.40mm) | 5.949 (151.10mm) | - | Chassis Mount |
|
|
MAL250136123E3CAP ALUM 12000UF 20% 400V SCREW |
3,691 | 160.45 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 12000 µF | ±20% | 400 V | 17mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 100 Hz | 37.5 A @ 10 kHz | 15 mOhms | 1.252 (31.80mm) | 3.520 Dia (89.40mm) | 5.949 (151.10mm) | - | Chassis Mount |
|
|
LNU2G183MSEJBBCAP ALUM 18000UF 20% 400V SCREW |
2,363 | 220.47 |
RFQ |
Datasheet |
Bulk | LNU | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 A @ 120 Hz | 53.2 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
