Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500C123M450FG2HCAP ALUM 12000UF 20% 450V SCREW |
3,915 | 290.82 |
RFQ |
Datasheet |
Bulk | 500C | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.500 Dia (88.90mm) | 8.687 (220.65mm) | - | Chassis Mount |
|
|
B43720C8478M000CAP ALUM 4700UF 20% 600V SCREW |
2,472 | 193.89 |
RFQ |
Datasheet |
Bulk | B43720 | Active | 4700 µF | ±20% | 600 V | 22mOhm @ 100Hz | 6000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
MAL250137123E3CAP ALUM 12000UF 20% 450V SCREW |
2,616 | 194.97 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 12000 µF | ±20% | 450 V | 16mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 37.05 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount |
|
|
MAL250177123E3CAP ALUM 12000UF 20% 450V SCREW |
3,661 | 194.97 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 12000 µF | ±20% | 450 V | 16mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 37.05 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount |
|
CGS153T250X5RCAP ALUM 15000UF 250V SCREW |
2,460 | 296.77 |
RFQ |
Datasheet |
Bulk | CGS | Active | 15000 µF | -10%, +50% | 250 V | 13mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.9 A @ 120 Hz | 26.85 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.875 (149.23mm) | - | Chassis Mount |
|

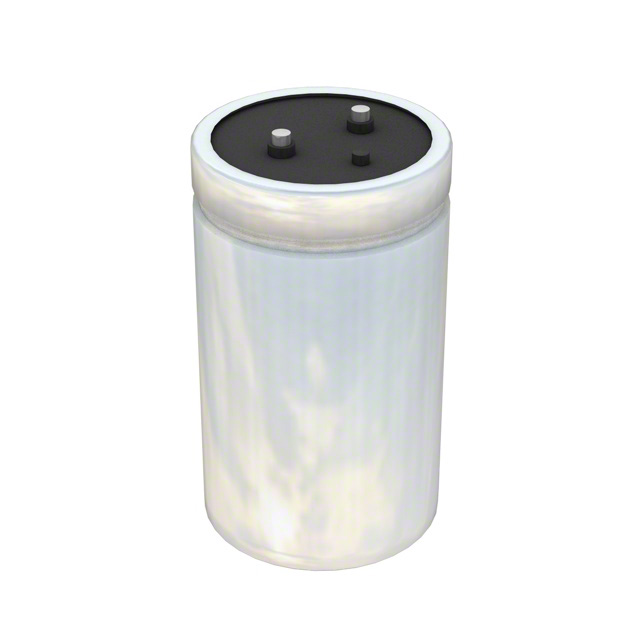

HES362G450X5CCAP ALUM 3600UF 450V SCREW |
3,317 | 296.85 |
RFQ |
Datasheet |
Bulk | HES | Active | 3600 µF | 0%, +50% | 450 V | 28mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.7 A @ 120 Hz | 14.391 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
LNX2H103MSEKCAP ALUM 10000UF 20% 500V SCREW |
3,205 | 195.24 |
RFQ |
Datasheet |
Bulk | LNX | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 120 Hz | - | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 7.638 (194.00mm) | - | Chassis Mount |
|
MAL250079682E3CAP ALUM 6800UF 20% 500V SCREW |
2,074 | 195.35 |
RFQ |
Box | 500 PGP-ST | Active | 6800 µF | ±20% | 500 V | 33mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 23.85 A @ 10 kHz | 31 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount | |
|
|
MAL250039682E3CAP ALUM 6800UF 20% 500V SCREW |
2,754 | 195.35 |
RFQ |
Box | 500 PGP-ST | Active | 6800 µF | ±20% | 500 V | 33mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 23.85 A @ 10 kHz | 31 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 8.693 (220.80mm) | - | Chassis Mount | |
|
|
CGS253T200X8LCAP ALUM 25000UF 200V SCREW |
3,550 | 303.91 |
RFQ |
Datasheet |
Bulk | CGS | Active | 25000 µF | -10%, +50% | 200 V | 15mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.9 A @ 120 Hz | 29.85 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
B43457A5109M000CAP ALUM 10000UF 20% 450V SCREW |
3,488 | 303.99 |
RFQ |
Datasheet |
Bulk | B43457 | Not For New Designs | 10000 µF | ±20% | 450 V | 11mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20.7 A @ 100 Hz | - | 13 mOhms | 1.248 (31.70mm) | 3.583 Dia (91.00mm) | 8.740 (222.00mm) | - | Chassis, Stud Mount |
|
|
520C143T400FG2DCAP ALUM 14000UF 400V SCREW |
2,788 | 304.02 |
RFQ |
Datasheet |
Bulk | 520C | Active | 14000 µF | -10%, +50% | 400 V | 13.8mOhm @ 120Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28.8 A @ 120 Hz | - | - | 1.250 (31.75mm) | 3.500 Dia (88.90mm) | 8.687 (220.65mm) | - | Chassis Mount |
|
|
CGS214U063X8LCAP ALUM 210000UF 63V SCREW |
3,477 | 306.54 |
RFQ |
Datasheet |
Bulk | CGS | Active | 210000 µF | -10%, +75% | 63 V | 12mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 120 Hz | 27.69 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
CGS352T500X5LCAP ALUM 3500UF 500V SCREW |
3,020 | 306.62 |
RFQ |
Datasheet |
Bulk | CGS | Active | 3500 µF | -10%, +50% | 500 V | 30mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.1 A @ 120 Hz | 18.15 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|

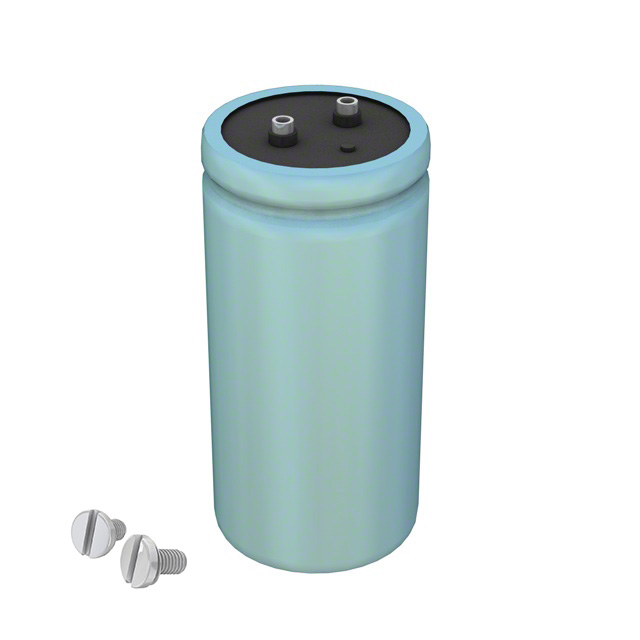

CGH412T500X5LCAP ALUM 4100UF 500V SCREW |
2,671 | 309.66 |
RFQ |
Datasheet |
Bulk | CGH | Active | 4100 µF | -10%, +50% | 500 V | 67.8mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 120 Hz | - | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
36DY332F450DD2ACAP ALUM 3300UF 450V SCREW |
2,296 | 196.19 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 3300 µF | -10%, +50% | 450 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 120 Hz | 13.26 A @ 1 kHz | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 4.752 (120.70mm) | - | Chassis Mount |
|
MAL210245103E3CAP ALUM 10000UF 20% 350V SCREW |
3,465 | 196.35 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 350 V | 15mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.1 A @ 100 Hz | - | 12 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
MAL210285103E3CAP ALUM 10000UF 20% 350V SCREW |
2,436 | 196.35 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 10000 µF | ±20% | 350 V | 15mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.1 A @ 100 Hz | - | 12 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
36DY154F60DJ2ACAP ALUM 150000UF 60V SCREW |
3,786 | 196.58 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 150000 µF | -10%, +50% | 60 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
400LSG15000MEFC90X234CAP ALUM 15000UF 20% 400V SCREW |
3,623 | 312.21 |
RFQ |
Datasheet |
Bulk | LSG | Active | 15000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 9.764 (248.00mm) | - | Chassis Mount |
