Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
RW1S0BAR200JE RES 0.2 OHM 5% 1W J LEAD Ohmite	2,342	4.41	RFQ	Datasheet	2512 J-Lead	Bulk	RW	Active	200 mOhms	±5%	1W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW1S0BAR050FE RES 0.05 OHM 1% 1W J LEAD Ohmite	3,764	4.49	RFQ	Datasheet	2512 J-Lead	Bulk	RW	Active	50 mOhms	±1%	1W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
MC102822505JE RES SMD 25M OHM 5% 1.5W 5025 Ohmite	2,472	4.42	RFQ	Datasheet	Nonstandard	Bulk	Macrochip	Active	25 MOhms	±5%	1.5W	Thick Film	High Voltage, Non-Inductive	±50ppm/°C	-55°C ~ 180°C	-	0.500 L x 0.250 W (12.70mm x 6.35mm)	0.142 (3.60mm)
RW1S0BAR100FE RES 0.1 OHM 1% 1W J LEAD Ohmite	159	5.64	RFQ	Datasheet	2512 J-Lead	Bulk	RW	Active	100 mOhms	±1%	1W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW1S0CKR025DE RES 0.025 OHM 0.5% 1W 4324 Ohmite	3,033	7.37	RFQ	Datasheet	4324 J-Lead (4 Terminals)	Bulk	RW1S0CK	Active	25 mOhms	±0.5%	1W	Thick Film	Current Sense, Flame Proof, Moisture Resistant, Safety	±50ppm/°C	-55°C ~ 125°C	-	0.425 L x 0.244 W (10.80mm x 6.20mm)	0.091 (2.30mm)
TDH35P200RJE RES SMD 200 OHM 5% 35W D2PAK Ohmite	188	10.18	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Bulk	TDH35	Active	200 Ohms	±5%	35W	Thick Film	Moisture Resistant	±50ppm/°C	-55°C ~ 150°C	-	0.398 L x 0.378 W (10.10mm x 9.60mm)	0.185 (4.70mm)

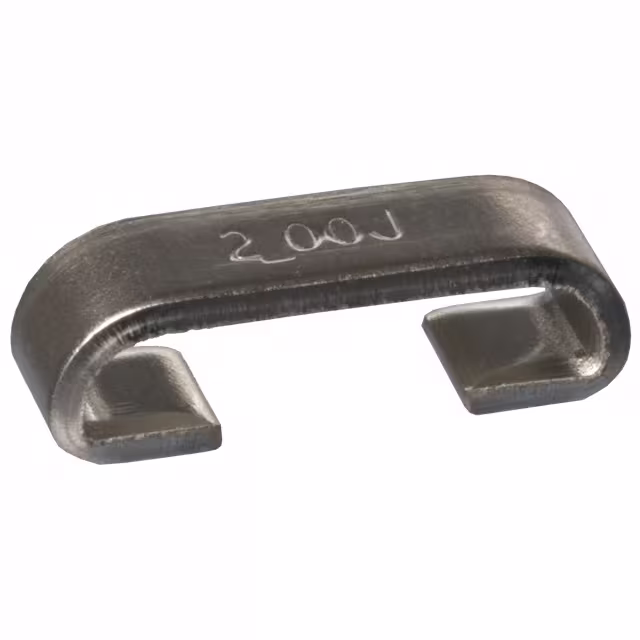

610SJR00200E RES 0.002 OHM 5% 1W C BEND Ohmite	3,740	1.91	RFQ	Datasheet	Strip, C Bend	Bulk	60S	Active	2 mOhms	±5%	1W	Metal Element	Current Sense, Flame Proof, Moisture Resistant, Safety	±350ppm/°C	-40°C ~ 155°C	-	0.441 L x 0.126 W (11.20mm x 3.20mm)	0.154 (3.90mm)
RW1S0BAR010JE RES 0.01 OHM 5% 1W J LEAD Ohmite	2,148	3.90	RFQ	Datasheet	2512 J-Lead	Bulk	RW	Active	10 mOhms	±5%	1W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW2S0CBR500JE RES 0.5 OHM 5% 2W J LEAD Ohmite	3,430	3.98	RFQ	Datasheet	4122 J-Lead	Bulk	RW	Active	500 mOhms	±5%	2W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.407 L x 0.226 W (10.34mm x 5.74mm)	0.227 (5.77mm)
RW2R0DAR050FE RES 0.05 OHM 1% 2W J LEAD Ohmite	3,256	4.07	RFQ	Datasheet	4524 J-Lead	Bulk	RW	Active	50 mOhms	±1%	2W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2S0DA47R0JE RES SMD 47 OHM 5% 2W J LEAD Ohmite	3,770	4.18	RFQ	Datasheet	4524 J-Lead	Bulk	RW	Active	47 Ohms	±5%	2W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)

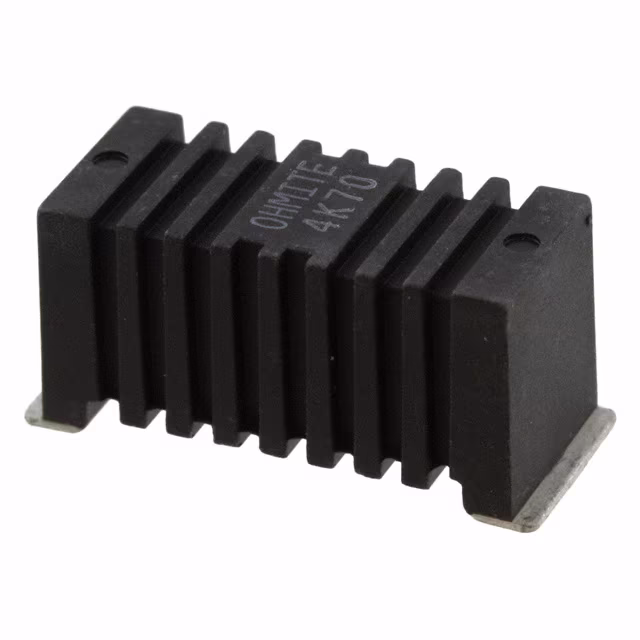

RW5S0FA4K70JE RES SMD 4.7K OHM 5% 5W L BEND Ohmite	181	1.63	RFQ	Datasheet	SMD, L-Bend	Bulk	RW	Active	4.7 kOhms	±5%	5W	Wirewound	-	±20ppm/°C	-55°C ~ 155°C	-	0.806 L x 0.365 W (20.47mm x 9.27mm)	0.406 (10.31mm)
RW2S0DA15R0JE RES SMD 15 OHM 5% 2W J LEAD Ohmite	3,895	4.18	RFQ	Datasheet	4524 J-Lead	Bulk	RW	Active	15 Ohms	±5%	2W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW2S0DA5R00JE RES SMD 5 OHM 5% 2W J LEAD Ohmite	3,360	4.18	RFQ	Datasheet	4524 J-Lead	Bulk	RW	Active	5 Ohms	±5%	2W	Wirewound	Current Sense	±50ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
RW3R5EA1R00JE RES SMD 1 OHM 5% 3.5W J LEAD Ohmite	3,549	4.33	RFQ	Datasheet	8127 J-Lead	Bulk	RW	Active	1 Ohms	±5%	3.5W	Wirewound	Current Sense	±50ppm/°C	-55°C ~ 150°C	-	0.811 L x 0.273 W (20.60mm x 6.93mm)	0.278 (7.06mm)
RW1S0BAR020FE RES 0.02 OHM 1% 1W J LEAD Ohmite	2,445	4.49	RFQ	Datasheet	2512 J-Lead	Strip	RW	Active	20 mOhms	±1%	1W	Wirewound	Current Sense	-	-55°C ~ 150°C	-	0.246 L x 0.136 W (6.25mm x 3.45mm)	0.141 (3.58mm)
RW3R0DB68R0JE RES SMD 68 OHM 5% 3W J LEAD Ohmite	3,196	4.52	RFQ	Datasheet	6327 J-Lead	Bulk	RW	Active	68 Ohms	±5%	3W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
TDH35P7R50JE RES SMD 7.5 OHM 5% 35W D2PAK Ohmite	2,156	11.15	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Bulk	TDH35	Active	7.5 Ohms	±5%	35W	Thick Film	Moisture Resistant	±100ppm/°C	-55°C ~ 150°C	-	0.398 L x 0.378 W (10.10mm x 9.60mm)	0.185 (4.70mm)
ALX12W150RBET 1206 ALNI CHIP 0.1% Ohmite	1,000	1.37	RFQ		-	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-
ALX12W175RBET 1206 ALNI CHIP 0.1% Ohmite	1,000	1.37	RFQ		-	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-
