Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Ratings	Size/Dimension	Height-Seated(Max)
HVC0402T2504JET RES SMD 2.5M OHM 5% 1/20W 0402 Ohmite	2,711	2.11	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	2.5 MOhms	±5%	0.05W, 1/20W	Thick Film	High Voltage	±100ppm/°C	-55°C ~ 155°C	-	0.041 L x 0.020 W (1.04mm x 0.50mm)	0.014 (0.35mm)
FCSL110R025FER RES 0.025 OHM 5W 4320 WIDE Ohmite	785	2.44	RFQ	Datasheet	Wide 4320 (11050 Metric), 2043	Tape & Reel (TR),Cut Tape (CT)	FCSL	Active	25 mOhms	±1%	5W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.433 W (5.00mm x 11.00mm)	0.028 (0.70mm)
FCSL110R002GER RES 0.002 OHM 5W 4320 WIDE Ohmite	304	2.44	RFQ	Datasheet	Wide 4320 (11050 Metric), 2043	Tape & Reel (TR),Cut Tape (CT)	FCSL	Active	2 mOhms	±2%	5W	Metal Foil	Current Sense, Moisture Resistant	±100ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.433 W (5.00mm x 11.00mm)	0.028 (0.70mm)
LVK25R010CER 2W 0.010 OHMS 0.25% LVK (1224) Ohmite	965	2.63	RFQ	Datasheet	Wide 2412 (6231 Metric), 1224	Tape & Reel (TR),Cut Tape (CT)	LVK	Active	10 mOhms	±0.25%	2W	Thick Film	Current Sense, Moisture Resistant	±100ppm/°C	-40°C ~ 125°C	-	0.126 L x 0.252 W (3.20mm x 6.40mm)	0.028 (0.70mm)
FCSL110R010DER RES 0.01 OHM 0.5% 5W 4320 Ohmite	726	2.63	RFQ	Datasheet	Wide 4320 (11050 Metric), 2043	Tape & Reel (TR),Cut Tape (CT)	FCSL	Active	10 mOhms	±0.5%	5W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.433 W (5.00mm x 11.00mm)	0.028 (0.70mm)
FCSL110R005DER RES 0.005 OHM 0.5% 5W 4320 Ohmite	236	2.63	RFQ	Datasheet	Wide 4320 (11050 Metric), 2043	Tape & Reel (TR),Cut Tape (CT)	FCSL	Active	5 mOhms	±0.5%	5W	Metal Foil	Current Sense, Moisture Resistant	±50ppm/°C	-55°C ~ 155°C	-	0.197 L x 0.433 W (5.00mm x 11.00mm)	0.028 (0.70mm)
RW2S0DA68R0JE RES SMD 68 OHM 5% 2W J LEAD Ohmite	3,859	4.18	RFQ	Datasheet	4524 J-Lead	Bulk	RW	Active	68 Ohms	±5%	2W	Wirewound	Current Sense	±20ppm/°C	-55°C ~ 150°C	-	0.455 L x 0.240 W (11.56mm x 6.10mm)	0.231 (5.87mm)
TKH45P500RFE-TR RES 500 OHM 1% 45W TO252 Ohmite	446	3.62	RFQ	Datasheet	PFC10 (TO-126 SMT)	Tape & Reel (TR),Cut Tape (CT)	TKH	Active	500 Ohms	±1%	45W	Thick Film	Pulse Withstanding	±100ppm/°C	-55°C ~ 175°C	-	0.472 L x 0.323 W (12.00mm x 8.20mm)	0.039 (1.00mm)
TKH45P25R0FE-TR RES 25 OHM 1% 45W TO252 Ohmite	343	3.62	RFQ	Datasheet	PFC10 (TO-126 SMT)	Tape & Reel (TR),Cut Tape (CT)	TKH	Active	25 Ohms	±1%	45W	Thick Film	Pulse Withstanding	±100ppm/°C	-55°C ~ 175°C	-	0.472 L x 0.323 W (12.00mm x 8.20mm)	0.039 (1.00mm)
TKH45PR100JE-TR RES 0.1 OHM 5% 45W PFC10 Ohmite	159	3.62	RFQ	Datasheet	PFC10 (TO-126 SMT)	Tape & Reel (TR),Cut Tape (CT)	TKH	Active	100 mOhms	±5%	45W	Thick Film	Pulse Withstanding	±100ppm/°C	-55°C ~ 175°C	-	0.472 L x 0.323 W (12.00mm x 8.20mm)	0.039 (1.00mm)
TKH45P5K00FE-TR RES 5 KOHM 1% 45W TO252 Ohmite	155	3.62	RFQ	Datasheet	PFC10 (TO-126 SMT)	Tape & Reel (TR),Cut Tape (CT)	TKH	Active	5 kOhms	±1%	45W	Thick Film	Pulse Withstanding	±100ppm/°C	-55°C ~ 175°C	-	0.472 L x 0.323 W (12.00mm x 8.20mm)	0.039 (1.00mm)
HVC1206Z5007KET RES SMD 5G OHM 10% 1/4W 1206 Ohmite	3,971	8.09	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	HVC	Active	5 GOhms	±10%	0.25W, 1/4W	Thick Film	High Voltage	±250ppm/°C	-55°C ~ 155°C	-	0.126 L x 0.059 W (3.20mm x 1.50mm)	0.022 (0.55mm)
TDH50H10R0FE-TR TO-263 HEATSINKABLE THICK FILM R Ohmite	2,887	9.09	RFQ	Datasheet	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Tape & Reel (TR),Cut Tape (CT)	TDH50	Active	10 Ohms	±1%	50W	Thick Film	Non-Inductive	-	-55°C ~ 155°C	-	0.406 L x 0.398 W (10.30mm x 10.10mm)	0.185 (4.70mm)
RW0S6BBR020FE RES 0.02 OHM 1% 0.6W 2010 Ohmite	200	0.40	RFQ	Datasheet	2010 (5025 Metric)	Bulk	RW	Active	20 mOhms	±1%	0.6W	Wirewound	Current Sense	±90ppm/°C	-55°C ~ 150°C	-	0.202 L x 0.100 W (5.14mm x 2.54mm)	0.140 (3.55mm)
RC0R5DB43K0KE RES 43K OHM 10% 1/2W 6327 Ohmite	491	1.02	RFQ	Datasheet	6327 J-Lead	Bulk	RC	Active	43 kOhms	±10%	0.5W, 1/2W	Carbon Composition	-	±400ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)
RP2R5DB150RJE RES 150 OHM 5% 2.5W 6327 Ohmite	100	1.07	RFQ	Datasheet	6327 J-Lead	Bulk	RP	Active	150 Ohms	±5%	2.5W	-	-	±250ppm/°C	-55°C ~ 150°C	-	0.625 L x 0.273 W (15.88mm x 6.93mm)	0.231 (5.87mm)

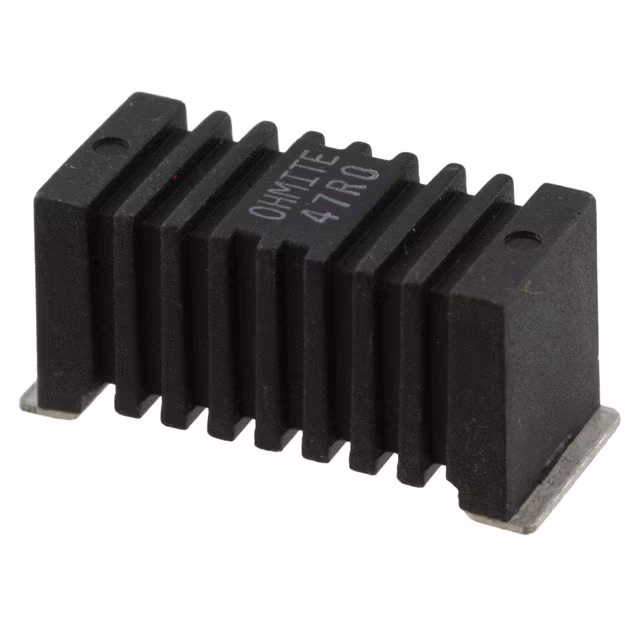

RW5S0FA47R0JE RES SMD 47 OHM 5% 5W L BEND Ohmite	520	0.54	RFQ	Datasheet	SMD, L-Bend	Bulk	RW	Active	47 Ohms	±5%	5W	Wirewound	-	±20ppm/°C	-55°C ~ 155°C	-	0.806 L x 0.365 W (20.47mm x 9.27mm)	0.406 (10.31mm)
HVC0603T2504FE RES 2.5M OHM 1% 100W 0603 Ohmite	188	0.68	RFQ	Datasheet	0603 (1608 Metric)	Bulk	HVC	Active	2.5 MOhms	±1%	0.1W, 1/10W	Thick Film	High Voltage	±100ppm/°C	-55°C ~ 155°C	-	0.059 L x 0.031 W (1.50mm x 0.80mm)	0.022 (0.55mm)
FCSL64R007JER 2W 0007 OHM 5% FCS Ohmite	994	1.07	RFQ		-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-
FCSL64R020GER RES METAL FOIL 1225 002 OHM 2% 2 Ohmite	837	0.85	RFQ		-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-
