| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0085-300CBL ASSY UMCC PLUG-PLUG 11.811 |
2,327 | 4.16 |
RFQ |
Datasheet |
Bulk | UMC | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
415-0073-MM750CBL ASSY SMA-MMCX RG316 29.53 |
2,414 | 13.50 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - |
|

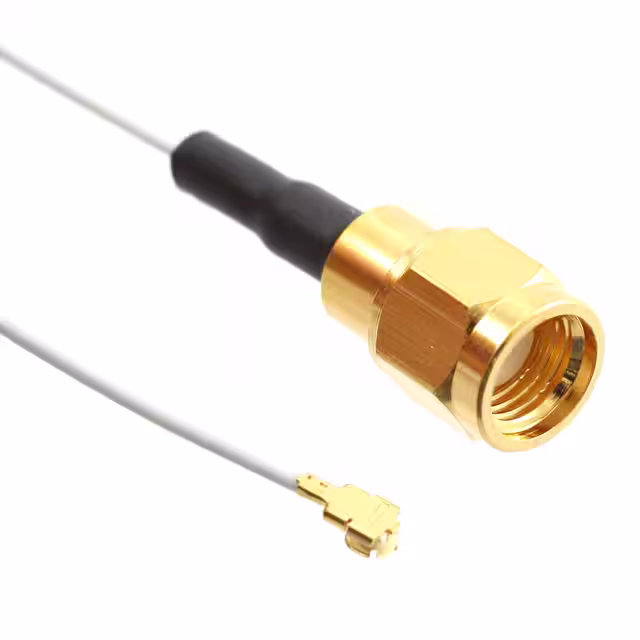

415-0092-150CBL ASSY RP-SMA-UMC PLUG 5.906 |
2,947 | 8.26 |
RFQ |
Datasheet |
Bulk | - | Obsolete | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C |
|

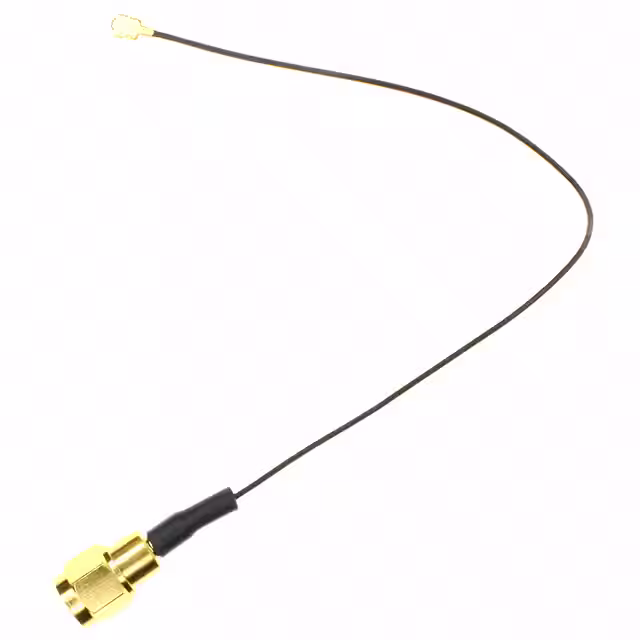

415-0093-150CBL ASSY RP-SMA-UMC PLUG 5.906 |
3,315 | 8.26 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
415-0094-150CBL ASSY RP-SMA-UMC PLUG 5.906 |
3,734 | 8.26 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|

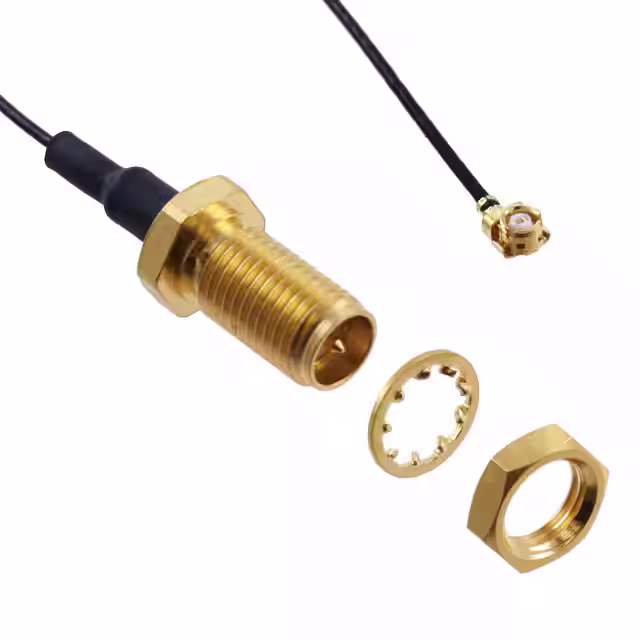

415-0099-150CBL ASSY RP-SMA-UMC 5.906 |
2,724 | 8.26 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|

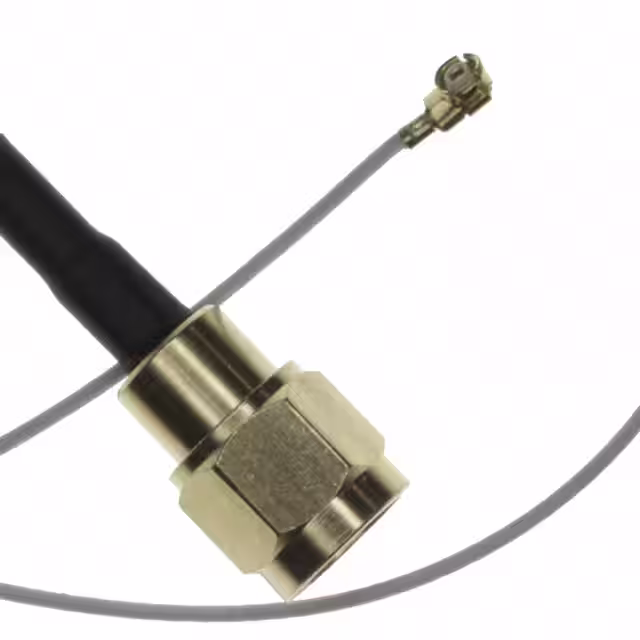

415-0092-250CBL ASSY RP-SMA-UMC PLUG 9.843 |
2,312 | 8.58 |
RFQ |
Datasheet |
Bulk | - | Obsolete | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C |
|

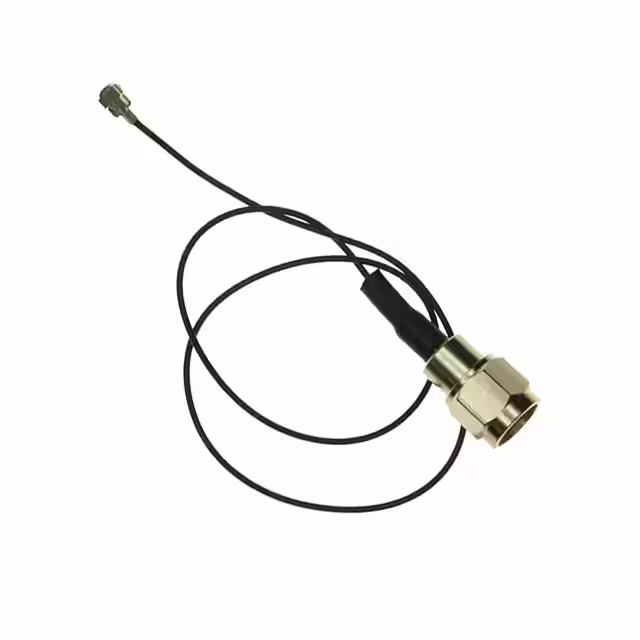

415-0093-250CBL ASSY RP-SMA-UMC PLUG 9.843 |
3,997 | 8.58 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
|
415-0099-250CBL ASSY RP-SMA-UMC 9.843 |
3,049 | 8.58 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
415-0101-250CBL ASSY UMCC-MMCX PLUG 9.843 |
3,255 | 8.58 |
RFQ |
Datasheet |
Bulk | UMC | Obsolete | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C |
|
415-0071-MM750CBL ASSY SMA-MMCX RG316 29.53 |
3,972 | 13.62 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - |
|
415-0019-MM250CBL ASSY MCX PLUG RG316 9.843 |
3,719 | 13.92 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

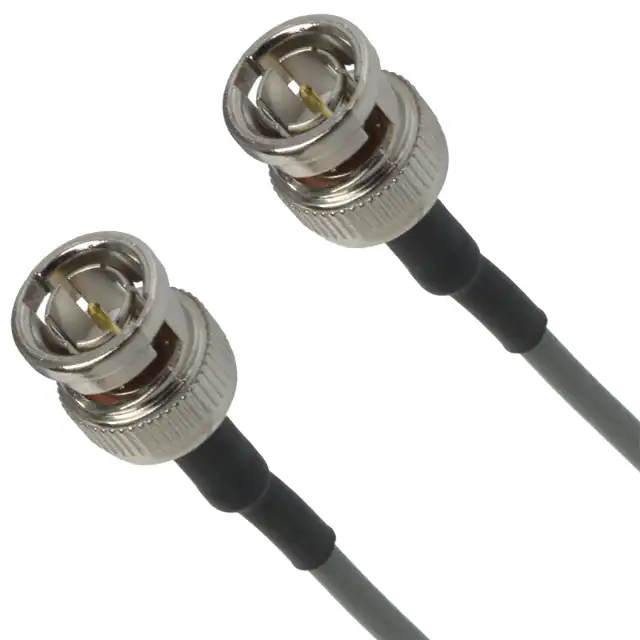

415-0051-012CBL ASSY BNC PLUG-PLUG 12 |
3,771 | 14.54 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 735A | - | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - |
|
415-0056-048CBL ASSY BNC PLUG-PLUG 4' |
2,079 | 14.67 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | Belden 8218 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - |
|
415-0205-006CBL ASSY SMA JACK-PLUG RG174 6 |
3,752 | 15.29 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - |
|
|
415-0205-012CBL ASSY SMA JACK-PLUG RG174 12 |
2,713 | 15.39 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - |
|
415-0204-024STRAIGHT SMA PLUG TO STRAIGHT SM |
2,598 | 16.05 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - |
|
415-0001-MM250CBL ASSY SMB PLUG RG178 9.843 |
3,977 | 16.38 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Gray | Shielded | - |
|
415-0067-006CBL ASSY MMCX PLUG RG316 6 |
2,215 | 16.39 |
RFQ |
Datasheet |
Bulk | - | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - |
|
|
415-0019-MM750CBL ASSY MCX PLUG RG316 29.53 |
2,391 | 16.73 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - |
