| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0020-024CBL ASSY MCX PLUG RG316 DS 24 |
2,093 | 22.93 |
RFQ |
Datasheet |
Bag | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - |
|
415-0011-012CBL ASSY SMB MINISMD RG179DS 12 |
2,780 | 23.06 |
RFQ |
Datasheet |
Bulk | - | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - |
|
415-0021-036CBL ASSY MCX PLUG RG316 DS 36 |
3,666 | 23.06 |
RFQ |
Datasheet |
Bag | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - |
|
415-0060-012CBL ASSY N TYPE PLUG RG142 12 |
2,952 | 23.08 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - |
|
415-0042-012CBL ASSY SMA-BNC PLUG RG142 12 |
2,943 | 23.25 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
415-0017-024CBL ASSY MCX PLUG RG316 24 |
2,418 | 23.29 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
415-0007-006CBL ASSY SMB PLUG-PLUG RG178 6 |
3,964 | 23.47 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | - |
|
415-0010-006CBL ASSY SMB MINI RG179 DS 6 |
2,061 | 23.48 |
RFQ |
Datasheet |
Bulk | - | Active | SMB Mini to SMB Mini | SMB Mini Plug | Female | Free Hanging (In-Line) | - | SMB Mini Plug | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - |
|

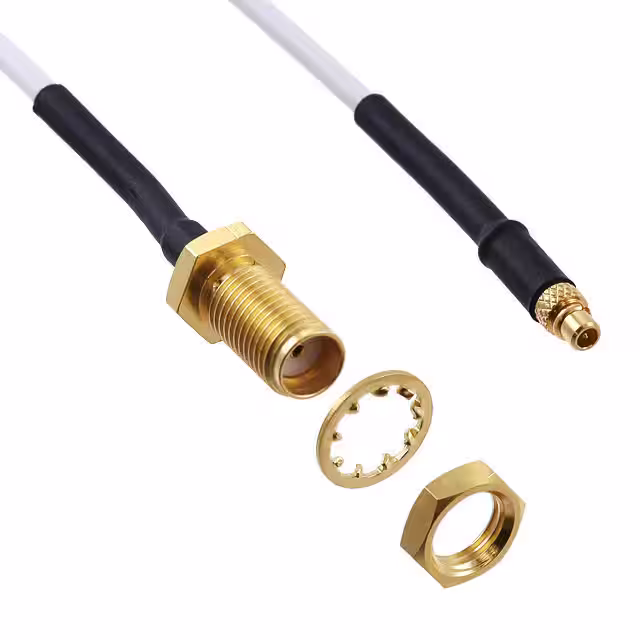

415-0070-MM750CBL ASSY SMA-MMCX RG178 29.53 |
3,669 | 23.70 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - |
|
415-0016-006CBL ASSY MCX PLUG-SCKT RG316 6 |
2,481 | 23.75 |
RFQ |
Datasheet |
Bag | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
|
415-0011-018CBL ASSY SMB MINISMD RG179DS 18 |
3,938 | 23.75 |
RFQ |
Datasheet |
Bulk | - | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - |
|
415-0032-M1.0CBL ASSY SMA PLUG RG316 3.3' |
2,249 | 23.76 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - |
|
415-0002-012CBL ASSY SMB PLUG RG316 12 |
3,290 | 23.87 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
415-0016-MM250CBL ASSY MCX RG316 9.843 |
3,762 | 23.89 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

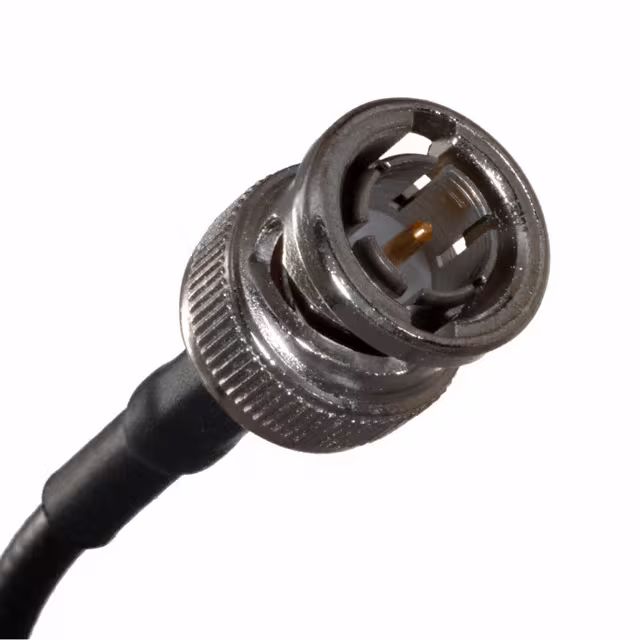

415-0049-060CBL ASSY BNC PLUG-PLUG RG59 5' |
2,325 | 23.97 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - |
|
415-0024-024CBL ASSY MCX PLUG-PLUG 24 |
3,735 | 24.14 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | Belden 735A | - | 75 Ohms | 75 Ohms | 6 GHz | Gray | Shielded | - |
|
|
415-0002-018CBL ASSY SMB PLUG RG316 18 |
2,882 | 24.28 |
RFQ |
Datasheet |
Bulk | - | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
|
415-0016-018CBL ASSY MCX PLUG-SCKT RG316 18 |
2,328 | 24.42 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
|
415-0016-MM500CBL ASSY MCX RG316 19.69 |
2,846 | 24.42 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
|
415-0020-036CBL ASSY MCX PLUG RG316 DS 36 |
3,248 | 24.44 |
RFQ |
Datasheet |
Bulk | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - |
