| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

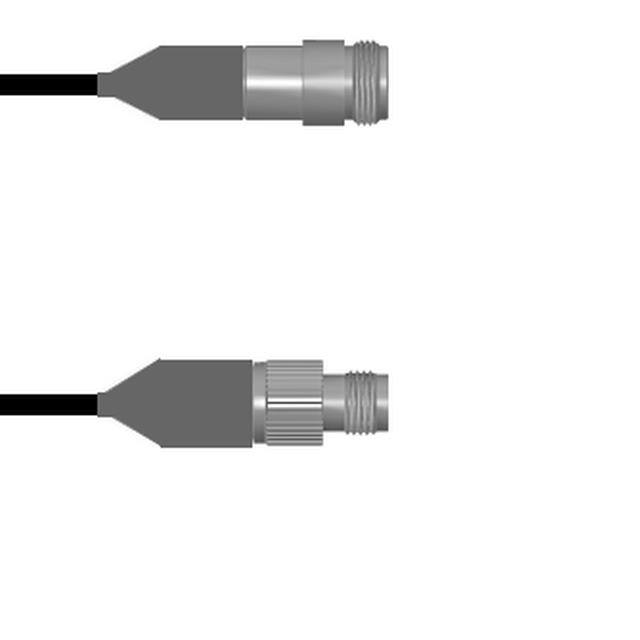

Q-290730013036iCBL ASSY N TO TNC JACK 36 |
3,201 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 36.00 (914.40mm) | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

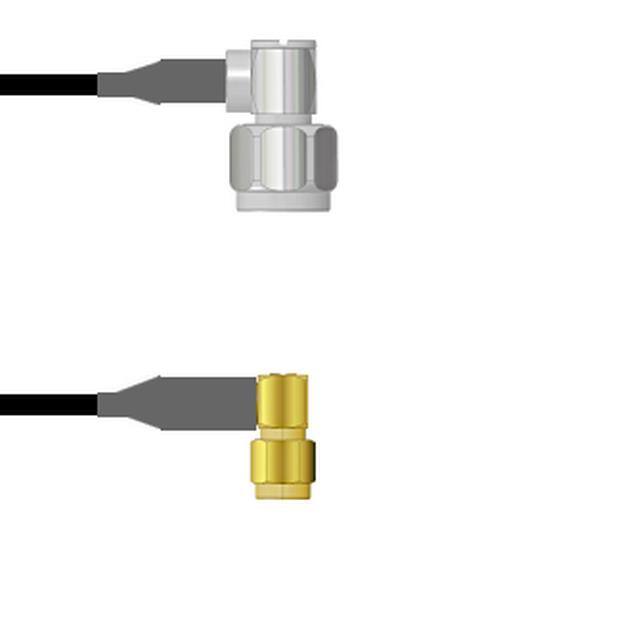

Q-2E037000D.25MCBL ASSY SMA-N PLUG 9.843 |
3,999 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-0J03M0005012iCBL ASY BNC-SMB P-J RG316 12 |
2,392 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2C00Q0005003iCBL ASSY HD-BNC TO N RG316 3 |
3,962 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 3.000 (76.20mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-1T04E0005048iCBL ASSY N TO TNC JACK RG316 4' |
2,632 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

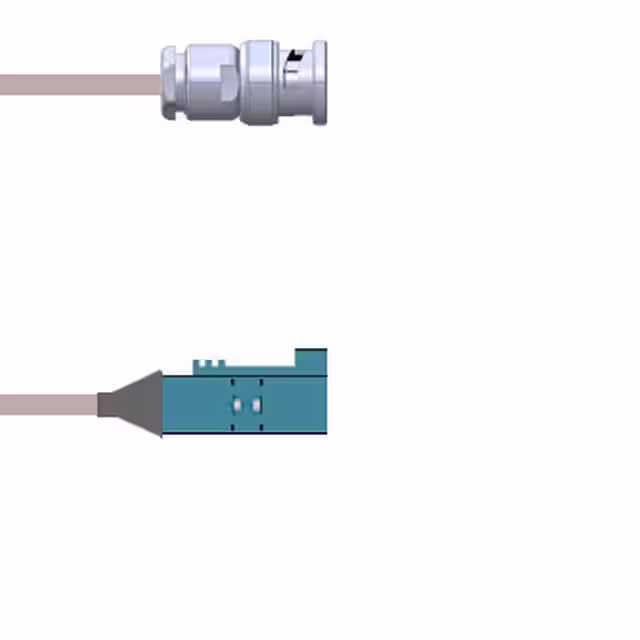

Q-0J05E0005060iCBL ASY BNC-FAKRA P-J RG316 5' |
3,276 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Plug | Male | - | - | Fakra Jack | Female | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

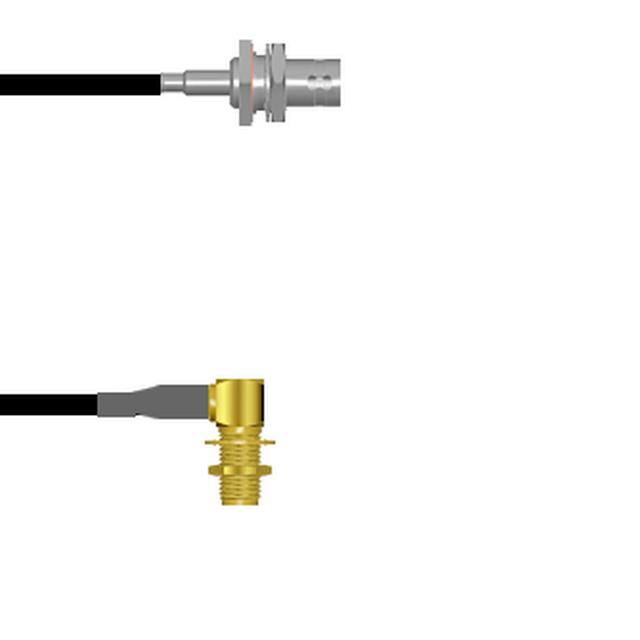

Q-0402P00032.5MCBL ASSY BNC-SMA JACK RG174 2.5M |
2,485 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-21013000R108iCBL ASSY MCX-N JACK RG316 DB 9' |
2,594 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-2304V000D072iCBL ASSY N TO TNC JACK TO PLG 6' |
3,517 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

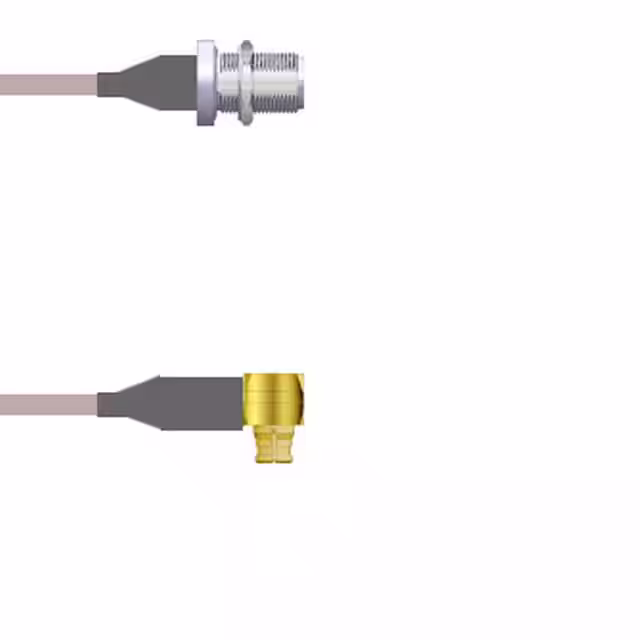

Q-1U0420005024iCBL ASSY SMP-N P TO J RG316 24 |
3,803 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

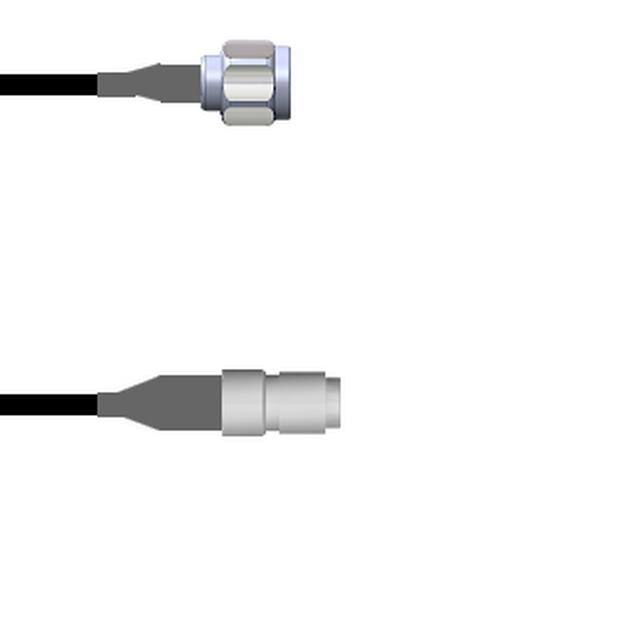

Q-2O065000D.25MCBL ASSY N-TYPE PLUG 9.843 |
2,464 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | 1.0/2.3 to N-Type | 1.0/2.3 Plug | Male | - | - | N-Type Plug | Male | - | - | 9.843 (250.00mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

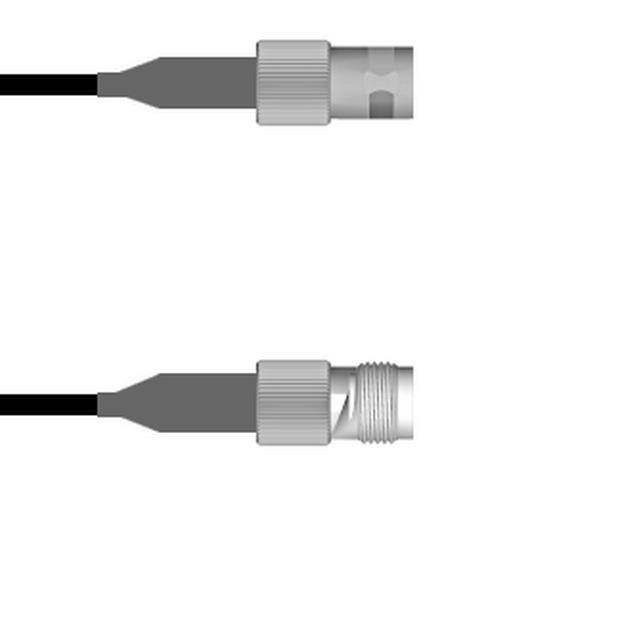

Q-0904J0008012iCBL ASSY BNC-TNC JACK RG58 12 |
2,911 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Jack | Female | - | - | 12.00 (304.80mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0402I00052.5MCBL ASSY BNC-N-TYPE RG316 2.5M |
3,162 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0402P00030.5MCBL ASSY BNC-SMA JK RG174 19.69 |
3,077 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

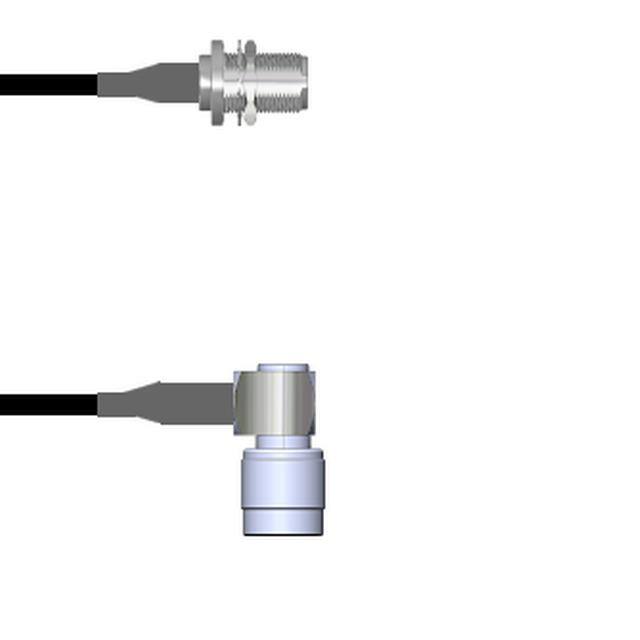

Q-2304V000D.75MCBL ASSY N TO TNC J TO P 29.53 |
3,898 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

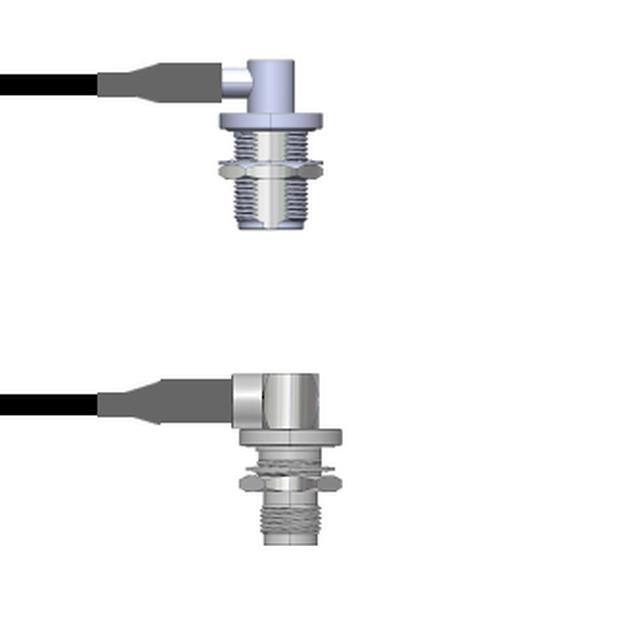

Q-1S0490008.75MCBL ASSY N TO TNC JK RG58 29.53 |
2,262 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53 (750.00mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-2C0480005006iCBL ASY N TO TNC P-J RG316 6 |
3,615 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

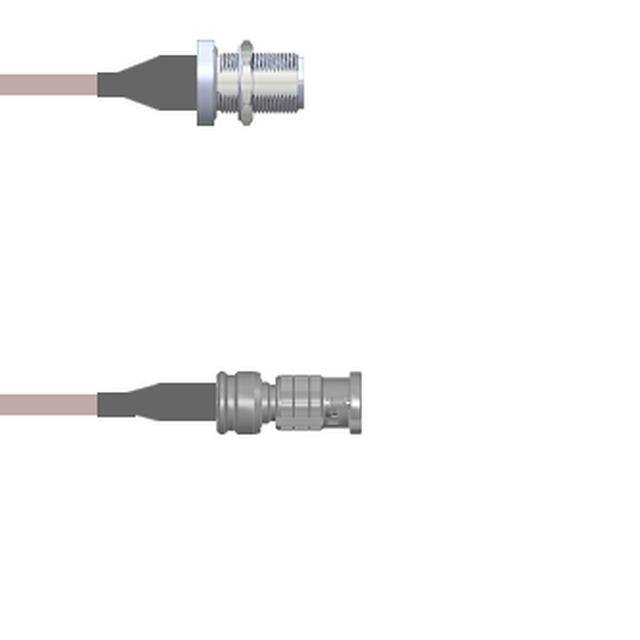

Q-1U05H0005060iCBL ASSY HD-BNC TO N RG316 5' |
3,288 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|
Q-2304V000D084iCBL ASSY N TO TNC JACK TO PLG 7' |
3,598 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 84.0 (2.1m) 7.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

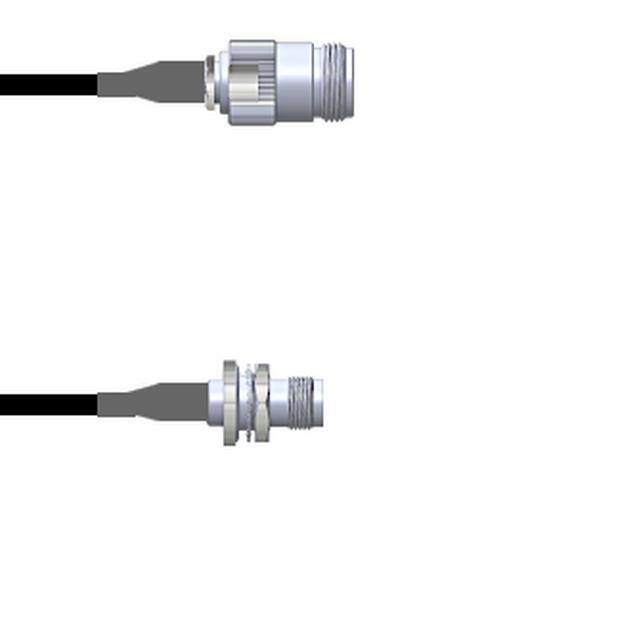

Q-2004E0003002MCBL ASSY N TO TNC JACK RG174 2M |
2,123 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
