| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q-0305A00051.5MCBL ASSY BNC-FAKRA RG316 1.5M |
3,756 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | - | - | Fakra Plug | Male | - | - | 59.1 (1.5m) 4.9' | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

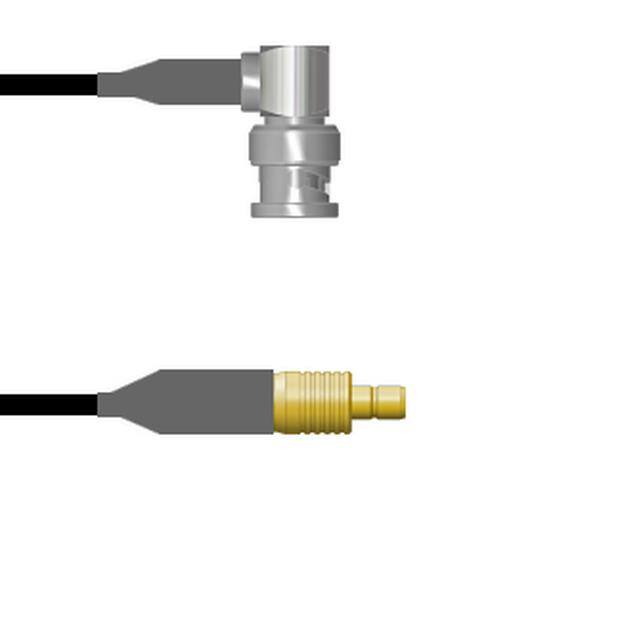

Q-0E03P0008084iCBL ASSY BNC-SMB P TO J RG58 7' |
3,924 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | - | - | SMB Jack | Female | - | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0J01U0005084iCBL ASSY BNC-N-TYPE P-J RG316 7' |
2,351 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

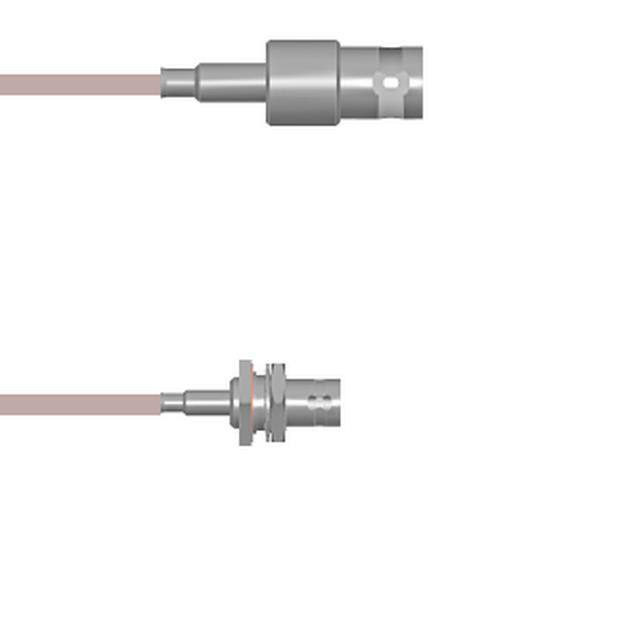

Q-030040005.75MCBL ASSY BNC JACK RG316 29.53 |
3,985 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

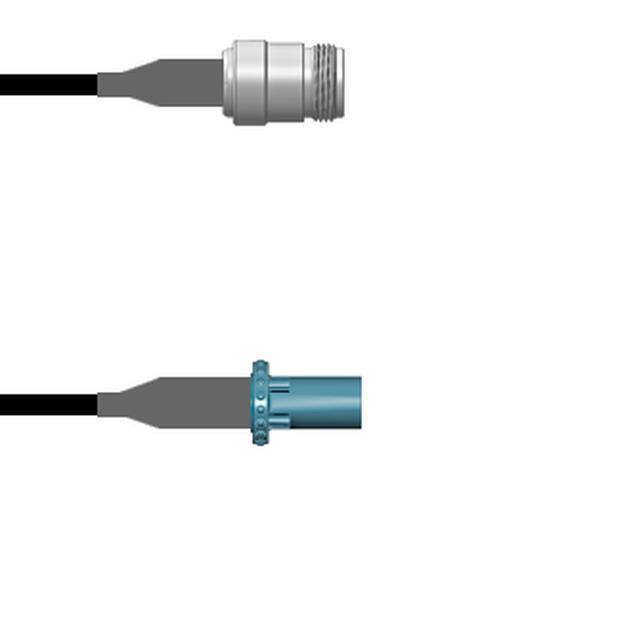

Q-1W05B0008108iCBL ASSY N-FAKRA J TO P RG58 9' |
2,869 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | - | - | Fakra Plug | Male | - | - | 108.0 (2.7m) 9.0' | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

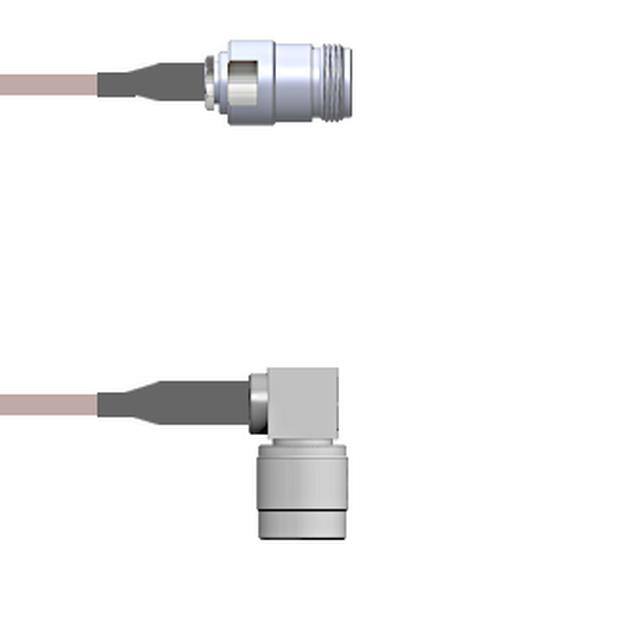

Q-1V04U000R012iCBL ASSY N TO TNC RG316 DB 12 |
2,391 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug, Right Angle | Male | - | - | 12.00 (304.80mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-2C02V0003003MCBL ASY SMA-N JK TO PLG RG174 3M |
3,349 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

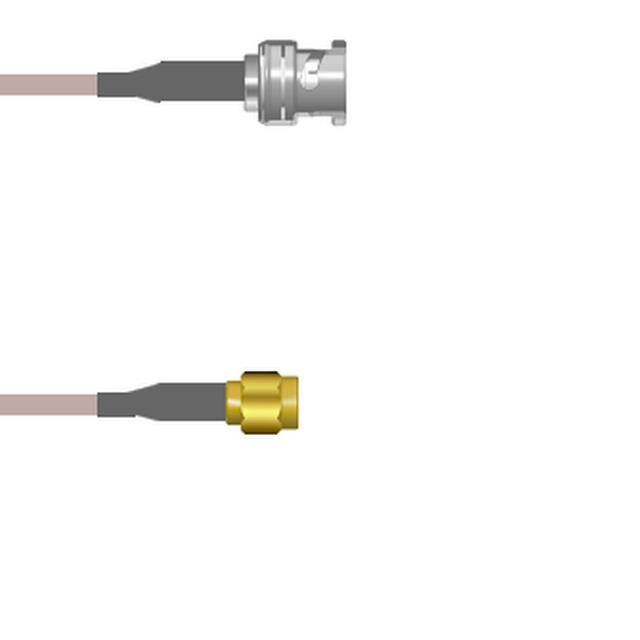

Q-0K03C000R084iCBL ASSY BNC-SMA PLG RG316 DB 7' |
3,573 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2502S000H003MCBL ASSY SMA-N JACK RG142 3M |
3,817 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

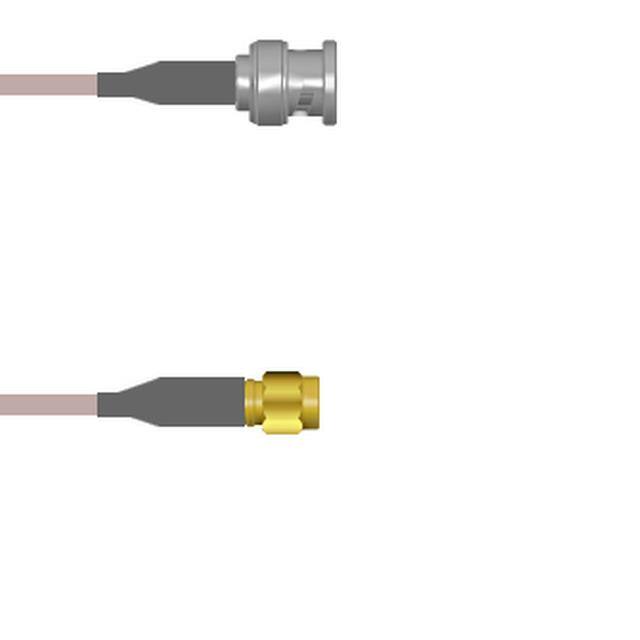

Q-0M03F000H084iCBL ASSY BNC-SMA PLUG RG142 7' |
2,367 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

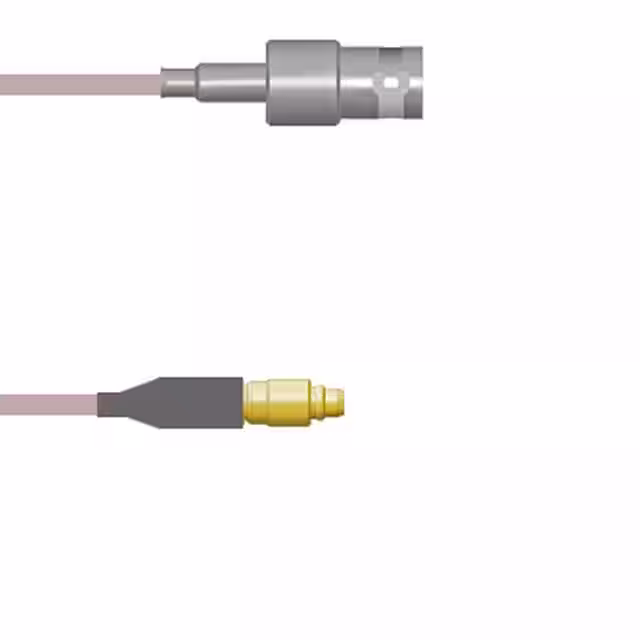

Q-0301Q00051.5MCBL ASSY BNC-MMCX J-P RG316 1.5M |
2,384 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | - | - | MMCX Plug | Male | - | - | 59.1 (1.5m) 4.9' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

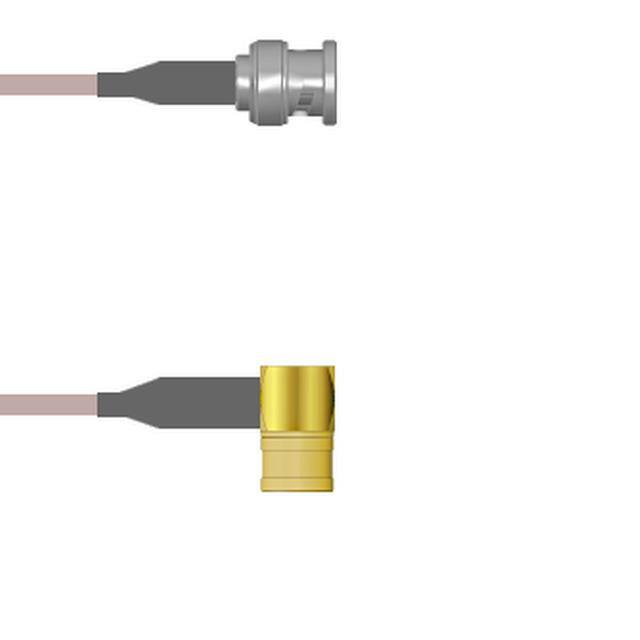

Q-0M03V000H018iCBL ASSY BNC-SMB PLUG RG142 18 |
2,819 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

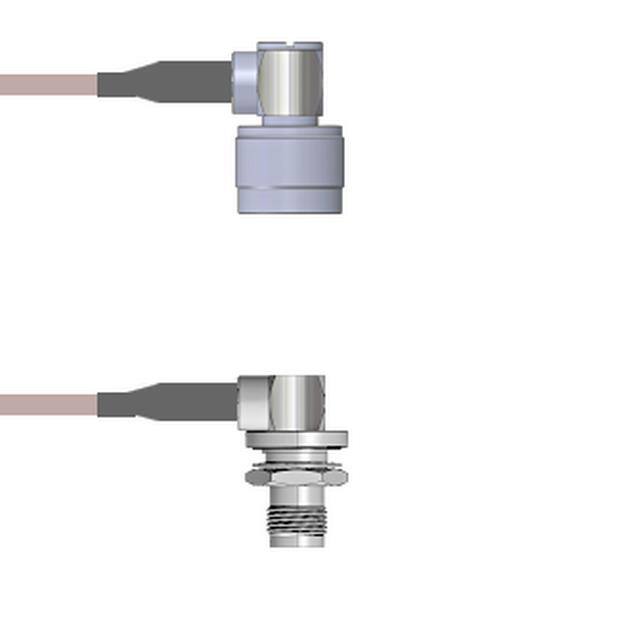

Q-2C0480005036iCBL ASY N TO TNC P-J RG316 36 |
2,943 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

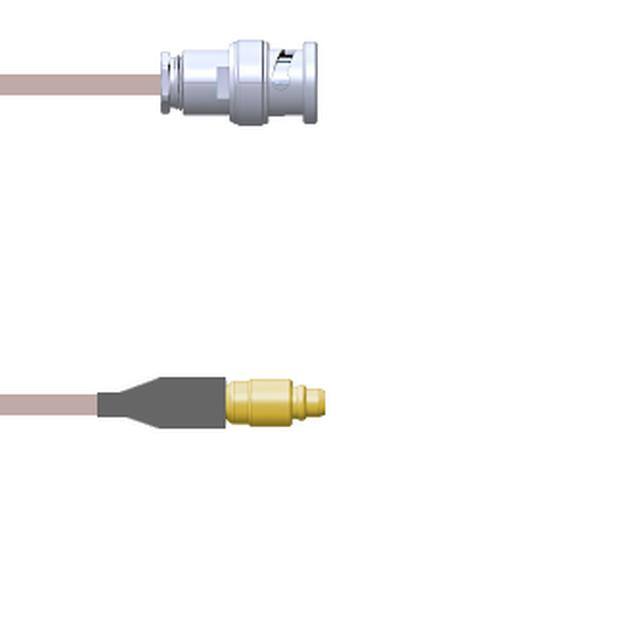

Q-0I01P0001036iCBL ASSY BNC-MMCX PLUG RG178 36 |
2,258 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug | Male | - | - | 36.00 (914.40mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

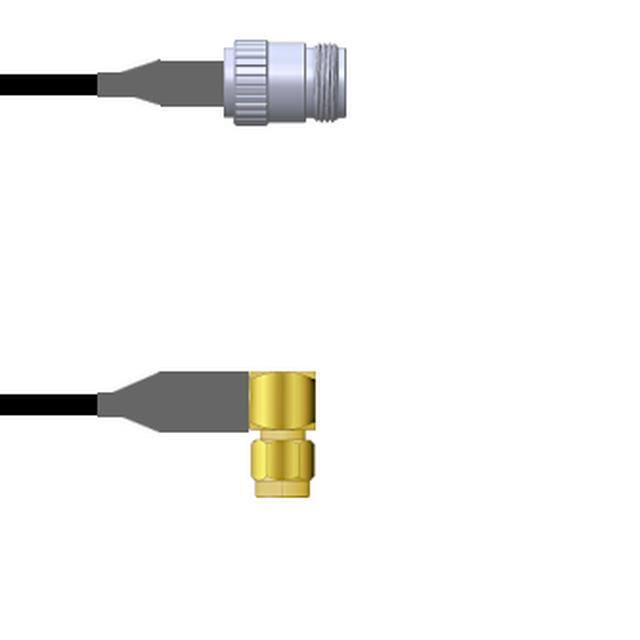

Q-27039000M024iCBL ASSY SMA-N PLUG TO JACK 24 |
2,460 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 24.00 (609.60mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

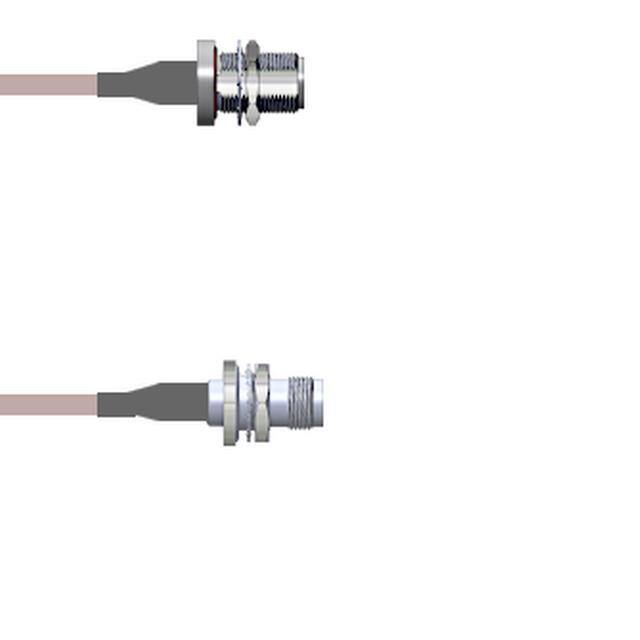

Q-1T04E0005002MCBL ASSY N TO TNC JACK RG316 2M |
3,528 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

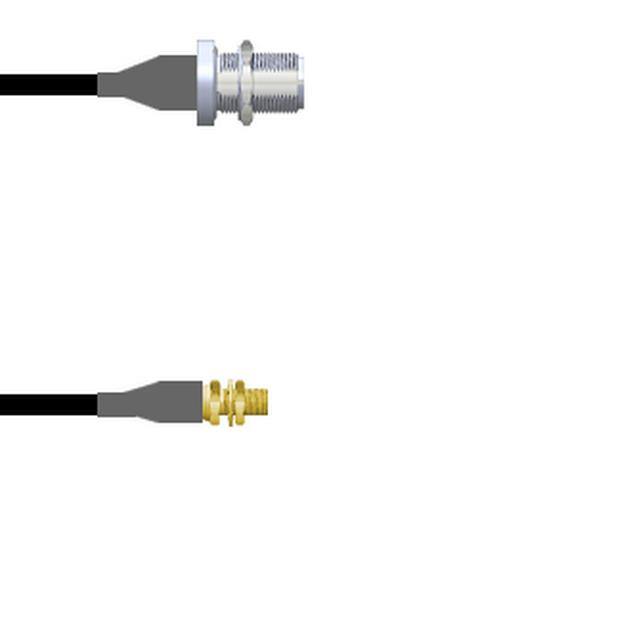

Q-1U0110003060iCBL ASSY MCX-N JACK RG174 5' |
2,257 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

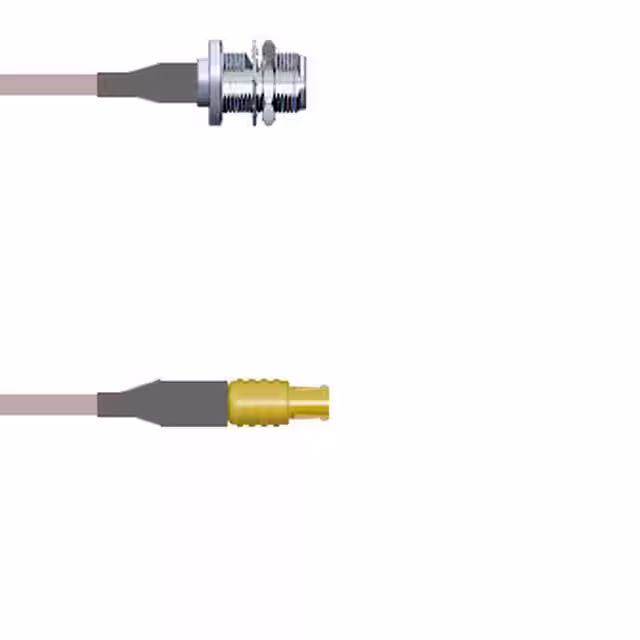

Q-2101D000R0.5MCBL ASSY MCX-N RG316 DB 19.69 |
2,703 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

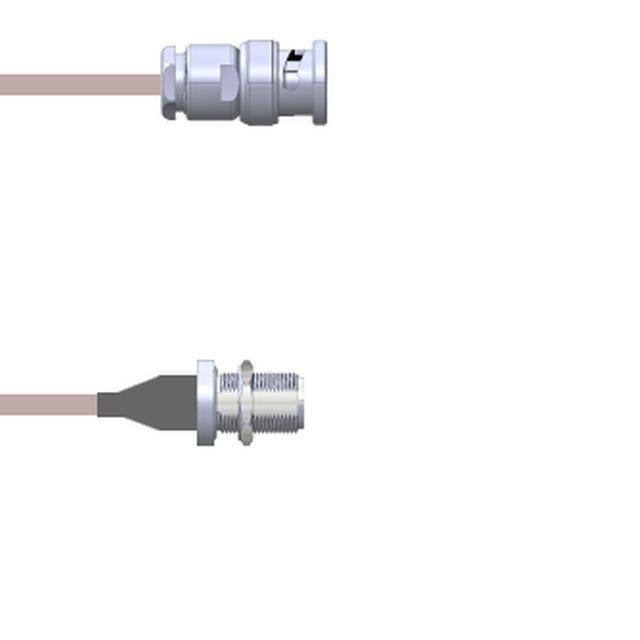

Q-0J01U0005048iCBL ASSY BNC-N-TYPE P-J RG316 4' |
2,745 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0K03C000R072iCBL ASSY BNC-SMA PLG RG316 DB 6' |
3,616 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
