| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

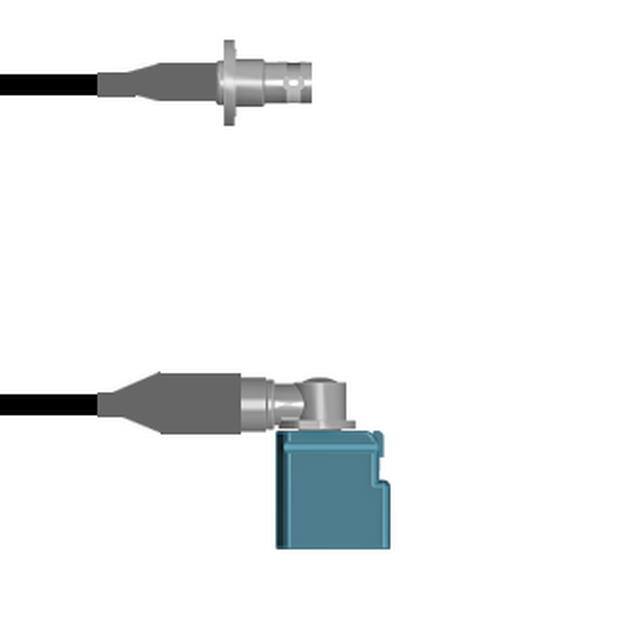

Q-0805D0008012iCBL ASSY BNC-FAKRA JACK RG58 12 |
3,267 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

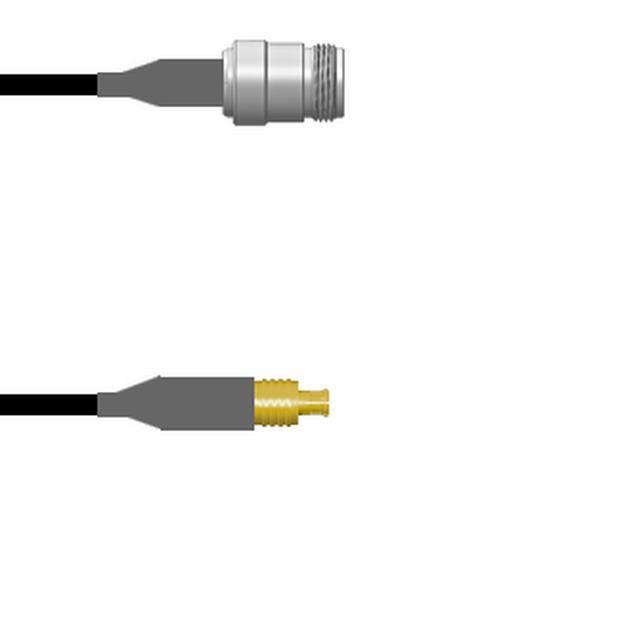

Q-1W01E0008060iCBL ASSY MCX-N PLG TO JK RG58 5' |
2,216 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | - | - | N-Type Jack | Female | - | - | 60.0 (1.5m) 5.0' | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

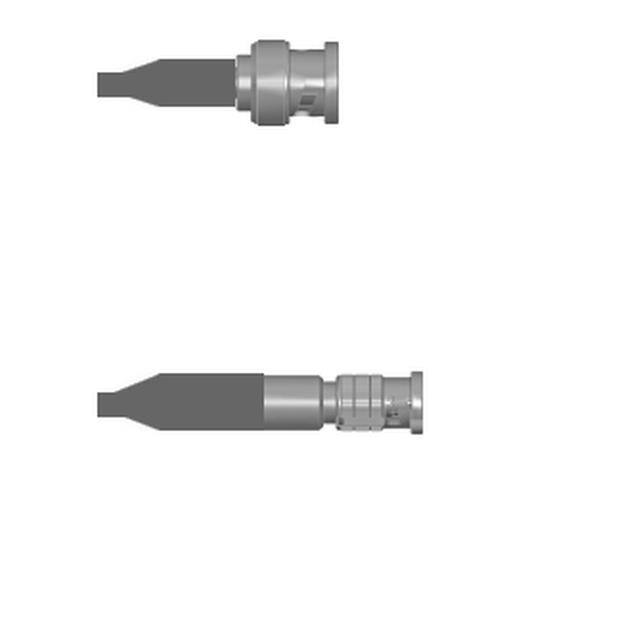

Q-61064000K060iCBL ASSY BNC-HD-BNC PLUG 5' |
3,279 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Plug | Male | - | - | 60.0 (1.5m) 5.0' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
Q-2004T0003002MCBL ASY N TO TNC J TO P RG174 2M |
3,748 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug, Right Angle | Male | - | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0303M0005024iCBL ASSY BNC-SMB JACK RG316 24 |
2,903 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Free Hanging (In-Line) | - | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

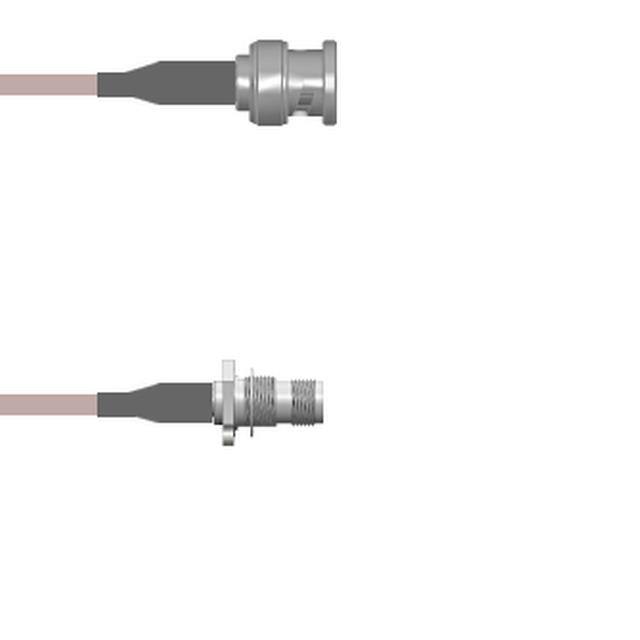

Q-0M04O000H003MCBL ASY BNC-TNC P-J RG142 3M |
3,269 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

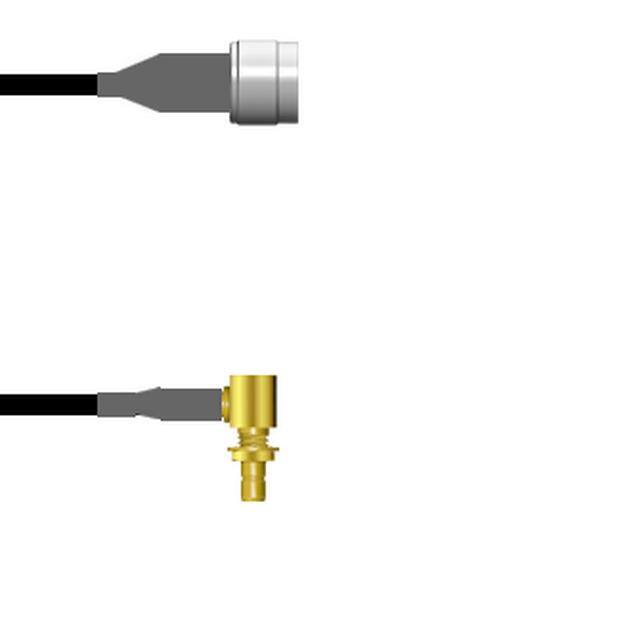

Q-2I03H0003060iCBL ASY SMB-N JK TO PLG RG174 5' |
3,636 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-080090008002MCBL ASSY BNC JACK RG58 2M |
2,375 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

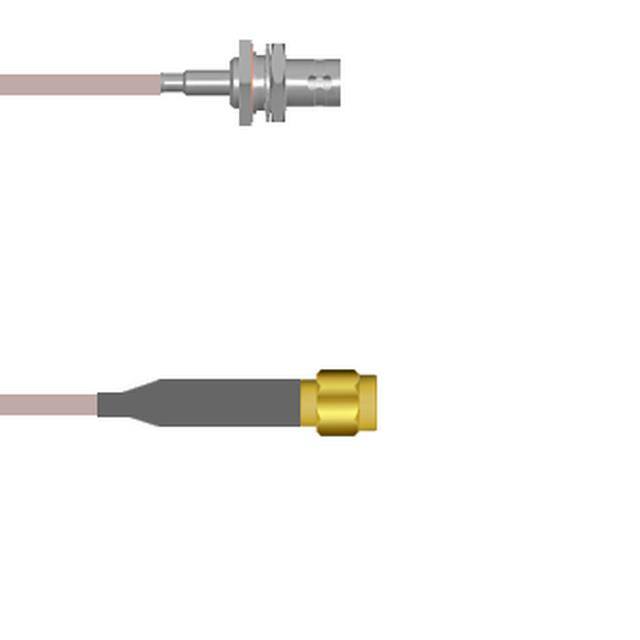

Q-040680005009iCBL ASSY RP-SMA-BNC P-J RG316 9 |
2,967 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

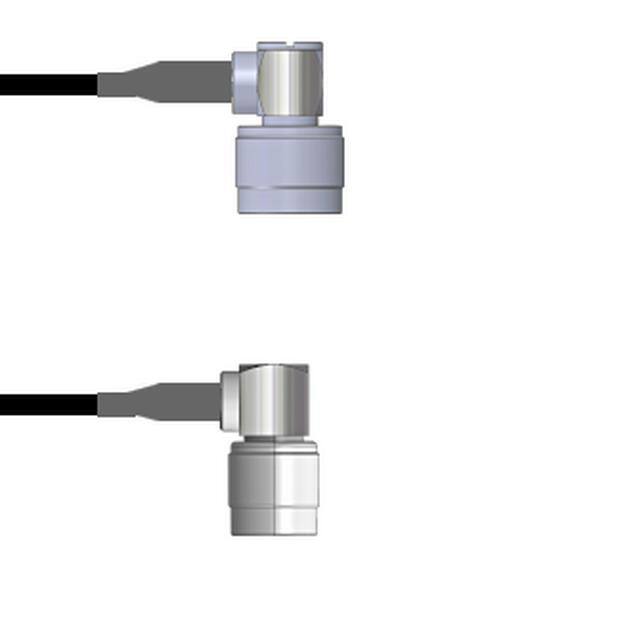

Q-2C04T0003072iCBL ASSY N TO TNC PLUG RG174 6' |
3,711 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-2E04M000D072iCBL ASSY N TO TNC PLUG TO JCK 6' |
3,653 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

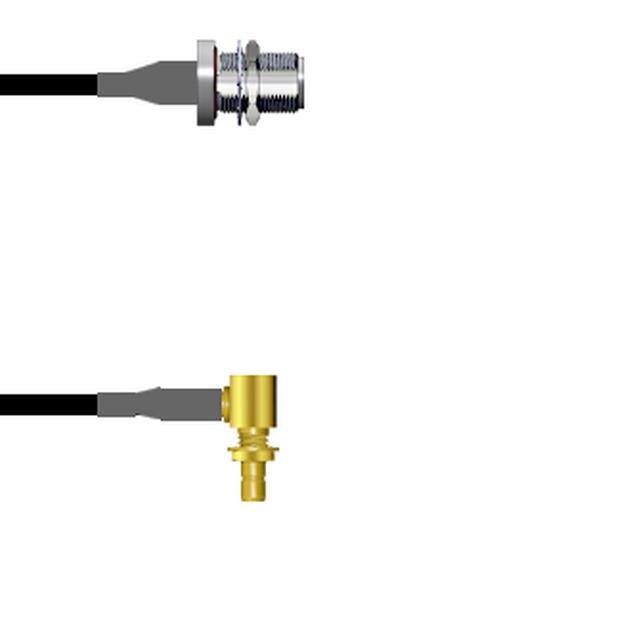

Q-1T03H0003002MCBL ASSY SMB-N JACK RG174 2M |
3,131 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

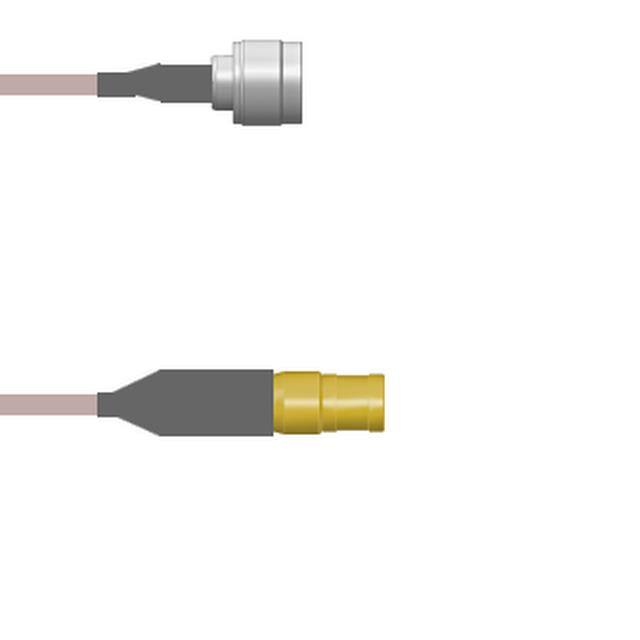

Q-2J03Y000H060iCBL ASSY SMB-N PLUG RG142 5' |
2,699 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug | Male | - | - | 60.0 (1.5m) 5.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-1U04E0003072iCBL ASSY N TO TNC JACK RG174 6' |
2,099 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

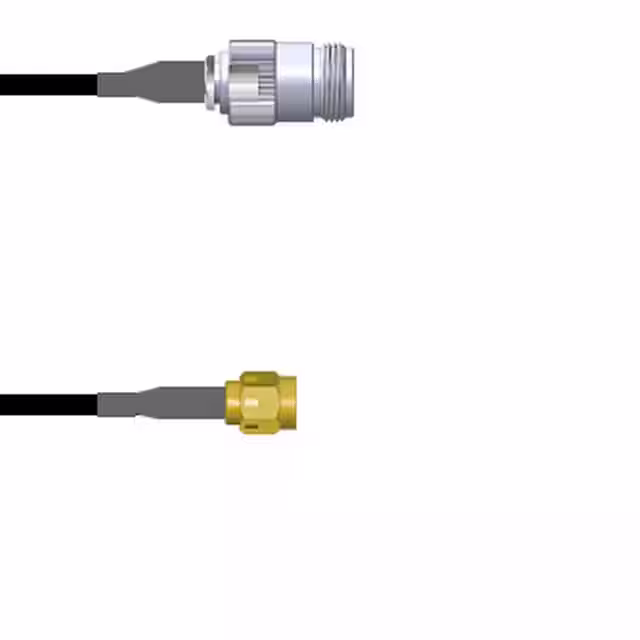

Q-2003B0003006iCBL ASY SMA-N PLG TO JK RG174 6 |
2,399 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Jack | Female | - | - | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

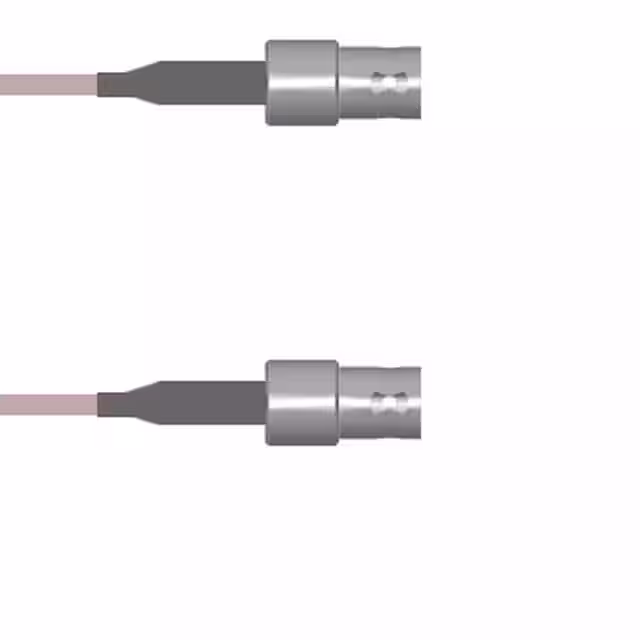

Q-05005000S048iCBL ASSY BNC JACK RG179 4' |
3,698 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

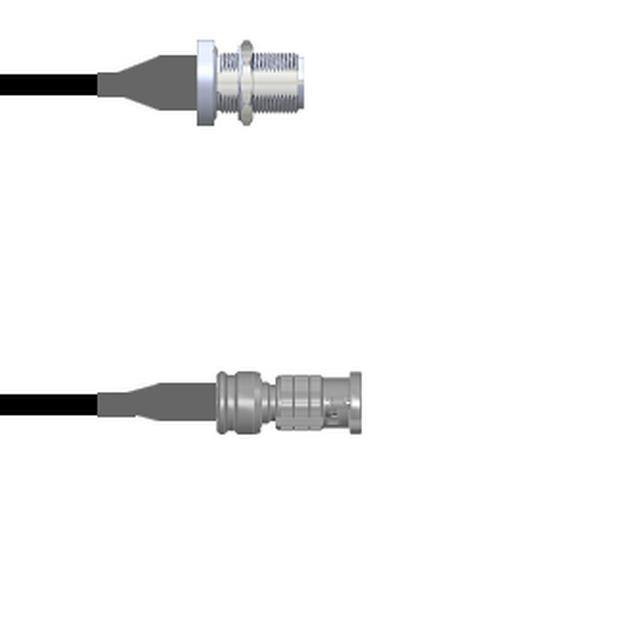

Q-1U05H0003072iCBL ASSY HD-BNC TO N RG174 6' |
3,295 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

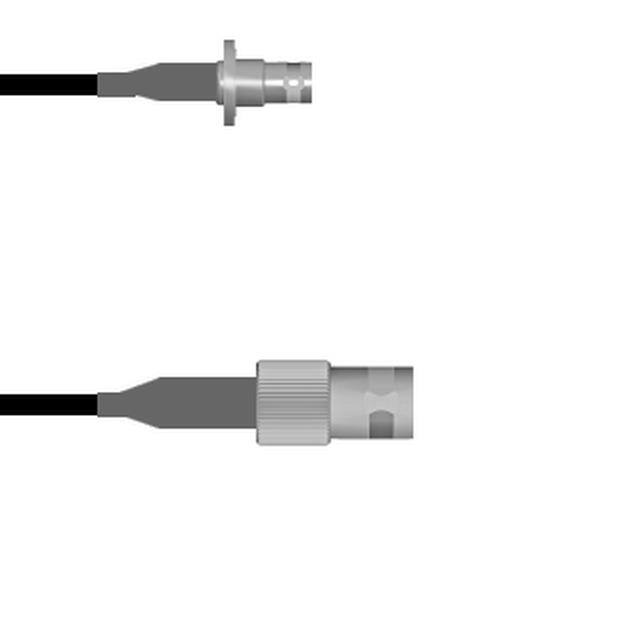

Q-080090008003MCBL ASSY BNC JACK RG58 3M |
3,379 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

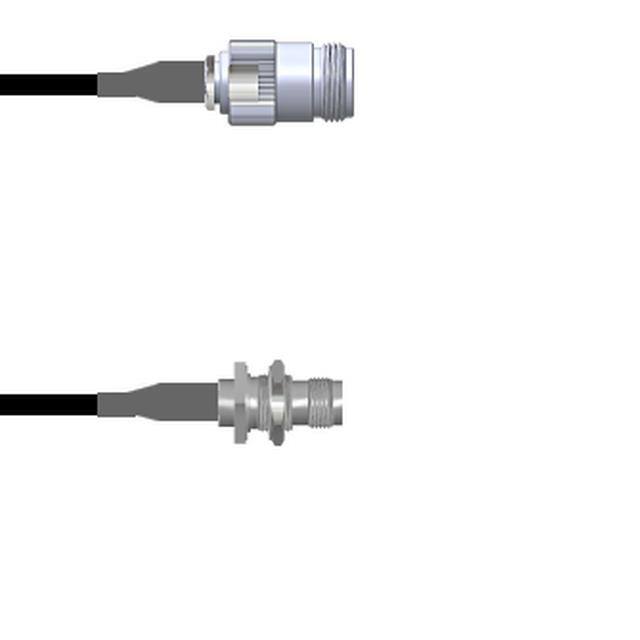

Q-2004F00031.5MCBL ASSY N TO TNC JCK RG174 1.5M |
3,012 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|
Q-0D00Q0003009iCBL ASSY BNC-HD-BNC P-J RG174 9 |
2,921 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Jack | Female | - | - | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
