| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

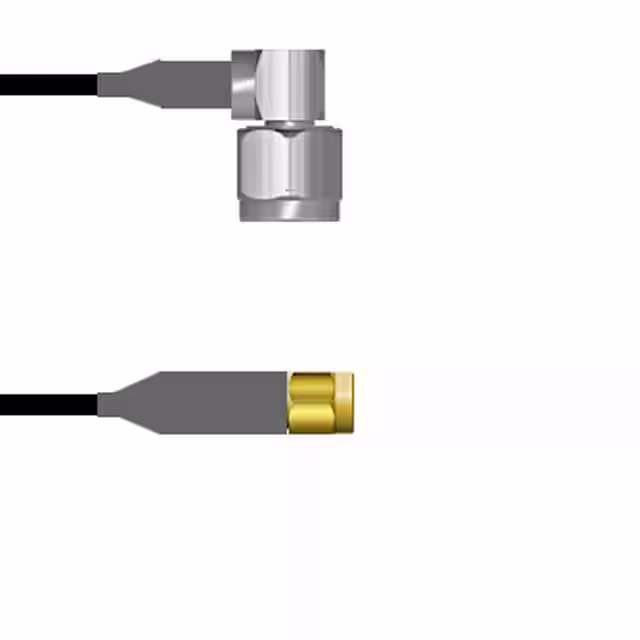

Q-2A03G000M012iCBL ASSY SMA-N PLUG 12 |
3,960 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 12.00 (304.80mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

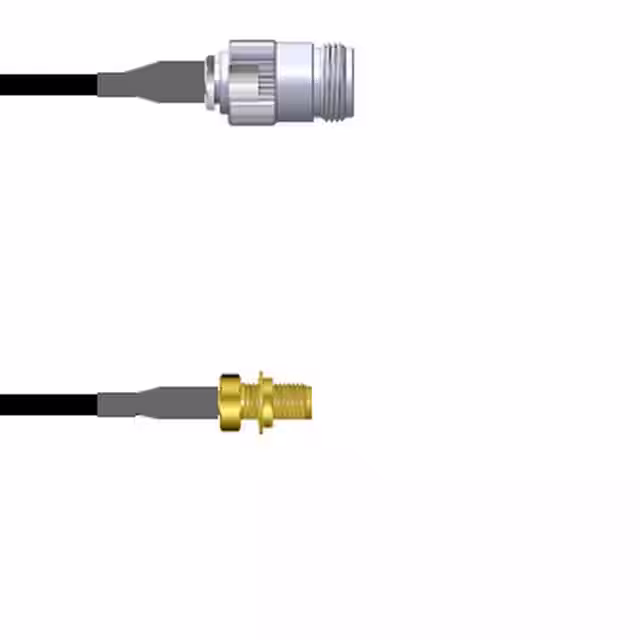

Q-2002W0003006iCBL ASSY SMA-N JACK RG174 6 |
3,956 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

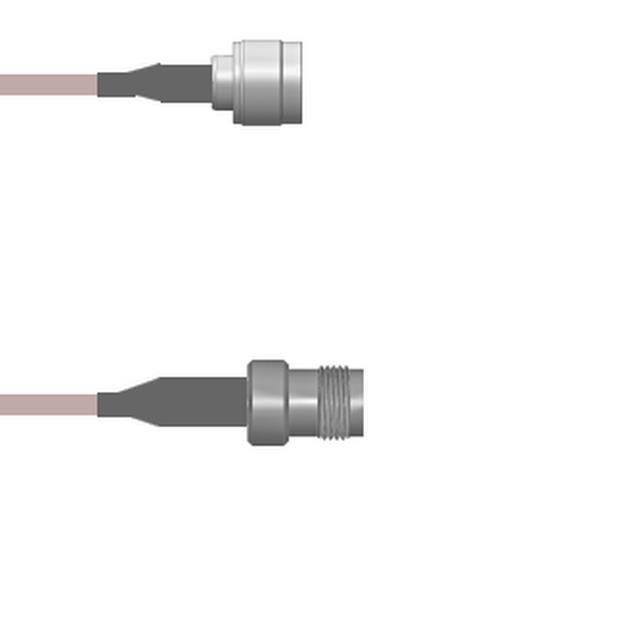

Q-2J04N000H060iCBL ASY N TO TNC P-J RG142 5' |
3,901 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Jack | Female | - | - | 60.0 (1.5m) 5.0' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-2M02M000R003MCBL ASSY N-TYPE PLUG RG316 DB 3M |
3,638 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

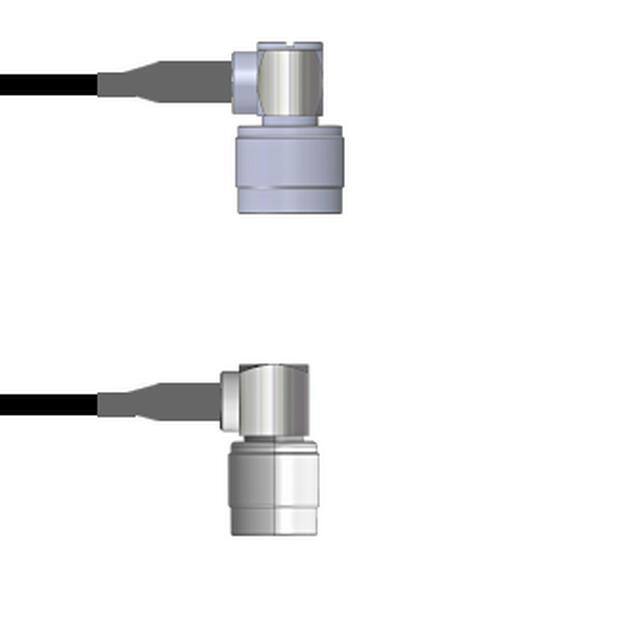

Q-2C04T00032.5MCBL ASSY N TO TNC PLG RG174 2.5M |
2,484 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Plug, Right Angle | Male | - | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

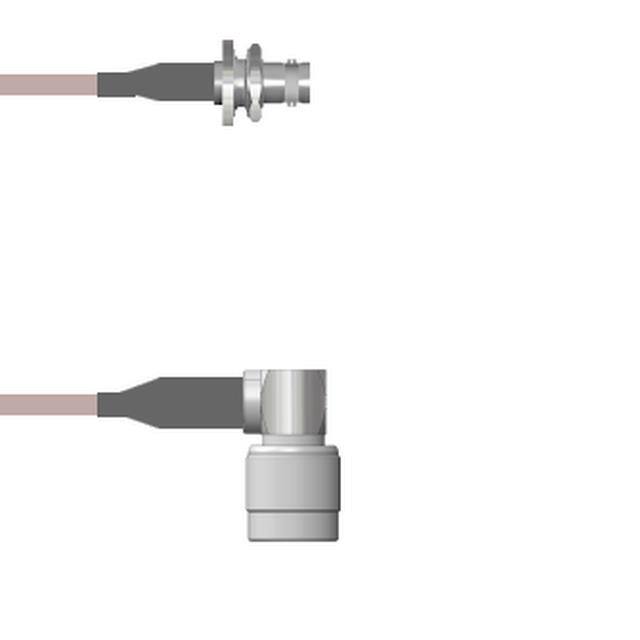

Q-0A04X000H006iCBL ASY BNC-TNC J TO P RG142 6 |
3,509 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

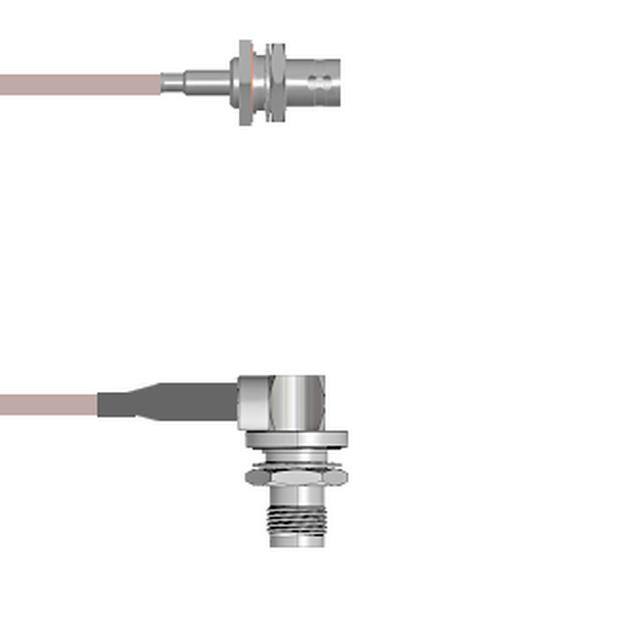

Q-040480005009iCBL ASSY BNC-TNC JACK RG316 9 |
2,090 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

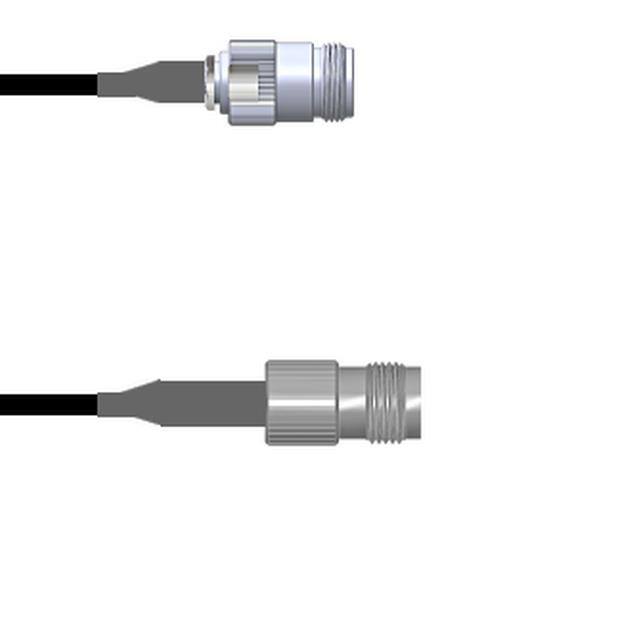

Q-2004G0003009iCBL ASSY N TO TNC JACK RG174 9 |
3,926 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Jack | Female | - | - | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

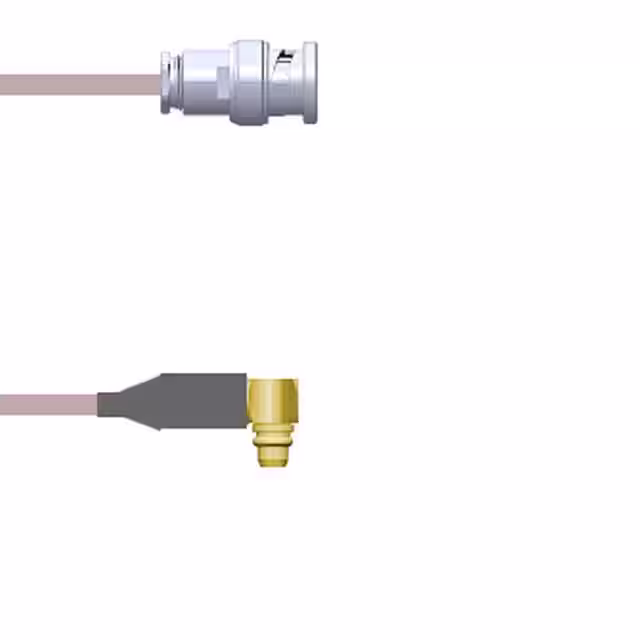

Q-0I01M0001.25MCBL ASY BNC-MMCX PL RG178 9.843 |
3,359 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug, Right Angle | Male | - | - | 9.843 (250.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

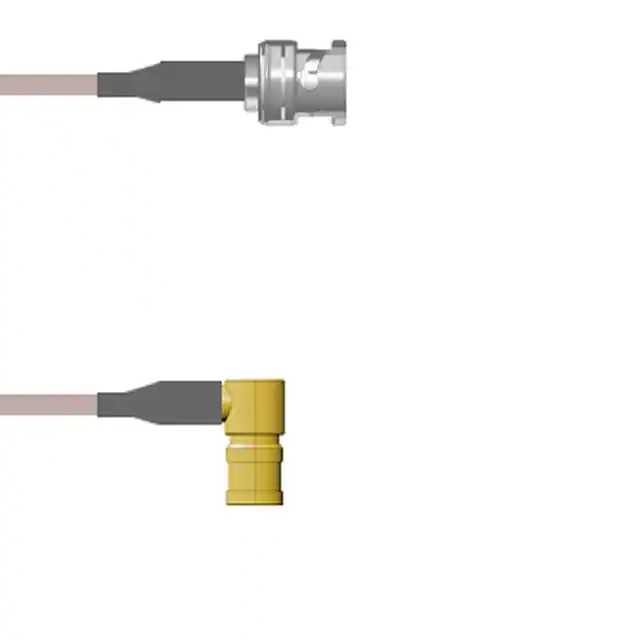

Q-0K03T000R060iCBL ASSY BNC-SMB PLG RG316 DB 5' |
3,017 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

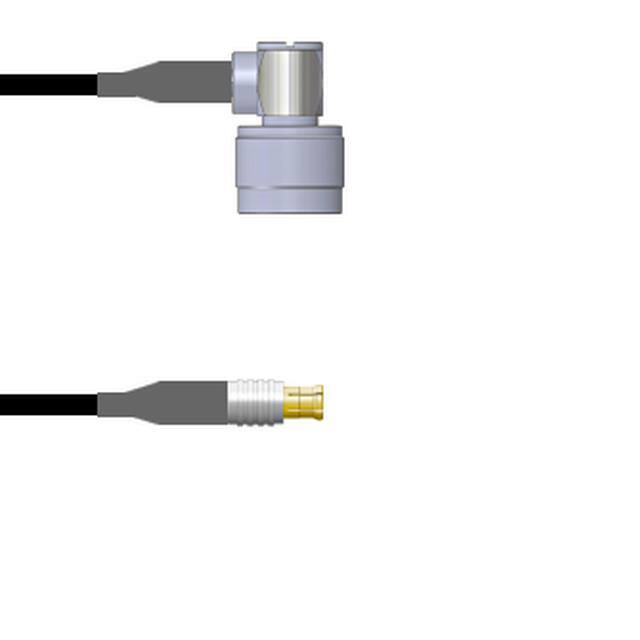

Q-2C01F0003084iCBL ASSY MCX-N PLUG RG174 7' |
3,008 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

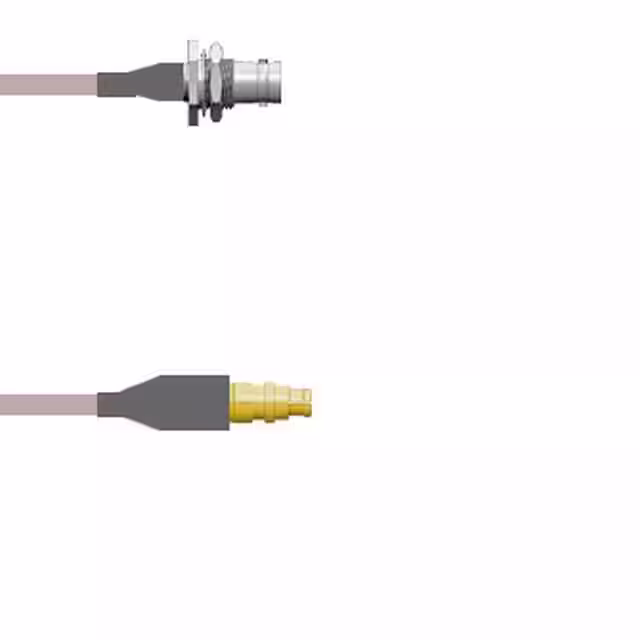

Q-010470001108iCBL ASY BNC-SMPM J TO P RG178 9' |
3,989 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMPM | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMPM Plug | Male | Free Hanging (In-Line) | - | 108.0 (2.7m) 9.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

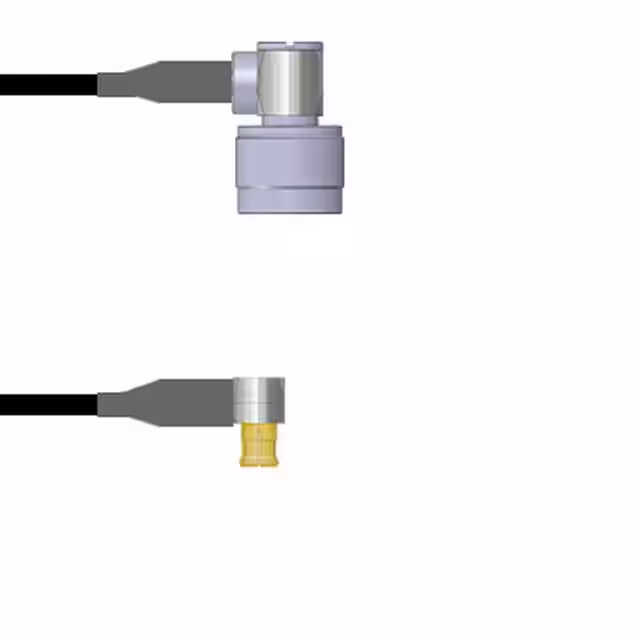

Q-2C01A00031.5MCBL ASSY MCX-N PLUG RG174 1.5M |
2,923 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

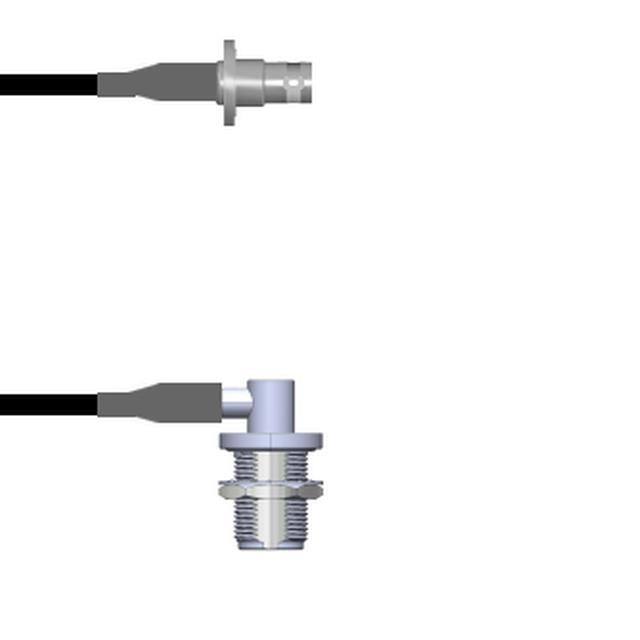

Q-0801S0008108iCBL ASSY BNC-N-TYPE JACK RG58 9' |
2,645 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

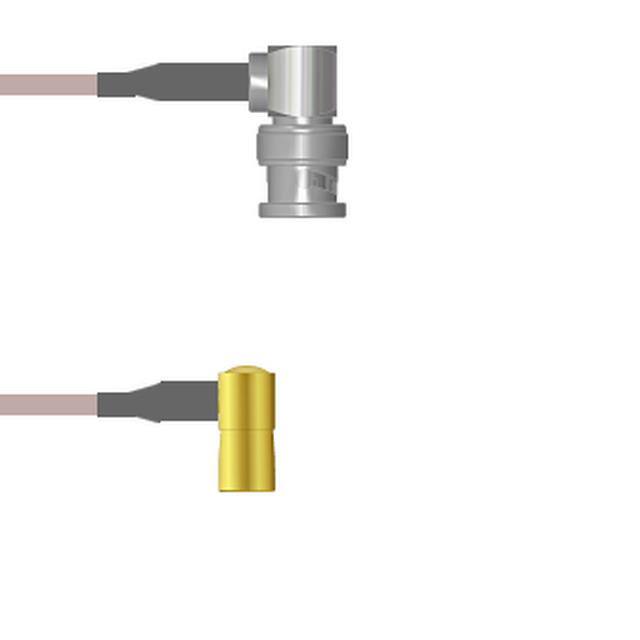

Q-0D03S0005084iCBL ASSY BNC-SMB PLUG RG316 7' |
2,457 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | - | - | SMB Plug, Right Angle | Male | - | - | 84.0 (2.1m) 7.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

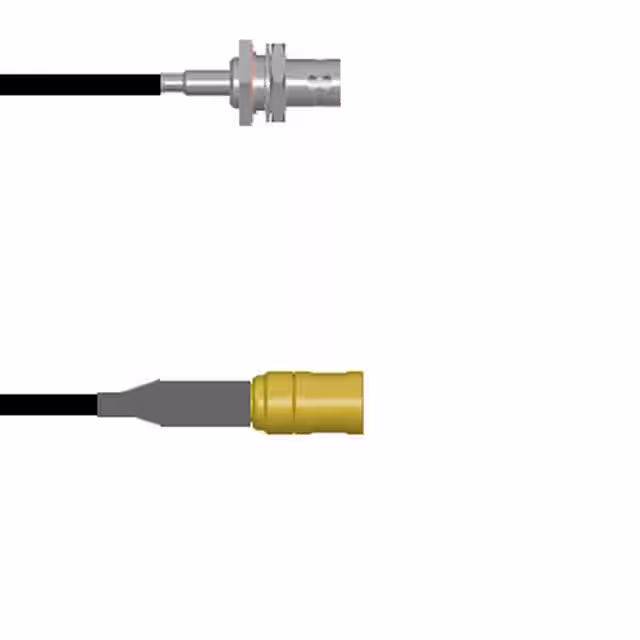

Q-0403W0003.25MCBL ASSY BNC-SMB RG174 9.843 |
2,351 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

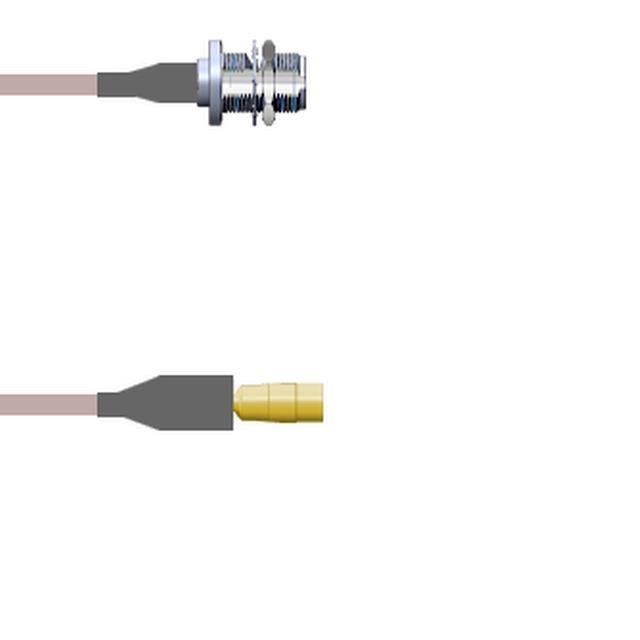

Q-2101L000R002MCBL ASSY MMCX-N JACK RG316 DB 2M |
2,385 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

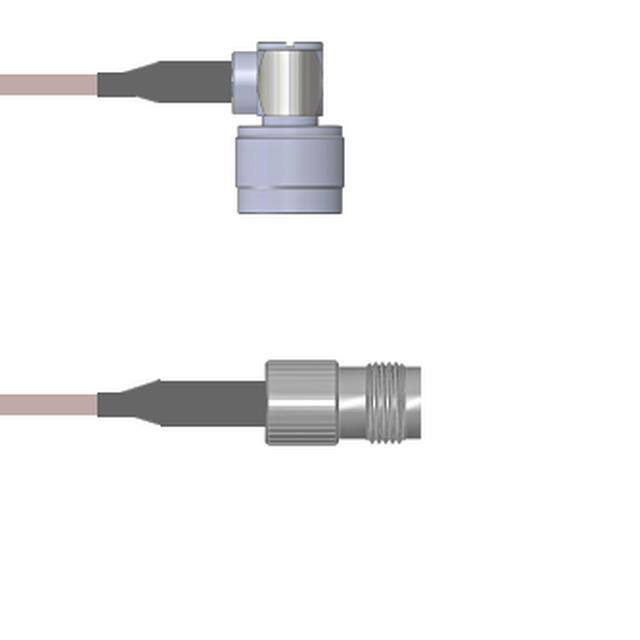

Q-2C04G0005108iCBL ASY N TO TNC P-J RG316 9' |
2,872 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Jack | Female | - | - | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|
Q-1V013000R024iCBL ASSY MCX-N JACK RG316 DB 24 |
3,204 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | - | - | N-Type Jack | Female | - | - | 24.00 (609.60mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

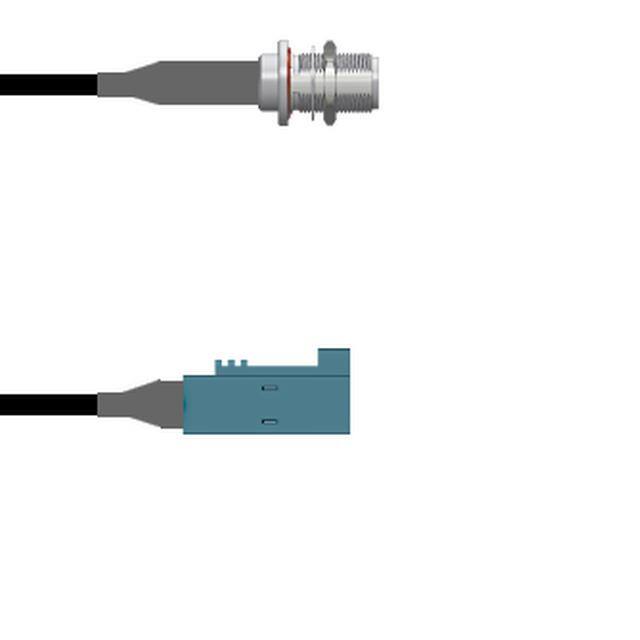

Q-1X05F00081.5MCBL ASSY N-FAKRA JACK RG58 1.5M |
3,403 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
