| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

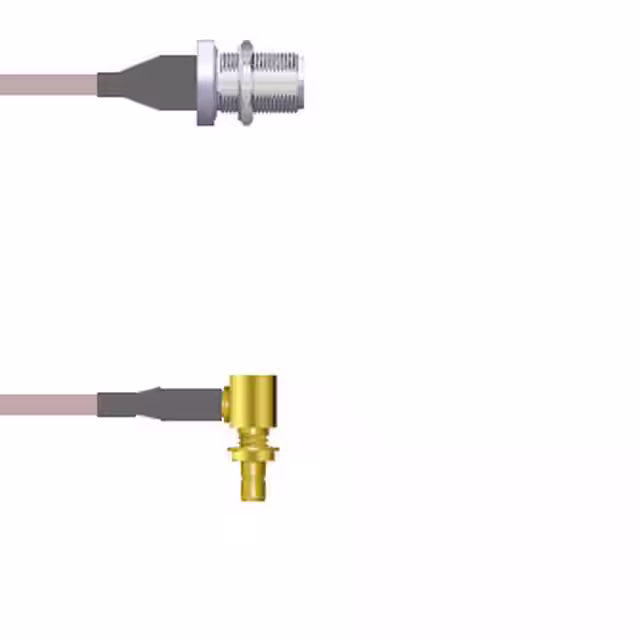

Q-1U03H0005006iCBL ASSY SMB-N JACK RG316 6 |
3,911 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

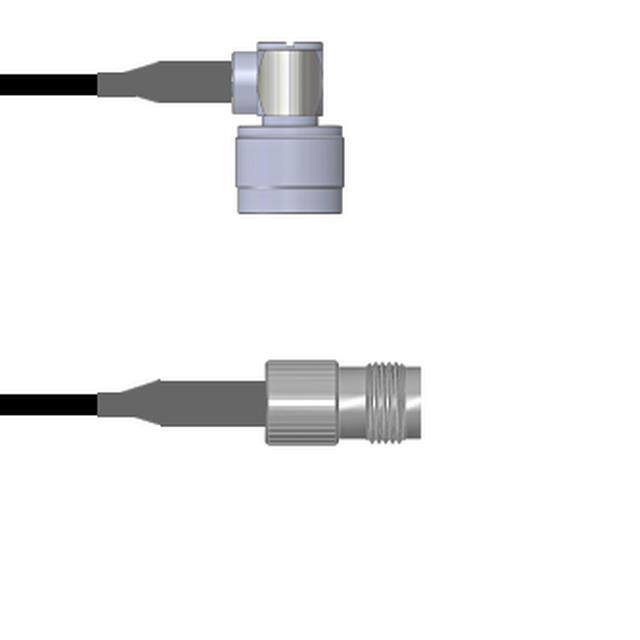

Q-2C04G0003108iCBL ASY N TO TNC P-J RG174 9' |
2,586 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Jack | Female | - | - | 108.0 (2.7m) 9.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

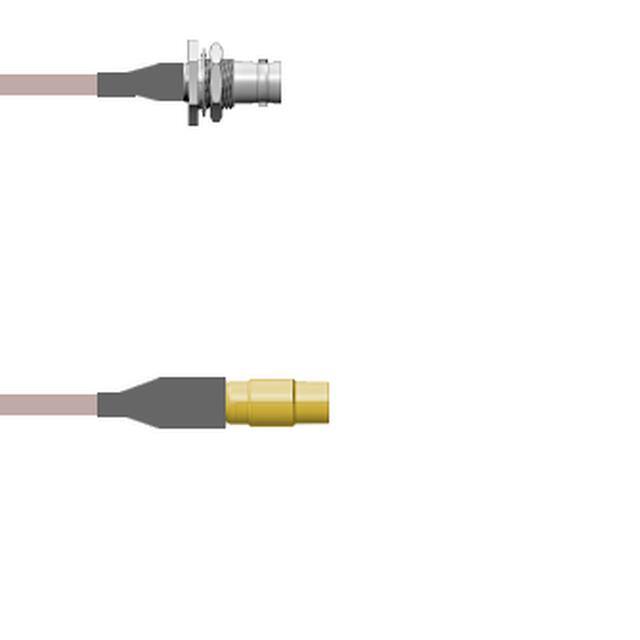

Q-0101G0001001MCBL ASSY BNC-MMCX JACK RG178 1M |
3,195 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

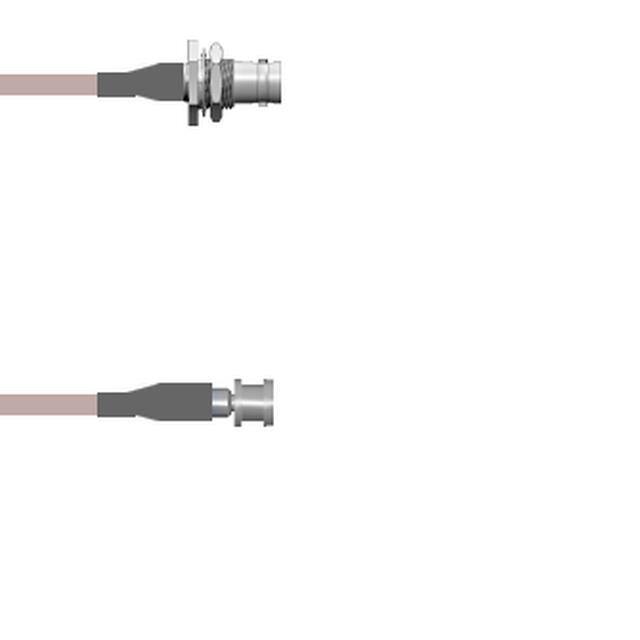

Q-0104500011.5MCBL ASSY BNC-SMPM JCK RG178 1.5M |
2,217 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMPM | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMPM Jack | Female | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

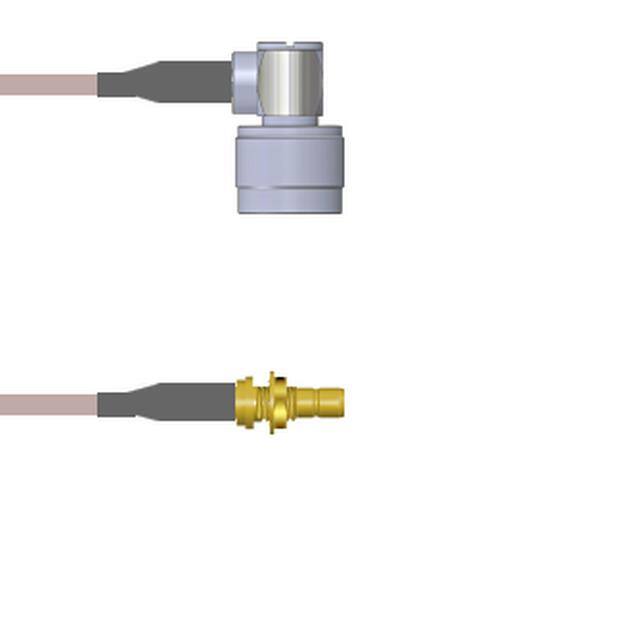

Q-2C03M0005006iCBL ASY SMB-N JK TO PLG RG316 6 |
3,498 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

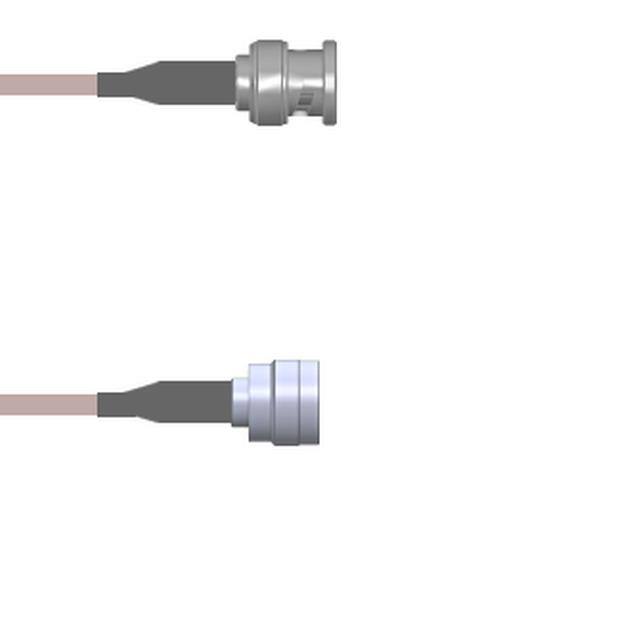

Q-0M056000H0.5MCBL ASSY BNC-TNC PL RG142 19.69 |
2,841 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug | Male | - | - | 19.69 (500.00mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2C03M0005012iCBL ASSY SMB-N J TO P RG316 12 |
3,713 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

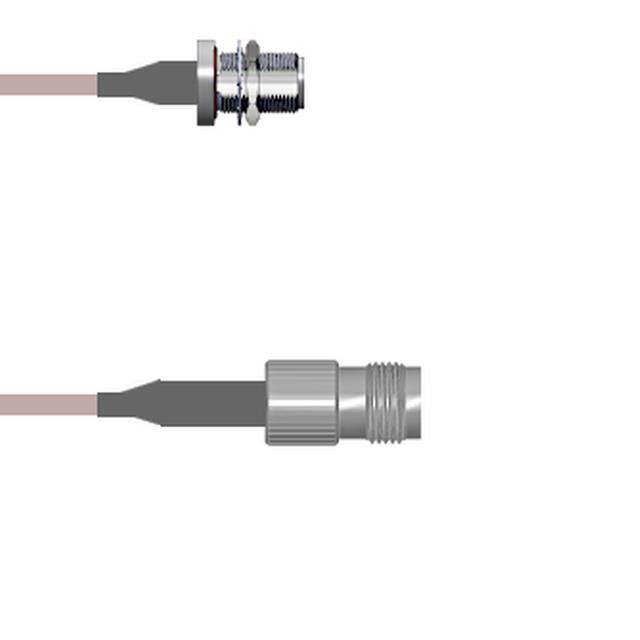

Q-1T04G0005001MCBL ASSY N TO TNC JACK RG316 1M |
2,038 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

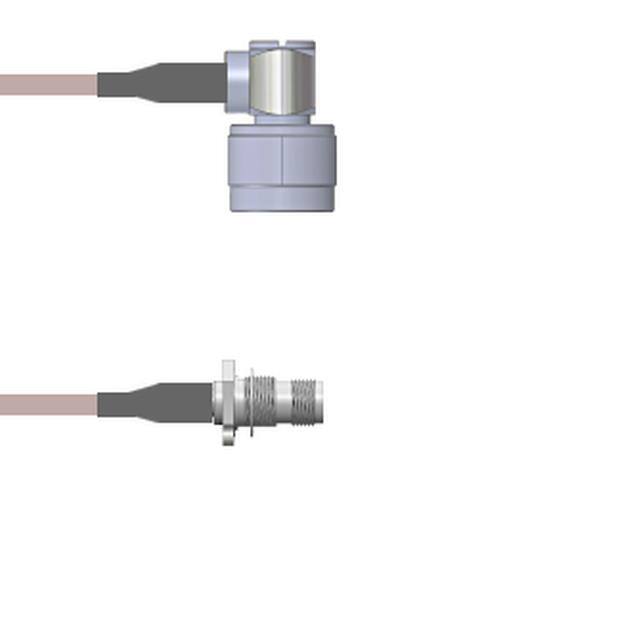

Q-2G04O000H003MCBL ASY N TO TNC P-J RG142 3M |
3,054 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

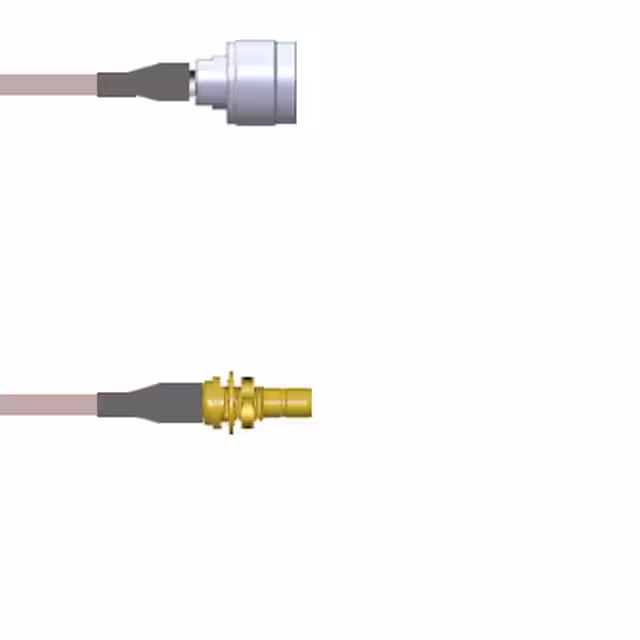

Q-2H03K0001012iCBL ASSY SMB-N J TO P RG178 12 |
3,155 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

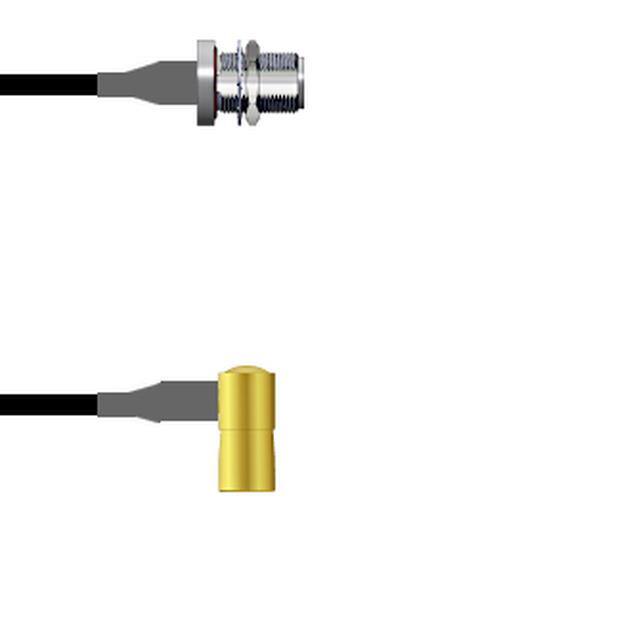

Q-1T03S0003003iCBL ASY SMB-N PLG TO JK RG174 3 |
2,612 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000 (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

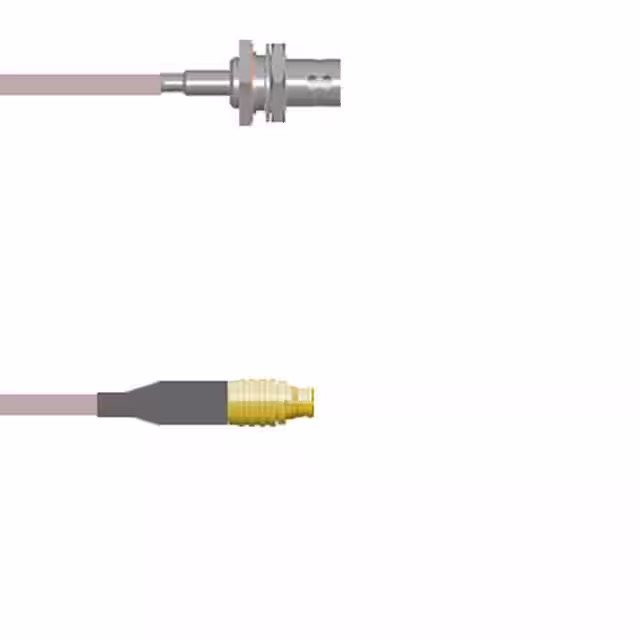

Q-040440005072iCBL ASY BNC-SMP J TO P RG316 6' |
3,597 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMP | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMP Plug | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

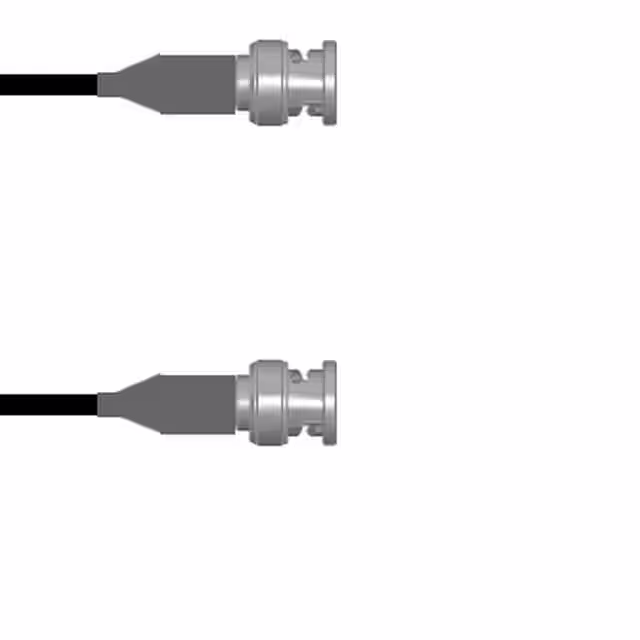

Q-0N00N001A0.5MCBL ASSY BNC PLUG RG59 19.69 |
2,149 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 19.69 (500.00mm) | RG-59 | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|

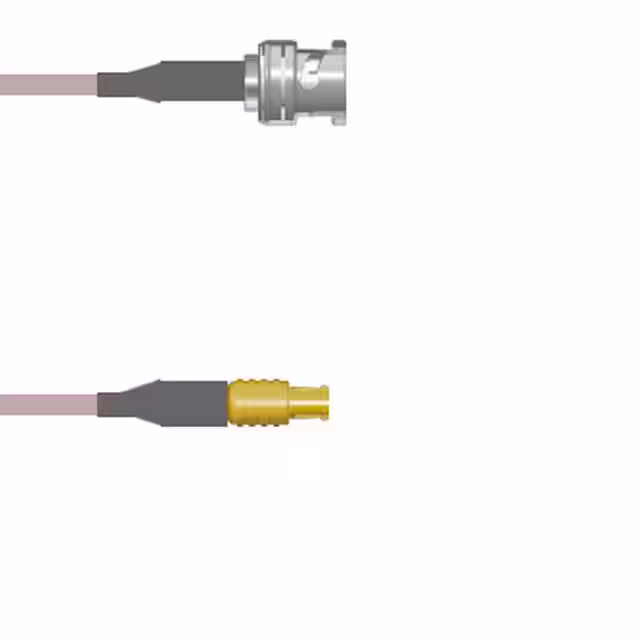

Q-0K01D000R.75MCB ASY BNC-MCX P RG316 DB 29.53 |
3,952 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug | Male | - | - | 29.53 (750.00mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

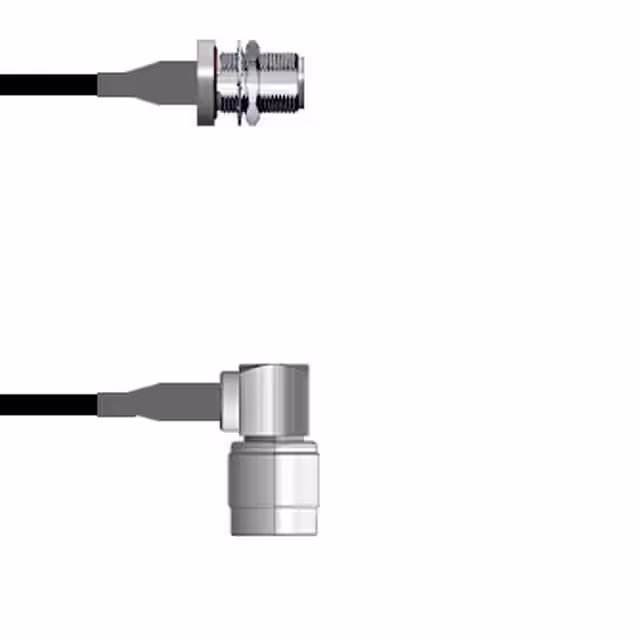

Q-1T04T0003012iCBL ASY N-TNC J-P RG174 12 |
3,315 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

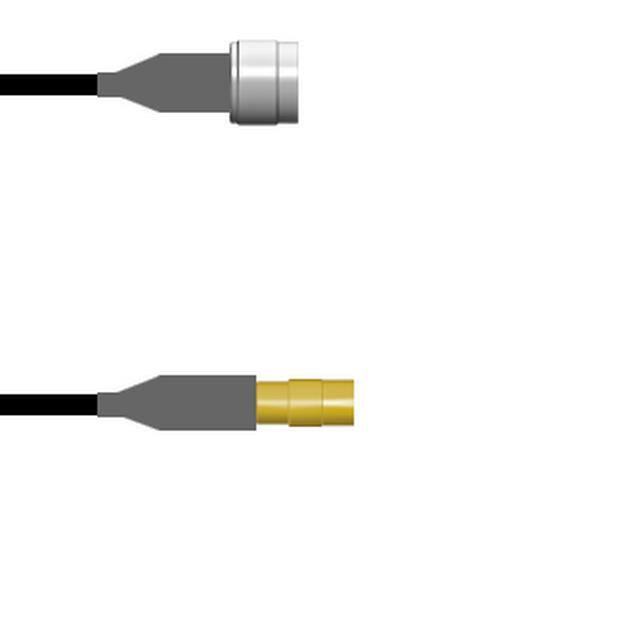

Q-2I01J0003002MCBL ASSY MMCX-N J TO P RG174 2M |
2,719 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug | Male | - | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

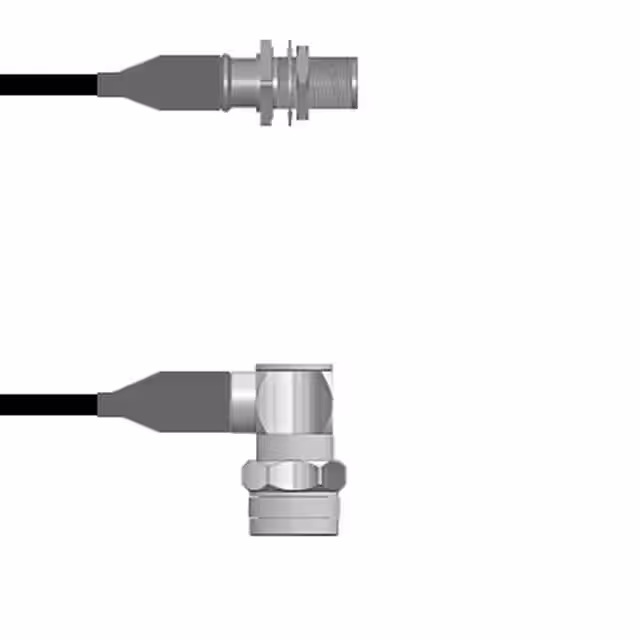

Q-1Y02B0013003iCBL ASSY N-TYPE JACK TO PLUG 3 |
3,651 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000 (76.20mm) | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

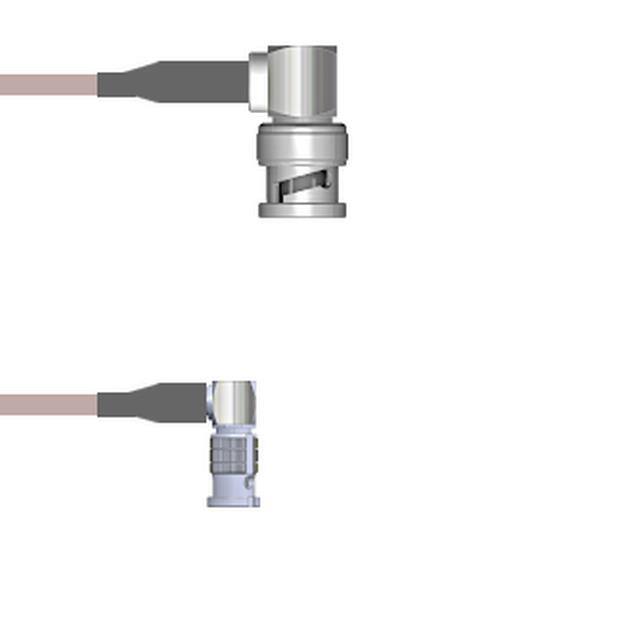

Q-0H00T000S009iCBL ASSY BNC-HD-BNC PLG RG179 9 |
2,097 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug, Right Angle | Male | - | - | 9.000 (228.60mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

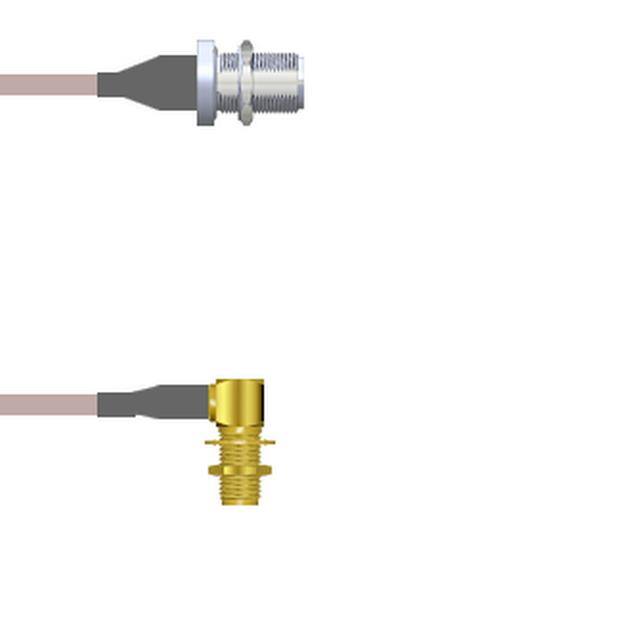

Q-1U02P00052.5MCBL ASSY SMA-N JACK RG316 2.5M |
3,532 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

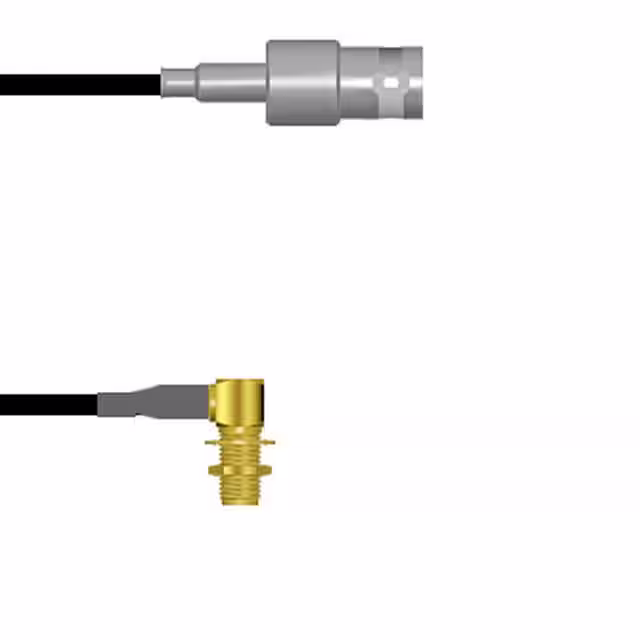

Q-0302P0003003MCBL ASSY BNC-SMA JACK RG174 3M |
3,369 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
