| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

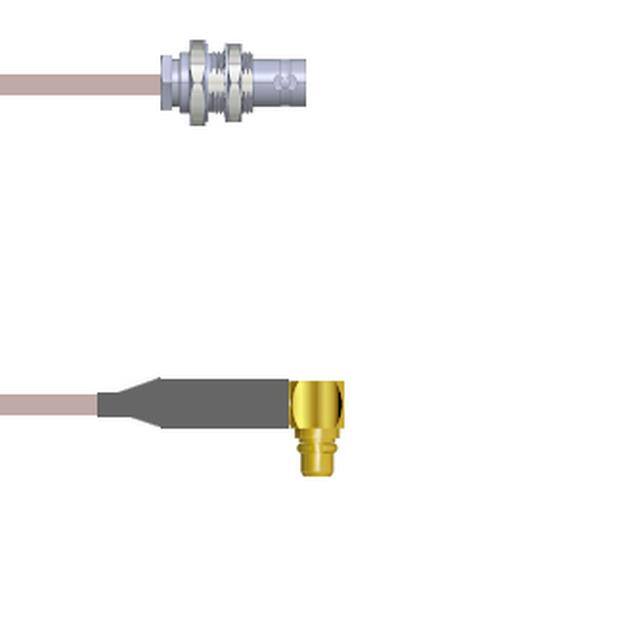

Q-0701O000R003iCBL ASSY BNC-MMCX RG316 DB 3 |
3,035 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000 (76.20mm) | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

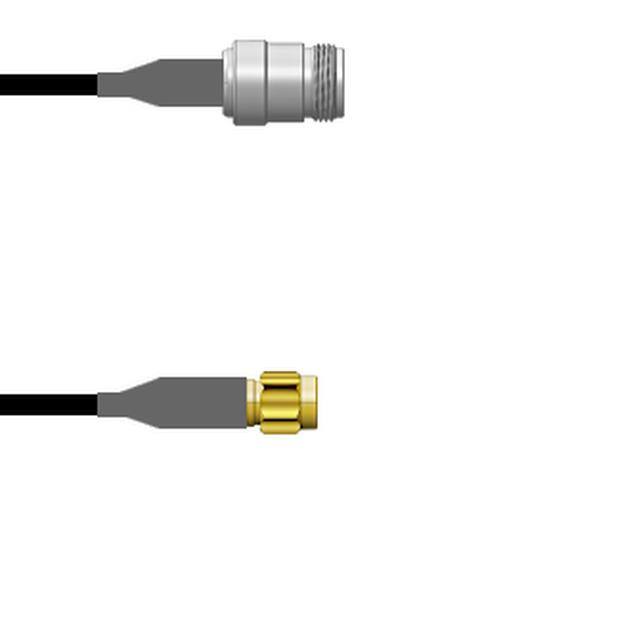

Q-1W03D0008003MCBL ASSY SMA-N PLG TO JK RG58 3M |
3,423 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Jack | Female | - | - | 118.1 (3.0m) 9.8' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

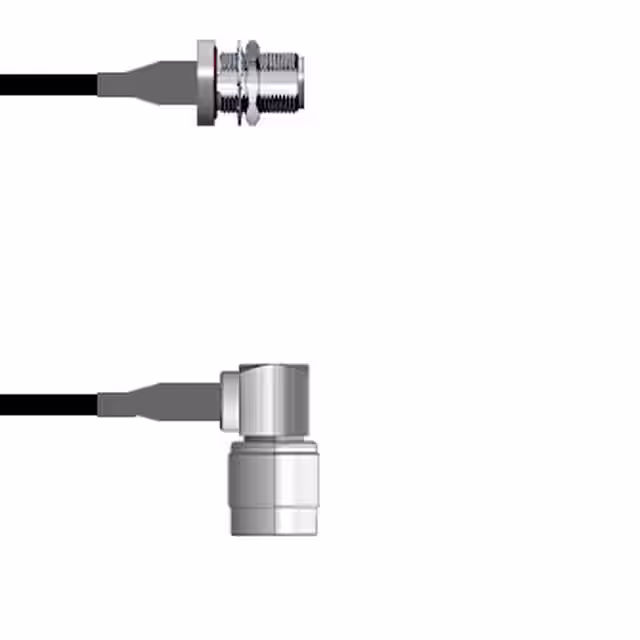

Q-1T04T0003002MCBL ASY N TO TNC J TO P RG174 2M |
2,010 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

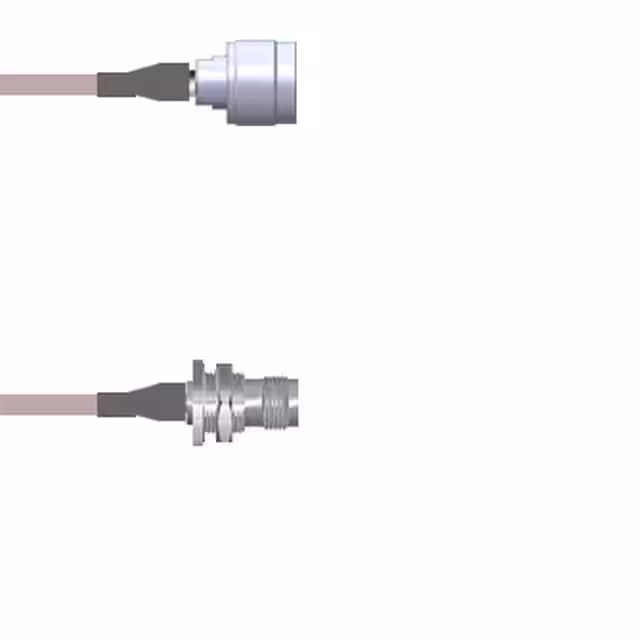

Q-2H04D0001002MCBL ASY N TO TNC P-J RG178 2M |
3,780 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

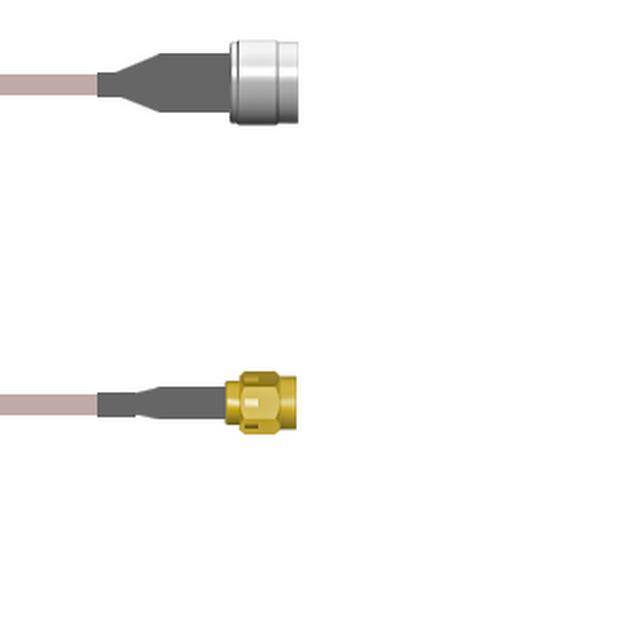

Q-2I03B0005.25MCBL ASSY SMA-N PLUG RG316 9.843 |
2,871 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | 9.843 (250.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

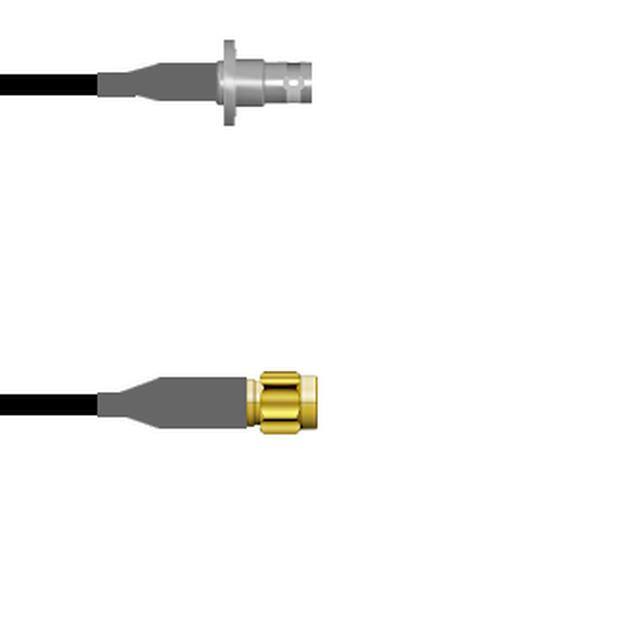

Q-0803D00081.5MCBL ASY BNC-SMA J TO P RG58 1.5M |
3,013 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-62063000K003MCBL ASSY BNC PLUG TO JACK 3M |
2,454 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Jack | Female | - | - | 118.1 (3.0m) 9.8' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

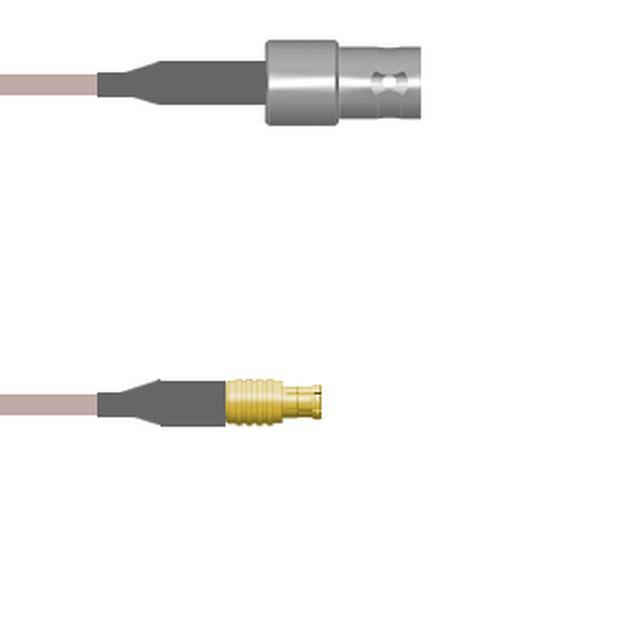

Q-0501C000S0.5MCBL ASSY BNC-MCX RG179 19.69 |
3,232 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Plug | Male | - | - | 19.69 (500.00mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

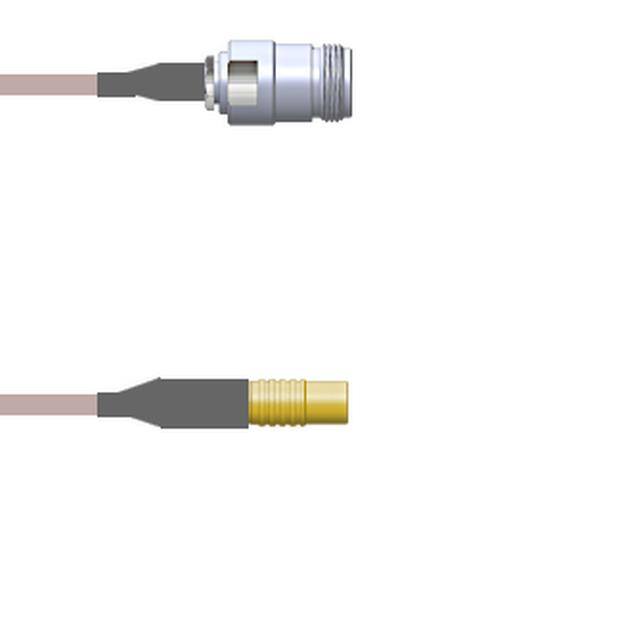

Q-1V013000R003MCBL ASSY MCX-N JACK RG316 DB 3M |
2,799 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | - | - | N-Type Jack | Female | - | - | 118.1 (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

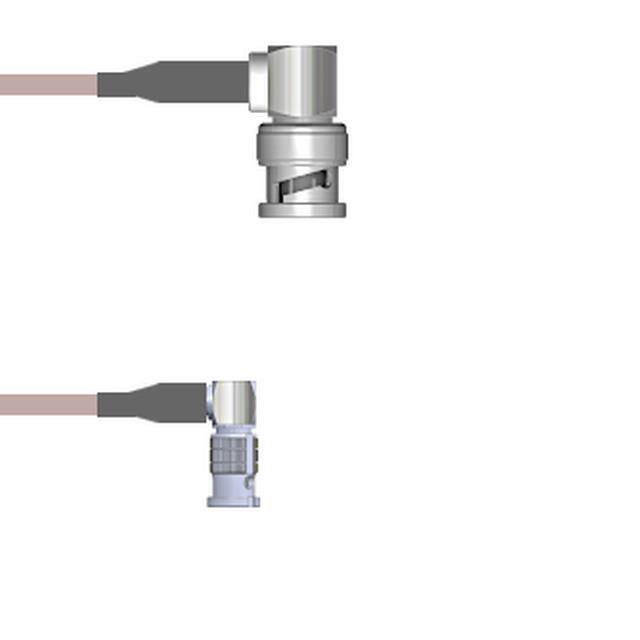

Q-0H00T000S036iCBL ASSY BNC-HD-BNC PL RG179 36 |
2,296 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - |
|

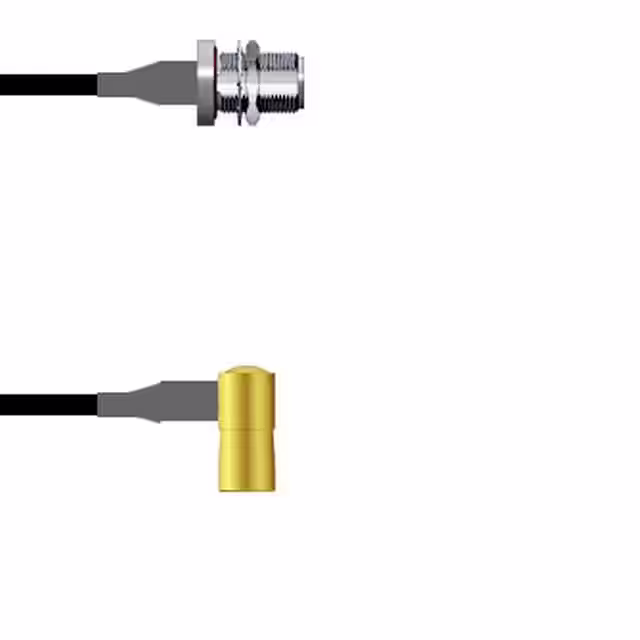

Q-1T03S0003012iCBL ASSY SMB-N P TO J RG174 12 |
3,086 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

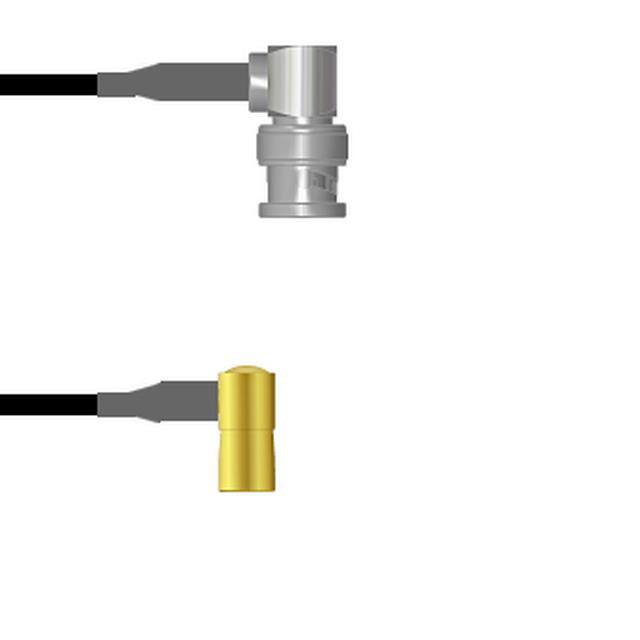

Q-0D03S0003036iCBL ASSY BNC-SMB PLUG RG174 36 |
2,541 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug, Right Angle | Male | - | - | SMB Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

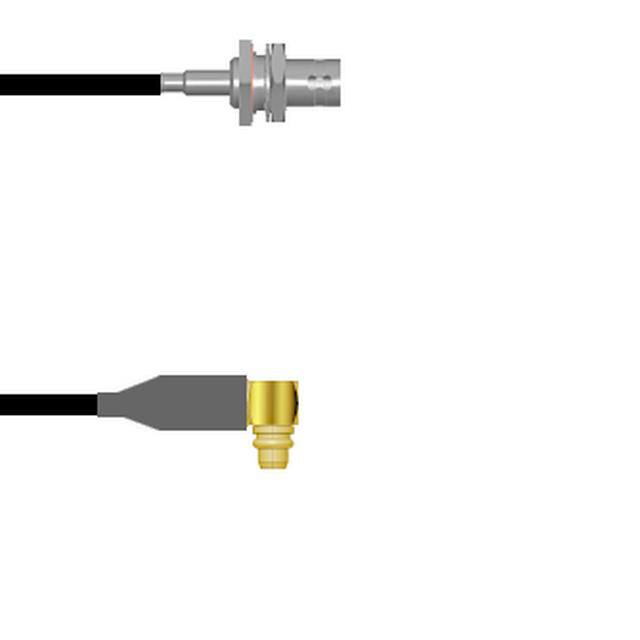

Q-0401N00032.5MCBL ASSY BNC-MMCX J-P RG174 2.5M |
3,446 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

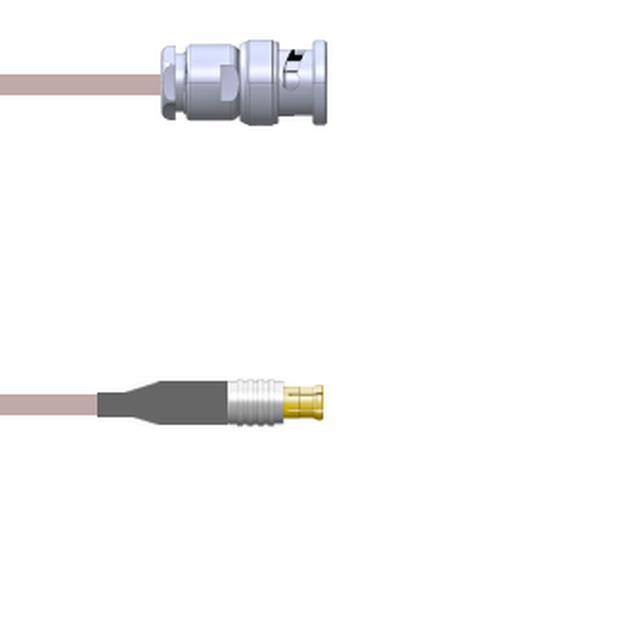

Q-0J01F0005009iCBL ASSY BNC-MCX PLUG RG316 9 |
3,609 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

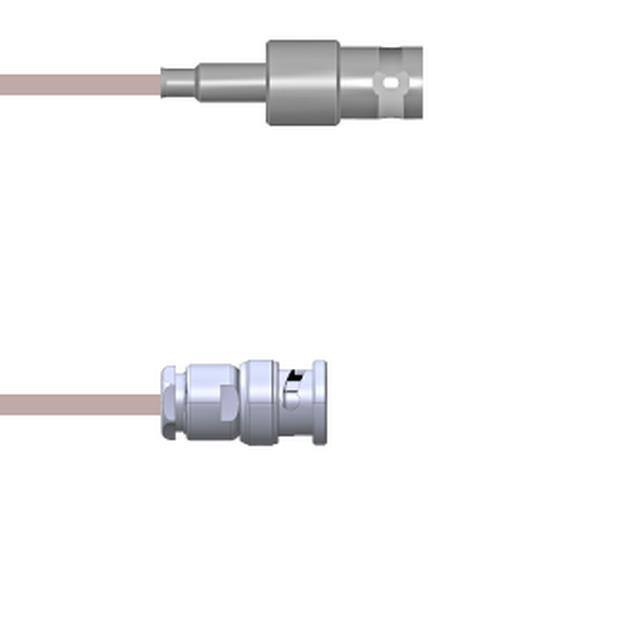

Q-0300J0005009iCBL ASSY BNC JCK TO PLG RG316 9 |
3,704 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Plug | Male | - | - | 9.000 (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0302P0003009iCBL ASSY BNC-SMA JACK RG174 9 |
3,696 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

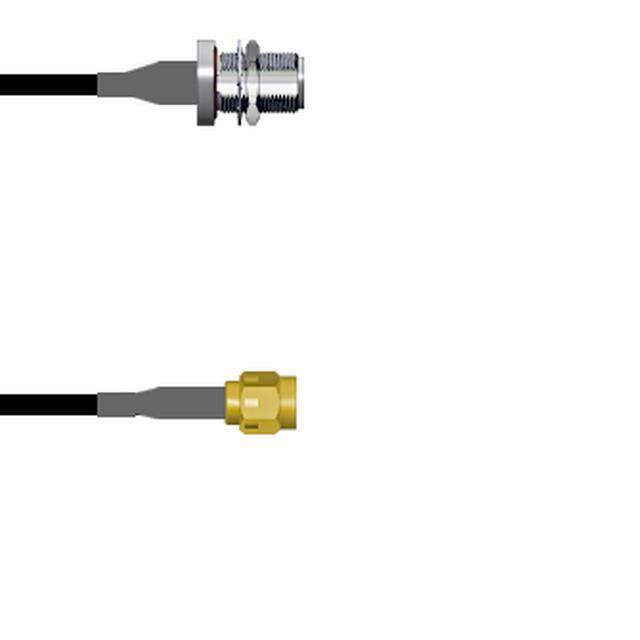

Q-1T03B00031.5MCBL ASY SMA-N P-J RG174 1.5M |
3,366 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

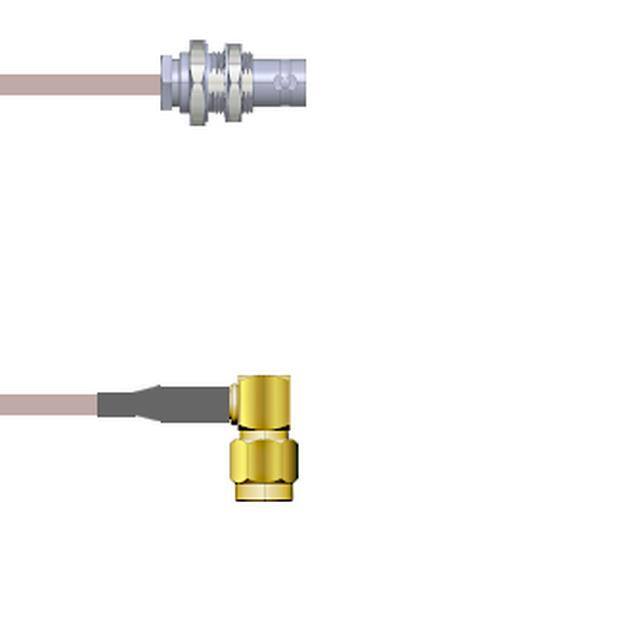

Q-07035000R072iCBL ASSY BNC-SMA J-P RG316 DB 6' |
3,742 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|
Q-2C04G0005001MCBL ASY N TO TNC P-J RG316 1M |
2,613 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | - | - | TNC Jack | Female | - | - | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

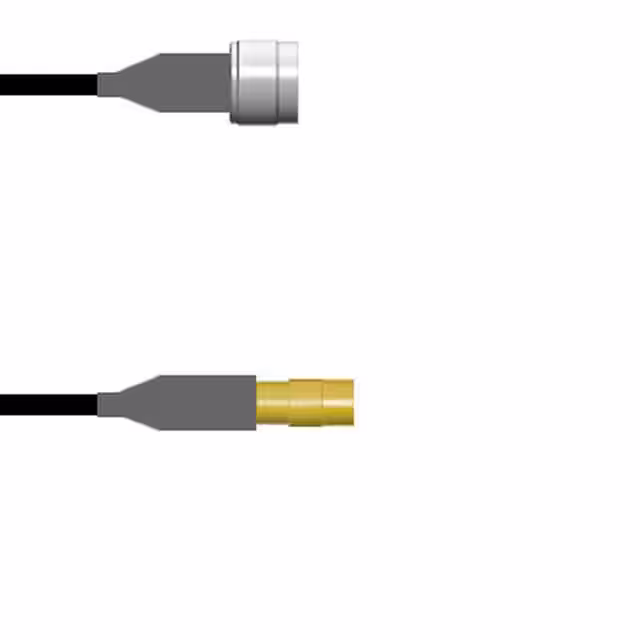

Q-2I01J0003009iCBL ASSY MMCX-N J TO P RG174 9 |
3,836 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug | Male | - | - | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
