Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
PA1005.060QNL CURR SENSE XFMR 1:60 20A SMD Pulse Electronics Power	3,707	2.16	RFQ	Datasheet	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	720 µH	-	1:60	-	0.75mOhm Primary, 2.25Ohm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PA1005.070NLT CURR SENSE XFMR 1:70 20A SMD Pulse Electronics Power	2,643	2.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA1005.XXXNL	Active	50kHz ~ 1MHz	Invasive	20 A	980 µH	-	1:70	-	0.75mOhm Primary, 4.75Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

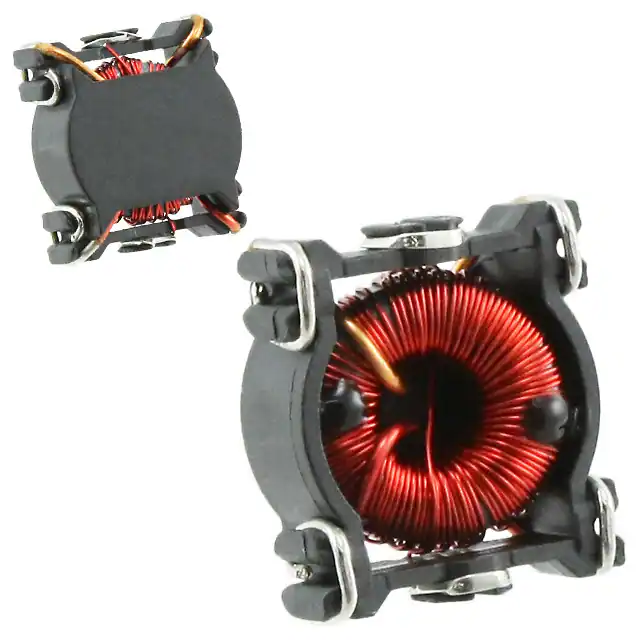

PE-68280NLT CURR SENSE XFMR 1:1:100 SMD Pulse Electronics Power	2,093	3.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PE-68XXXNL	Active	50kHz ~ 500kHz	Invasive	-	14.8 mH	-	1:1:100	-	1.15mOhm Primary, 930mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
PA1005.100NLT CURR SENSE XFMR 1:100 20A SMD Pulse Electronics Power	3,277	2.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA1005.XXXNL	Active	50kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PA1005.100NL CURR SENSE XFMR 1:100 20A SMD Pulse Electronics Power	165	2.27	RFQ	Datasheet	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

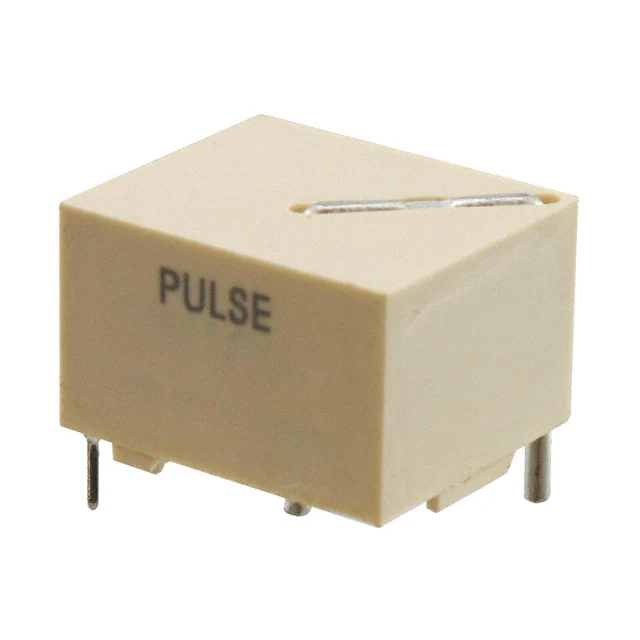

FIS115NL CURR SENSE XFMR 1:100 25A T/H Pulse Electronics Power	3,788	2.48	RFQ	Datasheet	Tube	FIS 1X5	Active	500kHz Max	Invasive	-	18 mH	350VµS	1:100	-	2Ohm Max	-	Through Hole	0.693 L x 0.591 W (17.60mm x 15.00mm)	0.492 (12.50mm)
PB0025NL CURR SENSE XFMR 50:1 35A SMD Pulse Electronics Power	3,109	3.69	RFQ	Datasheet	Tray	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	1.4 mH	-	50:1	-	0.42mOhm Primary, 700mOhm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
PA1005.125NL CURR SENSE XFMR 1:125 20A SMD Pulse Electronics Power	2,183	2.13	RFQ	Datasheet	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	3 mH	-	1:125	-	0.75mOhm Primary, 6.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

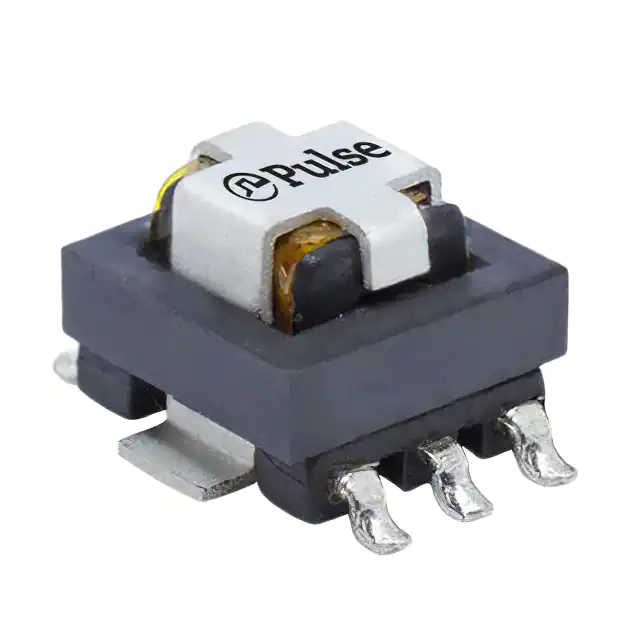

PH9494.050NLT TRANSFORMER CURRENT SENSE 50:1 Pulse Electronics Power	725	2.63	RFQ		Tape & Reel (TR),Cut Tape (CT)	PH9494.XXXNLT	Active	20kHz	Invasive	30 A	630 µH	-	50:1	-	0.35mOhm Primary, 600mOhm Secondary	-	Surface Mount	0.504 L x 0.382 W (12.80mm x 9.70mm)	0.283 (7.20mm)
PH9494.200NLT TRANSFORMER CURRENT SENSE 200:1 Pulse Electronics Power	2,577	2.63	RFQ		Tape & Reel (TR),Cut Tape (CT)	PH9494.XXXNLT	Active	20kHz	Invasive	30 A	10 mH	-	200:1	-	0.35mOhm Primary, 10Ohm Secondary	-	Surface Mount	0.504 L x 0.382 W (12.80mm x 9.70mm)	0.283 (7.20mm)
PH9494.150NLT TRANSFORMER CURRENT SENSE 150:1 Pulse Electronics Power	396	2.63	RFQ		Tape & Reel (TR),Cut Tape (CT)	PH9494.XXXNLT	Active	20kHz	Invasive	30 A	5.63 mH	-	150:1	-	0.35mOhm Primary, 5.7Ohm Secondary	-	Surface Mount	0.504 L x 0.382 W (12.80mm x 9.70mm)	0.283 (7.20mm)
FIS101NL CURR SENSE XFMR 1:50 15A T/H Pulse Electronics Power	2,138	0.00	RFQ	Datasheet	Tube	FIS	Active	200kHz Max	Non-Invasive (Solid Core)	15 A	5 mH	175VµS	1:50	-	650mOhm Secondary Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
P8202NLT CURR SENSE XFMR 1:20 SMD Pulse Electronics Power	2,332	2.90	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	P820X	Active	50kHz ~ 1MHz	Invasive	-	80 µH	-	1:20	-	6mOhm Primary, 550mOhm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PH9494.100NLT TRANSFORMER CURRENT SENSE 100:1 Pulse Electronics Power	425	2.63	RFQ		Tape & Reel (TR),Cut Tape (CT)	PH9494.XXXNLT	Active	20kHz	Invasive	30 A	2.5 mH	-	100:1	-	0.35mOhm Primary, 3Ohm Secondary	-	Surface Mount	0.504 L x 0.382 W (12.80mm x 9.70mm)	0.283 (7.20mm)
PH9500.065NLT CURRENT SENSE, SIDECAR, SM Pulse Electronics Power	193	1.98	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9500.XXXNL	Active	-	Invasive	10 A	2 mH	-	1.65	-	3mOhm Primary, 1.62Ohm Secondary Max	-	Surface Mount	-	0.346 (8.80mm)
P8203NLT CURR SENSE XFMR 1:30 SMD Pulse Electronics Power	214	2.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	P820X	Active	50kHz ~ 1MHz	Invasive	-	180 µH	-	1:30	-	6mOhm Primary, 870mOhm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PH9505.070NLT XFRMR CURRENT SENSE 1:70 SMD Pulse Electronics Power	131	2.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9505.XXXNL	Active	20kHz	Invasive	30 A	3 mH	-	1:7	-	0.5mOhm Primary, 2.1Ohm Secondary Max	-	Surface Mount	0.504 L x 0.480 W (12.80mm x 12.20mm)	0.567 (14.40mm)
PH9505.125NLT XFRMR CURRENT SENSE 1:125 SMD Pulse Electronics Power	2,789	2.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9505.XXXNL	Active	20kHz	Invasive	30 A	11 mH	-	1:125	-	0.5mOhm Primary, 4Ohm Secondary Max	-	Surface Mount	0.504 L x 0.480 W (12.80mm x 12.20mm)	0.567 (14.40mm)
PH9505.050NLT XFRMR CURRENT SENSE 1:50 SMD Pulse Electronics Power	2,886	2.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9505.XXXNL	Active	20kHz	Invasive	30 A	1.7 mH	-	1:50	-	0.5mOhm Primary, 1.5Ohm Secondary Max	-	Surface Mount	0.504 L x 0.480 W (12.80mm x 12.20mm)	0.567 (14.40mm)
P8205NLT CURR SENSE XFMR 1:50 SMD Pulse Electronics Power	3,585	3.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	P820X	Active	50kHz ~ 1MHz	Invasive	-	500 µH	-	1:50	-	6mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
