Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
PE-68210T CURR SENSE XFMR 1:1:50 15A SMD Pulse Electronics Power	3,952	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	50kHz ~ 500kHz	Invasive	15 A	3.8 mH	-	1:1:50	-	1.15mOhm Primary, 380mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)
P8205 CURR SENSE XFMR 1:50 SMD Pulse Electronics Power	3,894	RFQ	Datasheet	Tray	P820X	Obsolete	50kHz ~ 1MHz	Invasive	-	-	-	1:50	-	6mOhm	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PB0026 CURR SENSE XFMR 100:1 35A SMD Pulse Electronics Power	3,615	RFQ	Datasheet	Tray	-	Obsolete	50kHz ~ 500kHz	Invasive	35 A	5.6 mH	-	100:1	-	2.8mOhm Primary, 1.4Ohm Secondary	-	Surface Mount	0.784 L x 0.570 W (19.91mm x 14.48mm)	0.394 (10.00mm)

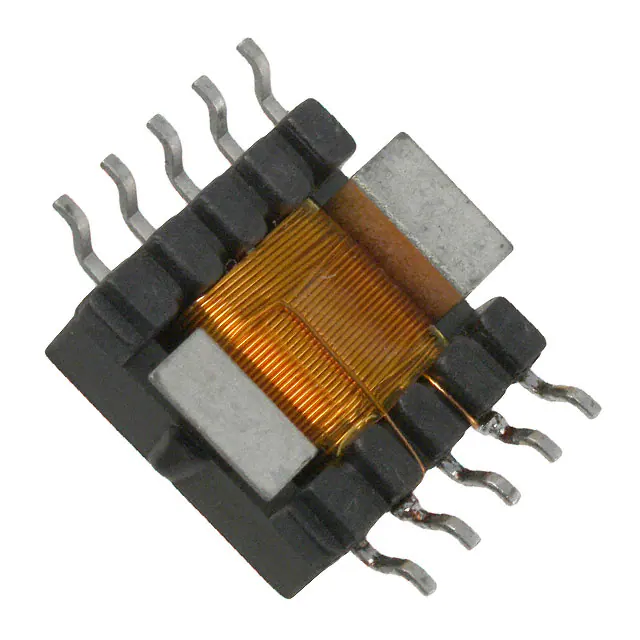

PB0027 CURR SENSE XFMR 200:1 35A SMD Pulse Electronics Power	2,395	RFQ	Datasheet	Tray	-	Obsolete	50kHz ~ 500kHz	Invasive	35 A	22.4 mH	-	200:1	-	2.8mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.784 L x 0.570 W (19.91mm x 14.48mm)	0.394 (10.00mm)
PE-51686 CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,129	RFQ	Datasheet	Tray	-	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	5 mH	-	-	50:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-51687 CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,461	RFQ	Datasheet	Tray	-	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	20 mH	-	-	100:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-51718 CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,919	RFQ	Datasheet	Tray	-	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	20 mH	-	-	100CT:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-51719 CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,210	RFQ	Datasheet	Tray	-	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	80 mH	-	-	200CT:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-63586 CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,292	RFQ	Datasheet	Tray	-	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	5 mH	-	-	50:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-63588 CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,831	RFQ	Datasheet	Tray	-	Obsolete	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	80 mH	-	-	200:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-67050 CURR SENSE XFMR 35A T/H Pulse Electronics Power	2,281	RFQ		Tray	-	Obsolete	10kHz ~ 200kHz	Invasive	35 A	5 mH	-	-	50:1	700mOhm Secondary Max	-	Through Hole	0.750 L x 0.565 W (19.05mm x 14.35mm)	0.750 (19.05mm)
PE-67100 CURR SENSE XFMR 37A T/H Pulse Electronics Power	2,909	RFQ		Tray	-	Obsolete	10kHz ~ 200kHz	Invasive	37 A	20 mH	-	-	100:1	1.4Ohm Secondary Max	-	Through Hole	0.750 L x 0.565 W (19.05mm x 14.35mm)	0.750 (19.05mm)
PE-67200 CURR SENSE XFMR 38A T/H Pulse Electronics Power	3,704	RFQ	Datasheet	Tray	-	Active	10kHz ~ 200kHz	Invasive	38 A	80 mH	-	-	200:1	4.5Ohm Secondary Max	-	Through Hole	0.750 L x 0.565 W (19.05mm x 14.35mm)	0.750 (19.05mm)
PE-68280 CURR SENSE XFMR 1:1:100 15A SMD Pulse Electronics Power	3,793	RFQ	Datasheet	Tube	-	Active	50kHz ~ 500kHz	Invasive	15 A	14.8 mH	-	1:1:100	-	1.15mOhm Primary, 930mOhm Secondary	-	Surface Mount	0.495 L x 0.490 W (12.57mm x 12.45mm)	0.280 (7.11mm)

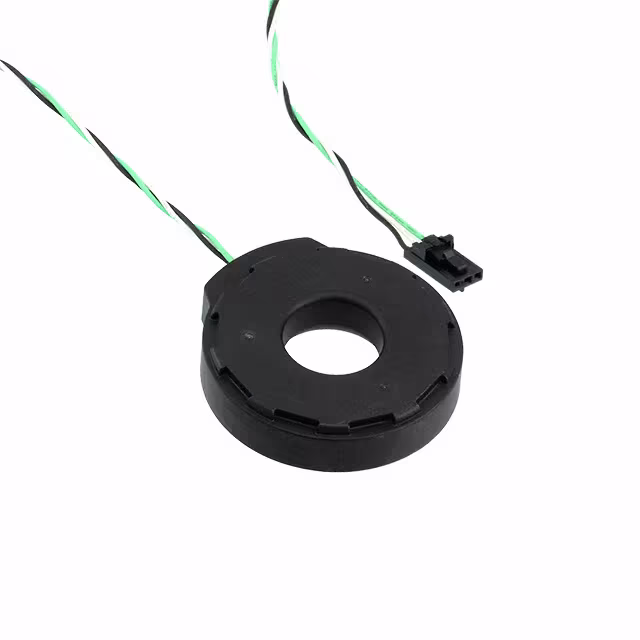

PA3838NL SENSOR CURRENT 1KA ROGOWSKI CSTM Pulse Electronics Power	2,482	RFQ		-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
PA1005.030QNLT XFMR CURR SENSE 1:30 AECQ SMD Pulse Electronics Power	3,400	RFQ	Datasheet	Tape & Reel (TR)	PA1005QNL	Active	50kHz ~ 1MHz	Invasive	20 A	180 µH	-	1:30	-	0.75mOhm Primary, 870mOhm Secondary Max	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PA1005.060QNLT XFMR CURR SENSE 1:60 AECQ SMD Pulse Electronics Power	2,508	RFQ	Datasheet	Tape & Reel (TR)	PA1005QNL	Active	50kHz ~ 1MHz	Invasive	20 A	720 µH	-	1:60	-	0.75mOhm Primary, 2.25Ohm Secondary Max	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
