| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC1SC05DC DC CONVERTER +/-15V 20W |
2,418 | 49.02 |
RFQ |
Datasheet |
8-DIP Module, 7 Leads | Tube | EC1SC (20W) | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 666mA, 666mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 100°C (With Derating) | 83% | Through Hole | 2.00 L x 1.60 W x 0.45 H (50.8mm x 40.6mm x 11.4mm) | ||
|
EC7BW18-72S12DC DC CONVERTER 12V 20W |
2,546 | 61.70 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC7BW18 (20W) | Active | Isolated Module | 1 | 8.5V | 160V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
CHB75-24S15DC DC CONVERTER 15V 75W |
2,479 | 75.62 |
RFQ |
Datasheet |
Half Brick | Tray | CHB75 (75W) | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 5A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHB75W-24S12DC DC CONVERTER 12V 75W |
2,564 | 81.92 |
RFQ |
Datasheet |
Half Brick | Tray | CHB75W (75W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CHB75W-48S24DC DC CONVERTER 24V 75W |
3,932 | 82.74 |
RFQ |
Datasheet |
Half Brick | Tray | CHB75W (75W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 3.12A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHB150-48S24DC DC CONVERTER 24V 150W |
3,914 | 100.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB150 (150W) | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 6.25A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CQB150W-48S48DC DC CONVERTER 48V 154W |
2,791 | 122.00 |
RFQ |
Datasheet |
Module | Tray | CQB150W (150W) | Active | Isolated Module | 1 | 18V | 75V | 48V | - | - | - | 3.2A | 154 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 91.5% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
CQB75W8-36S12DC DC CONVERTER 12V 75W |
2,183 | 103.69 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75W8 (75W) | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 6.25A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
CHB100W-24S15DC DC CONVERTER 15V 101W |
2,578 | 105.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB100W (100W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.7A | 101 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CQB100W-24S12DC DC CONVERTER 12V 100W |
3,481 | 116.74 |
RFQ |
Datasheet |
Module | Tray | CQB100 (100W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.3A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 86.5% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
CQB100W-48S12DC DC CONVERTER 12V 100W |
3,234 | 116.74 |
RFQ |
Datasheet |
Module | Tray | CQB100 (100W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 8.3A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
CFB600-48S32DC DC CONVERTER 32V 608W |
3,205 | 220.00 |
RFQ |
Datasheet |
Full Brick | Box | CFB600 (600W) | Active | Isolated Module | 1 | 36V | 75V | 32V | - | - | - | 19A | 608 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 92% | Through Hole | 4.60 L x 2.40 W x 0.50 H (116.8mm x 61.0mm x 12.7mm) | ||
|

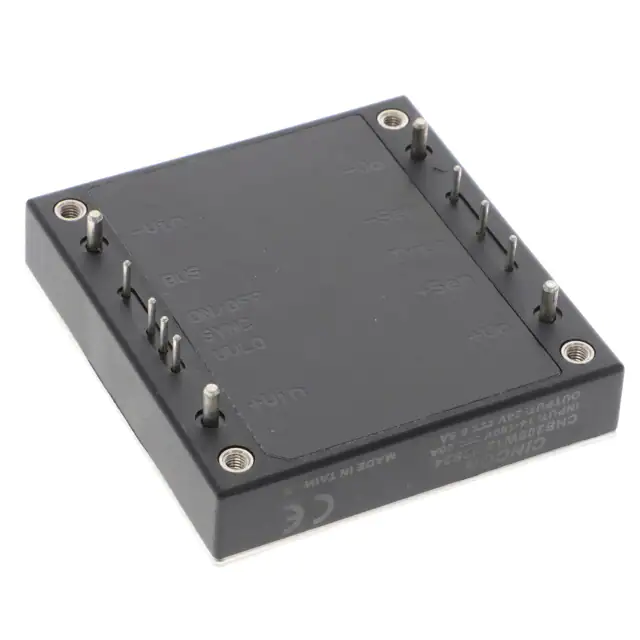

CHB200W12-72S24DC DC CONVERTER 24V 200W |
2,070 | 183.60 |
RFQ |
Datasheet |
Half Brick | Box | CHB200W12 (200W) | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 8.4A | 200 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHB300W-48S24DC DC CONVERTER 24V 300W |
300 | 185.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB300W (300W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 12.5A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CFB600-24S48DC DC CONVERTER 48V 600W |
3,748 | 230.00 |
RFQ |
Datasheet |
Full Brick | Box | CFB600 (600W) | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 12.5A | 600 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 4.60 L x 2.40 W x 0.50 H (116.8mm x 61.0mm x 12.7mm) | ||
|
CFB400W-24S48DC DC CONVERTER 48V 399W |
3,934 | 248.69 |
RFQ |
Datasheet |
Full Brick | Box | CFB400W (400W) | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 8.3A | 399 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 86.5% | Through Hole | 4.60 L x 2.40 W x 0.50 H (116.8mm x 61.0mm x 12.7mm) | ||
|
EC1SA04NDC DC CONVERTER +/-12V 1W |
3,889 | 3.72 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC1SAN (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) | ||
|
EC1SA12NDC DC CONVERTER 12V 1W |
3,319 | 3.72 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC1SAN (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) | ||
|
|
EC1SA14NDC DC CONVERTER +/-12V 1W |
2,037 | 3.72 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC1SAN (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) | ||
|
|
EC1SA21NDC DC CONVERTER 5V 1W |
2,534 | 3.72 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC1SAN (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) |
