Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
EC1SA03N DC DC CONVERTER 15V 1W Cincon Electronics Co. LTD	2,518	3.72	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	EC1SAN (1W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	67mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 85°C	79%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm)
EC1SA16N DC DC CONVERTER +/-5V 1W Cincon Electronics Co. LTD	2,410	3.72	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	EC1SAN (1W)	Active	Isolated Module	2	10.8V	13.2V	5V	-5V	-	-	100mA, 100mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 85°C	77%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm)
EC1SA25N DC DC CONVERTER +/-15V 1W Cincon Electronics Co. LTD	2,499	3.72	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	EC1SAN (1W)	Active	Isolated Module	2	21.6V	26.4V	15V	-15V	-	-	33mA, 33mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 85°C	82%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm)

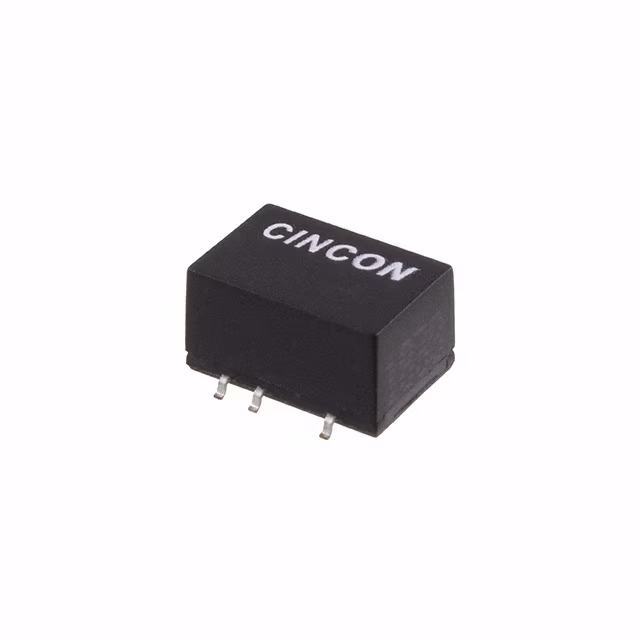

EC1SA01NS DC DC CONVERTER 5V 1W Cincon Electronics Co. LTD	3,263	3.72	RFQ	Datasheet	8-SMD Module, 6 Leads	Strip	EC1SAN (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 85°C	79%	Surface Mount	0.54 L x 0.36 W x 0.30 H (13.7mm x 9.2mm x 7.4mm)

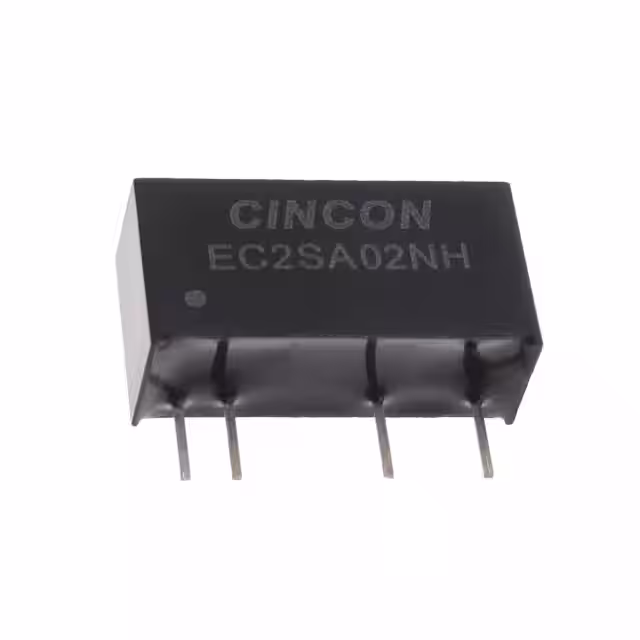

EC2SA02NH DC DC CONVERTER 12V 2W Cincon Electronics Co. LTD	2,340	8.59	RFQ		7-SIP Module, 4 Leads	Tube	EC2SANH (2W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	167mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	84%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)

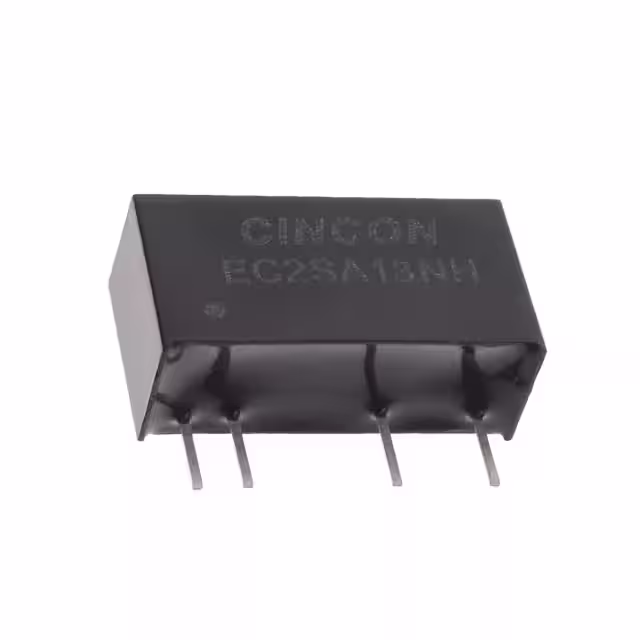

EC2SA13NH DC DC CONVERTER 15V 2W Cincon Electronics Co. LTD	3,761	8.59	RFQ		7-SIP Module, 4 Leads	Tube	EC2SANH (2W)	Active	Isolated Module	1	10.8V	13.2V	15V	-	-	-	134mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	87%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)
EC2SA23NH DC DC CONVERTER 15V 2W Cincon Electronics Co. LTD	2,518	8.59	RFQ		7-SIP Module, 4 Leads	Tube	EC2SANH (2W)	Active	Isolated Module	1	21.6V	26.4V	15V	-	-	-	134mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	88%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)

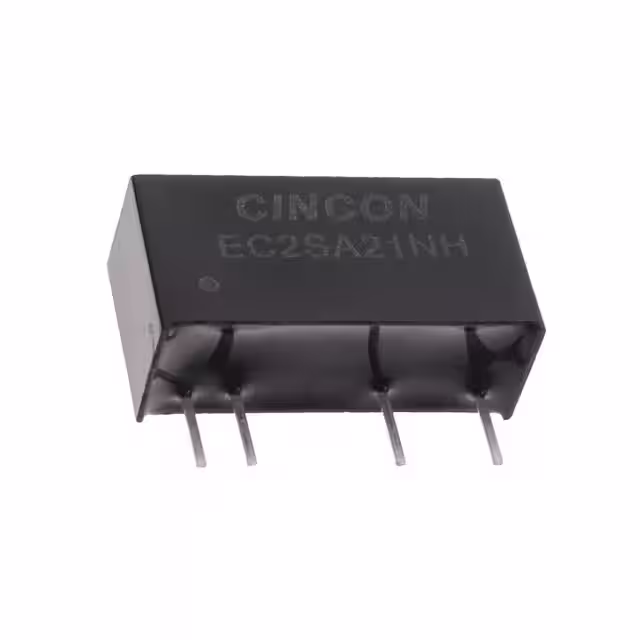

EC2SA21NH DC DC CONVERTER 5V 2W Cincon Electronics Co. LTD	3,863	8.59	RFQ		7-SIP Module, 4 Leads	Tube	EC2SANH (2W)	Active	Isolated Module	1	21.6V	26.4V	5V	-	-	-	400mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	82%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)
EC3AE41M DC DC CONVERTER 5V 3W Cincon Electronics Co. LTD	3,359	9.00	RFQ	Datasheet	24-DIP Module, 12 Leads	Tube	EC3AE (3W)	Active	Isolated Module	1	43.2V	52.8V	5V	-	-	-	600mA	3 W	500 V	ITE (Commercial)	SCP	-25°C ~ 100°C (With Derating)	61%	Through Hole	1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm)
EC3AE21M DC DC CONVERTER 5V 3W Cincon Electronics Co. LTD	3,372	9.00	RFQ	Datasheet	24-DIP Module, 12 Leads	Tube	EC3AE (3W)	Active	Isolated Module	1	21.6V	26.4V	5V	-	-	-	600mA	3 W	500 V	ITE (Commercial)	SCP	-25°C ~ 100°C (With Derating)	61%	Through Hole	1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm)
EC3AE01M DC DC CONVERTER 5V 3W Cincon Electronics Co. LTD	3,921	9.00	RFQ	Datasheet	24-DIP Module, 12 Leads	Tube	EC3AE (3W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	600mA	3 W	500 V	ITE (Commercial)	SCP	-25°C ~ 100°C (With Derating)	61%	Through Hole	1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm)
EC3AE02M DC DC CONVERTER 12V 3W Cincon Electronics Co. LTD	2,415	9.00	RFQ	Datasheet	24-DIP Module, 12 Leads	Tube	EC3AE (3W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	250mA	3 W	500 V	ITE (Commercial)	SCP	-25°C ~ 100°C (With Derating)	61%	Through Hole	1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm)
EC2SA24NH DC DC CONVERTER +/-12V 2W Cincon Electronics Co. LTD	2,349	9.04	RFQ		7-SIP Module, 5 Leads	Tube	EC2SANH (2W)	Active	Isolated Module	2	21.6V	26.4V	12V	-12V	-	-	83mA, 83mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	87%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)
EC2SA04NH DC DC CONVERTER +/-12V 2W Cincon Electronics Co. LTD	2,012	9.04	RFQ		7-SIP Module, 5 Leads	Tube	EC2SANH (2W)	Active	Isolated Module	2	4.5V	5.5V	12V	-12V	-	-	83mA, 83mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	85%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)
EC2SA16NH DC DC CONVERTER +/-5V 2W Cincon Electronics Co. LTD	2,505	9.04	RFQ		7-SIP Module, 5 Leads	Tube	EC2SANH (2W)	Active	Isolated Module	2	10.8V	13.2V	5V	-5V	-	-	200mA, 200mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	84%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)
EC3AE15M DC DC CONVERTER +/-15V 3W Cincon Electronics Co. LTD	2,414	9.70	RFQ	Datasheet	24-DIP Module, 12 Leads	Tube	EC3AE (3W)	Active	Isolated Module	2	10.8V	13.2V	15V	-15V	-	-	100mA, 100mA	3 W	500 V	ITE (Commercial)	SCP	-25°C ~ 100°C (With Derating)	61%	Through Hole	1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm)
EC2SA-12S05N DC DC CONVERTER 5V 2W Cincon Electronics Co. LTD	3,254	9.70	RFQ	Datasheet	8-SIP Module, 7 Leads	Tube	EC2SA (2W)	Active	Isolated Module	1	9V	18V	5V	-	-	-	400mA	2 W	1.5 kV	ITE (Commercial)	Remote On/Off, SCP, UVLO	-40°C ~ 85°C (With Derating)	79%	Through Hole	0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm)
EC3AE04M DC DC CONVERTER +/-12V 3W Cincon Electronics Co. LTD	3,264	9.70	RFQ	Datasheet	24-DIP Module, 12 Leads	Tube	EC3AE (3W)	Active	Isolated Module	2	4.5V	5.5V	12V	-12V	-	-	125mA, 125mA	3 W	500 V	ITE (Commercial)	SCP	-25°C ~ 100°C (With Derating)	61%	Through Hole	1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm)
EC3AE24M DC DC CONVERTER +/-12V 3W Cincon Electronics Co. LTD	2,559	9.70	RFQ	Datasheet	24-DIP Module, 12 Leads	Tube	EC3AE (3W)	Active	Isolated Module	2	21.6V	26.4V	12V	-12V	-	-	125mA, 125mA	3 W	500 V	ITE (Commercial)	SCP	-25°C ~ 100°C (With Derating)	61%	Through Hole	1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm)
EC2SA05N DC DC CONVERTER +/-15V 2W Cincon Electronics Co. LTD	2,331	10.13	RFQ	Datasheet	6-SIP Module, 5 Leads	Tube	EC2SAN (2W)	Active	Isolated Module	2	4.5V	5.5V	15V	-15V	-	-	67mA, 67mA	2 W	1 kV	ITE (Commercial)	SCP	-40°C ~ 85°C (With Derating)	86%	Through Hole	0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm)
