| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

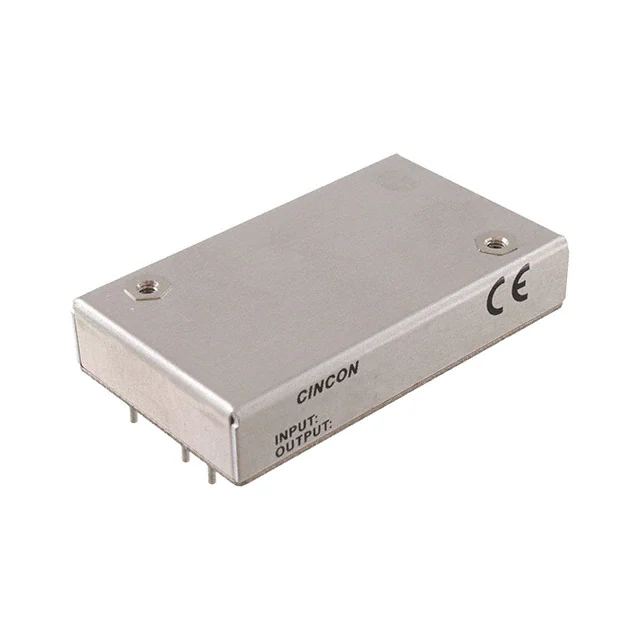

ECLB75W-24S12DC DC CONVERTER 12V 75W |
3,092 | 98.46 |
RFQ |
Datasheet |
7-DIP Module, 6 Leads | Tray | ECLB75W (75W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.25A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 2.05 L x 1.20 W x 0.40 H (52.0mm x 30.5mm x 10.2mm) | ||
|
|
ECLB75W-24S05DC DC CONVERTER 5V 75W |
1,952 | 98.48 |
RFQ |
Datasheet |
7-DIP Module, 6 Leads | Tray | ECLB75W (75W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 2.05 L x 1.20 W x 0.40 H (52.0mm x 30.5mm x 10.2mm) | ||
|
CQB150W-24S05DC DC CONVERTER 5V 150W |
226 | 122.00 |
RFQ |
Datasheet |
Module | Tray | CQB150W (150W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 30A | 150 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
CHB150W-48S12DC DC CONVERTER 12V 150W |
1,184 | 140.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB150W (150W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 12.5A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 2.40 L x 2.28 W x 0.52 H (61.0mm x 57.9mm x 13.2mm) | ||
|
CHB350-24S12DC DC CONVERTER 12V 350W |
274 | 150.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB350 (350W) | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 29.2A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90.5% | Through Hole | 2.40 L x 2.28 W x 0.52 H (61.0mm x 57.9mm x 13.2mm) | ||
|
|
CHB350-24S28DC DC CONVERTER 28V 350W |
3,434 | 150.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB350 (350W) | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 12.5A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90.5% | Through Hole | 2.40 L x 2.28 W x 0.52 H (61.0mm x 57.9mm x 13.2mm) | ||
|

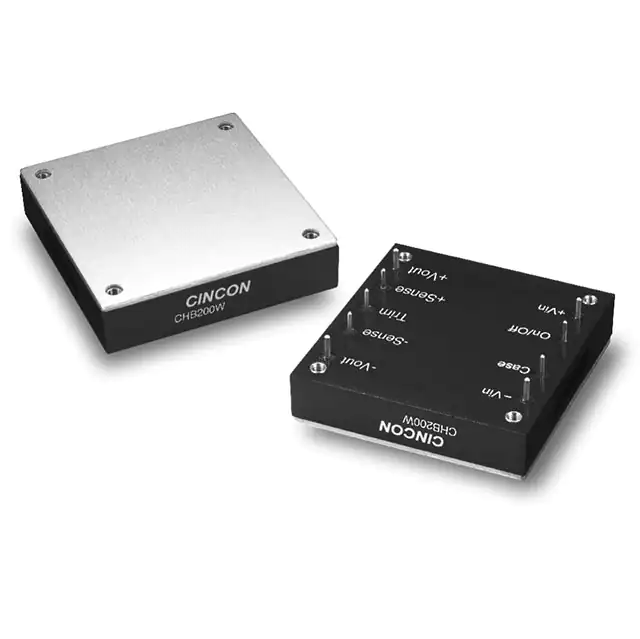

CHB200W-24S24DC DC CONVERTER 24V 199W |
2,424 | 174.51 |
RFQ |
Datasheet |
Half Brick | Tray | CHB200W (200W) | Active | Isolated Module | 1 | 10V | 36V | 24V | - | - | - | 8.3A | 199 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | Through Hole | 2.40 L x 2.28 W x 0.52 H (61.0mm x 57.9mm x 13.2mm) | ||
|

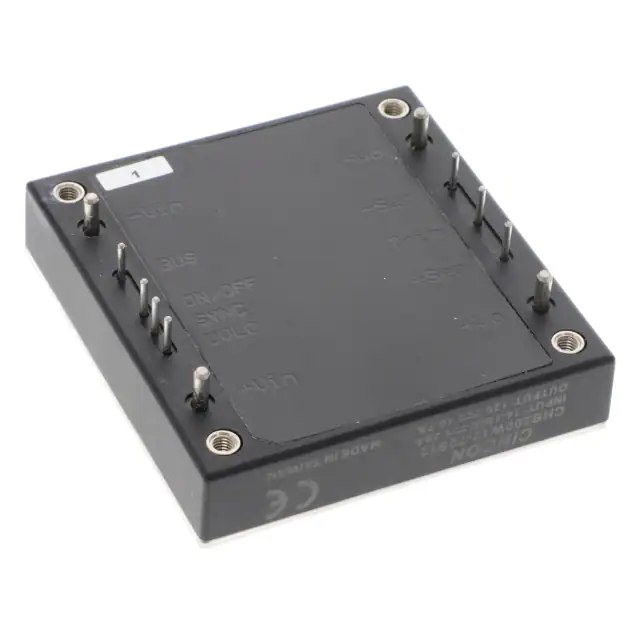

CHB200W12-72S48NDC DC CONVERTER 48V 200W |
3,439 | 183.60 |
RFQ |
Datasheet |
Half Brick | Box | CHB200W12 (200W) | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 4.2A | 200 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHB300W-24S48DC DC CONVERTER 48V 300W |
194 | 185.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB300W (300W) | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 6.25A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|

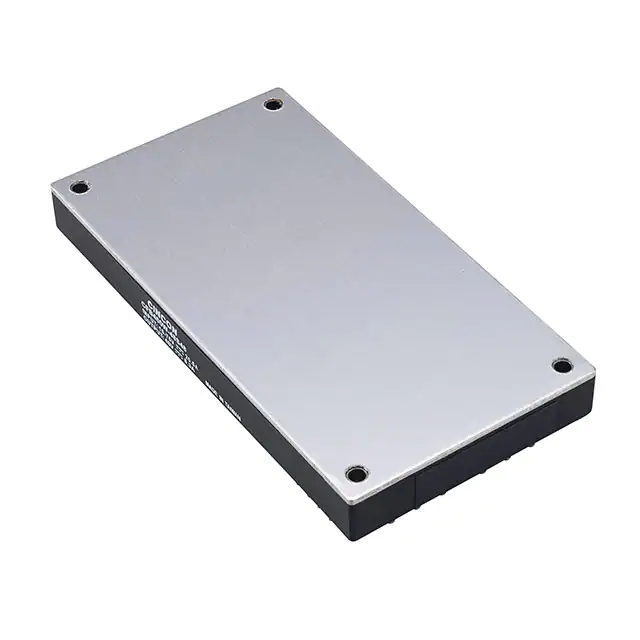

CFB400W-24S24DC DC CONVERTER 24V 401W |
3,313 | 248.69 |
RFQ |
Datasheet |
Full Brick | Box | CFB400W (400W) | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 16.7A | 401 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 87% | Through Hole | 4.60 L x 2.40 W x 0.50 H (116.8mm x 61.0mm x 12.7mm) | ||
|

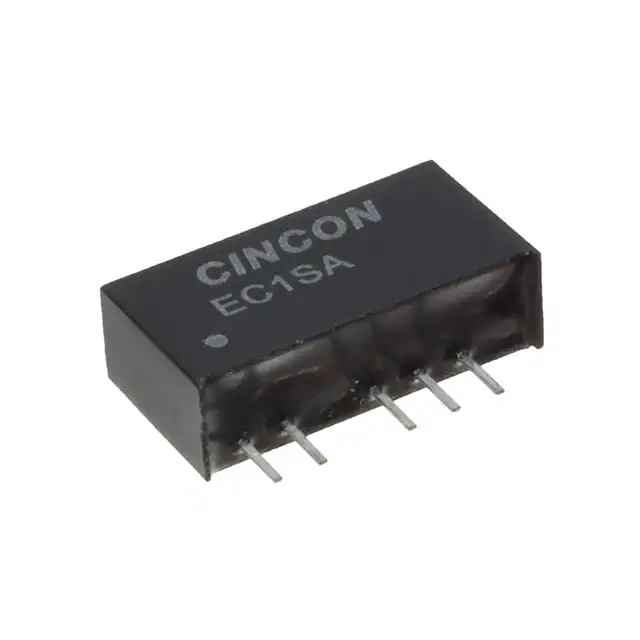

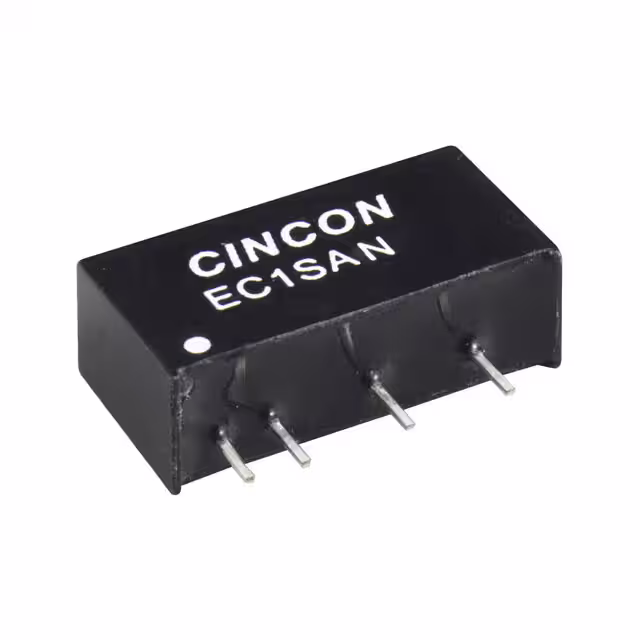

EC1SA24NDC DC CONVERTER +/-12V 1W |
3,743 | 3.72 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC1SAN (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) | ||
|
EC1SA13NDC DC CONVERTER 15V 1W |
111 | 3.72 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC1SAN (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) | ||
|
|
EC1SA05NDC DC CONVERTER +/-15V 1W |
103 | 3.72 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC1SAN (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) | ||
|

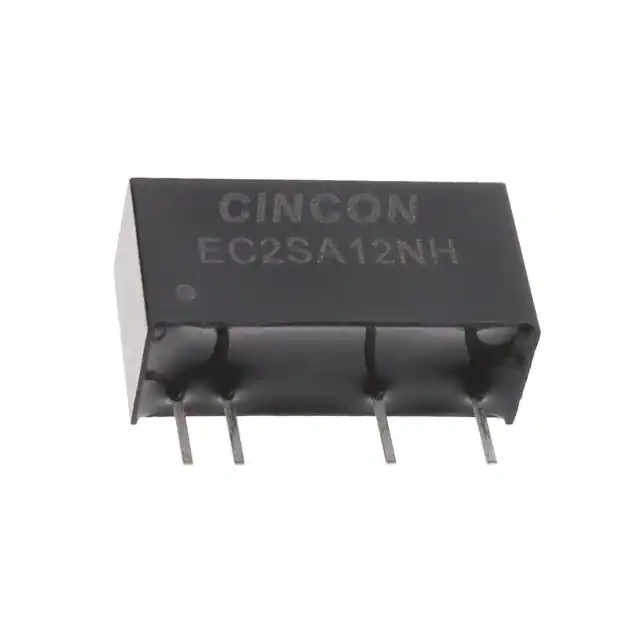

EC2SA12NHDC DC CONVERTER 12V 2W |
267 | 8.59 |
RFQ |
7-SIP Module, 4 Leads | Tube | EC2SANH (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||
|
EC2SA-05S05NDC DC CONVERTER 5V 2W |
346 | 9.70 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | EC2SA (2W) | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 76% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | ||
|
|
EC2SA-05S15NDC DC CONVERTER 15V 2W |
147 | 9.70 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | EC2SA (2W) | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 134mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | ||
|

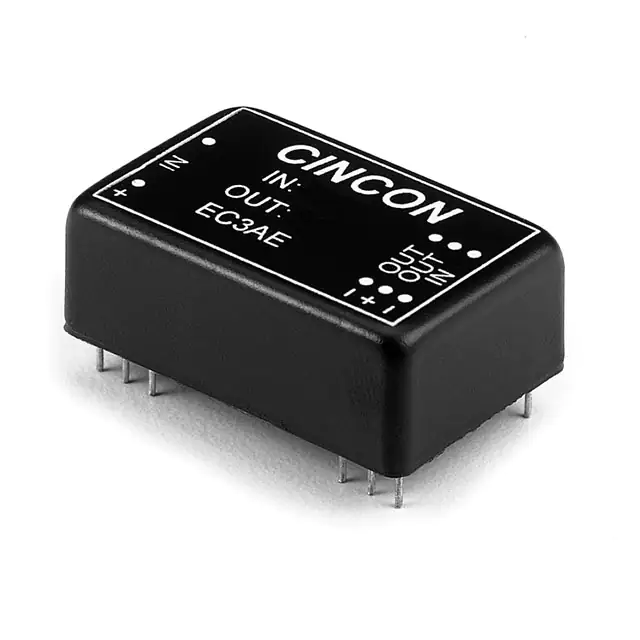

EC3AE25MDC DC CONVERTER +/-15V 3W |
122 | 9.70 |
RFQ |
Datasheet |
24-DIP Module, 12 Leads | Tube | EC3AE (3W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 100°C (With Derating) | 61% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC2SA-48D05NDC DC CONVERTER +/-5V 2W |
1,582 | 9.87 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | EC2SA (2W) | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 78% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | ||
|

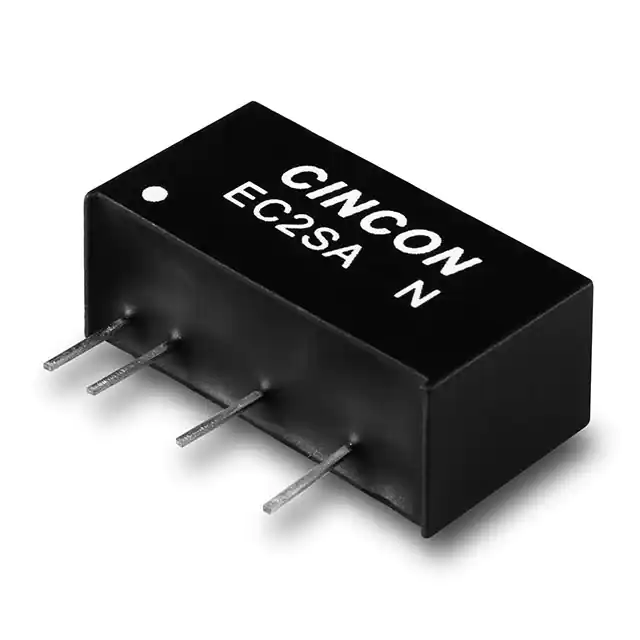

EC2SA24NDC DC CONVERTER +/-12V 2W |
366 | 10.13 |
RFQ |
Datasheet |
6-SIP Module, 5 Leads | Tube | EC2SAN (2W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | ||
|
EC3A01DC DC CONVERTER 5V 3W |
449 | 11.29 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3A (3W) | Active | Isolated Module | 1 | 4.5V | 6V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 75% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) |
