| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

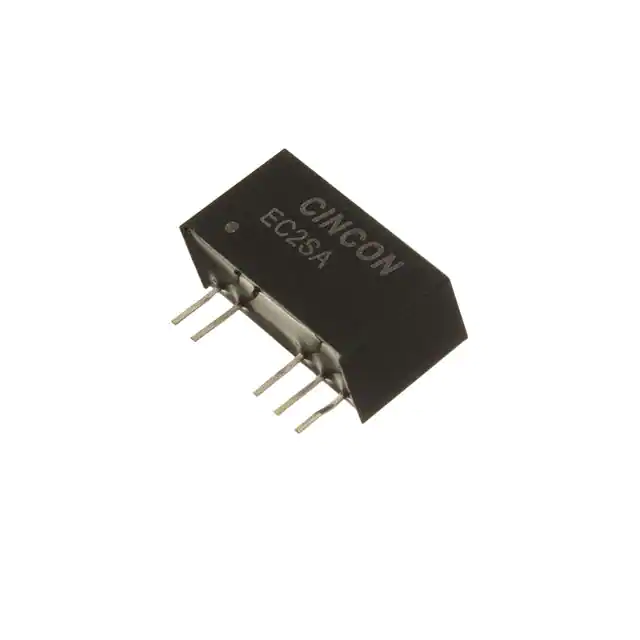

EC2SA01NDC DC CONVERTER 5V 2W |
140 | 9.70 |
RFQ |
Datasheet |
6-SIP Module, 5 Leads | Tube | EC2SAN (2W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | ||
|
EC2SA26NHDC DC CONVERTER +/-5V 2W |
112 | 10.83 |
RFQ |
7-SIP Module, 5 Leads | Tube | EC2SANH (2W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||
|
CQB75W8-36S15DC DC CONVERTER 15V 75W |
2,109 | 103.69 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75W8 (75W) | Active | Isolated Module | 1 | 9V | 75V | 15V | - | - | - | 5A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|

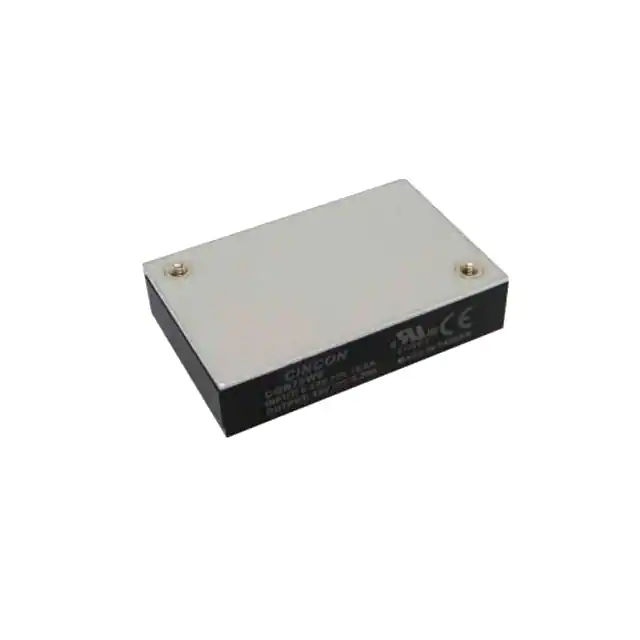

CQB75W8-36S48DC DC CONVERTER 48V 75W |
2,095 | 103.69 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75W8 (75W) | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 1.56A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|

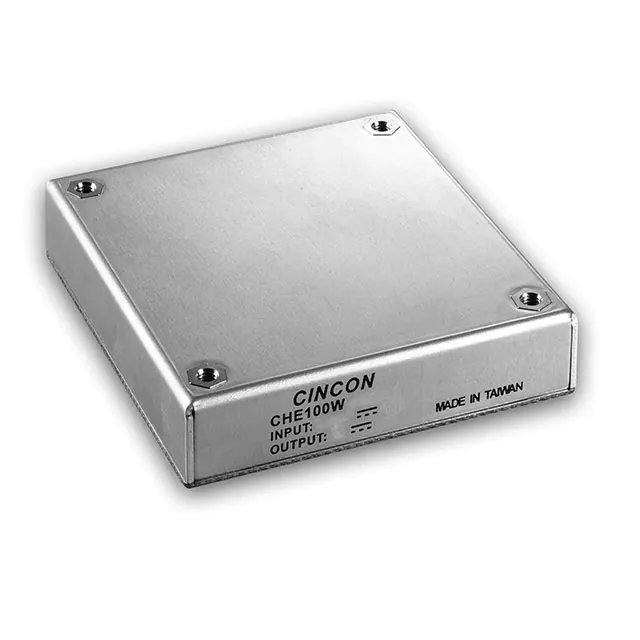

CHE100W-24S05DC DC CONVERTER 5V 100W |
2,251 | 136.67 |
RFQ |
Datasheet |
Half Brick | Tray | CHE100W (100W) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89.5% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHB150W12-72S24NDC DC CONVERTER 24V 150W |
2,051 | 170.89 |
RFQ |
Datasheet |
Half Brick | Box | CHB150W12 (150W) | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CHB150W12-72S05NDC DC CONVERTER 5V 150W |
2,186 | 176.31 |
RFQ |
Datasheet |
Half Brick | Box | CHB150W12 (150W) | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 25A | 150 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CHB150W12-72S15NDC DC CONVERTER 15V 150W |
2,743 | 176.31 |
RFQ |
Datasheet |
Half Brick | Box | CHB150W12 (150W) | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 10A | 150 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CHB150W12-72S48NDC DC CONVERTER 48V 150W |
3,160 | 176.31 |
RFQ |
Datasheet |
Half Brick | Box | CHB150W12 (150W) | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 3.2A | 150 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|

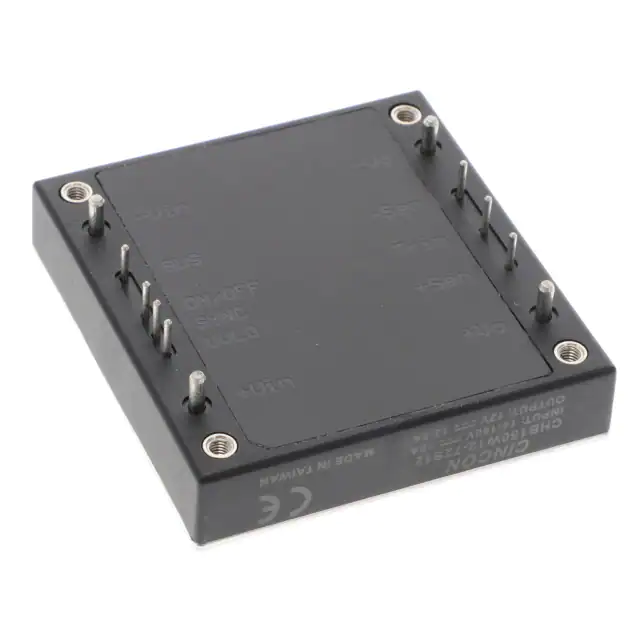

CHB150W12-72S12DC DC CONVERTER 12V 150W |
3,169 | 176.31 |
RFQ |
Datasheet |
Half Brick | Box | CHB150W12 (150W) | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 12.5A | 150 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHB200W12-72S15NDC DC CONVERTER 15V 200W |
3,410 | 183.60 |
RFQ |
Datasheet |
Half Brick | Box | CHB200W12 (200W) | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 13.5A | 200 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHB300W-48S28NDC DC CONVERTER 28V 300W |
3,917 | 185.00 |
RFQ |
Datasheet |
Half Brick | Tray | CHB300W (300W) | Active | Isolated Module | 1 | 18V | 75V | 28V | - | - | - | 10.7A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89.5% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|

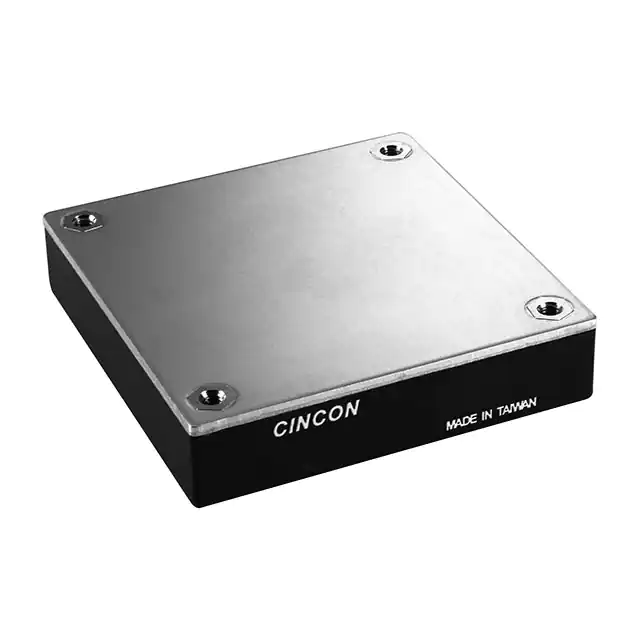

CHB300-300S05DC DC CONVERTER 5V 300W |
2,164 | 190.34 |
RFQ |
Datasheet |
Half Brick | Tray | CHB300-300S (300W) | Active | Isolated Module | 1 | 180V | 425V | 5V | - | - | - | 60A | 300 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|

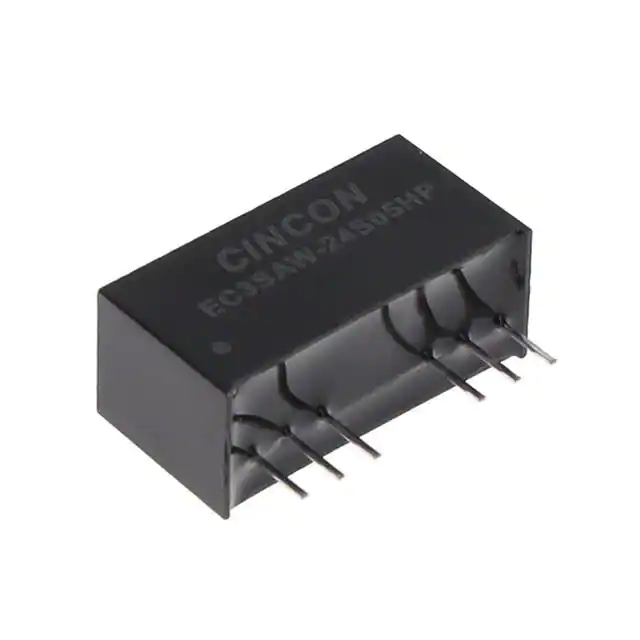

EC3SAW-24S05HPDC DC CONVERTER 5V 3W |
174 | 12.50 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | EC3SAW (3W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | ||
|

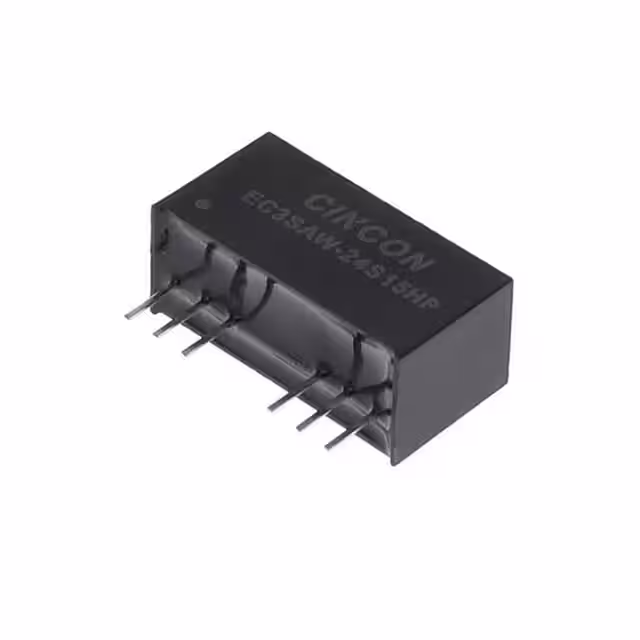

EC3SAW-24S15HPDC DC CONVERTER 15V 3W |
197 | 12.50 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | EC3SAW (3W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | ||
|

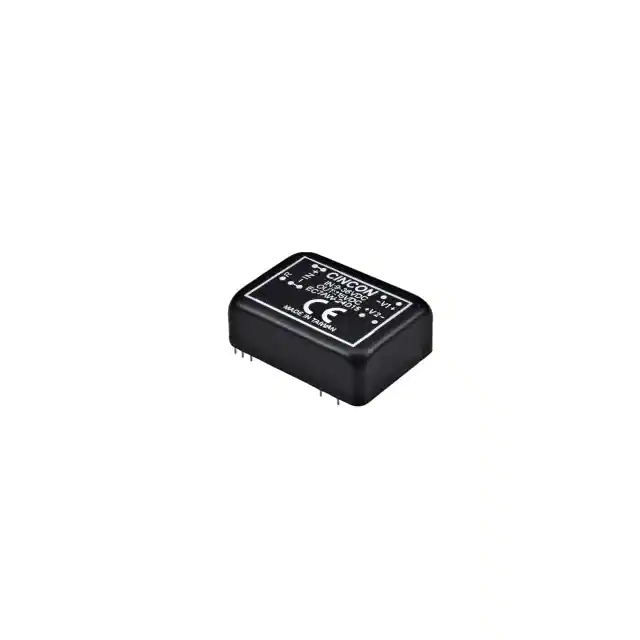

EC7AW-24S15NDC-DC CONVERTER |
110 | 25.40 |
RFQ |
Datasheet |
24-DIP Module, 8 Leads | Tube | EC7AW (10W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 666mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|

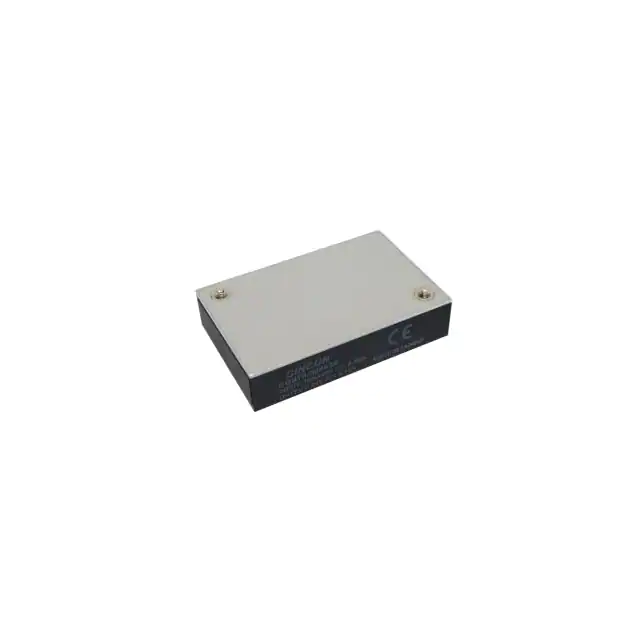

CQB75-300S48NDCDC CONVERTER |
2,518 | 100.00 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75-300S (75W) | Active | Isolated Module | 1 | 180V | 450V | 48V | - | - | - | 1.56A | 75 W | 3 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
CQB75-300S48DCDC CONVERTER |
2,716 | 100.00 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75-300S (75W) | Active | Isolated Module | 1 | 180V | 450V | 48V | - | - | - | 1.56A | 75 W | 3 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
CQB75-300S24NDCDC CONVERTER |
2,490 | 100.00 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75-300S (75W) | Active | Isolated Module | 1 | 180V | 450V | 24V | - | - | - | 3.12A | 75 W | 3 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
CQB75-300S15NDCDC CONVERTER |
3,482 | 100.00 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75-300S (75W) | Active | Isolated Module | 1 | 180V | 450V | 15V | - | - | - | 5A | 75 W | 3 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) |
