Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
1T8W_2412S1.5RP DC-DC GAPTEC Electronic	3,243	7.53	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8W_1.5RP (1W)	Active	Isolated Module	1	18V	36V	12V	-	-	-	83mA	996 mW	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Surface Mount	0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm)
1T8W_2403S1.5RP DC-DC GAPTEC Electronic	2,115	7.53	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8W_1.5RP (1W)	Active	Isolated Module	1	18V	36V	3.3V	-	-	-	303mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Surface Mount	0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm)
1T8W_2424S1.5RP DC-DC GAPTEC Electronic	3,050	7.53	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8W_1.5RP (1W)	Active	Isolated Module	1	18V	36V	24V	-	-	-	42mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Surface Mount	0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm)

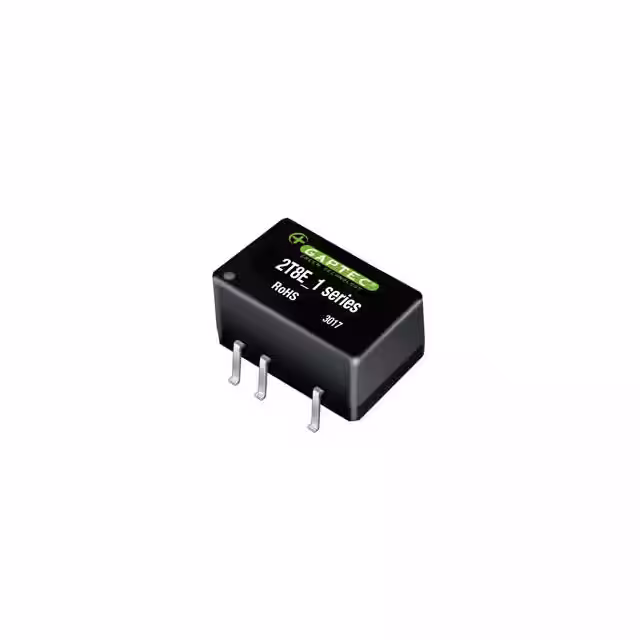

2T8E_0505S1U DC-DC GAPTEC Electronic	100	7.64	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	2T8E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	400mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	72%	Surface Mount	0.50 L x 0.30 W x 0.25 H (12.7mm x 7.6mm x 6.4mm)
2T8E_0512S1U DC-DC GAPTEC Electronic	100	7.64	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	2T8E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	167mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	74%	Surface Mount	0.50 L x 0.30 W x 0.25 H (12.7mm x 7.6mm x 6.4mm)
LMP78_09-1.0R DC-DC POL GAPTEC Electronic	2,163	7.95	RFQ	Datasheet	3-SIP Module	Tube	LMP78_1.0	Active	Non-Isolated PoL Module	1	11V	42V	9V	-	-	-	1A	9 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	95%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LMP78_12-1.0R DC-DC POL GAPTEC Electronic	2,376	7.95	RFQ	Datasheet	3-SIP Module	Tube	LMP78_1.0	Active	Non-Isolated PoL Module	1	14V	42V	12V	-	-	-	1A	12 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	97%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
1S8W_2403S1.5RP DC-DC GAPTEC Electronic	2,438	7.99	RFQ	Datasheet	8-SIP Module, 7 Leads	Tube	1S8W_S (1W)	Active	Isolated Module	1	18V	36V	3.3V	-	-	-	303mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Through Hole	0.87 L x 0.37 W x 0.47 H (22.0mm x 9.5mm x 12.0mm)
3S7A_0305S1.5UP DC-DC GAPTEC Electronic	2,700	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	2.97V	3.63V	5V	-	-	-	600mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	78%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
2S7WA_0505S3RP DC-DC GAPTEC Electronic	3,179	8.40	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7WA_3RP (2W)	Active	Isolated Module	1	4.5V	9V	5V	-	-	-	400mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7WB_2405S3RP DC-DC GAPTEC Electronic	2,896	8.42	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7WB (1W)	Active	Isolated Module	1	18V	36V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7WA_1224S3RP DC-DC GAPTEC Electronic	2,744	8.42	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7WA (1W)	Active	Isolated Module	1	9V	18V	24V	-	-	-	42mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7WA_1205S3RP DC-DC GAPTEC Electronic	2,627	8.42	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7WA (1W)	Active	Isolated Module	1	9V	18V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7WA_2405S3RP DC-DC GAPTEC Electronic	3,934	8.42	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7WA (1W)	Active	Isolated Module	1	18V	36V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7WA_1212S3RP DC-DC GAPTEC Electronic	3,777	8.42	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7WA (1W)	Active	Isolated Module	1	9V	18V	12V	-	-	-	84mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	73%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7WA_2412S3RP DC-DC GAPTEC Electronic	3,547	8.42	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7WA (1W)	Active	Isolated Module	1	18V	36V	12V	-	-	-	84mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
LMP78_03-1.5 DC-DC POL GAPTEC Electronic	3,077	8.62	RFQ	Datasheet	3-SIP Module	Tube	LMP78_1.5	Active	Non-Isolated PoL Module	1	6V	36V	3.3V	-	-	-	1.5A	5 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	86%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LME78_1.8-2.0 DC-DC POL GAPTEC Electronic	3,676	9.05	RFQ	Datasheet	4-SIP Module	Tube	LME78_2.0	Active	Non-Isolated PoL Module	1	4.6V	36V	1.8V	-	-	-	2A	-	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	87%	Through Hole	0.55 L x 0.30 W x 0.40 H (14.0mm x 7.5mm x 10.1mm)
LME78_1.5-2.0 DC-DC POL GAPTEC Electronic	2,560	9.05	RFQ	Datasheet	4-SIP Module	Tube	LME78_2.0	Active	Non-Isolated PoL Module	1	4.6V	36V	1.5V	-	-	-	2A	-	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	86%	Through Hole	0.55 L x 0.30 W x 0.40 H (14.0mm x 7.5mm x 10.1mm)
LME78_2.5-2.0 DC-DC POL GAPTEC Electronic	3,772	9.05	RFQ	Datasheet	4-SIP Module	Tube	LME78_2.0	Active	Non-Isolated PoL Module	1	4.6V	36V	2.5V	-	-	-	2A	-	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	89%	Through Hole	0.55 L x 0.30 W x 0.40 H (14.0mm x 7.5mm x 10.1mm)
