Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
0.1S7B_0305S3UP DC-DC GAPTEC Electronic	3,422	5.97	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	0.1S7B_3UP (0.1W)	Active	Isolated Module	1	2.97V	3.6V	5V	-	-	-	20mA	100 mW	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	72%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
0.1S7B_1212S3UP DC-DC GAPTEC Electronic	3,991	5.97	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	0.1S7B_3UP (0.1W)	Active	Isolated Module	1	10.8V	13.2V	12V	-	-	-	8.3mA	100 mW	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	77%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
0.5S7B_0512S3UP DC-DC GAPTEC Electronic	3,687	5.97	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	0.5S7B_3UP (0.5W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	41.7mA	500 mW	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	76%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.6mm x 6.0mm x 10.0mm)
0.5S7B_1212S3UP DC-DC GAPTEC Electronic	2,369	5.97	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	0.5S7B_3UP (0.5W)	Active	Isolated Module	1	10.8V	13.2V	12V	-	-	-	41.7mA	500 mW	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	77%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.6mm x 6.0mm x 10.0mm)
0.1S7B_0505S3UP DC-DC GAPTEC Electronic	2,779	5.97	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	0.1S7B_3UP (0.1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	20mA	100 mW	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)

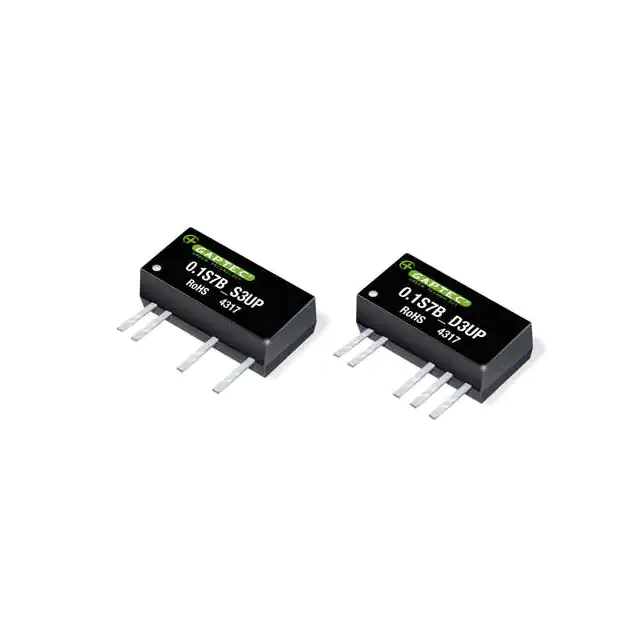

0.1S7B_0524S3UP DC-DC GAPTEC Electronic	2,038	5.97	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	0.1S7B_3UP (0.1W)	Active	Isolated Module	1	4.5V	5.5V	24V	-	-	-	4.17mA	100 mW	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	79%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
3S7A_0509S1U DC-DC GAPTEC Electronic	2,465	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	333mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_1209D1U DC-DC GAPTEC Electronic	3,649	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	2	10.8V	13.2V	9V	-9V	-	-	166mA, 166mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	88%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_1215D1U DC-DC GAPTEC Electronic	2,416	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	2	10.8V	13.2V	15V	-15V	-	-	100mA, 100mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	90%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_1209D3U DC-DC GAPTEC Electronic	2,510	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	2	10.8V	13.2V	9V	-9V	-	-	166mA, 166mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	88%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_0512S3U DC-DC GAPTEC Electronic	2,211	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	250mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_1205D3U DC-DC GAPTEC Electronic	3,524	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	2	10.8V	13.2V	5V	-5V	-	-	300mA, 300mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	85%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_0509D1U DC-DC GAPTEC Electronic	3,351	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	2	4.5V	5.5V	9V	-9V	-	-	166mA, 166mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	85%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_1205S1U DC-DC GAPTEC Electronic	2,854	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	600mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_1205D1U DC-DC GAPTEC Electronic	2,157	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	2	10.8V	13.2V	5V	-5V	-	-	300mA, 300mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	85%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_0505D1U DC-DC GAPTEC Electronic	2,223	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	2	4.5V	5.5V	5V	-5V	-	-	300mA, 300mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_1212D1U DC-DC GAPTEC Electronic	2,642	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	2	10.8V	13.2V	12V	-12V	-	-	125mA, 125mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	89%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_0505S1U DC-DC GAPTEC Electronic	2,979	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	600mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_1212D3U DC-DC GAPTEC Electronic	3,128	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	2	10.8V	13.2V	12V	-12V	-	-	125mA, 125mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	89%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_0512S1U DC-DC GAPTEC Electronic	2,130	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	250mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
