Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
3S4A_1205S1UP DC-DC GAPTEC Electronic	2,120	7.48	RFQ	Datasheet	4-SIP Module	Tube	3S4A_1UP (3W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	600mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.45 L x 0.24 W x 0.39 H (11.5mm x 6.0mm x 10.0mm)
3S4A_0515S1UP DC-DC GAPTEC Electronic	2,584	7.48	RFQ	Datasheet	4-SIP Module	Tube	3S4A_1UP (3W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	200mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.45 L x 0.24 W x 0.39 H (11.5mm x 6.0mm x 10.0mm)

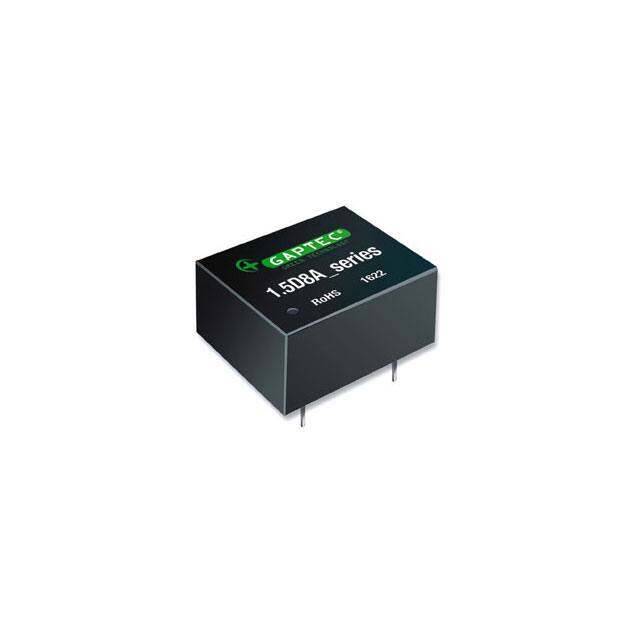

1.5D8A_0505S1U DC-DC GAPTEC Electronic	3,295	7.66	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1.5D8A (1.5W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	300mA	1.5 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.50 L x 0.40 W x 0.30 H (12.7mm x 10.2mm x 7.5mm)
LMP78_03-1.0 DC-DC POL GAPTEC Electronic	3,028	7.95	RFQ	Datasheet	3-SIP Module	Tube	LMP78_1.0	Active	Non-Isolated PoL Module	1	4.75V	42V	3.3V	-	-	-	1A	3.3 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	88%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)
LMP78_15-1.0R DC-DC POL GAPTEC Electronic	2,874	7.95	RFQ	Datasheet	3-SIP Module	Tube	LMP78_1.0	Active	Non-Isolated PoL Module	1	17V	42V	15V	-	-	-	1A	15 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	97%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)

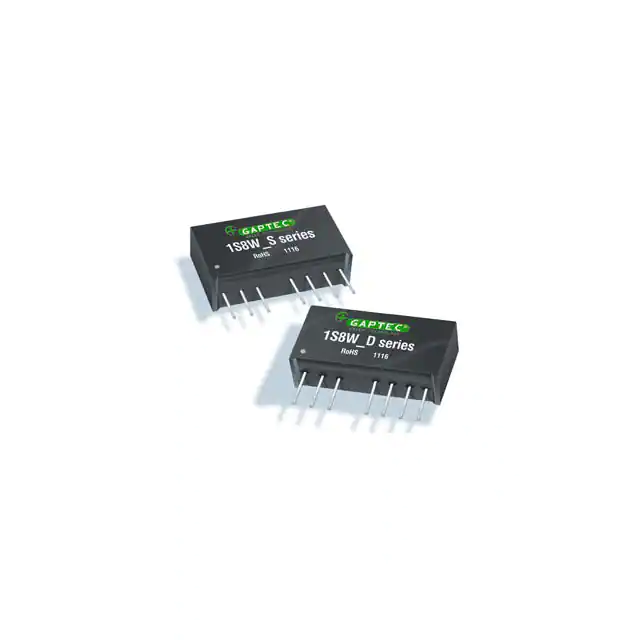

1S8W_2405S1.5RP DC-DC GAPTEC Electronic	2,668	7.99	RFQ	Datasheet	8-SIP Module, 7 Leads	Tube	1S8W_S (1W)	Active	Isolated Module	1	18V	36V	5V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.87 L x 0.37 W x 0.47 H (22.0mm x 9.5mm x 12.0mm)
1S8W_0505S1.5RP DC-DC GAPTEC Electronic	2,972	7.99	RFQ	Datasheet	8-SIP Module, 7 Leads	Tube	1S8W_S (1W)	Active	Isolated Module	1	4.5V	9V	5V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	72%	Through Hole	0.87 L x 0.37 W x 0.47 H (22.0mm x 9.5mm x 12.0mm)
3S7A_1224S1.5UP DC-DC GAPTEC Electronic	2,623	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	10.8V	13.2V	24V	-	-	-	125mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	87%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_1505S1.5UP DC-DC GAPTEC Electronic	2,160	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	13.5V	16.5V	5V	-	-	-	600mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	80%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_1205S1.5UP DC-DC GAPTEC Electronic	3,287	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	600mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_0515S1.5UP DC-DC GAPTEC Electronic	2,433	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	200mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	87%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_0509S1.5UP DC-DC GAPTEC Electronic	2,275	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	333mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	86%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7B_0515S3UP DC-DC GAPTEC Electronic	2,427	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3UP (3W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	200mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	87%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_4812S1.5UP DC-DC GAPTEC Electronic	3,159	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	43.2V	52.8V	12V	-	-	-	250mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7B_0512S3UP DC-DC GAPTEC Electronic	2,511	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3UP (3W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	250mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	86%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7B_2412S3UP DC-DC GAPTEC Electronic	3,079	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3UP (3W)	Active	Isolated Module	1	21.6V	26.4V	12V	-	-	-	250mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_1215S1.5UP DC-DC GAPTEC Electronic	3,862	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	10.8V	13.2V	15V	-	-	-	200mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	88%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_2415S1.5UP DC-DC GAPTEC Electronic	2,075	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	21.6V	26.4V	15V	-	-	-	200mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	84%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7B_1215S3UP DC-DC GAPTEC Electronic	2,787	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3UP (3W)	Active	Isolated Module	1	10.8V	13.2V	15V	-	-	-	200mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	89%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_2424S1.5UP DC-DC GAPTEC Electronic	3,709	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	21.6V	26.4V	24V	-	-	-	125mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	87%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
