| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

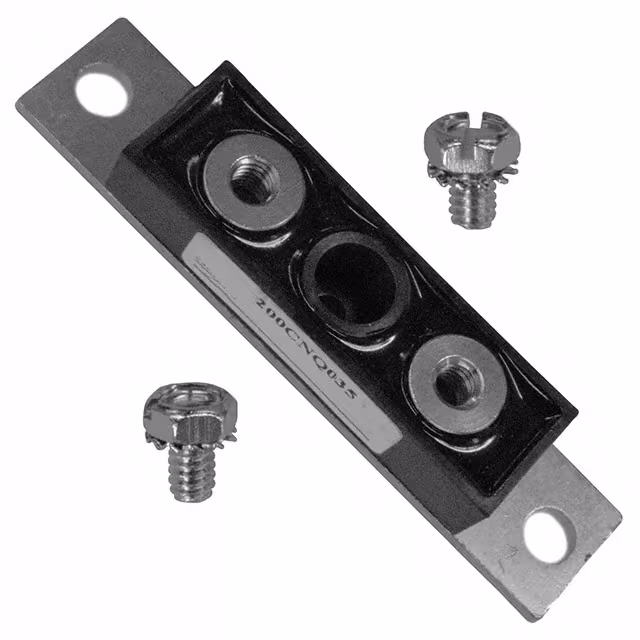

200CNQ035DIODE MODULE 35V 100A TO244AB |
2,636 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 100A | 540 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -55°C ~ 175°C | Chassis Mount |
|

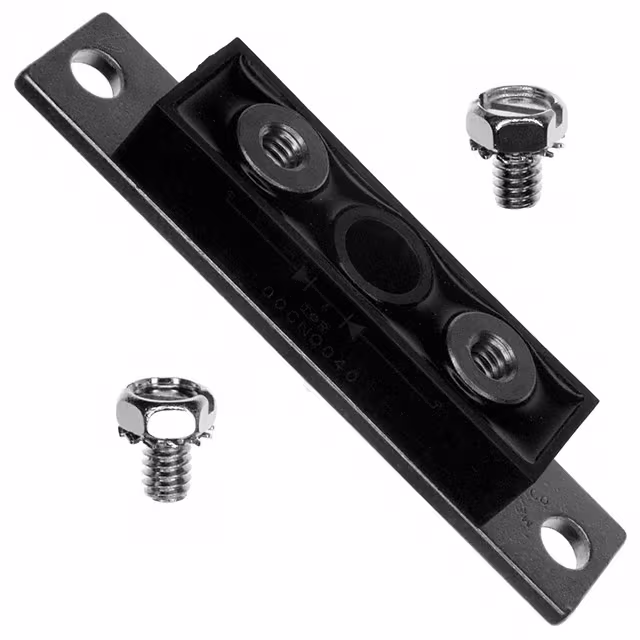

200CNQ040DIODE MODULE 40V 100A TO244AB |
3,842 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 100A | 540 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 40 V | -55°C ~ 150°C | Chassis Mount |
|

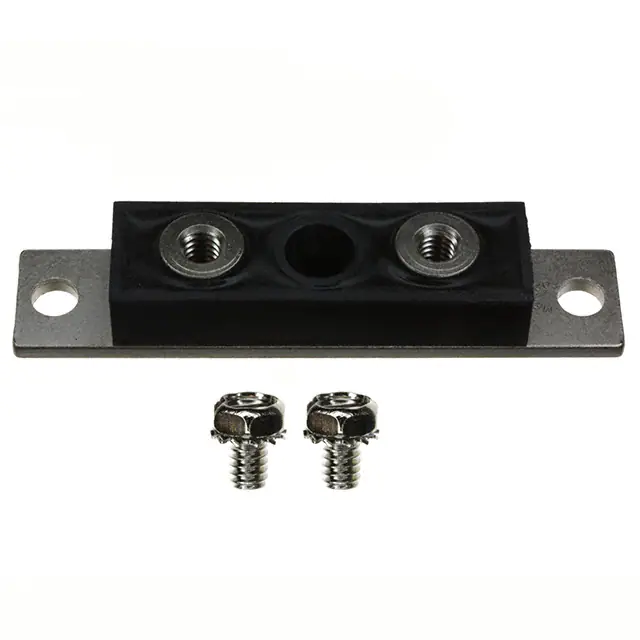

200CNQ045DIODE MODULE 45V 100A TO244AB |
3,301 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 100A | 540 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|
201CMQ045DIODE MODULE 45V 100A TO244AB |
2,980 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 100A | 670 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
|

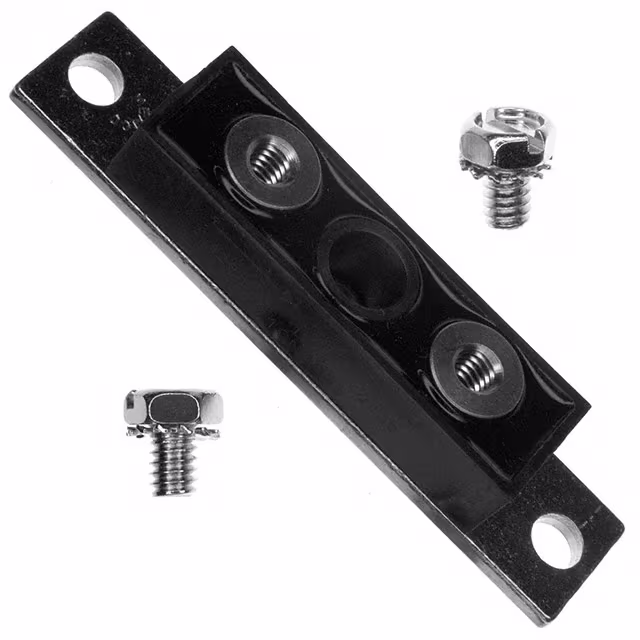

201CNQ035DIODE MODULE 35V 200A TO244AB |
2,996 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 200A | 810 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -55°C ~ 175°C | Chassis Mount |
|

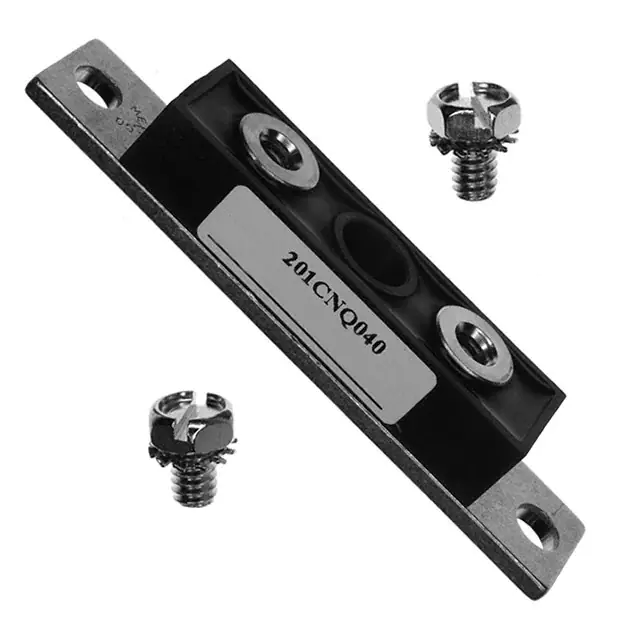

201CNQ040DIODE MODULE 40V 200A TO244AB |
2,042 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 200A | 810 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 40 V | -55°C ~ 175°C | Chassis Mount |
|
|
201CNQ045DIODE MODULE 45V 200A TO244AB |
3,223 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 670 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
|
|
203CMQ080DIODE MODULE 80V 100A TO244AB |
3,987 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 100A | 860 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
203CMQ100DIODE MODULE 100V 100A TO244AB |
2,266 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 100A | 860 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
203CNQ080DIODE MODULE 80V 100A TO244AB |
3,371 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 100A | 860 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
|
203DMQ100DIODE MODULE 100V 200A TO244AB |
2,057 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 100 V | 200A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
|
203DNQ100DIODE MODULE 100V 200A TO244AB |
2,171 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 100 V | 200A | 860 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
|
220CMQ030DIODE MODULE 30V 110A TO244AB |
2,684 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 110A | 480 mV @ 110 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 30 V | -55°C ~ 150°C | Chassis Mount |
|
|
220CNQ030DIODE MODULE 30V 220A TO244AB |
2,909 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 220A | 570 mV @ 220 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 30 V | -55°C ~ 150°C | Chassis Mount |
|
|
225CNQ015DIODE MODULE 15V 220A TO244AB |
2,491 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 220A | 490 mV @ 220 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 40 mA @ 15 V | -55°C ~ 125°C | Chassis Mount |
|
301CNQ035DIODE MODULE 35V 300A TO244AB |
3,729 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 300A | 900 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -55°C ~ 175°C | Chassis Mount |
|

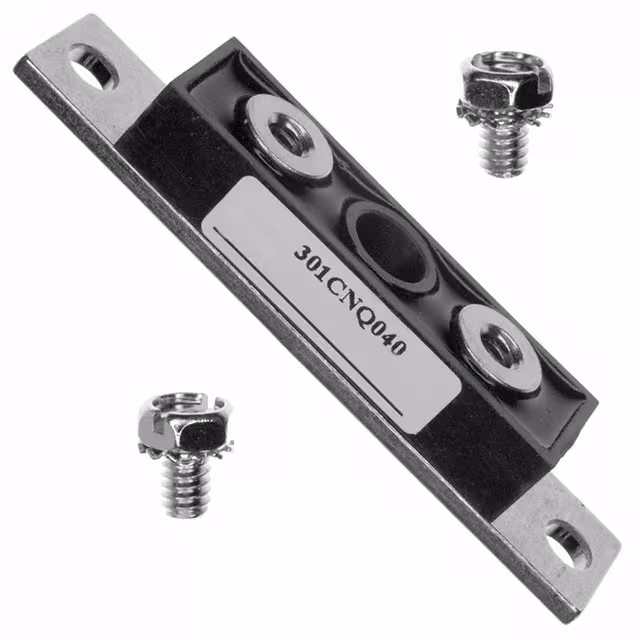

301CNQ040DIODE MODULE 40V 300A TO244AB |
3,172 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 300A | 900 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 40 V | -55°C ~ 175°C | Chassis Mount |
|
|
301CNQ050DIODE MODULE 50V 300A TO244AB |
2,671 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 300A | 900 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 50 V | -55°C ~ 175°C | Chassis Mount |
|

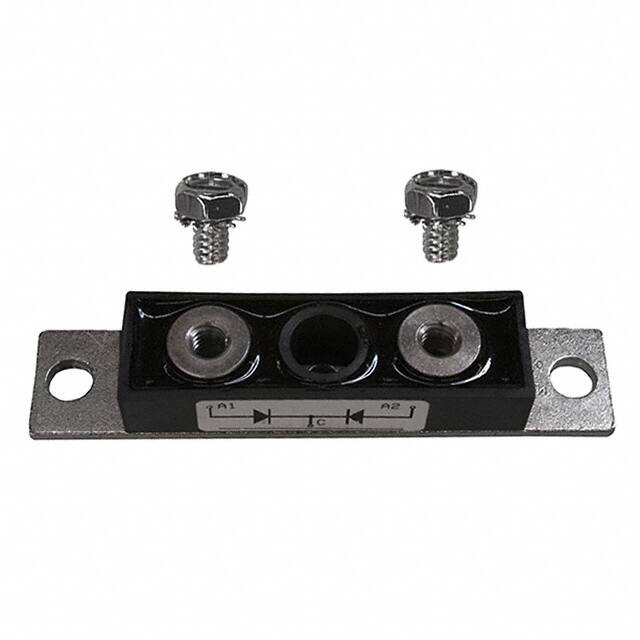

303CNQ080DIODE MODULE 80V 300A TO244AB |
3,840 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 300A | 1.09 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
|
303CNQ100DIODE MODULE 100V 300A TO244AB |
3,188 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 300A | 1.09 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
