| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400CNQ035DIODE MODULE 35V 200A TO244AB |
2,421 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 200A | 730 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 35 V | -55°C ~ 150°C | Chassis Mount |
|
|
400CNQ045DIODE MODULE 45V 200A TO244AB |
2,540 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|

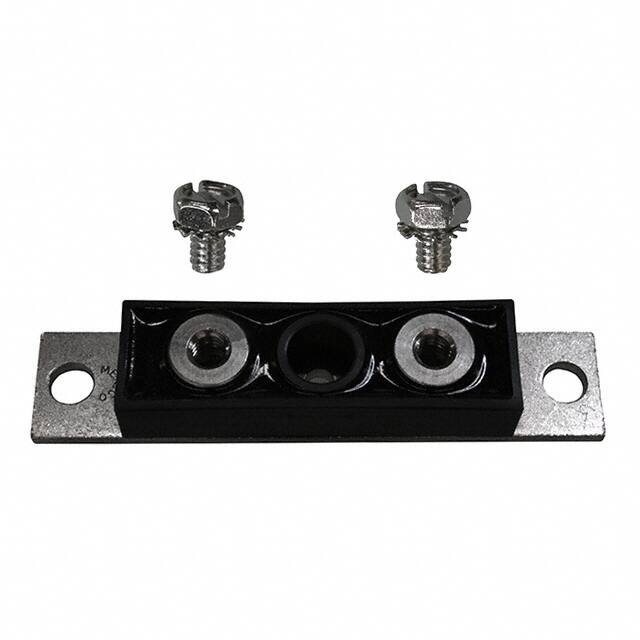

403CNQ080DIODE MODULE 80V 400A TO244AB |
3,436 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 400A | 970 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
403CNQ100DIODE MODULE 100V 400A TO244AB |
3,560 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 400A | 970 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
|
440CMQ030DIODE MODULE 30V 220A TO244AB |
3,491 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 220A | 500 mV @ 220 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 30 V | -55°C ~ 150°C | Chassis Mount |
|
|
440CNQ030DIODE MODULE 30V 440A TO244AB |
2,777 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 440A | 600 mV @ 440 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 30 V | -55°C ~ 150°C | Chassis Mount |
|
30CPQ035DIODE ARRAY SCHOTTKY 35V TO247AC |
3,411 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 15A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 35 V | -55°C ~ 150°C | Through Hole |
|
|
30CPQ040DIODE ARRAY SCHOTTKY 40V TO247AC |
2,723 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 15A | 540 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 40 V | -55°C ~ 150°C | Through Hole |
|
|
30CPQ050DIODE ARRAY SCHOTTKY 50V TO247AC |
3,382 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 15A | 600 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 50 V | -55°C ~ 150°C | Through Hole |
|
|
30CPQ080DIODE ARRAY SCHOTTKY 80V TO247AC |
2,743 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 15A | 860 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 80 V | -55°C ~ 175°C | Through Hole |
|
|
40CPQ035DIODE ARRAY SCHOTTKY 35V TO247AC |
3,569 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 20A | 490 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 35 V | -55°C ~ 150°C | Through Hole |
|
|
40CPQ040DIODE ARRAY SCHOTTKY 40V TO247AC |
3,615 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 20A | 490 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 40 V | -55°C ~ 150°C | Through Hole |
|
|
40CPQ050DIODE ARRAY SCHOTTKY 50V TO247AC |
3,367 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.7 mA @ 50 V | -55°C ~ 150°C | Through Hole |
|
|
40CPQ080DIODE ARRAY SCHOTTKY 80V TO247AC |
3,991 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 20A | 770 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.25 mA @ 80 V | -55°C ~ 175°C | Through Hole |
|
|
40L15CWDIODE ARRAY SCHOTTKY 15V TO247AC |
3,854 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 20A | 410 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | -55°C ~ 125°C | Through Hole |
|
|
40L40CWDIODE ARRAY SCHOTTKY 40V TO247AC |
3,298 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 40 V | -55°C ~ 150°C | Through Hole |
|
|
40L45CWDIODE ARRAY SCHOTTKY 45V TO247AC |
2,927 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
52CPQ030DIODE ARRAY SCHOTTKY 30V TO247AC |
2,739 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 25A | 480 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.9 mA @ 30 V | -55°C ~ 150°C | Through Hole |
|
|
63CPQ100DIODE ARRAY SCHOTTKY 100V TO247 |
2,916 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 30A | 770 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | -55°C ~ 175°C | Through Hole |
|
|
80CPQ020DIODE ARRAY SCHOTTKY 20V TO247AC |
2,363 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 20 V | 40A | 460 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5.5 mA @ 20 V | -55°C ~ 150°C | Through Hole |
