| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

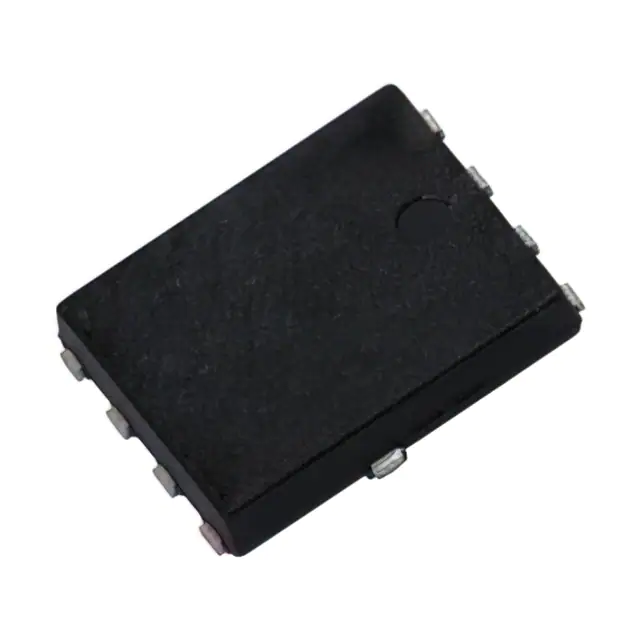

V10K100DUHM3/HRECTIFIER BARRIER SCHOTTKY FP5X6 |
2,548 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 Independent | Schottky | 100 V | 5A | 750 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -40°C ~ 150°C | Surface Mount |
|

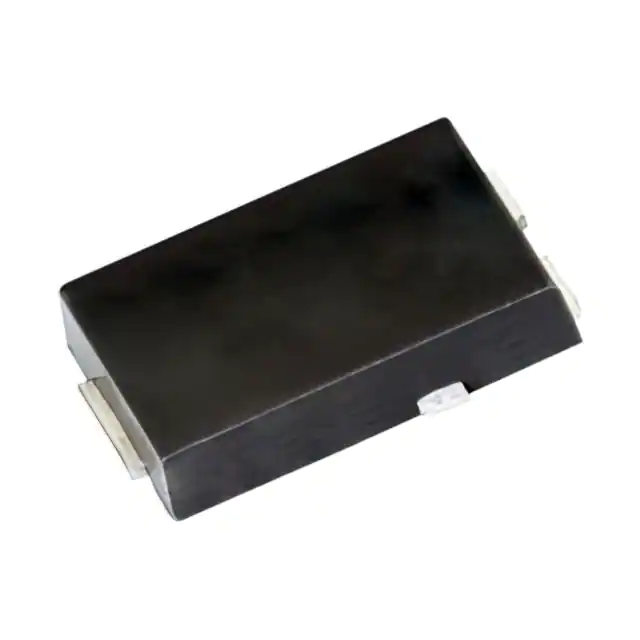

VS-8CSH01HM3/86ADIODE STANDARD 100V 4A TO277A |
3,091 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | Active | 1 Pair Common Cathode | Standard | 100 V | 4A | 950 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 100 V | -65°C ~ 175°C | Surface Mount |
|
VS-12CWQ06FNTRR-M3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
2,207 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 610 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Surface Mount |
|
|
VS-12CWQ06FNTRL-M3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
2,493 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 790 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Surface Mount |
|
|
VS-12CWQ10FNTRL-M3DIODE ARRAY SCHOTTKY 100V DPAK |
3,844 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 6A | 950 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | 150°C (Max) | Surface Mount |
|
|
SS12P4C-M3/86ADIODE ARRAY SCHOTTKY 40V TO277A |
2,189 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | Active | 1 Pair Common Cathode | Schottky | 40 V | 6A | 520 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | -55°C ~ 125°C | Surface Mount |
_Top.jpg)
|
V6P22C-M3/H6A, 200V, SMPC TRENCH SKY RECT. |
3,678 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 3A | 890 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 60 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
|
|
V4P22CHM3/H4A, 200V, SMPC TRENCH SKY RECT. |
3,212 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 2.8A | 870 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
|
|

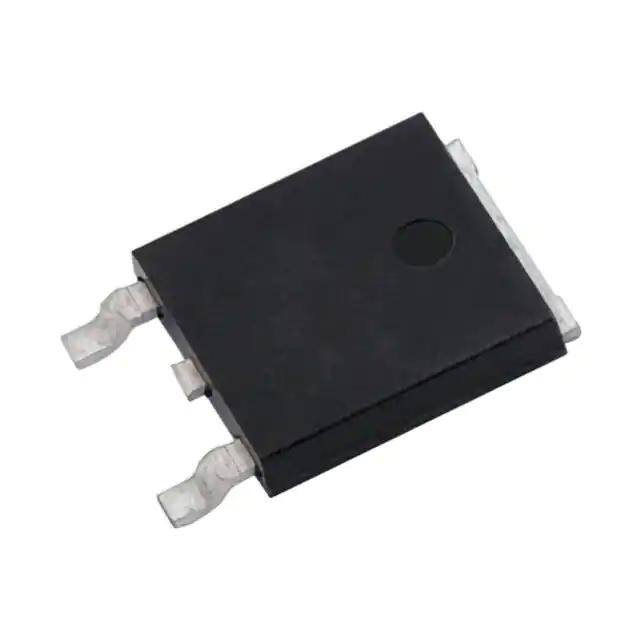

V20PW15C-M3/IDIODE ARRAY SCHOTT 150V SLIMDPAK |
2,048 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 1.24 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -40°C ~ 150°C | Surface Mount |
|
|
V20PW60C-M3/IDIODE ARRAY SCHOTT 60V SLIMDPAK |
2,602 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 60 V | 10A | 640 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 60 V | -40°C ~ 150°C | Surface Mount |
_Top.jpg)
|
V10PWM153C-M3/I10A, 150V, DPAK_SL TRENCH SKY RE |
3,208 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 5A | 950 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V20PWM15CHM3/IDIODE ARRAY SCHOTT 150V SLIMDPAK |
2,019 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 1.24 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V20PWM45CHM3/IDIODE ARRAY SCHOTT 45V SLIMDPAK |
2,471 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 620 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -40°C ~ 175°C | Surface Mount |
|
V10KM60C-M3/H10A, 60V, FLATPAK TRENCH SKY REC |
2,297 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 4.8A | 630 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 60 V | -40°C ~ 175°C | Surface Mount |
|
|
V10KM120C-M3/H10A, 120V, FLATPAK TRENCH SKY RE |
2,071 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 120 V | 3.9A | 830 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 120 V | -40°C ~ 175°C | Surface Mount |
|
|
V10K100C-M3/H10A, 100V, FLATPAK TRENCH SKY RE |
2,539 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 100 V | 3.9A | 690 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 µA @ 100 V | -40°C ~ 150°C | Surface Mount |
|
|
V10K150C-M3/H10A, 150V, FLATPAK TRENCH SKY RE |
2,362 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 3A | 1.08 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 150 V | -40°C ~ 150°C | Surface Mount |
|
|
V20PW10CHM3/IDIODE ARRAY SCHOTT 100V SLIMDPAK |
2,193 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 790 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | -40°C ~ 150°C | Surface Mount |
|
|
V20PW15CHM3/IDIODE ARRAY SCHOTT 150V SLIMDPAK |
3,880 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 1.24 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -40°C ~ 150°C | Surface Mount |
|
|
V10K100CHM3/H10A, 100V, FLATPAK TRENCH SKY RE |
3,461 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 100 V | 3.9A | 690 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 µA @ 100 V | -40°C ~ 150°C | Surface Mount |
