| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

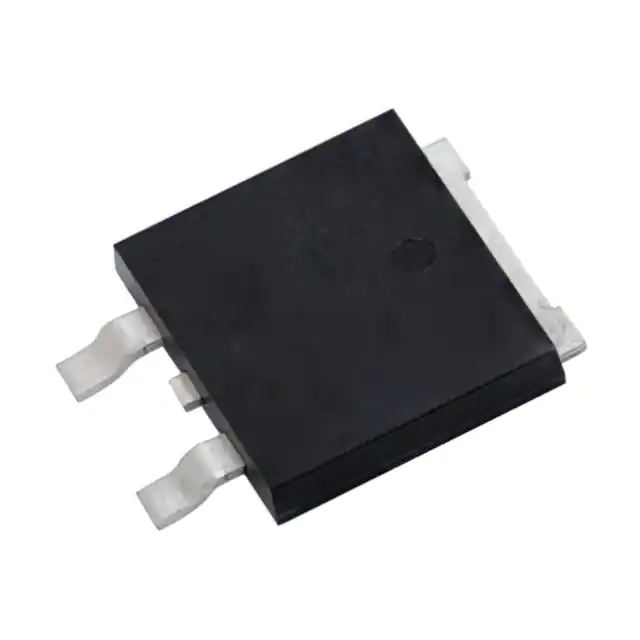

_Top.jpg)
|
V20PW22C-M3/I20A, 200V, SLIMDPAK, DUAL TRENCH |
2,843 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 930 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
_Top.jpg)
|
V10DM153CHM3/IDUAL 150V, 10A TMBS (TRENCH MOS |
2,046 | 1.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 5A | 950 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
VS-32CTQ030S-M3DIODE SCHOTTKY 30V 15A TO263AB |
2,843 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 15A | 490 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 30 V | -55°C ~ 150°C | Surface Mount |
|
VS-30CTQ060-1-M3DIODE SCHOTTKY 60V 15A TO262 |
2,076 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
VS-16CTQ100S-M3DIODE SCHOTTKY 100V 8A D2PAK |
3,210 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 8A | 720 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 100 V | -55°C ~ 175°C | Surface Mount |
|
|
VS-30CTH02STRL-M3DIODE ARRAY GP 200V 15A D2PAK |
2,048 | 1.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -65°C ~ 175°C | Surface Mount |
|
|
V20DM153C-M3/IDUAL 150V, 20A TMBS (TRENCH MOS |
2,914 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 980 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V10D170C-M3/I10A,170V,SMPD, TRENCH SKY RECT. |
2,290 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 170 V | 5A | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 170 V | -40°C ~ 175°C | Surface Mount |
|
|
V10D170CHM3/I10A,170V,SMPD, TRENCH SKY RECT. |
2,449 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 170 V | 5A | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 170 V | -40°C ~ 175°C | Surface Mount |
|
|
V40PWM153C-M3/I40A, 150V, DPAK_SL TRENCH SKY RE |
3,482 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.04 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V40PW22C-M3/I40A, 200V, SLIMDPAK, DUAL TRENCH |
2,851 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 20A | 970 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
|
|
V20PW22CHM3/I20A, 200V, SLIMDPAK, DUAL TRENCH |
3,807 | 1.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 930 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
|
|
V30DM153C-M3/IDUAL 150V, 30A TMBS (TRENCH MOS |
2,482 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 15A | 960 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V40PW22CHM3/I40A, 200V, SLIMDPAK, DUAL TRENCH |
2,988 | 1.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 20A | 970 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
|
|
V40PWM153CHM3/I40A, 150V, DPAK_SL TRENCH SKY RE |
2,505 | 1.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.04 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V30DM153CHM3/IDUAL 150V, 30A TMBS (TRENCH MOS |
2,046 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 15A | 960 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V40DM153CHM3/IDUAL 150V, 40A TMBS (TRENCH MOS |
3,428 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.12 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -40°C ~ 175°C | Surface Mount |
|
|
V20D170C-M3/I20A,170V,SMPD, TRENCH SKY RECT. |
3,002 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 170 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 170 V | -40°C ~ 175°C | Surface Mount |
|
|
V20D170CHM3/I20A,170V,SMPD, TRENCH SKY RECT. |
2,725 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 170 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 170 V | -40°C ~ 175°C | Surface Mount |
|
|
SBLB1640CTHE3_B/I16A,40V,DUAL,SCHOTTKY RECT,TO263 |
2,913 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 40 V | 8A | 550 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | -40°C ~ 125°C | Surface Mount |
