| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-MUR3020WT-N3DIODE ARRAY GP 200V 15A TO247AC |
3,412 | 6.53 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 22 ns | 10 µA @ 200 V | -65°C ~ 175°C | Through Hole |
|
|
VS-80CPQ150-N3DIODE STANDARD 150V 40A TO247AC |
3,842 | 10.19 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 150 V | 40A | 860 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 150 V | -65°C ~ 175°C | Through Hole |
|
VS-UFL130FA60DIODE GEN PURP 600V 130A SOT227 |
160 | 21.51 |
RFQ |
Datasheet |
Bulk | FRED Pt® | Active | 2 Independent | Standard | 600 V | 130A | 1.88 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 105 ns | 50 µA @ 600 V | -55°C ~ 175°C | Chassis Mount |
|
VS-U5FX240FA120SOT-227 - GEN5 FRED IN PARALLEL |
3,568 | 28.88 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 2 Independent | Standard | 1200 V | 120A (DC) | 3.33 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 160 µA @ 1200 kV | -55°C ~ 175°C | Chassis Mount |
|
|
VS-UFL330FA60RECTIFIER MODULE 330A SOT-227 |
160 | 30.13 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 2 Independent | Standard | 600 V | 243A (DC) | 1.65 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 98 ns | 150 µA @ 600 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-UFB211FA40MODULE DIODE 400V SOT-227 |
160 | 30.23 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 2 Independent | Standard | 400 V | 120A | 1.59 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 50 µA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|
VS-VSKC56/04DIODE GEN PURP 400V 30A ADDAPAK |
2,908 | 39.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 400 V | 30A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
VS-301CNQ045PBFDIODE MODULE 45V 300A TO244 |
2,372 | 39.01 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 300A | 900 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | - | Chassis Mount |
|
|
VS-VSKD56/04DIODE GEN PURP 400V 30A ADDAPAK |
3,138 | 39.28 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 30A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD91/04DIODE GEN PURP 400V 50A ADDAPAK |
2,572 | 40.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKJ71/10DIODE GEN PURP 1KV 40A ADDAPAK |
3,517 | 40.88 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1000 V | 40A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1000 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC91/10DIODE GEN PURP 1KV 50A ADDAPAK |
3,244 | 41.74 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1000 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC91/16DIODE GEN PURP 1.6KV 50A ADDAPAK |
3,670 | 43.01 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD91/16DIODE GEN PURP 1.6KV 50A ADDAPAK |
2,616 | 43.29 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

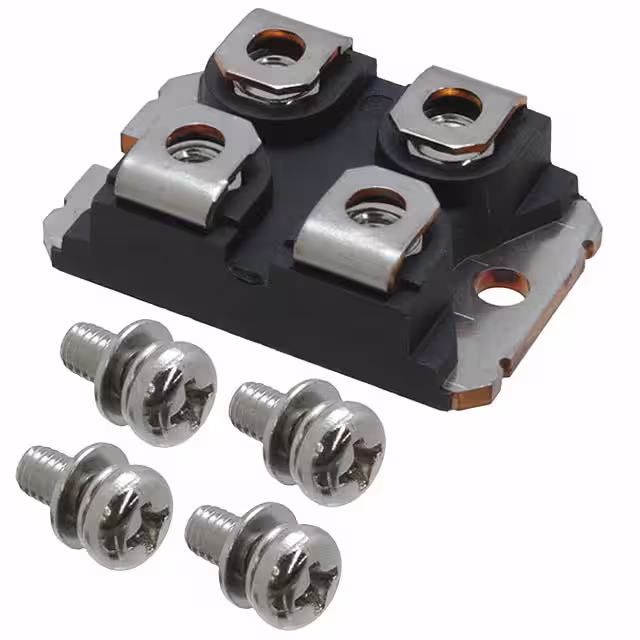

VS-UFB130FA20DIODE MODULE 200V 65A SOT227 |
160 | 37.54 |
RFQ |
Datasheet |
Tube | - | Active | 2 Independent | Standard | 200 V | 65A (DC) | 1.13 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 42 ns | 50 µA @ 200 V | - | Chassis Mount |
|
|
VS-VSKCS203/100DIODE SCHOTTKY 100V 100A ADDAPAK |
2,073 | 44.81 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 100 V | 100A | 990 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | -55°C ~ 150°C | Chassis Mount |
|
|
VS-VSKCS209/150DIODE SCHOTTKY 150V 100A ADDAPAK |
2,517 | 45.39 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 150 V | 100A | 1.01 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
|
VS-VSKJ166/08PBFDIODE MOD GP 800V 82.5A INTAPAK |
2,284 | 47.44 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 800 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKCS400/045DIODE SCHOTTKY 45V 200A ADDAPAK |
2,750 | 52.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 45 V | 200A | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|
|
VS-220CNQ030PBFDIODE SCHOTTKY 30V 110A TO244 |
3,526 | 53.62 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 110A | 490 mV @ 110 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 30 V | -55°C ~ 175°C | Chassis Mount |
