| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-VSKCS403/100DIODE SCHOTTKY 100V 200A ADDAPAK |
3,381 | 53.67 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 100 V | 200A | 990 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKCS408/060DIODE SCHOTTKY 60V 200A ADDAPAK |
2,325 | 54.65 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 60 V | 200A | 740 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.2 mA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
VS-440CNQ030PBFDIODE ARRAY SCHOTTKY 30V TO244 |
3,483 | 57.87 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 220A | 630 mV @ 440 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 30 V | 150°C (Max) | Chassis Mount |
|
VS-HFA220FA120DIODE MODULE 1.2KV 110A SOT227 |
3,742 | 58.63 |
RFQ |
Datasheet |
Tube | HEXFRED® | Active | 2 Independent | Standard | 1200 V | 110A (DC) | 3.6 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 58 ns | 75 µA @ 1200 V | - | Chassis Mount |
|
VS-HFA90FA120DIODE HEXFRED 45A 1200V SOT-227 |
160 | 54.10 |
RFQ |
Datasheet |
Tray | HEXFRED® | Active | 2 Independent | Standard | 1200 V | 45A (DC) | 3.3 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 1200 V | -55°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC236/04PBFDIODE GEN PURP 400V 115A INTAPAK |
2,628 | 67.74 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 400 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|
MMBD7000-G3-18DIODE ARRAY GP 100V 200MA SOT23 |
3,342 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Series Connection | Standard | 100 V | 100mA (DC) | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 3 µA @ 100 V | 150°C (Max) | Surface Mount |
|
|
MMBD7000-G3-08DIODE ARRAY GP 100V 200MA SOT23 |
3,174 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Series Connection | Standard | 100 V | 200mA (DC) | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 3 µA @ 100 V | -55°C ~ 150°C | Surface Mount |
|
|
GSD2004A-E3-18DIODE ARRAY GP 240V 225MA SOT23 |
3,703 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Anode | Standard | 240 V | 225mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 240 V | 150°C (Max) | Surface Mount |
|

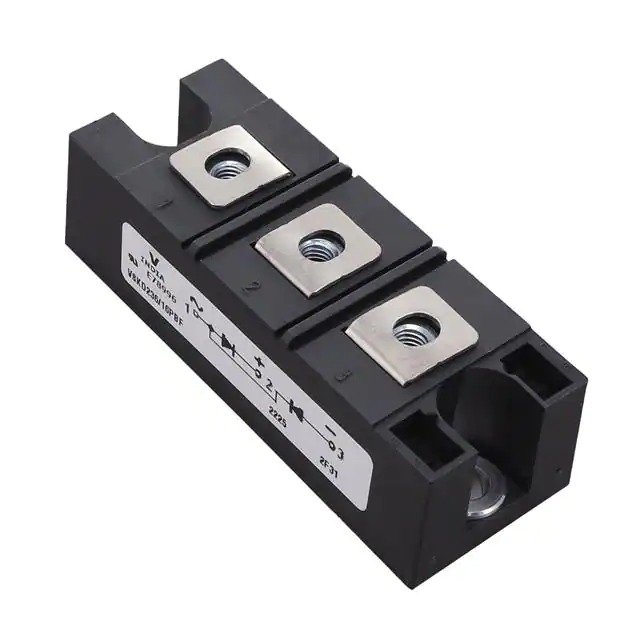

VS-VSKD236/16PBFDIODE GEN 1.6KV 115A INTAPAK |
3,954 | 69.24 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKCS409/150DIODE SCHOTTKY 150V 200A ADDAPAK |
2,304 | 88.84 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Schottky | 150 V | 200A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKDS409/150DIODE SCHOTTKY 150V 100A ADDAPAK |
2,695 | 88.84 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 100A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 175°C | Chassis Mount |
|
|
BAW56-HE3-18DIODE ARRAY GP 70V 250MA SOT23 |
2,692 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAW56-G3-08DIODE ARRAY GP 70V 250MA SOT23 |
2,397 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAV70-G3-18DIODE ARRAY GP 70V 250MA SOT23 |
2,455 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | BAV70-G | Active | 1 Pair Common Cathode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAV99-G3-18DIODE ARRAY GP 70V 150MA SOT23 |
3,083 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Series Connection | Standard | 70 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 2.5 µA @ 70 V | - | Surface Mount |
|
|
BAW56-G3-18DIODE ARRAY GP 70V 250MA SOT23 |
2,051 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | Surface Mount |
|
|
MMBD7000-E3-18DIODE ARRAY GP 100V 200MA SOT23 |
2,882 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Series Connection | Standard | 100 V | 200mA (DC) | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 3 µA @ 100 V | 150°C (Max) | Surface Mount |
|
|
GSD2004C-E3-18DIODE ARRAY GP 240V 225MA SOT23 |
2,709 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Standard | 240 V | 225mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 240 V | 150°C (Max) | Surface Mount |
|
|
GSD2004C-E3-08DIODE ARRAY GP 240V 225MA SOT23 |
2,550 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Standard | 240 V | 225mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 240 V | 150°C (Max) | Surface Mount |
