Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
VFT3045C-M3/4W DIODE SCHOTTKY 30A 45V ITO-220AB Vishay General Semiconductor - Diodes Division	2,235	1.98	RFQ	Datasheet	Tube	TMBS®	Active	1 Pair Common Cathode	Schottky	45 V	15A	570 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 45 V	-40°C ~ 150°C	Through Hole
V40PWM10CHM3/I DIODE ARRAY SCHOTT 100V SLIMDPAK Vishay General Semiconductor - Diodes Division	3,315	1.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, eSMP®, TMBS®	Active	1 Pair Common Cathode	Schottky	100 V	20A	890 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	400 µA @ 100 V	-40°C ~ 175°C	Surface Mount

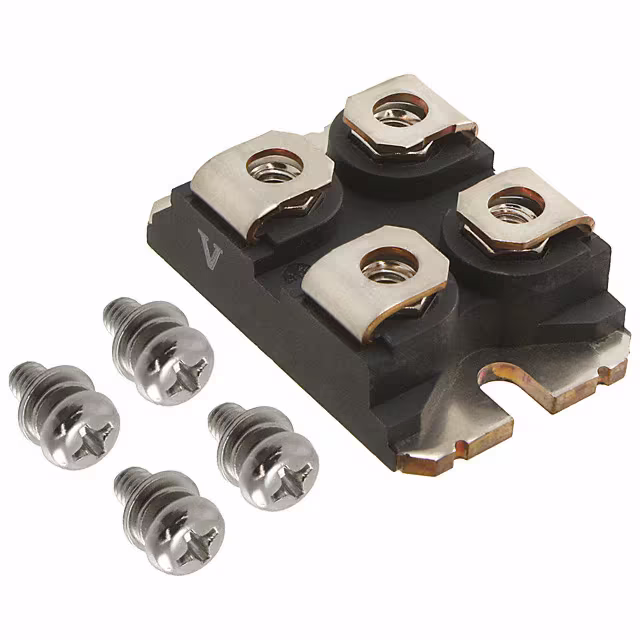

VS-HFA140FA120 DIODE MODULE 1.2KV 70A SOT227 Vishay General Semiconductor - Diodes Division	281	59.32	RFQ	Datasheet	Bulk	HEXFRED®	Active	2 Independent	Standard	1200 V	70A	4 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	145 ns	75 µA @ 1200 V	-	Chassis Mount
MMBD7000-HE3-18 DIODE ARRAY GP 100V 200MA SOT23 Vishay General Semiconductor - Diodes Division	3,357	0.28	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Series Connection	Standard	100 V	200mA (DC)	1.1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	3 µA @ 100 V	150°C (Max)	Surface Mount
BAT54A-G3-08 DIODE ARRAY SCHOTTKY 30V SOT23 Vishay General Semiconductor - Diodes Division	2,649	0.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Schottky	30 V	200mA (DC)	800 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	5 ns	2 µA @ 25 V	125°C (Max)	Surface Mount
VS-10CSH01HM3/87A DIODE ARRAY GP 100V 5A TO277A Vishay General Semiconductor - Diodes Division	3,158	0.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, FRED Pt®	Active	1 Pair Common Cathode	Standard	100 V	5A	980 V @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	25 ns	2 µA @ 100 V	175°C (Max)	Surface Mount
VBT3045CBP-E3/8W DIODE ARRAY SCHOTTKY 45V TO263AB Vishay General Semiconductor - Diodes Division	3,054	2.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TMBS®	Active	1 Pair Common Cathode	Schottky	45 V	15A	570 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 45 V	200°C (Max)	Surface Mount
V20120C-E3/4W DIODE ARRAY SCHOTTKY 120V TO220 Vishay General Semiconductor - Diodes Division	3,707	1.56	RFQ	Datasheet	Tube	TMBS®	Active	1 Pair Common Cathode	Schottky	120 V	10A	900 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	700 µA @ 120 V	-40°C ~ 150°C	Through Hole

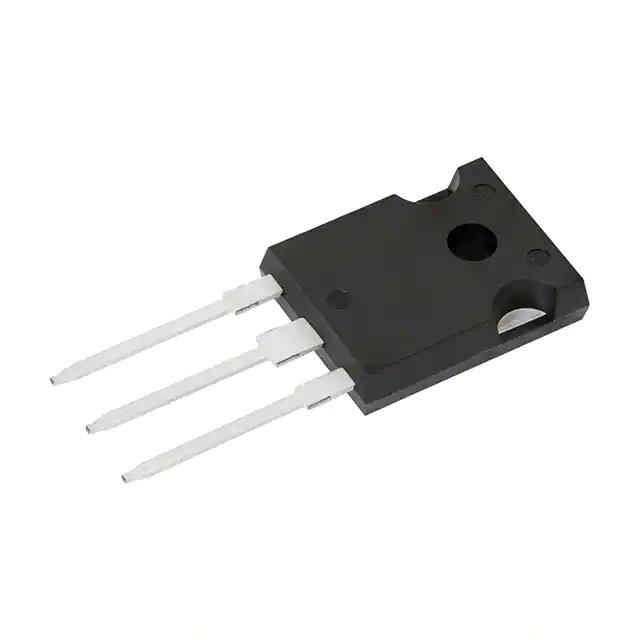

VX60M100PWHM3/P DIODE SCHOTTKY 100V 60A TO247AD Vishay General Semiconductor - Diodes Division	500	3.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TMBS®	Active	1 Pair Common Cathode	Schottky	100 V	30A	830 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	500 µA @ 100 V	-40°C ~ 175°C	Through Hole
VS-C5TX3012-M3 30A, 1200V, X SERIES FRED PT I Vishay General Semiconductor - Diodes Division	2,953	2.46	RFQ		Tube	FRED Pt®	Active	-	Standard	1200 V	-	3.3 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	44 ns	50 µA @ 1200 V	-55°C ~ 175°C	Through Hole
VS-C5TH3012-M3 30A, 1200V, H SERIES FRED PT I Vishay General Semiconductor - Diodes Division	3,071	2.46	RFQ		Tube	FRED Pt®	Active	-	Standard	1200 V	-	2.5 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	95 ns	50 µA @ 1200 V	-55°C ~ 175°C	Through Hole
VS-C5PH3012L-N3 30A, 1200V, H SERIES FRED PT I Vishay General Semiconductor - Diodes Division	725	3.25	RFQ		Tube	FRED Pt®	Active	-	Standard	1200 V	-	2.5 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	95 ns	50 µA @ 1200 V	-55°C ~ 175°C	Through Hole
VS-C5PX3012L-N3 30A, 1200V, X SERIES FRED PT I Vishay General Semiconductor - Diodes Division	240	3.25	RFQ		Tube	FRED Pt®	Active	-	Standard	1200 V	-	3.3 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	96 ns	50 µA @ 1200 V	-55°C ~ 175°C	Through Hole
VS-30CPH03-N3 DIODE ARRAY SCHOTTKY 300V TO247 Vishay General Semiconductor - Diodes Division	500	6.48	RFQ	Datasheet	Tube	FRED Pt®	Active	1 Pair Common Cathode	Schottky	300 V	15A	1.25 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	40 µA @ 300 V	175°C (Max)	Through Hole
VS-30CPU04-N3 DIODE ARRAY GP 400V 15A TO247AC Vishay General Semiconductor - Diodes Division	500	6.52	RFQ	Datasheet	Tube	FRED Pt®	Active	1 Pair Common Cathode	Standard	400 V	15A	1.25 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	46 ns	10 µA @ 400 V	-65°C ~ 175°C	Through Hole
VS-60CPU02-N3 DIODE ARRAY GP 200V 30A TO247AC Vishay General Semiconductor - Diodes Division	500	8.25	RFQ	Datasheet	Tube	FRED Pt®	Active	1 Pair Common Cathode	Standard	200 V	30A	1.1 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	30 ns	50 µA @ 200 V	-65°C ~ 175°C	Through Hole
VS-U5FX150FA60 SOT-227 - GEN5 FRED IN PARALLEL Vishay General Semiconductor - Diodes Division	158	24.44	RFQ	Datasheet	Tube	FRED Pt®	Active	2 Independent	Standard	600 V	75A (DC)	2.2 V @ 75 A	Fast Recovery =< 500ns, > 200mA (Io)	65 ns	50 µA @ 600 V	-55°C ~ 175°C	Chassis Mount
VS-U5FX120FA120 SOT-227 - GEN5 FRED IN PARALLEL Vishay General Semiconductor - Diodes Division	158	24.44	RFQ	Datasheet	Tube	FRED Pt®	Active	2 Independent	Standard	1200 V	60A (DC)	3.33 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	46 ns	80 µA @ 1200 V	-55°C ~ 175°C	Chassis Mount
VS-U5FH240FA120 SOT-227 - GEN5 FRED IN PARALLEL Vishay General Semiconductor - Diodes Division	160	28.78	RFQ	Datasheet	Tube	FRED Pt®	Active	2 Independent	Standard	1200 V	120A (DC)	2.5 V @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	98 ns	160 µA @ 1200 kV	-55°C ~ 175°C	Chassis Mount
VS-U5FX300FA60 SOT-227 - GEN5 FRED IN PARALLEL Vishay General Semiconductor - Diodes Division	136	28.81	RFQ	Datasheet	Tube	FRED Pt®	Active	2 Independent	Standard	600 V	150A (DC)	2.2 V @ 150 A	Fast Recovery =< 500ns, > 200mA (Io)	72 ns	100 µA @ 600 V	-55°C ~ 175°C	Chassis Mount
