Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
STPS40150CW DIODE ARRAY SCHOTTKY 150V TO247 STMicroelectronics	2,810	3.10	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	150 V	20A	920 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	8 µA @ 150 V	175°C (Max)	Through Hole
STTH60L06CW DIODE ARRAY GP 600V 40A TO247-3 STMicroelectronics	2,418	5.56	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Standard	600 V	40A	1.55 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	90 ns	25 µA @ 600 V	175°C (Max)	Through Hole
STPS120L15TV DIODE MODULE 15V 60A ISOTOP STMicroelectronics	2,314	22.13	RFQ	Datasheet	Tube	-	Active	2 Independent	Schottky	15 V	60A	430 mV @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	-	22 mA @ 12 V	-55°C ~ 150°C	Chassis Mount
STTH6110TV2 DIODE MODULE 1KV 30A ISOTOP STMicroelectronics	157	23.52	RFQ	Datasheet	Tube	-	Active	2 Independent	Standard	1000 V	30A	2 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	100 ns	15 µA @ 1000 V	150°C (Max)	Chassis Mount
STTH12012TV1 DIODE MODULE 1.2KV 60A ISOTOP STMicroelectronics	735	27.84	RFQ	Datasheet	Tube	-	Active	2 Independent	Standard	1200 V	60A	2.25 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	125 ns	30 µA @ 1200 V	150°C (Max)	Chassis Mount
STPS24045TV DIODE MODULE 45V 120A ISOTOP STMicroelectronics	465	29.18	RFQ	Datasheet	Tube	-	Active	2 Independent	Schottky	45 V	120A	670 mV @ 120 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 45 V	150°C (Max)	Chassis Mount

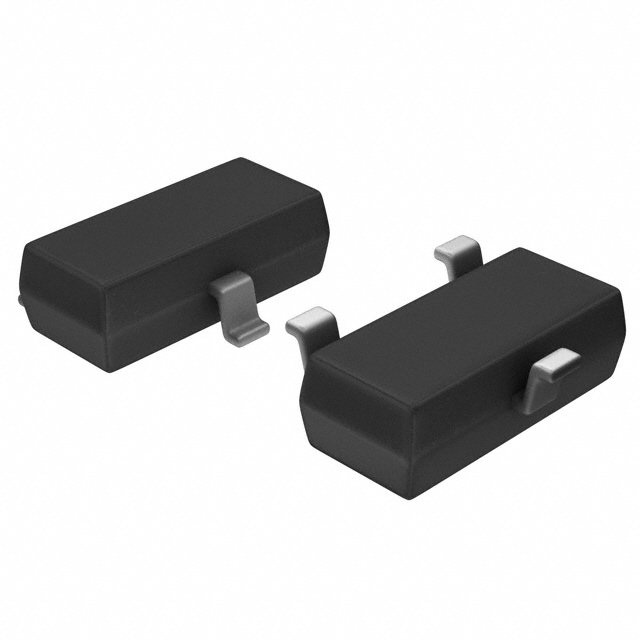

BAR46AFILM DIODE ARRAY SCHOTTKY 100V SOT23 STMicroelectronics	2,970	0.41	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Schottky	100 V	150mA (DC)	450 mV @ 10 mA	Small Signal =< 200mA (Io), Any Speed	-	5 µA @ 75 V	150°C (Max)	Surface Mount
FERD20L60CG-TR DIODE ARRAY 60V 10A D2PAK STMicroelectronics	3,663	1.38	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	FERD (Field Effect Rectifier Diode)	60 V	10A	575 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	970 µA @ 60 V	150°C (Max)	Surface Mount
STPS3045CG-TR DIODE ARRAY SCHOTTKY 45V D2PAK STMicroelectronics	2,969	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	45 V	15A	570 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	200°C (Max)	Surface Mount
FERD30H60CTS DIODE ARRAY 60V 15A TO220AB STMicroelectronics	3,047	1.24	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	FERD (Field Effect Rectifier Diode)	60 V	15A	585 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	170 µA @ 60 V	175°C (Max)	Through Hole
STPS20S100CT DIODE ARRAY SCHOTTKY 100V TO220 STMicroelectronics	3,166	1.41	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	10A	850 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3.5 µA @ 100 V	175°C (Max)	Through Hole
STTH2002CT DIODE ARRAY GP 200V 15A TO220AB STMicroelectronics	2,885	1.43	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Standard	200 V	15A	1.1 V @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	27 ns	10 µA @ 200 V	175°C (Max)	Through Hole
STPS10H100CT DIODE ARRAY SCHOTTKY 100V TO220 STMicroelectronics	3,199	1.57	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	5A	730 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3.5 µA @ 100 V	175°C (Max)	Through Hole
STPS30H100CT DIODE ARRAY SCHOTTKY 100V TO220 STMicroelectronics	2,430	1.61	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	15A	800 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	5 µA @ 100 V	-40°C ~ 175°C	Through Hole
STPS30H60CFP DIODE ARRAY SCHOTTKY 60V TO220FP STMicroelectronics	2,165	1.75	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	60 V	15A	660 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	60 µA @ 60 V	175°C (Max)	Through Hole
STPS4045CW DIODE ARRAY SCHOTTKY 45V TO247-3 STMicroelectronics	377	1.77	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	45 V	20A	760 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	175°C (Max)	Through Hole
STPS20H100CFP DIODE ARRAY SCHOTTKY 100V TO220F STMicroelectronics	2,903	1.78	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	10A	770 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4.5 µA @ 100 V	175°C (Max)	Through Hole
STPS10150CFP DIODE ARRAY SCHOTTKY 150V TO220F STMicroelectronics	3,384	1.88	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	150 V	5A	920 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 µA @ 150 V	175°C (Max)	Through Hole
STPS20100CT DIODE ARRAY SCHOTTKY 100V TO220 STMicroelectronics	638	1.94	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	10A	950 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	150 µA @ 100 V	175°C (Max)	Through Hole
STPS30170CW DIODE ARRAY SCHOTTKY 170V TO247 STMicroelectronics	2,557	2.55	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	170 V	15A	920 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 µA @ 170 V	175°C (Max)	Through Hole
