| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FERD30L60CG-TRDIODE ARRAY 60V 15A D2PAK |
3,174 | 1.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | FERD (Field Effect Rectifier Diode) | 60 V | 15A | 545 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 820 µA @ 60 V | 150°C (Max) | Surface Mount |
|
STPS16170CRDIODE ARRAY SCHOTTKY 170V I2PAK |
2,299 | 1.55 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 170 V | 8A | 920 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 µA @ 170 V | 175°C (Max) | Through Hole |
|
STPS20H100CG-TRDIODE ARRAY SCHOTTKY 100V D2PAK |
3,142 | 1.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 µA @ 100 V | 175°C (Max) | Surface Mount |
|
STPS30SM60CTDIODE ARRAY SCHOTTKY 60V TO220AB |
2,783 | 1.63 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 15A | 625 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 65 µA @ 60 V | 150°C (Max) | Through Hole |
|
|
STTH1002CGY-TRDIODE ARRAY GP 200V 8A D2PAK |
3,008 | 1.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 200 V | 8A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 5 µA @ 200 V | -40°C ~ 175°C | Surface Mount |
|
|
STPS10170CG-TRDIODE ARRAY SCHOTTKY 170V D2PAK |
3,325 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 170 V | 5A | 920 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 170 V | 175°C (Max) | Surface Mount |
|
|
STPS10L40CTDIODE ARRAY SCHOTTKY 40V TO220AB |
3,246 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 5A | 530 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | 150°C (Max) | Through Hole |
|
STPS30170CFPDIODE ARRAY SCHOTTKY 170V TO220F |
148 | 1.75 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 170 V | 15A | 920 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 170 V | 175°C (Max) | Through Hole |
;;2.jpg)
|
STPS15L30CB-TRDIODE ARRAY SCHOTTKY 30V DPAK |
2,732 | 2.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 7.5A | 480 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | 150°C (Max) | Surface Mount |
|
|
STPS2545CTDIODE ARRAY SCHOTTKY 45V TO220AB |
2,138 | 2.27 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 12.5A | 570 mV @ 12.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 125 µA @ 45 V | 175°C (Max) | Through Hole |
|
STTH20W02CWDIODE ARRAY GP 200V 10A TO247 |
2,544 | 2.39 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 10A | 1.2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 5 µA @ 200 V | 175°C (Max) | Through Hole |
|
STPS40SM120CTNDIODE ARRAY SCHOTTKY 120V TO220 |
3,733 | 2.92 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 830 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 275 µA @ 120 V | 150°C (Max) | Through Hole |
|
|
STPS40SM120CTDIODE ARRAY SCHOTTKY 120V TO220 |
967 | 3.03 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 830 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 275 µA @ 120 V | 150°C (Max) | Through Hole |
|
|
STPS40M120CTNDIODE ARRAY SCHOTTKY 120V TO220 |
995 | 3.29 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 790 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 370 µA @ 120 V | 150°C (Max) | Through Hole |
|
|
STPS40M120CTDIODE ARRAY SCHOTTKY 120V TO220 |
950 | 3.44 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 790 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 370 µA @ 120 V | 150°C (Max) | Through Hole |
|
|

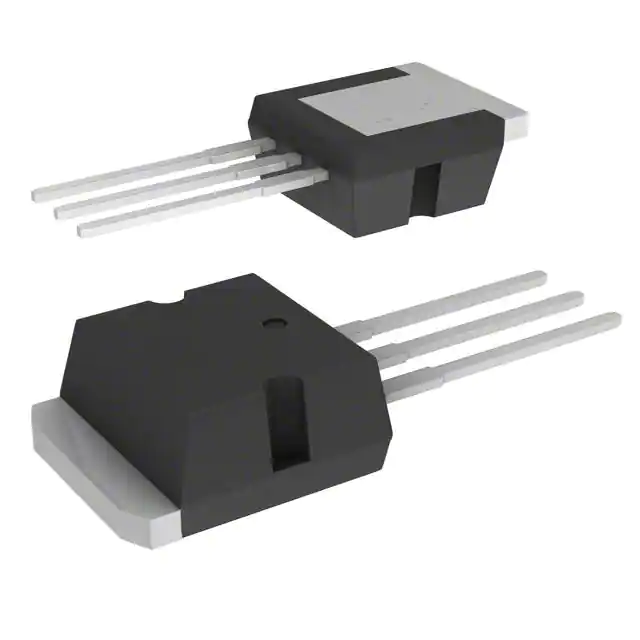

STPS40SM100CRDIODE ARRAY SCHOTTKY 100V I2PAK |
2,544 | 3.76 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 810 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 45 µA @ 100 V | 150°C (Max) | Through Hole |
|
STTH60AC06CPDIODE ARRAY GP 600V 30A TO3P |
228 | 5.77 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.75 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 10 µA @ 600 V | 175°C (Max) | Through Hole |
|
|
STPSC20H065CTYDIODE SCHOTTKY SIC 650V TO220AB |
352 | 7.87 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 10A | 1.75 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|
|
STPSC16H065CTDIODE ARRAY SCHOTTKY 650V TO220 |
886 | 8.63 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 8A | 1.75 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 80 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|

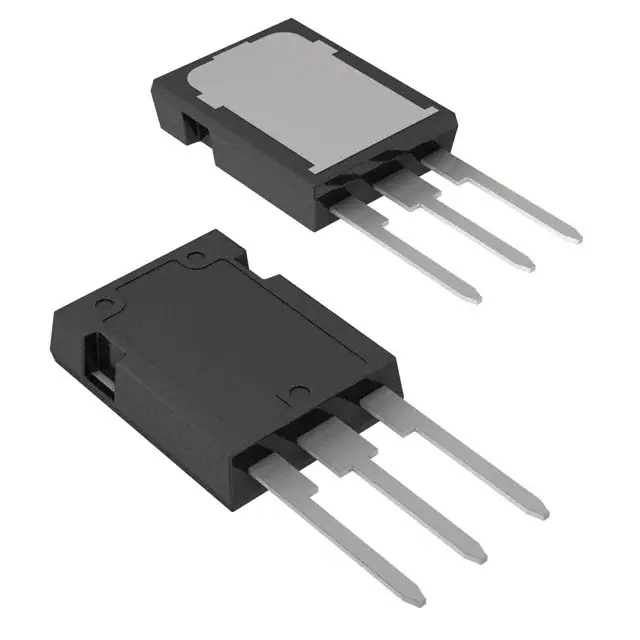

STTH8003CYDIODE ARRAY GP 300V 40A MAX247 |
508 | 10.78 |
RFQ |
Datasheet |
Tube | Q Automotive | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 40A | 1.25 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 80 µA @ 300 V | 175°C (Max) | Through Hole |
