| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRF30H150CTHDIODE SCHOTTKY |
2,755 | 0.00 |
RFQ |
Bulk | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 15A | 1.11 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 60 µA @ 150 V | -20°C ~ 150°C | Through Hole | |
|
MBRF30H60CTHDIODE SCHOTTKY |
3,044 | 0.00 |
RFQ |
Bulk | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 60 V | 175°C (Max) | Through Hole | |
|
MUR1620CTHDIODE GEN PURPOSE |
2,956 | 0.00 |
RFQ |
Tray | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 8A | 975 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 175°C | Through Hole | |
|
|
MUR1620CTRHDIODE GEN PURPOSE |
3,645 | 0.00 |
RFQ |
Tray | - | Obsolete | 1 Pair Common Anode | Standard | 200 V | 8A | 1.2 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 85 ns | 5 µA @ 200 V | -65°C ~ 175°C | Through Hole | |
|
|
MUR1640CTHDIODE GEN PURPOSE |
3,360 | 0.00 |
RFQ |
Tray | - | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 400 V | -65°C ~ 175°C | Through Hole | |
|
MURD620CTHDIODE GEN PURPOSE |
3,865 | 1.00 |
RFQ |
Tray,Tray | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 3A | 1 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 175°C | Surface Mount | |
|
|
MURH840CTHDIODE GEN PURPOSE |
3,243 | 0.00 |
RFQ |
Tray | - | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 4A | 2.2 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 28 ns | 10 µA @ 400 V | -65°C ~ 175°C | Through Hole | |
|
|
MURH860CTHDIODE GEN PURPOSE |
2,620 | 0.00 |
RFQ |
Tray | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 4A | 2.8 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 600 V | -65°C ~ 175°C | Through Hole | |
|
|
NTST30100CTHDIODE SCHOTTKY |
800 | 0.40 |
RFQ |
Datasheet |
Bulk,Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 850 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -40°C ~ 150°C | Through Hole |
|
|
NTST30U100CTHDIODE SCHOTTKY |
3,524 | 0.53 |
RFQ |
Datasheet |
Bulk,Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 800 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 675 µA @ 100 V | -40°C ~ 150°C | Through Hole |
|
|
NTSV20100CTHDIODE SCHOTTKY |
3,371 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 980 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 100 V | -40°C ~ 150°C | Through Hole | |
|
|
NTSV30100CTHDIODE SCHOTTKY |
2,994 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -40°C ~ 150°C | Through Hole |
|
|
NRVUD620CTGDIODE ARRAY GP 200V 3A DPAK |
2,090 | 0.00 |
RFQ |
Datasheet |
Bulk,Tube,Tube | Automotive, AEC-Q101, SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 3A | 1 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 175°C | Surface Mount |
|
|
NRVBD660CTT4GDIODE ARRAY SCHOTTKY 60V 3A DPAK |
2,326 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 3A | 700 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -65°C ~ 175°C | Surface Mount |
|
MURHB840CTT4GDIODE ARRAY GP 400V 4A D2PAK |
3,357 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 4A | 2.2 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 28 ns | 10 µA @ 400 V | -65°C ~ 175°C | Surface Mount |
|
|
SBRD81035CTLG-VF01DIODE SCHOTTKY 35V 10A DPAK |
3,806 | 0.00 |
RFQ |
Bulk,Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 35 V | 5A | 470 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 35 V | -55°C ~ 150°C | Surface Mount | |
|
2V85-BAV23SDIODE ARRAY GP SOT23 |
2,960 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Series Connection | Standard | 250 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 250 V | 150°C (Max) | Surface Mount | |
|
|
MURHB840CTGDIODE ARRAY GP 400V 4A D2PAK |
2,230 | 0.84 |
RFQ |
Datasheet |
Bulk,Tube | * | Obsolete | - | - | - | - | - | - | - | - | - | - |
|

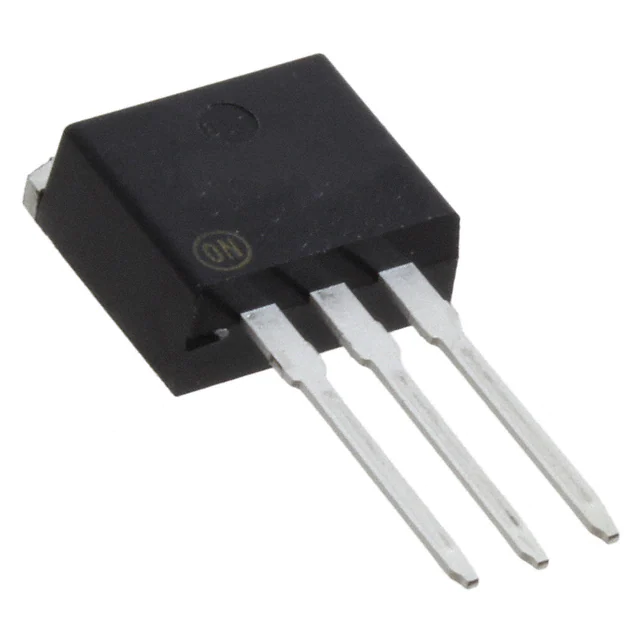

NTSB20120CT-1GDIODE ARRAY SCHOTTKY 120V I2PAK |
392 | 1.23 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 10A | 1.1 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 120 V | -40°C ~ 150°C | Through Hole |
|
|
MBRP3045NTUDIODE ARRAY SCHOTTKY 45V TO220 |
2,580 | 1.52 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 650 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Through Hole |
