| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-85HF40MDIODE GEN PURP 400V 85A DO203AB |
3,451 | 19.99 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 400 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-85HF80MDIODE GEN PURP 400V 85A DO203AB |
2,982 | 19.99 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 400 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-50PF40WDIODE GEN PURP 400V 50A DO203AB |
3,646 | 5.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 400 V | 50A | -55°C ~ 180°C | 1.4 V @ 125 A | |
|
|
VS-85HFR10MDIODE GEN PURP 100V 85A DO203AB |
3,799 | 19.99 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 100 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
-Series.jpg)
|

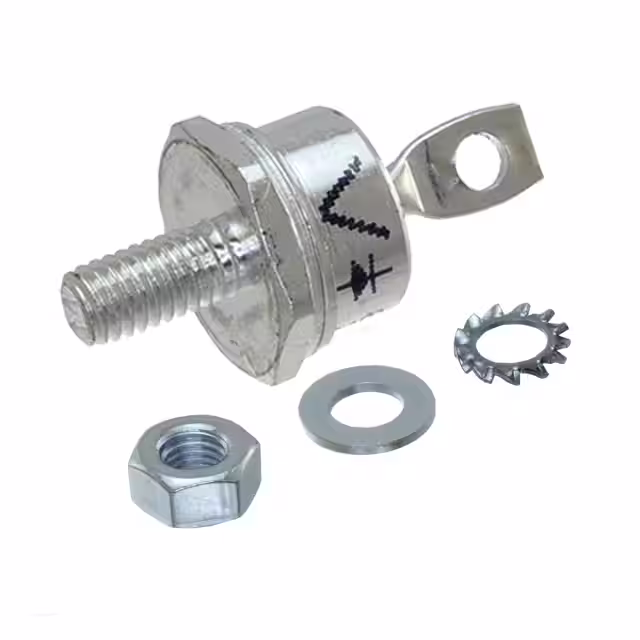

VS-85HFR120MDIODE GEN PURP 1.2KV 85A DO203AB |
3,368 | 19.99 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1200 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-85HFR40MDIODE GEN PURP 400V 85A DO203AB |
2,027 | 19.99 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 400 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
|
VS-85HFR80MDIODE GEN PURP 800V 85A DO203AB |
3,092 | 19.99 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 800 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
VS-12FL20S02DIODE GEN PURP 200V 12A DO203AA |
3,312 | 5.34 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 200 V | 200 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
VS-12FL40S02DIODE GEN PURP 400V 12A DO203AA |
2,181 | 5.34 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 400 V | 400 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
VS-12FLR40S02DIODE GEN PURP 400V 12A DO203AA |
2,635 | 5.34 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 400 V | 400 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
VS-50PF140WDIODE GEN PURP 1.4KV 50A DO203AB |
2,293 | 5.82 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 1400 V | 50A | -55°C ~ 160°C | 1.5 V @ 125 A | |
|
VS-71HF160DIODE GEN PURP 1.6KV 70A DO203AB |
3,746 | 16.01 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 4.5 mA @ 1600 V | 1600 V | 70A | -65°C ~ 150°C | 1.46 V @ 220 A | |
|
|
VS-80PFR160DIODE GEN PURP 1.6KV 80A DO203AB |
2,555 | 5.35 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1600 V | 80A | -55°C ~ 150°C | 1.46 V @ 220 A | |
|
|
VS-12FLR20S02DIODE GEN PURP 200V 12A DO203AA |
2,145 | 5.35 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 200 V | 200 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
VS-60EPU06HN3DIODE GEN PURP 600V 60A TO247AC |
3,019 | 5.35 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 81 ns | 50 µA @ 600 V | 600 V | 60A | -55°C ~ 175°C | 1.68 V @ 60 A |
|
|
VS-12FR100DIODE GEN PURP 1KV 12A DO203AA |
2,598 | 5.35 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 1000 V | 1000 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | |
|
|
VS-40HF10MDIODE GEN PURP 100V 40A DO203AB |
2,289 | 16.03 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 100 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
|
VS-40HF20MDIODE GEN PURP 200V 40A DO203AB |
2,903 | 16.03 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 200 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
|
VS-40HF40MDIODE GEN PURP 400V 40A DO203AB |
3,894 | 16.03 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 400 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
|
VS-40HF80MDIODE GEN PURP 800V 40A DO203AB |
2,920 | 16.03 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 800 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A |
