| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-40HFR60MDIODE GEN PURP 600V 40A DO203AB |
3,442 | 16.17 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 600 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
|
VS-50PF120DIODE GEN PURP 1.2KV 50A DO203AB |
3,831 | 5.53 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1200 V | 50A | -55°C ~ 180°C | 1.4 V @ 125 A | |
|
|
VS-40HFR80MDIODE GEN PURP 800V 40A DO203AB |
3,040 | 16.17 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 800 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
|
VS-122NQ030PBFDIODE SCHOTTKY 30V 120A D-67 |
2,713 | 23.68 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 7400pF @ 5V, 1MHz | - | 10 mA @ 30 V | 30 V | 120A | - | 570 mV @ 120 A | |
|
|
VS-50PFR120DIODE GEN PURP 1.2KV 50A DO203AB |
3,760 | 5.55 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1200 V | 50A | -55°C ~ 180°C | 1.4 V @ 125 A | |
|
VS-T110HF20DIODE GEN PURP 200V 110A D-55 |
3,123 | 32.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 20 mA @ 200 V | 200 V | 110A | - | - | |
|

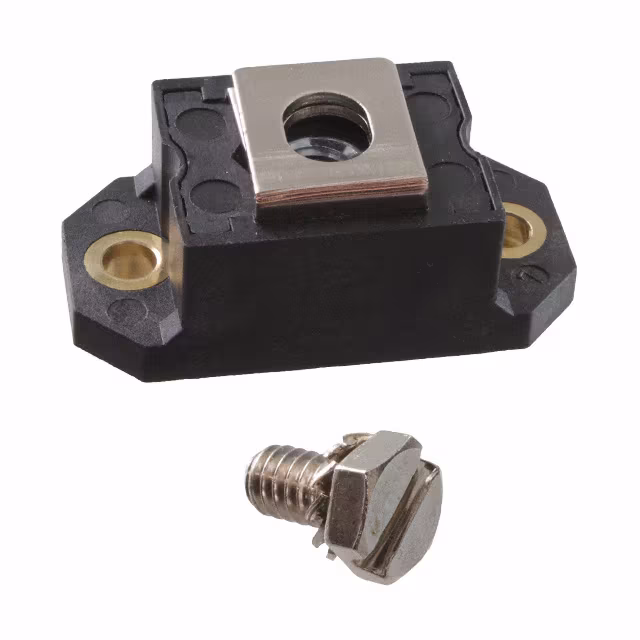

VS-HFA90NH40PBFDIODE GEN PURP 400V 210A HALFPAK |
3,741 | 22.24 |
RFQ |
Datasheet |
Bulk | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 140 ns | 2 mA @ 400 V | 400 V | 210A | -55°C ~ 150°C | 1.67 V @ 180 A |
|
VS-6FL60S02DIODE GEN PURP 600V 6A DO203AA |
2,871 | 5.98 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 600 V | 600 V | 6A | -65°C ~ 150°C | 1.4 V @ 6 A | |
|
|
VS-95PF80WDIODE GEN PURP 800V 95A DO203AB |
2,840 | 6.01 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 800 V | 95A | -55°C ~ 180°C | 1.4 V @ 267 A | |
|
|
VS-95PFR80WDIODE GEN PURP 800V 95A DO203AB |
2,848 | 6.01 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | - | 800 V | 95A | -55°C ~ 180°C | 1.4 V @ 267 A | |
|
|
VS-T40HF20DIODE GEN PURP 200V 40A D-55 |
2,081 | 23.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 15 mA @ 200 V | 200 V | 40A | - | - | |
|
|
VS-T110HF60DIODE GEN PURP 600V 110A D-55 |
2,319 | 33.87 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 20 mA @ 600 V | 600 V | 110A | - | - | |
|
|
VS-VSKE56/04DIODE GEN PURP 400V 60A ADDAPAK |
2,524 | 34.14 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 10 mA @ 400 V | 400 V | 60A | -40°C ~ 150°C | - | |
|
|
VS-80PFR140DIODE GEN PURP 1.4KV 80A DO203AB |
3,200 | 6.06 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1400 V | 80A | -55°C ~ 150°C | 1.46 V @ 220 A | |
|
|
VS-12FL60S05DIODE GEN PURP 600V 12A DO203AA |
3,085 | 5.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 50 µA @ 600 V | 600 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|
|
VS-12FLR60S05DIODE GEN PURP 600V 12A DO203AA |
3,460 | 5.60 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 50 µA @ 600 V | 600 V | 12A | -65°C ~ 150°C | 1.4 V @ 12 A | |
|

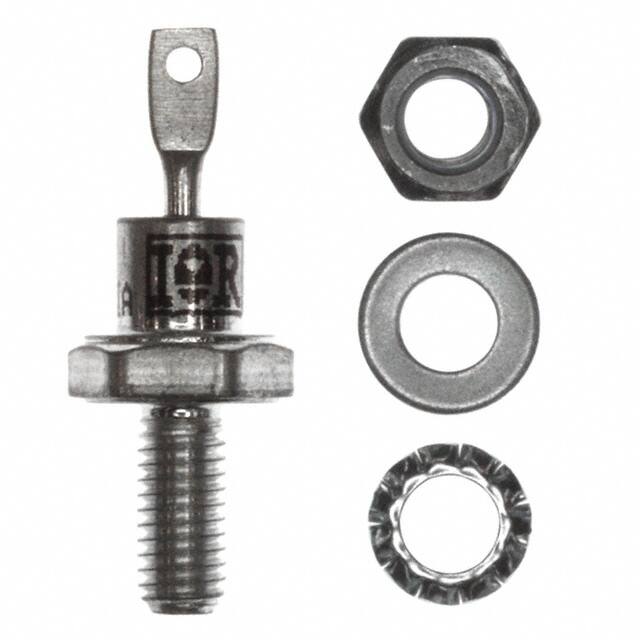

VS-16FL20S02DIODE GEN PURP 200V 16A DO203AA |
2,191 | 5.61 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 50 µA @ 200 V | 200 V | 16A | -65°C ~ 150°C | 1.4 V @ 16 A | |
|
|
VS-80PF140WDIODE GEN PURP 1.4KV 80A DO203AB |
2,428 | 6.08 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 1400 V | 80A | -55°C ~ 150°C | 1.46 V @ 220 A | |
|
|
VS-95PF120WDIODE GEN PURP 1.2KV 95A DO203AB |
3,445 | 6.09 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | - | 1200 V | 95A | -55°C ~ 180°C | 1.4 V @ 267 A | |
|
|
VS-95PFR120WDIODE GEN PURP 1.2KV 95A DO203AB |
2,883 | 6.09 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | - | 1200 V | 95A | -55°C ~ 180°C | 1.4 V @ 267 A |
