| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS2FL3-M3/HDIODE SCHOTTKY 30V 2A DO-219AB |
3,902 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 145pF @ 4V, 1MHz | - | 200 µA @ 30 V | 30 V | 2A | -55°C ~ 150°C | 540 mV @ 2 A |
|
|
SS1FH10HM3/HDIODE SCHOTTKY 100V 1A DO-219AB |
2,919 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 800 mV @ 1 A |
 Unidirectional.jpg)
|

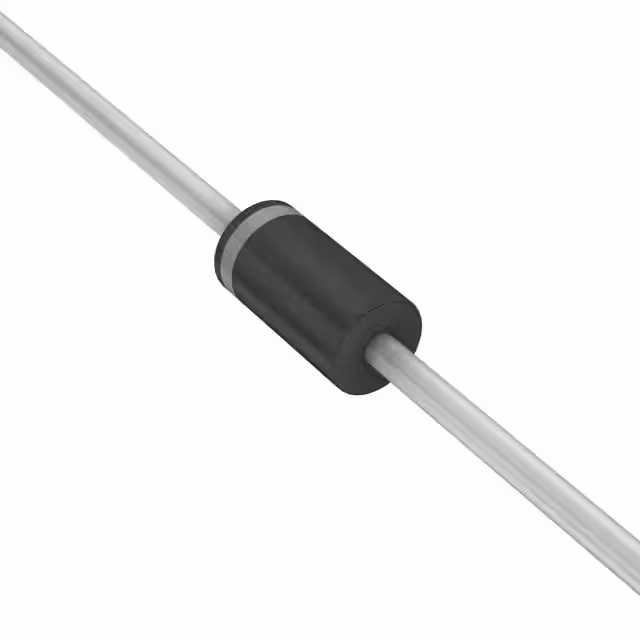

SB1H100-E3/54DIODE SCHOTTKY 100V 1A DO204AL |
2,245 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1 µA @ 100 V | 100 V | 1A | 175°C (Max) | 770 mV @ 1 A | |
~~2.jpg)
|
V3P6HM3_A/HDIODE SCHOTTKY 60V 3A DO220AA |
2,781 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 250pF @ 4V, 1MHz | - | 900 µA @ 60 V | 60 V | 3A (DC) | -55°C ~ 150°C | 630 mV @ 3 A |
|
BYS12-90-E3/TRDIODE SCHOTTKY 90V 1.5A DO214AC |
2,599 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 90 V | 90 V | 1.5A | -55°C ~ 150°C | 750 mV @ 1 A | |
|
SS23S-E3/61TDIODE SCHOTTKY 30V 2A DO214AA |
2,363 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 30 V | 30 V | 2A | -55°C ~ 150°C | 550 mV @ 2 A | |
|
|
VS-10BQ060-M3/5BTDIODE SCHOTTKY 60V 1A SMB |
2,979 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 5V, 1MHz | - | 100 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 490 mV @ 1 A | |
|
|
US1GHE3_A/IDIODE GEN PURP 400V 1A DO214AC |
2,822 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 10 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1 V @ 1 A |
|
|
US1MHE3_A/IDIODE GEN PURP 1KV 1A DO214AC |
3,559 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A |
|
|
SL04-E3-18DIODE SCHOTTKY 40V 1.1A DO219AB |
3,330 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | 10 ns | 20 µA @ 40 V | 40 V | 1.1A | 175°C (Max) | 540 mV @ 1.1 A |
|
|
SS2P6-M3/84ADIODE SCHOTTKY 60V 2A DO220AA |
3,971 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 100 µA @ 60 V | 60 V | 2A | -55°C ~ 150°C | 700 mV @ 2 A |
|
|
V2P22LHM3/HSCHOTTKY RECTIFIER 2A 200V SMP |
2,133 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 90pF @ 4V, 1MHz | - | 40 µA @ 200 V | 200 V | 1.6A | -40°C ~ 175°C | 760 mV @ 1 A |
|
|
US1J-E3/61TDIODE GEN PURP 600V 1A DO214AC |
2,960 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
US1K-E3/61TDIODE GEN PURP 800V 1A DO214AC |
1,714 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 10 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
B240A-E3/61TDIODE SCHOTTKY 40V 2A DO214AC |
3,562 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 150°C | 550 mV @ 2 A | |
|
|
SL03-GS08DIODE SCHOTTKY 30V 1.1A DO219AB |
3,143 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 130 µA @ 30 V | 30 V | 1.1A | 125°C (Max) | 430 mV @ 1.1 A |
|
|
SL04-E3-08DIODE SCHOTTKY 40V 1.1A DO219AB |
3,730 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | 10 ns | 20 µA @ 40 V | 40 V | 1.1A | 175°C (Max) | 540 mV @ 1.1 A |
|
|
SS2PH10-M3/85ADIODE SCHOTTKY 100V 2A DO220AA |
3,554 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | - | 1 µA @ 100 V | 100 V | 2A | -55°C ~ 175°C | 800 mV @ 2 A |
|
|
ES1DHE3_A/HDIODE GEN PURP 200V 1A DO214AC |
3,634 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 25 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A |
|
|
ES1BHE3_A/HDIODE GEN PURP 100V 1A DO214AC |
2,983 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 25 ns | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A |
