| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES1CHE3_A/HDIODE GEN PURP 150V 1A DO214AC |
3,721 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 25 ns | 5 µA @ 150 V | 150 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A |
|
GL41A-E3/97DIODE GEN PURP 50V 1A DO213AB |
2,013 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | - | 10 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
|
BYM10-100-E3/97DIODE GEN PURP 100V 1A DO213AB |
3,114 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | - | 10 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
BYM10-200-E3/97DIODE GEN PURP 200V 1A DO213AB |
3,534 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | - | 10 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
VS-20ETS08S-M3DIODE GEN PURP 800V 20A TO263AB |
2,034 | 2.30 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 100 µA @ 800 V | 800 V | 20A | -40°C ~ 150°C | 1.1 V @ 20 A | |
|
VS-10ETS12FP-M3DIODE GEN PURP 1.2KV 10A TO220FP |
3,289 | 2.41 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 50 µA @ 1200 V | 1200 V | 10A | -40°C ~ 150°C | 1.1 V @ 10 A | |
|
VS-HFA16TB120-M3DIODE FRED 1.2KV 16A TO220AC |
3,307 | 2.45 |
RFQ |
Datasheet |
Tube | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 135 ns | 20 µA @ 1200 V | 1200 V | 16A (DC) | -55°C ~ 150°C | 3.93 V @ 32 A |
|
VS-20ETS16THM3RECTIFIER DIODE 20A 1600V TO-220 |
2,232 | 2.50 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 1600 V | 1600 V | 20A | -40°C ~ 150°C | 1.1 V @ 20 A |
|
|
VS-20ETS08-M3DIODE GEN PURP 800V 20A TO220AC |
3,491 | 2.57 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 800 V | 800 V | 20A | -40°C ~ 150°C | 1.1 V @ 20 A | |
|
|
VS-20ETS12-M3DIODE GEN PURP 1.2KV 20A TO220AC |
2,433 | 2.97 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 1200 V | 1200 V | 20A | -40°C ~ 150°C | 1 V @ 10 A | |
|
VS-8EWS08S-M3DIODE GEN PURP 800V 8A TO252AA |
3,818 | 3.12 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 µA @ 800 V | 800 V | 8A | -55°C ~ 150°C | 1.1 V @ 8 A | |
|
|
VS-8EWS12S-M3DIODE GEN PURP 1.2KV 8A TO252AA |
2,080 | 3.12 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 µA @ 1200 V | 1200 V | 8A | -55°C ~ 150°C | 1.1 V @ 8 A | |
|
|
VS-8EWF02S-M3DIODE GEN PURP 200V 8A TO252AA |
2,143 | 3.56 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 55 ns | 100 µA @ 200 V | 200 V | 8A | -40°C ~ 150°C | 1.2 V @ 8 A | |
;;3.jpg)
|
VS-90APS12L-M3NEW INPUT DIODES - TO-247-E3 |
3,869 | 3.94 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 1200 V | 1200 V | 90A | -40°C ~ 150°C | 1.2 V @ 90 A | |
|
VS-40EPS12-M3DIODE GEN PURP 1.2KV 40A TO247AC |
3,177 | 5.71 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 1200 V | 1200 V | 40A | -40°C ~ 150°C | 1 V @ 20 A | |
|
VS-65EPS16LHM3DIODES - TO-247-E3 |
2,891 | 5.83 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 1600 V | 1600 V | 65A | -40°C ~ 150°C | 1.17 V @ 65 A |
|
VS-30EPH06-N3DIODE GEN PURP 600V 30A TO247AC |
3,753 | 6.90 |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 31 ns | 50 µA @ 600 V | 600 V | 30A | -65°C ~ 175°C | 2.6 V @ 30 A |
|
|
VS-60EPS12-M3DIODE 1.2KV 60A TO247AC |
2,076 | 7.08 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 1200 V | 1200 V | 60A | -40°C ~ 150°C | 1.09 V @ 60 A | |
|

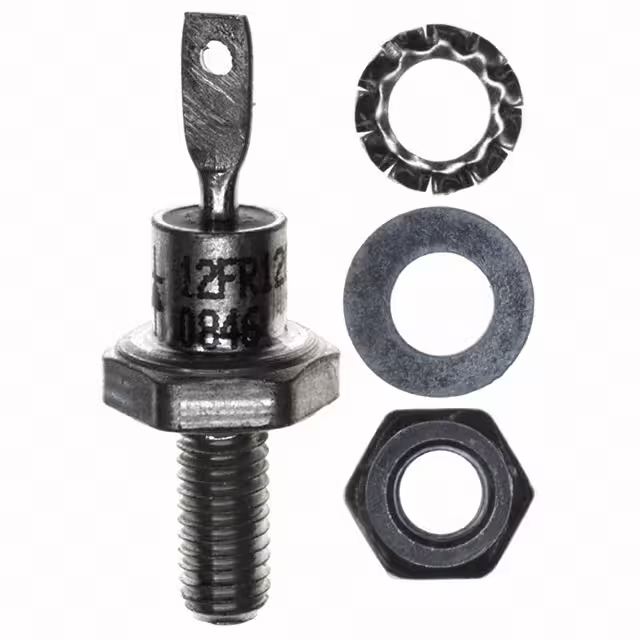

VS-12FR120DIODE GEN PURP 1.2KV 12A DO203AA |
3,390 | 7.40 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 1200 V | 1200 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | |
|
VS-150EBU04HF4DIODE GP 400V 150A POWERTAB |
2,688 | 9.53 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 50 µA @ 150 V | 400 V | 150A | -55°C ~ 175°C | 1.3 V @ 150 A |
