| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-40HF80DIODE GEN PURP 800V 40A DO203AB |
3,113 | 9.50 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 9 mA @ 800 V | 800 V | 40A | -65°C ~ 190°C | 1.3 V @ 125 A | |
|
|
VS-85HFR40DIODE GEN PURP 400V 85A DO203AB |
2,355 | 12.01 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 9 mA @ 400 V | 400 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|

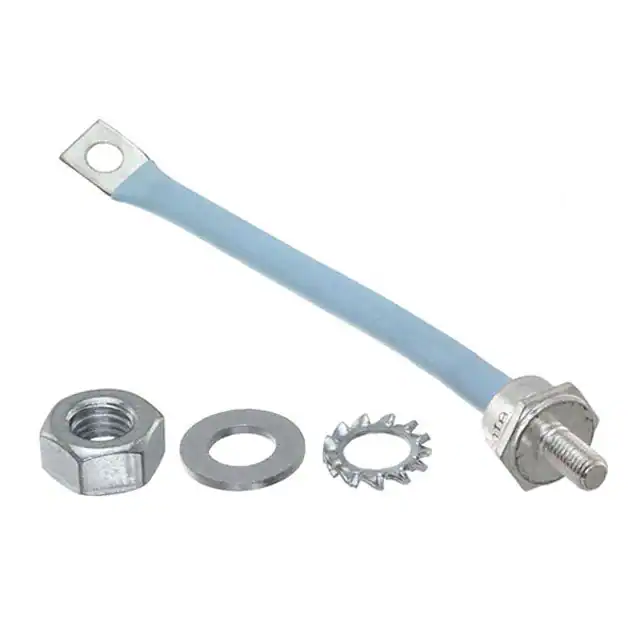

VS-72HF120DIODE GEN PURP 1.2KV 70A DO203AB |
2,527 | 12.25 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | - | 1200 V | 70A | -65°C ~ 180°C | 1.35 V @ 220 A | |
|
|
VS-85HF100DIODE GEN PURP 1KV 85A DO203AB |
2,700 | 13.32 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 9 mA @ 1000 V | 1000 V | 85A | -65°C ~ 180°C | 1.2 V @ 267 A | |
|
VS-60APF12-M3DIODE GEN PURP 1.2KV 60A TO247AC |
3,145 | 14.53 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 480 ns | 100 µA @ 1200 V | 1200 V | 60A | -40°C ~ 150°C | 1.4 V @ 60 A | |
|
|
VS-70HFLR60S02DIODE GEN PURP 600V 70A DO203AB |
3,216 | 16.36 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 200 ns | 100 µA @ 600 V | 600 V | 70A | -40°C ~ 125°C | 1.85 V @ 219.8 A | |
|
VS-120NQ045PBFDIODE SCHOTTKY 45V 120A D-67 |
3,128 | 21.39 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 5200pF @ 5V, 1MHz | - | 10 mA @ 45 V | 45 V | 120A | - | 630 mV @ 120 A | |
|
1N4148W-E3-18DIODE GEN PURP 75V 150MA SOD123 |
2,157 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 100 µA @ 100 V | 75 V | 150mA | 150°C (Max) | 1.2 V @ 100 mA | |
|
VS-SD200N20PCDIODE GEN PURP 2KV 200A DO205 |
2,535 | 71.74 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 15 mA @ 2000 V | 2000 V | 200A | -40°C ~ 180°C | 1.4 V @ 630 A | |
|
VS-SD400N20PCDIODE GEN PURP 2KV 400A DO205 |
3,975 | 110.13 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 15 mA @ 2000 V | 2000 V | 400A | -40°C ~ 190°C | 1.62 V @ 1500 A | |
|
1N4148WS-E3-08DIODE GEN PURP 75V 150MA SOD323 |
2,195 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 100 µA @ 100 V | 75 V | 150mA | -55°C ~ 150°C | 1.2 V @ 100 mA | |
|
|
1N4148W-E3-08DIODE GEN PURP 75V 150MA SOD123 |
3,249 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 100 µA @ 100 V | 75 V | 150mA | 150°C (Max) | 1.2 V @ 100 mA | |
|
MSS1P4-M3/89ADIODE SCHOTTKY 40V 1A MICROSMP |
3,194 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 4V, 1MHz | - | 200 µA @ 40 V | 40 V | 1A | -55°C ~ 150°C | 550 mV @ 1 A |
|
BAS85-GS18DIODE SCHOTTKY 30V 200MA SOD80 |
3,935 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA | 125°C (Max) | 800 mV @ 100 mA |
|
|
BAS170WS-E3-18DIODE SCHOTTKY 70V 70MA SOD323 |
3,677 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 10 µA @ 70 V | 70 V | 70mA | -55°C ~ 125°C | 1 V @ 15 mA | |
|
|
BAT43W-G3-18DIODE SCHOTTKY 30V 200MA SOD123 |
2,438 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 7pF @ 1V, 1MHz | 5 ns | 500 nA @ 25 V | 30 V | 200mA (DC) | 125°C (Max) | 450 mV @ 15 mA | |
|
|
BAT46W-HE3-18DIODE SCHOTTKY 100V 150MA SOD123 |
2,447 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 6pF @ 1V, 1MHz | - | 5 µA @ 75 V | 100 V | 150mA (DC) | 125°C (Max) | 1 V @ 250 mA |
|
|
V1PL45-M3/HDIODE SCHOTTKY 45V 1A MICROSMP |
3,172 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 250 µA @ 45 V | 45 V | 1A | -40°C ~ 150°C | 530 mV @ 1 A |
|
|
V1PM12-M3/HDIODE SCHOTTKY 120V 1A MICROSMP |
2,324 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 100pF @ 4V, 1MHz | - | 50 µA @ 120 V | 120 V | 1A | -40°C ~ 175°C | 870 mV @ 1 A |
|
|
V1PM15-M3/HDIODE SCHOTTKY 150V 1A MICROSMP |
3,284 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | - | 50 µA @ 150 V | 150 V | 1A | -40°C ~ 175°C | 1.21 V @ 1 A |
