| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V1PM15HM3/HDIODE SCHOTTKY 150V 1A MICROSMP |
3,073 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | - | 50 µA @ 150 V | 150 V | 1A | -40°C ~ 175°C | 1.21 V @ 1 A |
|
B140-E3/5ATDIODE SCHOTTKY 40V 1A DO214AC |
3,656 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 1A | -65°C ~ 125°C | 520 mV @ 1 A | |
|
|
V2PL45-M3/HDIODE SCHOTTKY 45V 2A MICROSMP |
2,954 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 300pF @ 4V, 1MHz | - | 350 µA @ 45 V | 45 V | 2A | -40°C ~ 150°C | 560 mV @ 2 A |
|
RGP02-20E-E3/54DIODE GEN PURP 2KV 500MA DO204 |
3,165 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 5 µA @ 2000 V | 2000 V | 500mA | -65°C ~ 175°C | 1.8 V @ 100 mA |
|
|
RGP02-15E-E3/54DIODE GEN PURP 1.5KV 500MA DO204 |
2,885 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 5 µA @ 1500 V | 1500 V | 500mA | -65°C ~ 175°C | 1.8 V @ 100 mA |
|
SS210-E3/52TDIODE SCHOTTKY 100V 1.5A DO214AA |
2,712 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 30 µA @ 100 V | 100 V | 1.5A | -55°C ~ 150°C | 750 mV @ 1 A | |
|
1N5061TRDIODE AVALANCHE 600V 2A SOD57 |
2,702 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | 40pF @ 0V, 1MHz | 4 µs | 1 µA @ 600 V | 600 V | 2A | -55°C ~ 175°C | 1.15 V @ 2.5 A | |
|
|
1N5062TRDIODE AVALANCHE 800V 2A SOD57 |
2,347 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | 40pF @ 0V, 1MHz | 4 µs | 1 µA @ 800 V | 800 V | 2A | -55°C ~ 175°C | 1.15 V @ 2.5 A | |
|
|
VSSB7L45-M3/52TDIODE SCHOTTKY 45V 3.8A DO214AA |
3,592 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1068pF @ 4V, 1MHz | - | 1.6 mA @ 45 V | 45 V | 3.8A | -40°C ~ 150°C | 430 mV @ 3.5 A |
|
SS5P6HM3_A/IDIODE SCHOTTKY 60V 5A TO277A |
2,459 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 150 µA @ 60 V | 60 V | 5A | -55°C ~ 150°C | 690 mV @ 5 A |
|
1N5059GP-E3/54DIODE GEN PURP 200V 1A DO204AC |
3,186 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.2 V @ 1 A |
|
|
1N5062GP-E3/54DIODE GEN PURP 800V 1A DO204AC |
2,191 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 2 µs | 5 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.2 V @ 1 A |
|
S5D-E3/57TDIODE GEN PURP 200V 5A DO214AB |
2,244 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 2.5 µs | 10 µA @ 200 V | 200 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A | |
|
|
S5B-E3/57TDIODE GEN PURP 100V 5A DO214AB |
3,208 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 2.5 µs | 10 µA @ 100 V | 100 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A | |
|
|
VSSB310-E3/52TDIODE SCHOTTKY 100V 1.9A DO214AA |
3,376 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 230pF @ 4V, 1MHz | - | 250 µA @ 100 V | 100 V | 1.9A (DC) | -40°C ~ 150°C | 700 mV @ 3 A |
|
|
VSSB410S-E3/52TDIODE SCHOTTKY 100V 1.9A DO214AA |
2,999 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 230pF @ 4V, 1MHz | - | 250 µA @ 100 V | 100 V | 1.9A (DC) | -40°C ~ 150°C | 770 mV @ 4 A |
|
|
MURS120-E3/52TDIODE GP 200V 1A DO214AA |
2,586 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 2 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A | |
|
|
MURS140-E3/52TDIODE GEN PURP 400V 2A DO214AA |
2,153 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 400 V | 400 V | 2A | -65°C ~ 175°C | 1.25 V @ 1 A | |
|

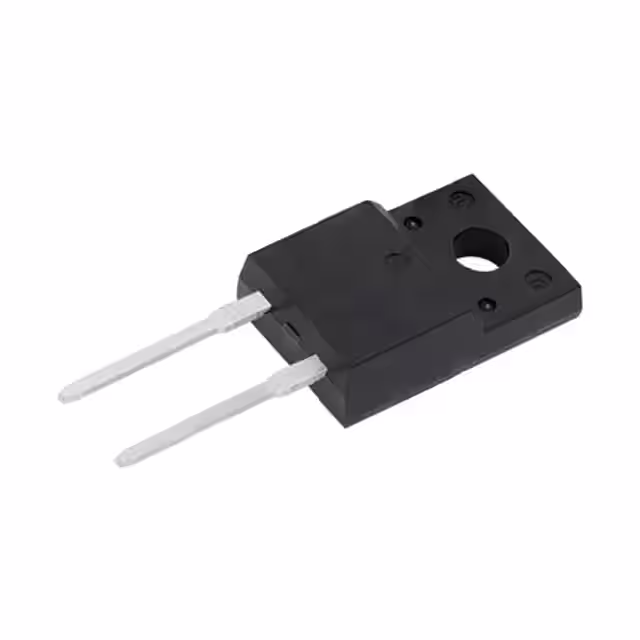

VS-ETH3106FP-N3DIODE GEN PUR 600V 30A TO220-2 |
3,617 | 1.45 |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 90 ns | - | 600 V | 30A | -55°C ~ 175°C | 2.15 V @ 30 A |
|
SB350-E3/54DIODE SCHOTTKY 50V 3A DO201AD |
2,674 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 3A | -65°C ~ 150°C | 680 mV @ 3 A |
