| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-70HF100DIODE GEN PURP 1KV 70A DO203AB |
2,865 | 12.56 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 9 mA @ 1000 V | 1000 V | 70A | -65°C ~ 180°C | 1.35 V @ 220 A | |
|
|
VS-70HF140DIODE GEN PURP 1.4KV 70A DO203AB |
2,840 | 12.96 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 4.5 mA @ 1400 V | 1400 V | 70A | -65°C ~ 150°C | 1.46 V @ 220 A | |
~~2.jpg)
|
VS-1ENH01-M3/85AFRED PT RECTIFIER 1A SMP |
2,444 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 28 ns | 2 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 920 mV @ 1 A |
|
|
VS-1ENH02-M3/85AFRED PT RECTIFIER 1A SMP |
2,644 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 28 ns | 2 µA @ 200 V | 200 V | 1A | -55°C ~ 175°C | 920 mV @ 1 A |
|
|
VS-70HFL80S05DIODE GEN PURP 800V 70A DO203AB |
2,434 | 14.20 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 800 V | 800 V | 70A | -40°C ~ 125°C | 1.85 V @ 219.8 A | |
|
|
VS-2ENH01-M3/85AFRED PT RECTIFIER 2A SMP |
2,237 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 28 ns | 2 µA @ 100 V | 100 V | 2A | -55°C ~ 175°C | 1 V @ 2 A |
|
|
VS-70HFR160DIODE GEN PURP 1.6KV 70A DO203AB |
3,882 | 14.44 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 4.5 mA @ 1600 V | 1600 V | 70A | -65°C ~ 150°C | 1.46 V @ 220 A | |
|
|
VS-2ENH02-M3/85AFRED PT RECTIFIER 2A SMP |
2,701 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 28 ns | 2 µA @ 200 V | 200 V | 2A | -55°C ~ 175°C | 1 V @ 2 A |
|
|
VS-85HFL60S02DIODE GEN PURP 600V 85A DO203AB |
3,858 | 16.82 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 200 ns | 100 µA @ 600 V | 600 V | 85A | -40°C ~ 125°C | 1.75 V @ 266.9 A | |
|
|
VS-85HFL100S05DIODE GEN PURP 1KV 85A DO203AB |
3,922 | 18.72 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 1000 V | 1000 V | 85A | -40°C ~ 125°C | - | |
|
GPP20G-E3/73DIODE GEN PURP 400V 2A DO204AC |
2,239 | 0.08 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 400 V | 400 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
|
VS-85HFL60S05DIODE GEN PURP 600V 85A DO203AB |
3,427 | 19.57 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 600 V | 600 V | 85A | -40°C ~ 125°C | 1.75 V @ 266.9 A | |
|
|
GPP20K-E3/73DIODE GEN PURP 800V 2A DO204AC |
2,419 | 0.08 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 5 µA @ 800 V | 800 V | 2A | -55°C ~ 150°C | 1.1 V @ 2 A | |
|
SS26S-M3/5ATDIODE SCHOTTKY 2A 60V DO-214AC |
2,644 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 60 V | 60 V | 2A | -55°C ~ 150°C | 750 mV @ 2 A | |
|
|
SS26S-M3/61TDIODE SCHOTTKY 2A 60V DO-214AC |
2,887 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 60 V | 60 V | 2A | -65°C ~ 150°C | 700 mV @ 2 A | |
|
VS-T70HF10DIODE GEN PURP 100V 70A D-55 |
3,145 | 29.84 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 15 mA @ 100 V | 100 V | 70A | - | - | |
|
VS-150UR100DDIODE GEN PURP 1KV 150A DO205 |
3,356 | 30.73 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 15 mA @ 1000 V | 1000 V | 150A | -40°C ~ 180°C | 1.47 V @ 600 A | |
|
|
VS-T70HFL20S02DIODE GEN PURP 200V 70A D-55 |
2,865 | 31.24 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 200 ns | 100 µA @ 200 V | 200 V | 70A | - | - | |
|

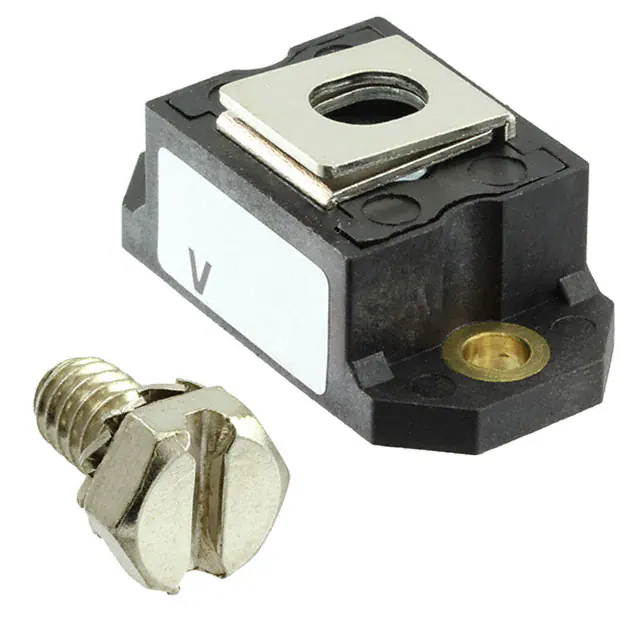

VS-243NQ100PBFDIODE SCHOTTKY 100V 240A D-67 |
2,589 | 34.78 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 5500pF @ 5V, 1MHz | - | 6 mA @ 100 V | 100 V | 240A | -55°C ~ 175°C | 950 mV @ 240 A | |
|
|
U1D-M3/5ATDIODE GEN PURP 200V 1A DO214AC |
3,379 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6.8pF @ 4V, 1MHz | 24 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A |
