| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-VSKE91/16DIODE GP 1.6KV 100A ADD-A-PAK |
3,126 | 38.75 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 10 mA @ 1600 V | 1600 V | 100A | -40°C ~ 150°C | - | |
|
U1D-M3/61TDIODE GEN PURP 200V 1A DO214AC |
3,495 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6.8pF @ 4V, 1MHz | 24 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A | |
|
VS-T85HFL60S02DIODE GEN PURP 600V 85A D-55 |
2,098 | 44.06 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 200 ns | 20 mA @ 600 V | 600 V | 85A | - | - | |
|
VS-150UR120DDIODE GP 1200V 150A DO-8 |
2,673 | 44.91 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | - | 1200 V | 150A | -40°C ~ 180°C | 1.47 V @ 600 A | |
|
VS-240U120DDIODE GEN PURP 1.2KV 320A DO205 |
2,596 | 46.31 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 15 mA @ 1200 V | 1200 V | 320A | -40°C ~ 180°C | 1.33 V @ 750 A | |
|

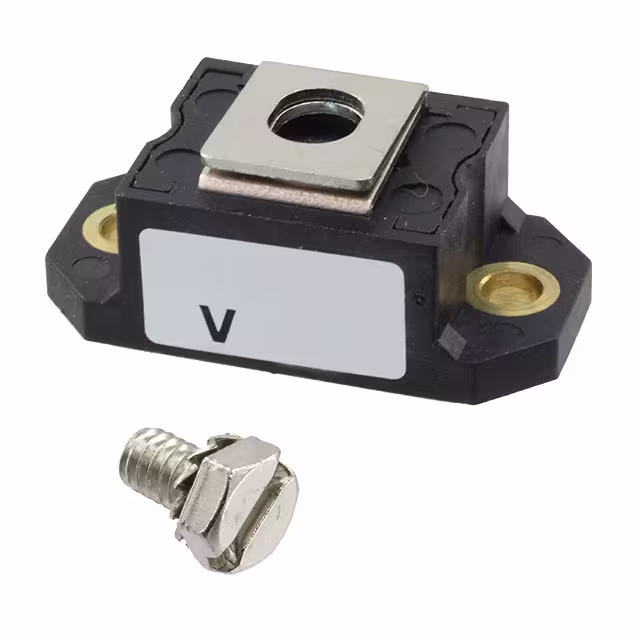

VS-249NQ150PBFDIODE SCHOTTKY 150V 240A HALFPAK |
3,307 | 47.65 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 6000pF @ 5V, 1MHz | - | 6 mA @ 150 V | 150 V | 240A | -55°C ~ 175°C | 1.21 V @ 240 A | |
|
|
SS24S-E3/5ATDIODE SCHOTTKY 40V 2A DO214AC |
3,078 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 4V, 1MHz | - | 200 µA @ 40 V | 40 V | 2A | -55°C ~ 150°C | 550 mV @ 2 A | |
|
|
VS-300UR40ADIODE GEN PURP 400V 300A DO9 |
3,095 | 52.04 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 40 mA @ 400 V | 400 V | 300A | -65°C ~ 200°C | 1.4 V @ 942 A | |
~~2.jpg)
|
S1PBHM3/85ADIODE GEN PURP 100V 1A DO220AA |
3,466 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
VS-300U20ADIODE GEN PURP 200V 300A DO205AB |
2,099 | 52.14 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 40 mA @ 200 V | 200 V | 300A | -65°C ~ 200°C | 1.4 V @ 942 A | |
|
|
S1PDHM3/85ADIODE GEN PURP 200V 1A DO220AA |
2,098 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
VS-400UR120DDIODE GEN PURP 1.2KV 400A DO205 |
2,190 | 61.15 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 15 mA @ 1200 V | 1200 V | 400A | -40°C ~ 200°C | 1.62 V @ 1500 A | |
|
|
S1PGHM3/85ADIODE GEN PURP 400V 1A DO220AA |
2,656 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
VS-400U160DDIODE GEN PURP 1.6KV 400A DO205 |
2,021 | 63.37 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 15 mA @ 1600 V | 1600 V | 400A | -40°C ~ 200°C | 1.62 V @ 1500 A | |
|
|
S1PJHM3/85ADIODE GEN PURP 600V 1A DO220AA |
2,710 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
S1PKHM3/85ADIODE GEN PURP 800V 1A DO220AA |
3,778 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
VS-400U80DDIODE GEN PURP 800V 400A DO205AB |
2,781 | 71.28 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 15 mA @ 800 V | 800 V | 400A | -40°C ~ 200°C | 1.62 V @ 1500 A | |
|
|
S1PMHM3/85ADIODE GEN PURP 1KV 1A DO220AA |
2,146 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 6pF @ 4V, 1MHz | 1.8 µs | 1 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
B150-E3/5ATDIODE SCHOTTKY 50V 1A DO214AC |
3,122 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 750 mV @ 1 A | |
|
|
VS-SD400N24PCDIODE GEN PURP 2.4KV 400A DO205 |
2,818 | 110.13 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 15 mA @ 2400 V | 2400 V | 400A | -40°C ~ 190°C | 1.62 V @ 1500 A |
