| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6677-1RECTIFIER DIODE |
3,982 | 3.77 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
LXS101-23-0/TRSI SCHOTTKY NON HERMETIC PLASTIC |
2,455 | 2.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 1pF @ 0V, 1MHz | - | 100 nA @ 1 V | 8 V | 1A (DC) | -55°C ~ 125°C | 350 mV @ 1 mA | |
|
|
1N486AZENER DIODE |
2,277 | 4.17 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
1N647-1/TRSIGNAL/COMPUTER DIODE |
3,165 | 1.65 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 50 nA @ 400 V | 400 V | 400mA | -65°C ~ 175°C | 1 V @ 400 mA | ||
|
1N5618/TRSTD RECTIFIER |
2,627 | 3.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
|
1N5712-1/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,653 | 4.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 2pF @ 0V, 1MHz | - | 150 nA @ 16 V | 20 V | 75mA | -65°C ~ 150°C | 1 V @ 35 mA |
|
|
1N5614/TRSTD RECTIFIER |
3,351 | 3.80 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
|
1N5617E3RECTIFIER |
2,403 | 4.22 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 12V, 1MHz | 150 ns | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 800 mV @ 3 A | |
|
APT15DQ120BGDIODE GEN PURP 1.2KV 15A TO247 |
3,833 | 1.67 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 240 ns | 100 µA @ 1200 V | 1200 V | 15A | -55°C ~ 175°C | 3.3 V @ 15 A | |
|
CDLL4148DIODE GEN PURP 75V 200MA DO213AA |
3,197 | 2.93 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 200mA | -65°C ~ 175°C | 1 V @ 200 mA | |
|

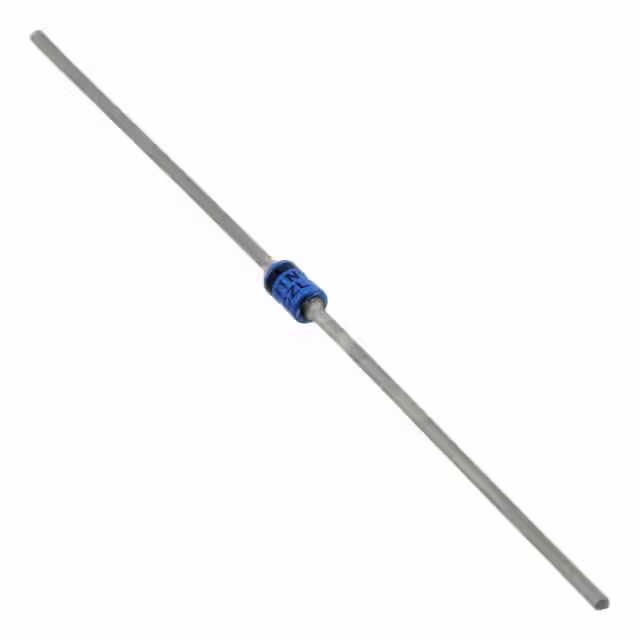

JAN1N3613DIODE GEN PURP 600V 1A AXIAL |
2,240 | 4.23 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/228 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 300 V | 600 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
|
1N647/TRSIGNAL/COMPUTER DIODE |
3,798 | 1.67 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | - | 400 V | - | - | 1 V @ 400 mA | ||
|
|
CDLL0.5A40DIODE SCHOTTKY 40V 500MA DO213AA |
2,001 | 2.94 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | - | 10 µA @ 40 V | 40 V | 500mA | -65°C ~ 125°C | 650 mV @ 500 mA | |
|

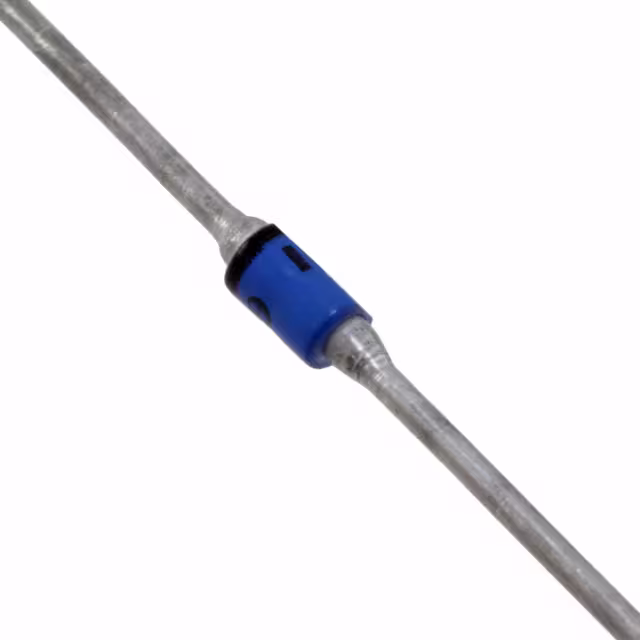

JAN1N3614DIODE GEN PURP 800V 1A AXIAL |
3,831 | 4.23 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/228 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 1 µA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
|
CDLL483BDIODE GEN PURP 80V 200MA DO213AA |
2,353 | 2.97 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | - | 100 µA @ 80 V | 80 V | 200mA | -65°C ~ 175°C | 1 V @ 100 mA | |
|
|
1N486BZENER DIODE |
3,680 | 4.23 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
1N485A/TRSIGNAL/COMPUTER DIODE |
3,020 | 3.84 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 180 V | 180 V | 100mA (DC) | -65°C ~ 175°C | 1 V @ 100 mA | ||
|
|
CDLL0.2A20DIODE SCHOTTKY 20V 200MA DO213AA |
2,887 | 2.97 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | - | 5 µA @ 20 V | 20 V | 200mA | -65°C ~ 125°C | 500 mV @ 200 mA | |
|
|
JAN1N3611/TRSTD RECTIFIER |
2,228 | 4.23 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/228 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 300 V | 200 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
1N485/TRSIGNAL/COMPUTER DIODE |
2,722 | 3.84 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 180 V | 180 V | 100mA (DC) | -65°C ~ 175°C | 1 V @ 100 mA |
