| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD1A30DIODE SMALL-SIGNAL SCHOTTKY |
2,817 | 2.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 30 V | 1A | -55°C ~ 125°C | 600 mV @ 1 A | |
|
|
CD5819DIODE SMALL-SIGNAL SCHOTTKY |
3,234 | 4.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/586 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 600 mV @ 1 A |
|
|
LSM845G/TR13DIODE SCHOTTKY 45V 8A DO215AB |
3,962 | 1.71 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 2 mA @ 45 V | 45 V | 8A | -55°C ~ 150°C | 520 mV @ 8 A | |
|
1N6677/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,640 | 3.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 50pF @ 0V, 1MHz | - | 5 µA @ 40 V | 40 V | 200mA | -65°C ~ 125°C | 500 mV @ 200 mA | |
|
|
CD1A20DIODE SMALL-SIGNAL SCHOTTKY |
2,885 | 2.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 600 mV @ 1 A | |
|
|
1N6677-1E3/TRDIODE SMALL-SIGNAL SCHOTTKY |
3,916 | 3.93 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/610 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 50pF @ 0V, 1MHz | - | 5 µA @ 40 V | 40 V | 200mA | -65°C ~ 125°C | 500 mV @ 200 mA | |
|
APT30D120SGDIODE ULT FAST 30A 1200V D3PAK |
3,165 | 2.99 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 370 ns | 250 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 2.5 V @ 30 A | |
|

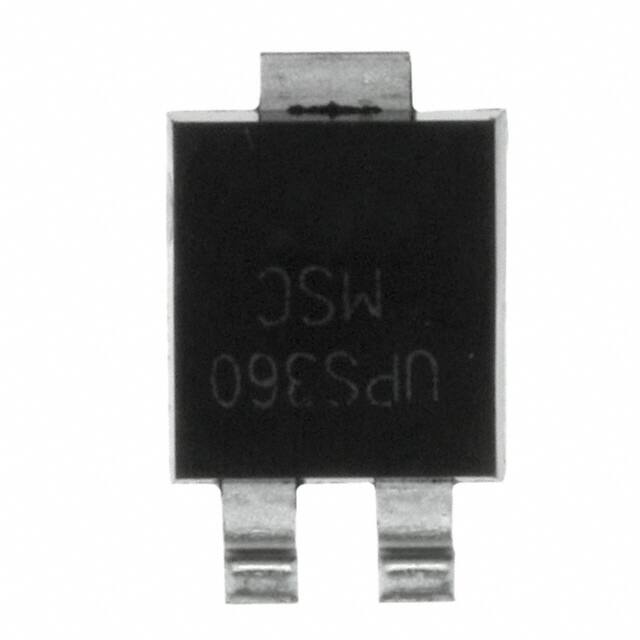

UPS360E3/TR13DIODE SCHOTTKY 60V 3A POWERMITE3 |
2,076 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 4V, 1MHz | - | 200 µA @ 60 V | 60 V | 3A | -55°C ~ 125°C | 630 mV @ 3.5 A | |
|
|
1N6677-1/TRDIODE SMALL-SIGNAL SCHOTTKY |
3,371 | 3.93 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/610 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 50pF @ 0V, 1MHz | - | 5 µA @ 40 V | 40 V | 200mA | -65°C ~ 125°C | 500 mV @ 200 mA | |
|
1N483BURDIODE GEN PURP 225V 50MA DO213AA |
3,683 | 4.31 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | - | 25 nA @ 225 V | 225 V | 50mA | -65°C ~ 175°C | 1 V @ 100 mA | |
|
JANTXV1N4148UR-1/TRSIGNAL/COMPUTER DIODE |
2,599 | 3.02 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/116 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 20 ns | 25 nA @ 20 V | 75 V | 200mA | -65°C ~ 175°C | 1.2 V @ 100 mA | |
|
|
1N485BURDIODE GEN PURP 180V 100MA DO213 |
3,077 | 4.31 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | - | 25 nA @ 180 V | 180 V | 100mA (DC) | -65°C ~ 175°C | 1 V @ 100 mA | |
|
|
1N486BURDIODE RECT STD RECOVERY |
2,560 | 4.31 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
APT60D20BGDIODE GEN PURP 200V 60A TO247 |
3,611 | 3.03 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 31 ns | 250 µA @ 200 V | 200 V | 60A | -55°C ~ 175°C | 1.3 V @ 60 A | |
|

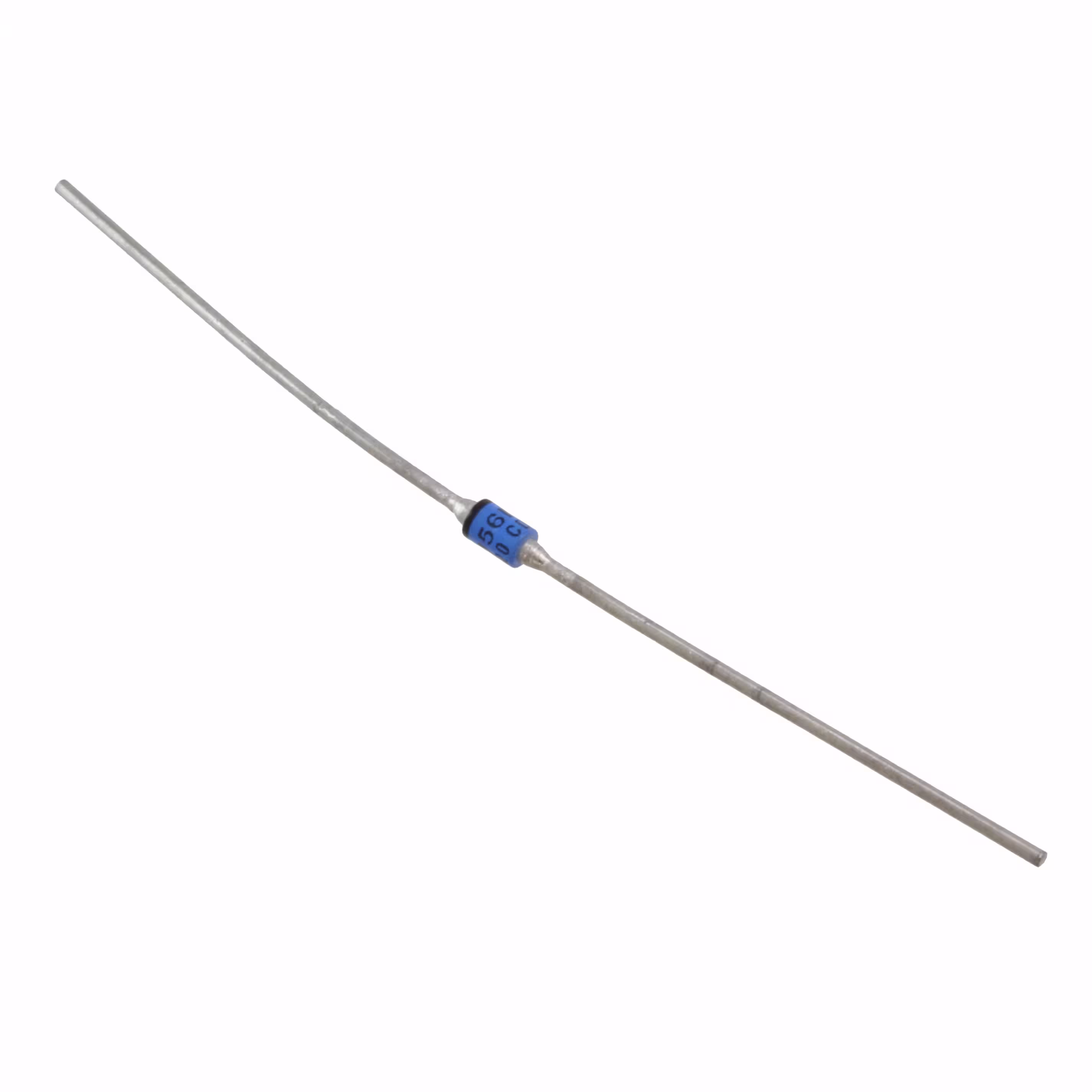

JAN1N5614DIODE GEN PURP 200V 1A AXIAL |
2,906 | 4.31 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
1N4938UR-1DIODE GEN PURP 175V 100MA DO213 |
3,759 | 3.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 50 ns | 100 nA @ 175 V | 175 V | 100mA | -65°C ~ 175°C | 1 V @ 100 mA | |
|
|
JAN1N5615DIODE GEN PURP 200V 1A AXIAL |
3,711 | 4.31 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
1N5616/TRSTD RECTIFIER |
2,433 | 3.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|

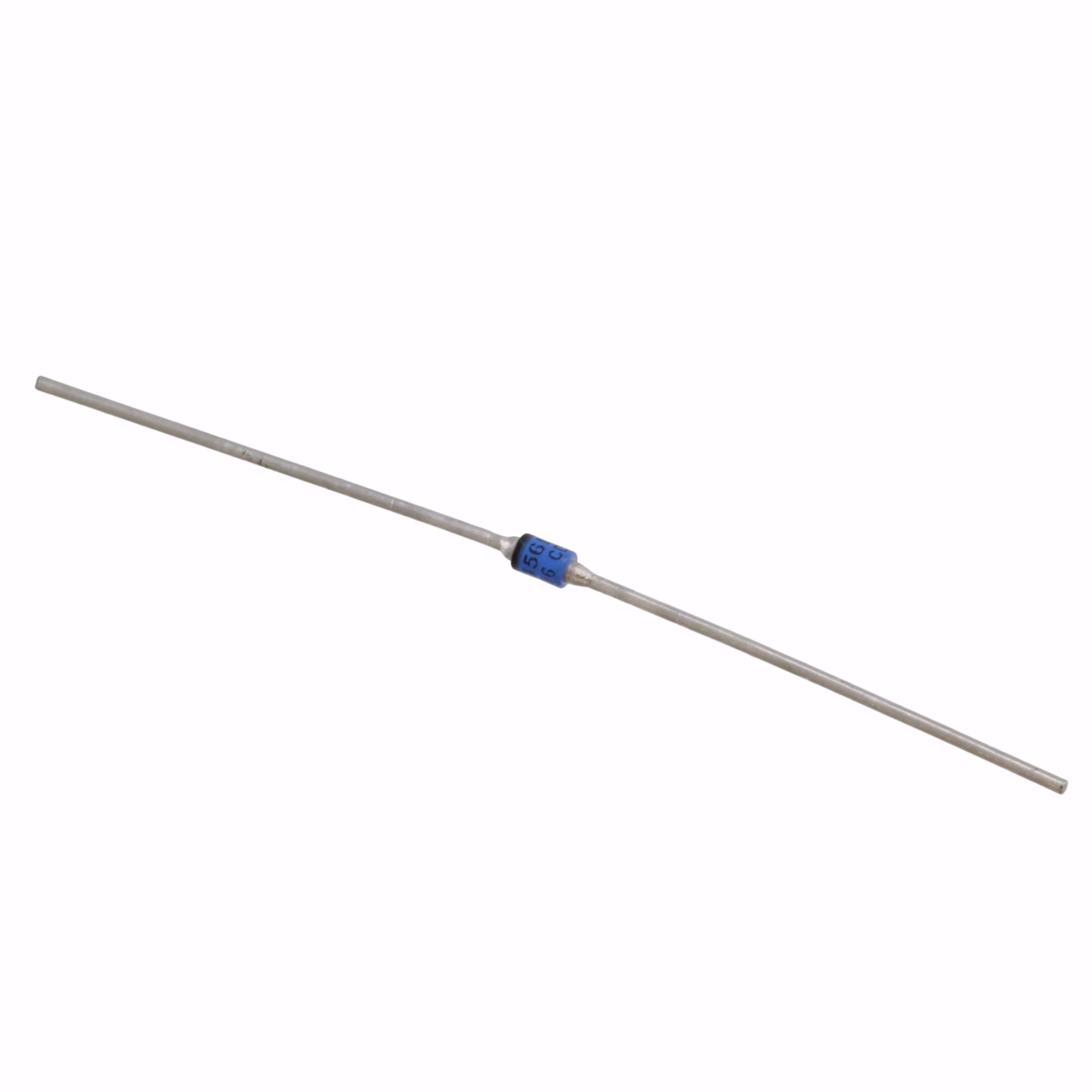

JAN1N5616DIODE GEN PURP 400V 1A AXIAL |
2,727 | 4.31 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
JANTX1N5807DIODE GEN PURP 50V 3A AXIAL |
3,920 | 7.13 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A |
