| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDLL0.2A20/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,544 | 3.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | - | 5 µA @ 20 V | 20 V | 200mA | -65°C ~ 125°C | 500 mV @ 200 mA | |
|
MBR6050PTE3/TUDIODE SCHOTTKY 60A 50V TO-247AD |
2,858 | 1.76 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
JAN1N5554DIODE GEN PURP 1KV 3A AXIAL |
2,719 | 7.22 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 1000 V | 1000 V | 3A | -65°C ~ 175°C | 1.3 V @ 9 A |
|
|
CDLL0.5A30/TRDIODE SMALL-SIGNAL SCHOTTKY |
2,865 | 3.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | - | 10 µA @ 30 V | 30 V | 500mA | -65°C ~ 125°C | 650 mV @ 500 mA | |
|
|
MBR6060PTE3/TUDIODE SCHOTTKY 60A 60V TO-247AD |
2,489 | 1.76 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
CDLL0.2A40/TRDIODE SMALL-SIGNAL SCHOTTKY |
3,428 | 3.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 50pF @ 0V, 1MHz | - | 5 µA @ 40 V | 40 V | 200mA | -65°C ~ 125°C | 500 mV @ 200 mA | |
|
|
MBR6080PTE3/TUDIODE SCHOTTKY 60A 80V TO-247AD |
3,078 | 1.76 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
1N5190/TRRECTIFIER UFR,FRR |
2,290 | 7.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | 2 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
CD6858DIODE SMALL-SIGNAL SCHOTTKY |
2,651 | 3.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 4.5pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | 15mA | -55°C ~ 125°C | 650 mV @ 15 mA | |
|
|
MBR6090PTE3/TUDIODE SCHOTTKY 60A 90V TO-247AD |
3,821 | 1.76 |
RFQ |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
1N5186/TRRECTIFIER UFR,FRR |
2,282 | 7.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 2 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
|
JAN1N914URZENER DIODE |
2,953 | 3.15 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/116 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 200mA | -65°C ~ 175°C | 1.2 V @ 50 mA |
|
|
1N5187/TRRECTIFIER UFR,FRR |
2,670 | 7.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 2 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|

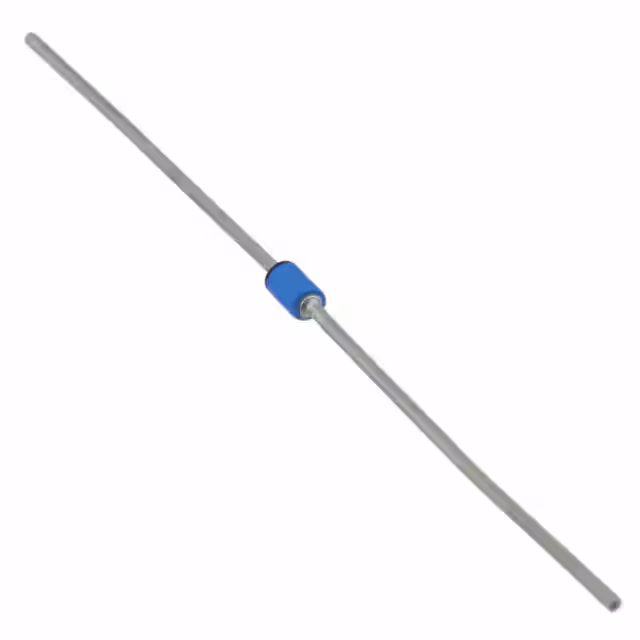

JAN1N4245DIODE GEN PURP 200V 1A AXIAL |
3,818 | 3.16 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/286 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 5 µs | 1 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.3 V @ 3 A |
|
|
1N5195UR/TRSIGNAL/COMPUTER DIODE |
3,362 | 7.25 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | - | 25 nA @ 180 V | 180 V | 200mA | -65°C ~ 175°C | 1 V @ 100 mA | ||
|
|
1N5189/TRRECTIFIER UFR,FRR |
2,208 | 7.25 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 300 ns | 2 µA @ 500 V | 500 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | ||
|
1N5420E3/TRRECTIFIER UFR,FRR |
2,594 | 7.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | - | 600 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
1N5188/TRRECTIFIER UFR,FRR |
3,403 | 7.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 2 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
APT15D120KGDIODE GEN PURP 1.2KV 15A TO220 |
3,885 | 1.77 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 260 ns | 250 µA @ 1200 V | 1200 V | 15A | -55°C ~ 175°C | 2.5 V @ 15 A | |
|
JANTX1N6643US/TRSIGNAL/COMPUTER DIODE |
3,671 | 7.25 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 6 ns | 50 nA @ 20 V | 125 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA |
